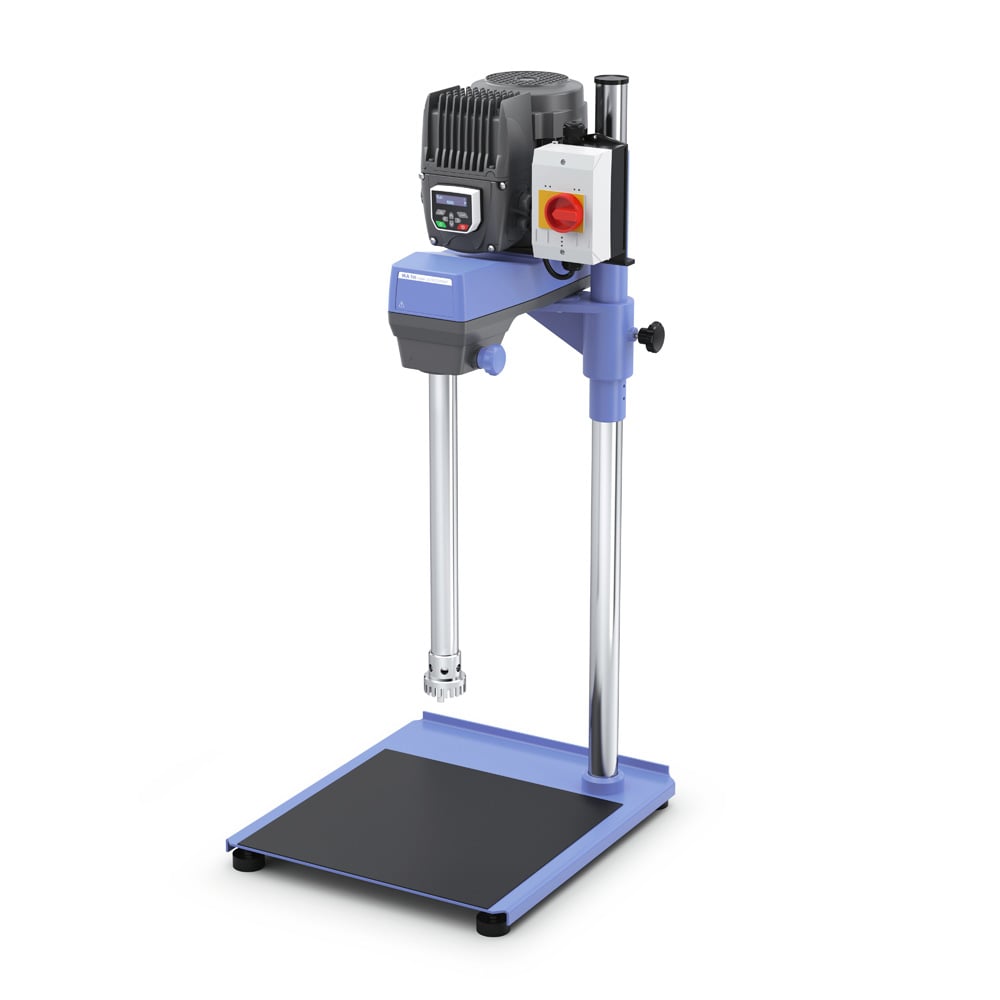

Ika T 65 digital ULTRA-TURRAX®
Extremely powerful dispersing instrument for volumes from 2 - 50 l (H2O) for typical pilot plant stations with digital speed display
It offers a wide speed range from 1000 – 9, 500 rpm that enables users to work at high circumferential speeds even with small rotor diameters
Three rotor-stator configurations guarantee a wide range of applications
Reproducible operations due to constant speed even with changes in viscosities
Digital speed display
Electronic speed control
Electronic overload protection
Plug-in connectors facilitate exchange of dispersing elements
Optional stainless steel dispersing elements for use under vacuum and pressure
Error code display
Mains cable (2.5 m) and SI 400 safety switch are available as accessories (not included with delivery)
The device requires a 3-phase electricity supply in order to operate
The connection of the unit to the power supply must be done by a qualified electrician
Wiring diagrams are included in the manual for reference
| Snelheidsbereik (tpm) | 1.000 - 9.500 rpm | |||||||||||||||||||||||||||||||||||||
| Volume van het monster | 50 L | |||||||||||||||||||||||||||||||||||||
| Technische data |
| Motor rating input [W] | 2600 |
| Motor rating output [W] | 2200 |
| Volume range (H2O) [l] | 2 - 50 |
| Viscosity max. [mPas] | 5000 |
| Speed range [rpm] | 1000 - 9500 |
| Reversible direction of rotation | Nee |
| Speed deviation [%] | 3 |
| Speed display | 7 segment LED |
| Speed adjustment | stepless |
| Noise without element [dB(A)] | 75 |
| Process type | batch |
| Dimensions (W x H x D) [mm] | 300 x 420 x 400 |
| Weight [kg] | 35 |
| Permissible ambient temperature [°C] | 5 - 40 |
| Permissible relative humidity [%] | 80 |
| Protection class according to DIN EN 60529 | IP 54 |
| Voltage [V] | 3 x 400 |
| Frequency [Hz] | 50/60 |
| Power input [W] | 2600 |
Extremely powerful dispersing instrument for volumes from 2 - 50 l (H2O) for typical pilot plant stations with digital speed display
It offers a wide speed range from 1000 – 9, 500 rpm that enables users to work at high circumferential speeds even with small rotor diameters
Three rotor-stator configurations guarantee a wide range of applications
Reproducible operations due to constant speed even with changes in viscosities
Digital speed display
Electronic speed control
Electronic overload protection
Plug-in connectors facilitate exchange of dispersing elements
Optional stainless steel dispersing elements for use under vacuum and pressure
Error code display
Mains cable (2.5 m) and SI 400 safety switch are available as accessories (not included with delivery)
The device requires a 3-phase electricity supply in order to operate
The connection of the unit to the power supply must be done by a qualified electrician
Wiring diagrams are included in the manual for reference
