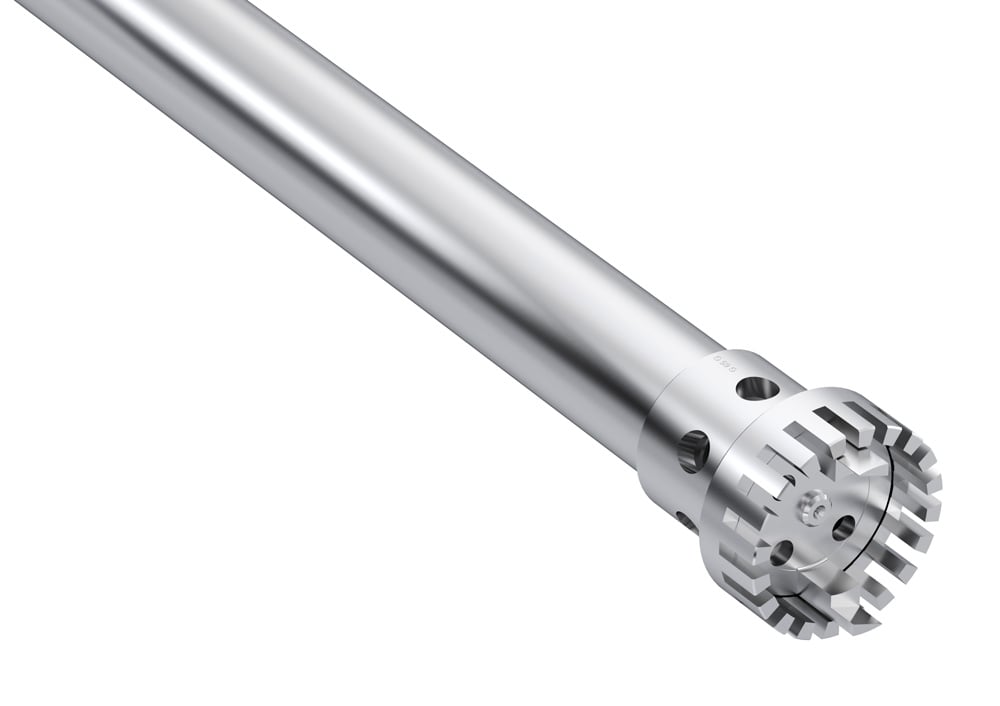

IKA S 65 KD – G 65 G Dispergeerelement
Dispersing tool for the disperser T 65 basic/digital
Type of sealing and bearing: Ball-bearing with PTFE sealing and FFKM O-ring
Product-touching material: AISI 316L, PTFE, FFKM
Suitable for solvents: Yes
Sterilizable: all methods (except ball bearing)
Suitable for vacuum: Yes
Max
working temperature [°C]: 180
Shaft length [mm]: 520
Diameter stator/rotor [mm]: 65/53
Gap between [mm]: 0.5
Recommend emersion depth [mm]: 90
450
Recommend working range [ml]: 2,000
50,000
| Volume range (H2O) [l] | 2 - 50 |
| Stator diameter [mm] | 65 |
| Rotor diameter [mm] | 53 |
| Gap between rotor and stator [mm] | 0.5 |
| allowable Speed max. [rpm] | 9500 |
| Circumferential speed max. [m/s] | 26.4 |
| Immersion depth [mm] | 90 - 450 |
| Shaft length [mm] | 520 |
| Material in contact with medium | FFPM, PTFE, AISI 316L |
| pH range | 2 - 13 |
| Suitable for solvents | no |
| Suitable for abrasive substances | no |
| Working temperature max. [°C] | 180 |
| Sterilization methods | wet chemical |
| Vacuum [mbar] | 100 |
| Ultimate fineness, suspensions [µm] | 25 - 75 |
| Ultimate fineness, emulsions [µm] | 5 - 25 |
| Weight [kg] | 4.39 |
| Permissible ambient temperature [°C] | 5 - 40 |
Dispersing tool for the disperser T 65 basic/digital
Type of sealing and bearing: Ball-bearing with PTFE sealing and FFKM O-ring
Product-touching material: AISI 316L, PTFE, FFKM
Suitable for solvents: Yes
Sterilizable: all methods (except ball bearing)
Suitable for vacuum: Yes
Max
working temperature [°C]: 180
Shaft length [mm]: 520
Diameter stator/rotor [mm]: 65/53
Gap between [mm]: 0.5
Recommend emersion depth [mm]: 90
450
Recommend working range [ml]: 2,000
50,000
Downloads
ika-dispergeerelementen-brochure-en.pdf
