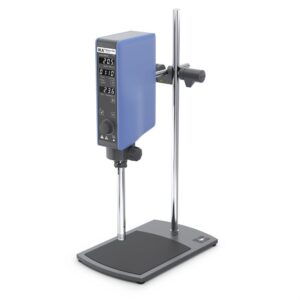

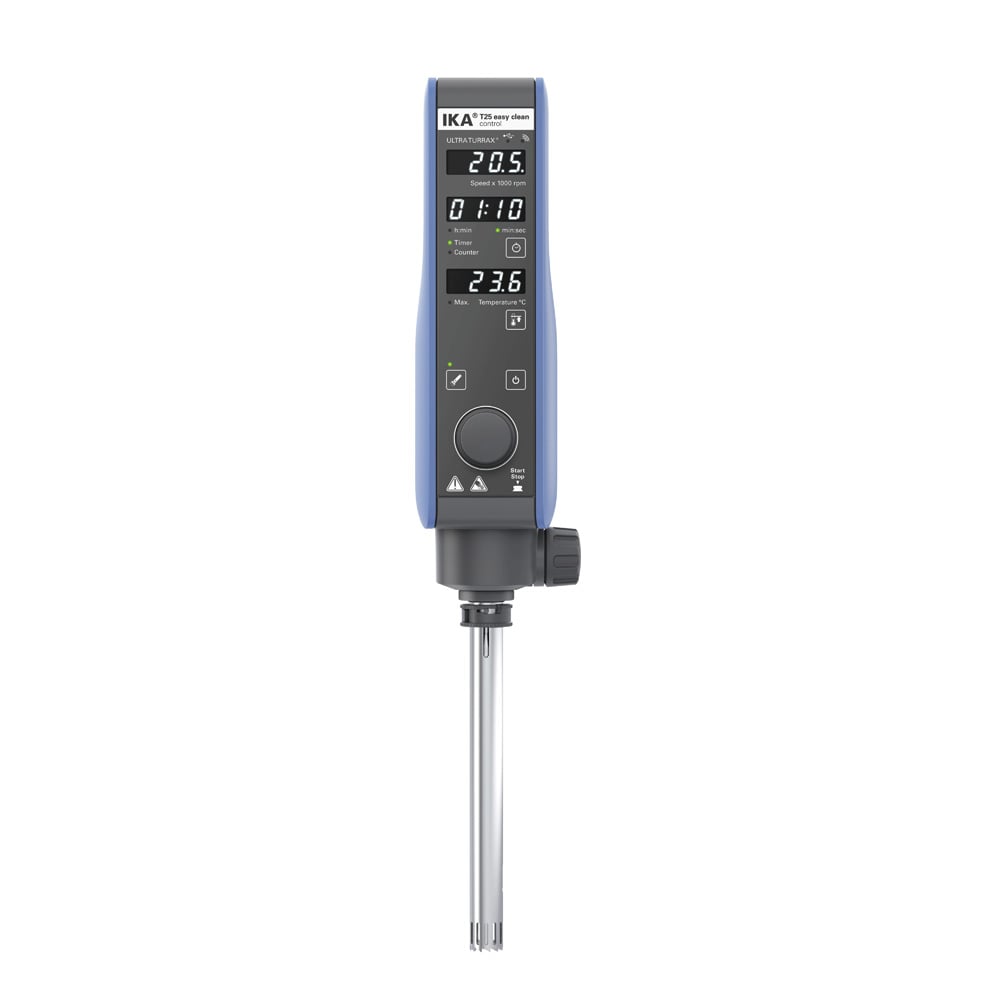

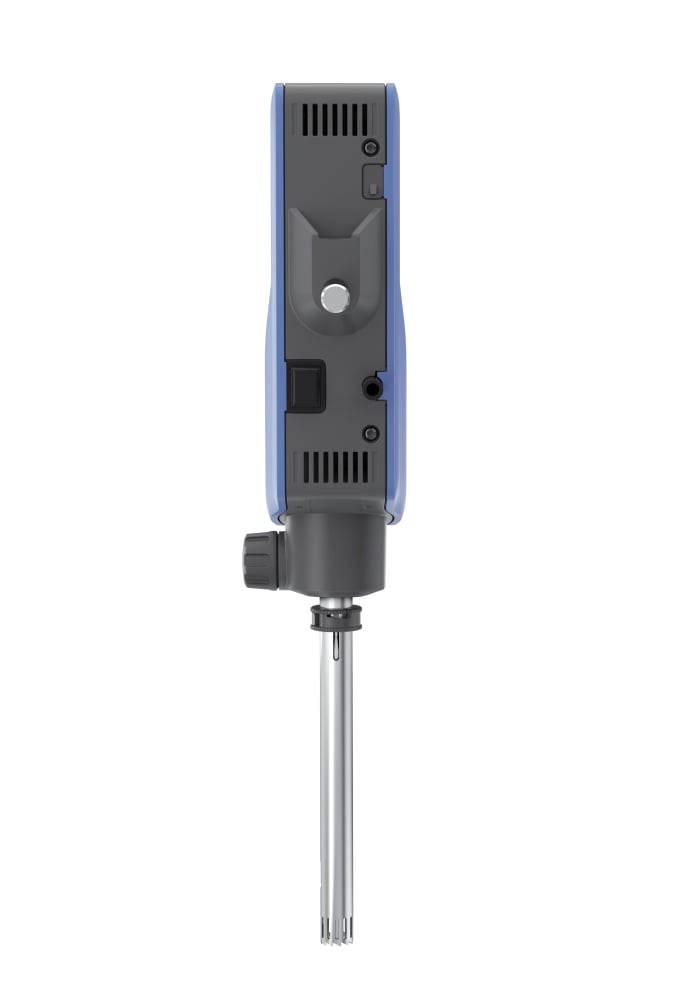

Ika T 25 easy clean control ULTRA-TURRAX®
The T 25 easy clean control is a high-performance dispersing instrument with electronic speed control from 3, 000 - 25, 000 rpm for working volumes of 1 - 2, 000 ml (H2O)
The new tool S 25 EC-T-C-18G-ST allows temperature measurement and operation time detection through RFID
Device overheating is prevented by continuous temperature monitoring and the setting of temperature limits
The detection of operation time serves to guarantee regular maintenance

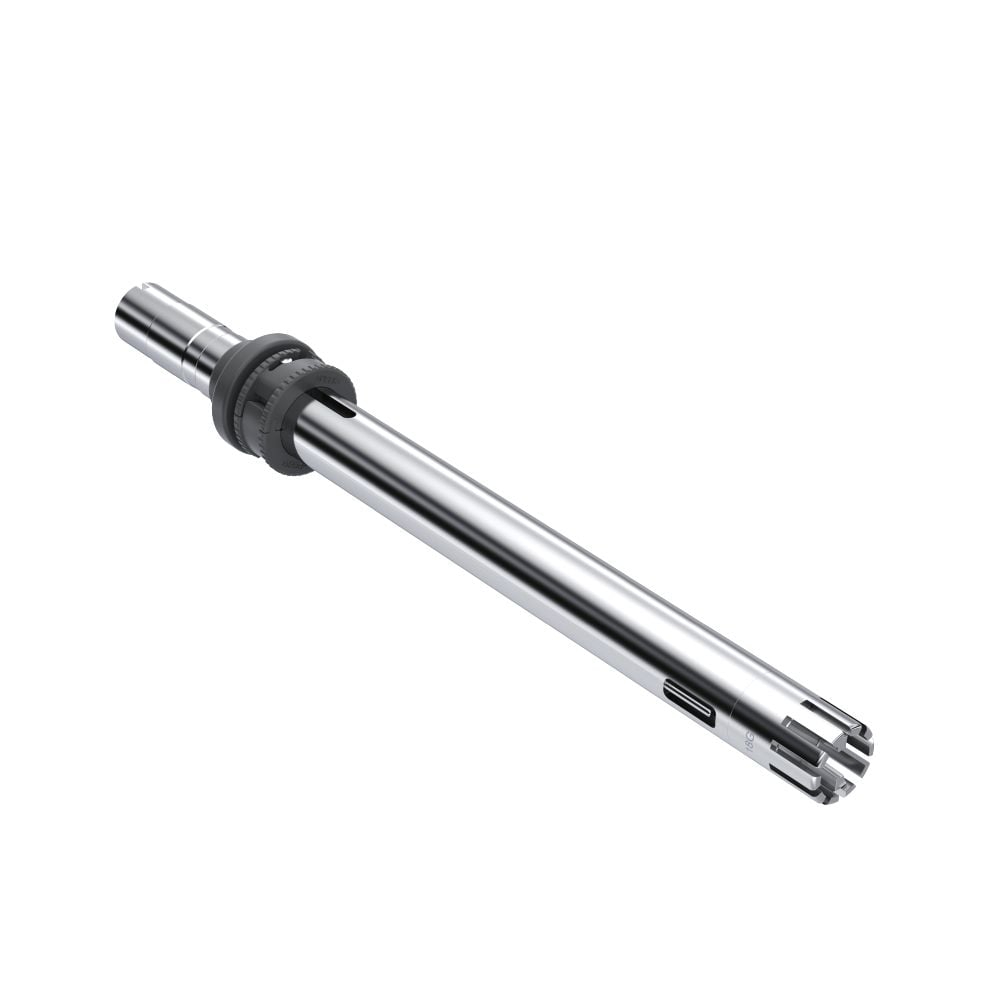

All S 25 tools are compatible with T 25 easy clean control
Key features in overview

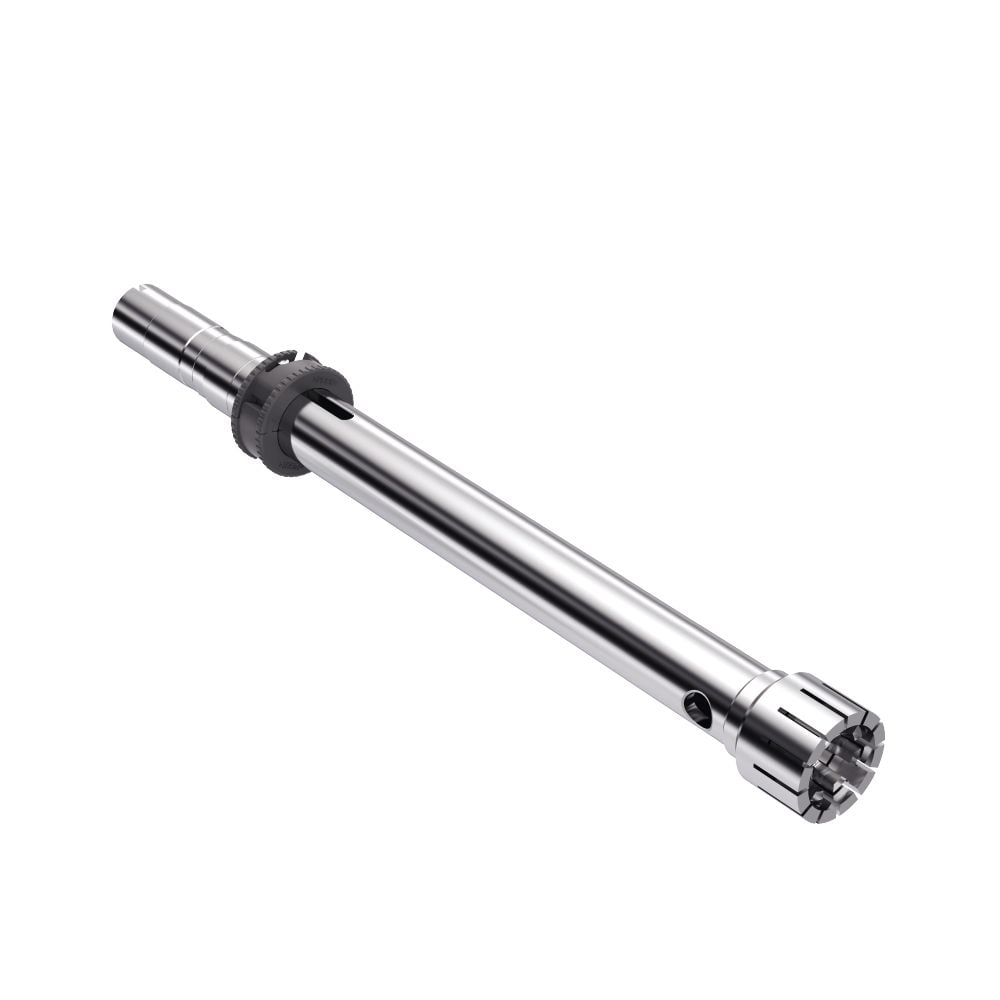

Continuous temperature measurement with S 25 EC-T-C-18G-ST tool including an integrated temperature sensor
Operation time detection through RFID
Quick and easy cleaning of the easy clean dispersing tools, no disassembling required
Brushless motor guarantees dust-free and silent operation
USB interface for control and documentation via labworldsoft®
Timer/counter function
Increased safety through tool recognition and IP-class
Remote control with WiCo (not incl
with delivery)
The dispersing tool is not included in the scope of delivery
| Snelheidsbereik (tpm) | 3.000 - 25.000 rpm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Volume van het monster | 2 L | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Technische data |
| Motor rating input [W] | 500 |
| Motor rating output [W] | 400 |
| Volume range (H2O) [l] | 0.001 - 2 |
| Viscosity max. [mPas] | 5000 |
| Speed range [rpm] | 3000 - 25000 |
| Reversible direction of rotation | Nee |
| Speed deviation [%] | 2 |
| Speed display | LED |
| Speed adjustment | stepless |
| Noise without element [dB(A)] | 70 |
| Motor principle | Brushless DC |
| Extension arm diameter [mm] | 13 |
| Extension arm length [mm] | 160 |
| Process type | batch |
| Temperature display | Ja |
| Temperature measuring range [°C] | 0 - 125 |
| Temperature measurement resolution [K] | 0.1 |
| Accuracy of temperature measurement [K] | ±1 |
| Timer | Ja |
| Timer display | LED |
| Permissible ON time [%] | 100 |
| Dimensions (W x H x D) [mm] | 89 x 270 x 161 |
| Weight [kg] | 3 |
| Permissible ambient temperature [°C] | 5 - 40 |
| Permissible relative humidity [%] | 80 |
| Protection class according to DIN EN 60529 | IP 30 |
| RS 232 interface | Nee |
| USB interface | Ja |
| Analog output | Nee |
| Voltage [V] | 220 - 240 |
| Frequency [Hz] | 50/60 |
| Power input [W] | 500 |
The T 25 easy clean control is a high-performance dispersing instrument with electronic speed control from 3, 000 - 25, 000 rpm for working volumes of 1 - 2, 000 ml (H2O)
The new tool S 25 EC-T-C-18G-ST allows temperature measurement and operation time detection through RFID
Device overheating is prevented by continuous temperature monitoring and the setting of temperature limits
The detection of operation time serves to guarantee regular maintenance
All S 25 tools are compatible with T 25 easy clean control
Key features in overview
Continuous temperature measurement with S 25 EC-T-C-18G-ST tool including an integrated temperature sensor
Operation time detection through RFID
Quick and easy cleaning of the easy clean dispersing tools, no disassembling required
Brushless motor guarantees dust-free and silent operation
USB interface for control and documentation via labworldsoft®
Timer/counter function
Increased safety through tool recognition and IP-class
Remote control with WiCo (not incl
with delivery)
The dispersing tool is not included in the scope of delivery
