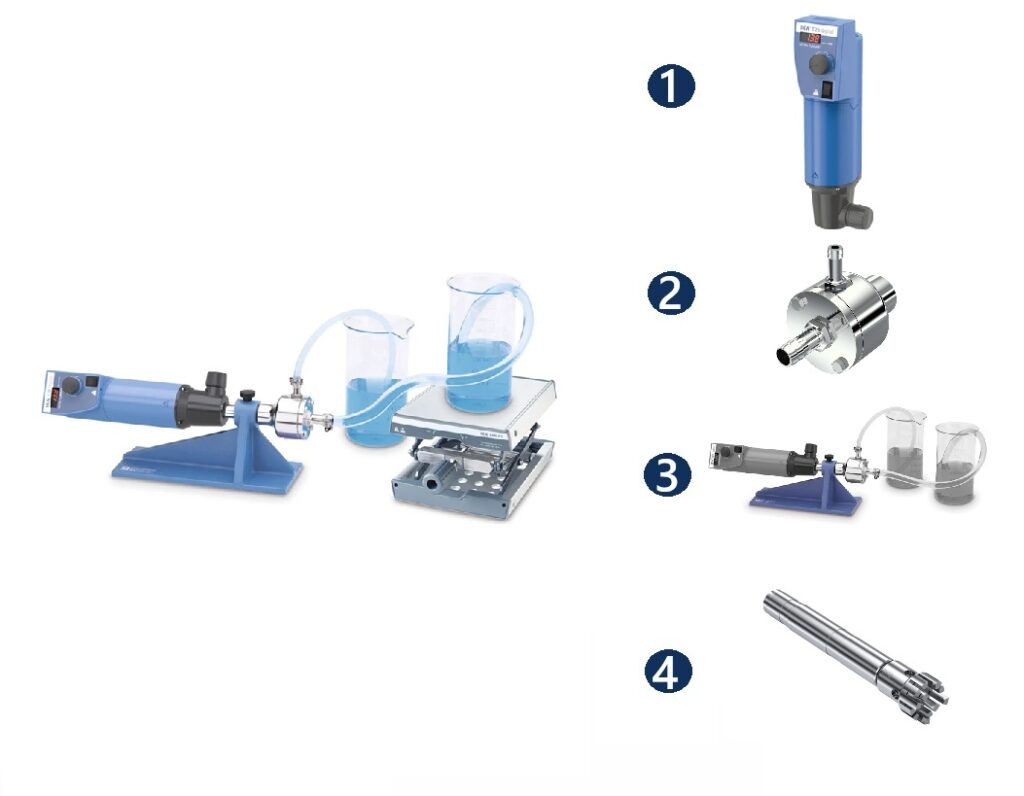

Ika UTL 25 digital Inline ULTRA-TURRAX®
For circulation or flow-through processing in the laboratory
Simple, compact and sturdy modular design
Sterilizable, autoclave-compatible
Table-top or stand-supported device, low space requirement
Easy disassembly
Large delivery capacity of 4.4 to 11.6 l/min with open outlet (the mounting of a valve can reduce the flow rate)
For air-free, sterile, and inline suspension, emulsifying and deagglomeration
For vacuum or pressurized operation (up to 6 bar)
If the DK 25.11 is used, air induction is also prevented in batch operation
Not self-priming
A pump can be integrated between intake nozzle and vessel
As a result, viscous fluids can be processed
Not suitable for continuous operation or cyclical continuous operation
The hoses used should have an inner diameter size of 13 mm (inlet) and 9 mm (outlet) respectively to fit the DK 25.11 flow chamber
| Snelheidsbereik (tpm) | 3.000 - 25.000 rpm | |||||||||||||||||||||||||||||||||||||||||
| Technische data |
| Motor rating input [W] | 500 |
| Motor rating output [W] | 300 |
| Pump rate [l/min] | 11.6 |
| Speed range [rpm] | 3000 - 25000 |
| Speed adjustment | stepless |
| Speed display | scale |
| Noise without element [dB(A)] | 73 |
| Extension arm diameter [mm] | 13 |
| Extension arm length [mm] | 175 |
| Chamber volume [ml] | 26 |
| Attainable vacuum [mbar] | 1 |
| Pressure max. [bar] | 6 |
| Process type | inline |
| Dimensions (W x H x D) [mm] | 450 x 120 x 100 |
| Weight [kg] | 3.8 |
| Permissible ambient temperature [°C] | 5 - 40 |
| Permissible relative humidity [%] | 80 |
| Protection class according to DIN EN 60529 | IP 20 |
| Voltage [V] | 230 |
| Frequency [Hz] | 50/60 |
| Power input [W] | 500 |
For circulation or flow-through processing in the laboratory
Simple, compact and sturdy modular design
Sterilizable, autoclave-compatible
Table-top or stand-supported device, low space requirement
Easy disassembly
Large delivery capacity of 4.4 to 11.6 l/min with open outlet (the mounting of a valve can reduce the flow rate)
For air-free, sterile, and inline suspension, emulsifying and deagglomeration
For vacuum or pressurized operation (up to 6 bar)
If the DK 25.11 is used, air induction is also prevented in batch operation
Not self-priming
A pump can be integrated between intake nozzle and vessel
As a result, viscous fluids can be processed
Not suitable for continuous operation or cyclical continuous operation
The hoses used should have an inner diameter size of 13 mm (inlet) and 9 mm (outlet) respectively to fit the DK 25.11 flow chamber
