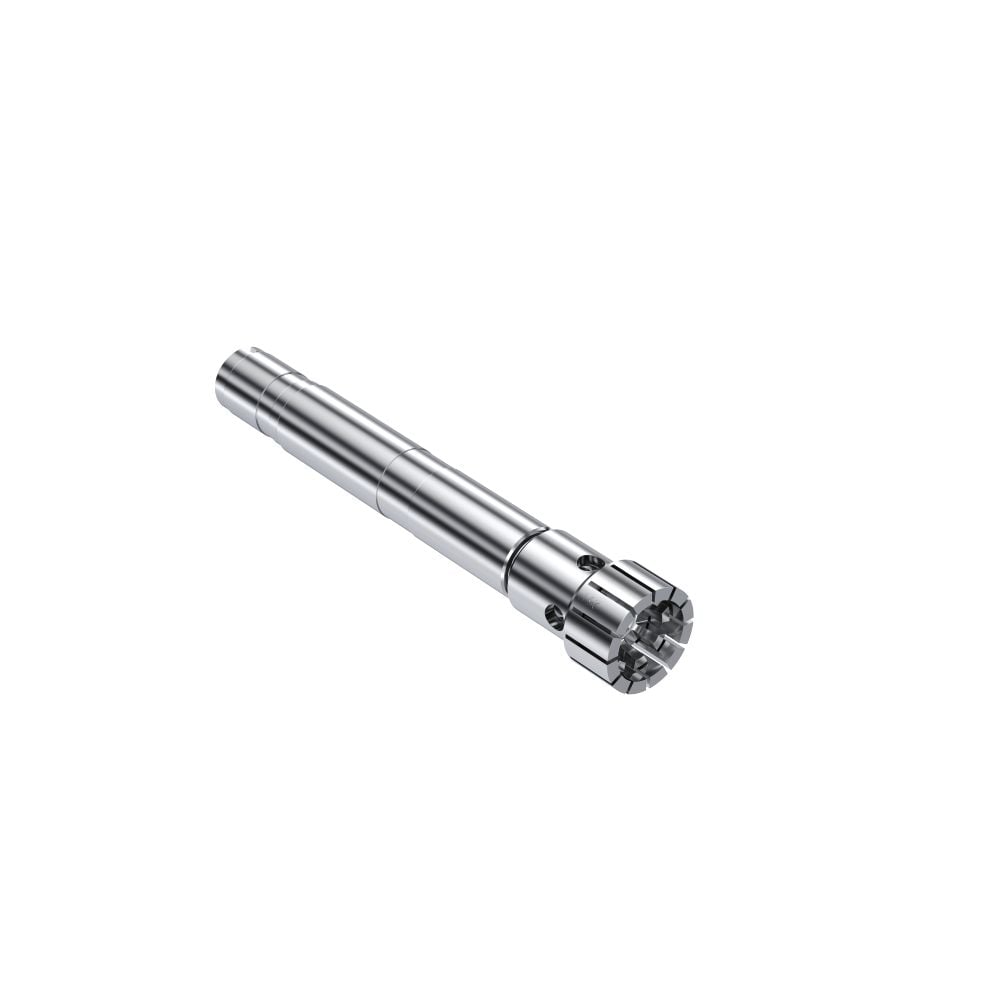

IKA S 25 KV – 25 F – IL Dispergeerelement
Specially designed dispersing tool for use with the UTL 25 digital in-line dispersing unit only
The completely sealed internal system prevents samples from entering the main drive and allows for safe operation in a horizontal in-line position
| Stator diameter [mm] | 25 |
| Rotor diameter [mm] | 18 |
| Gap between rotor and stator [mm] | 0.5 |
| allowable Speed max. [rpm] | 25000 |
| Circumferential speed max. [m/s] | 23.6 |
| Immersion depth [mm] | 40 - 85 |
| Shaft length [mm] | 110 |
| Material in contact with medium | FFPM / SIC, AISI 316L, AISI 302 |
| pH range | 2 - 13 |
| Suitable for solvents | yes |
| Suitable for abrasive substances | no |
| Working temperature max. [°C] | 220 |
| Sterilization methods | all methods |
| Vacuum [mbar] | 1 |
| Pressure max. [bar] | 6 |
| Ultimate fineness, suspensions [µm] | 5 - 25 |
| Ultimate fineness, emulsions [µm] | 1 - 5 |
| Permissible ambient temperature [°C] | 5 - 40 |
Specially designed dispersing tool for use with the UTL 25 digital in-line dispersing unit only
The completely sealed internal system prevents samples from entering the main drive and allows for safe operation in a horizontal in-line position
