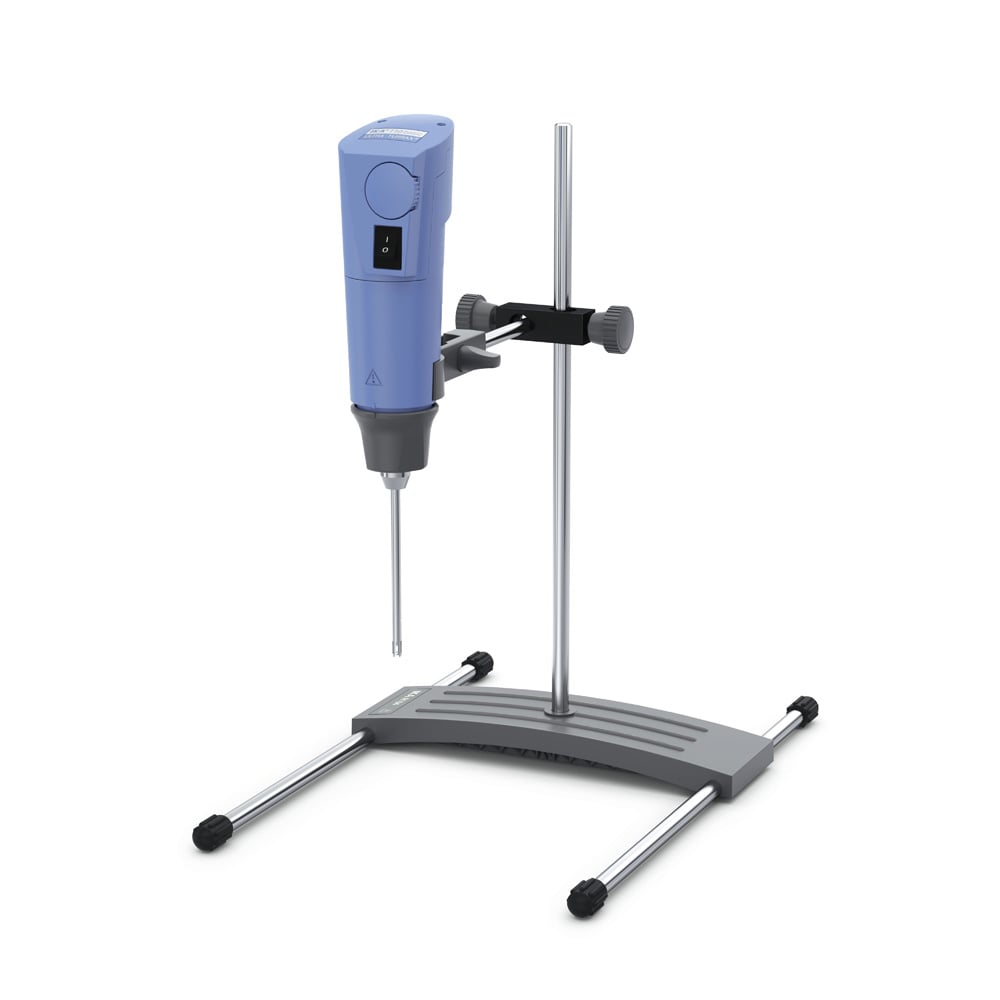

Ika T 10 basic ULTRA-TURRAX®
Small dispersing instrument for volumes from 0.5 - 100 ml (H2O)
It offers a wide speed range from 8000 – 30, 000 rpm that enables users to work at high circumferential speeds even with small rotor diameters

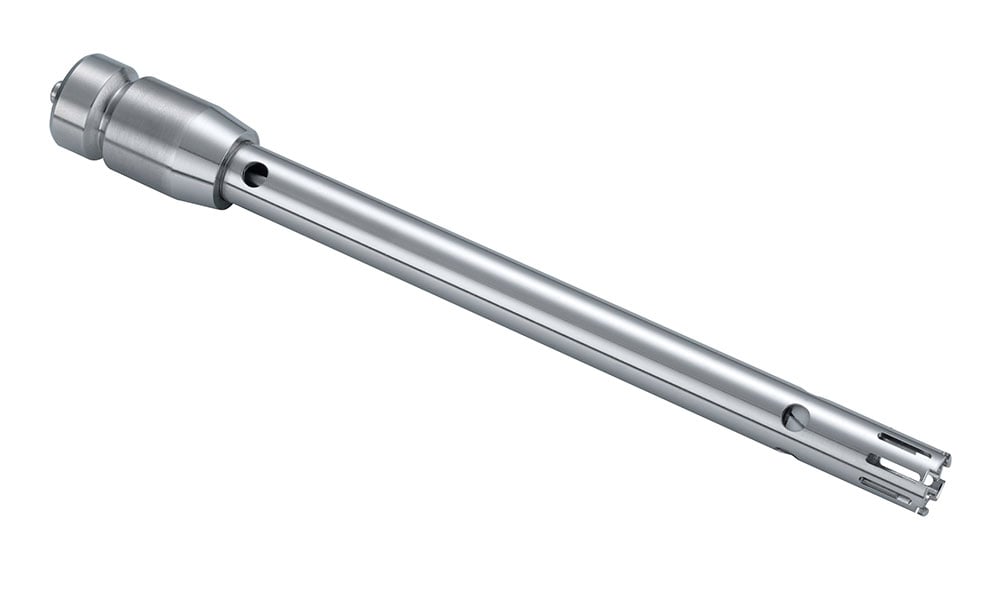

A broad choice of dispersing elements guarantees a wide range of applications
Quick-connect coupling for changing dispersing elements easily
Ideal for manual operation due to its light weight and ergonomic design
Extremely mobile due to direct line power (no transformer required)

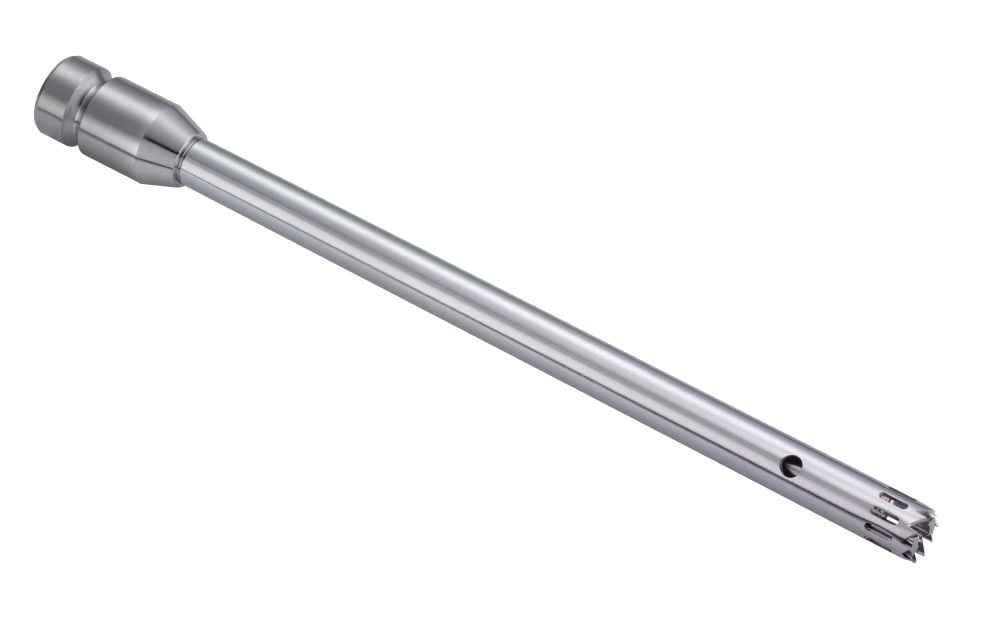

Stainless steel dispersing elements can be cleaned quickly and easily as they can be dismounted without tools

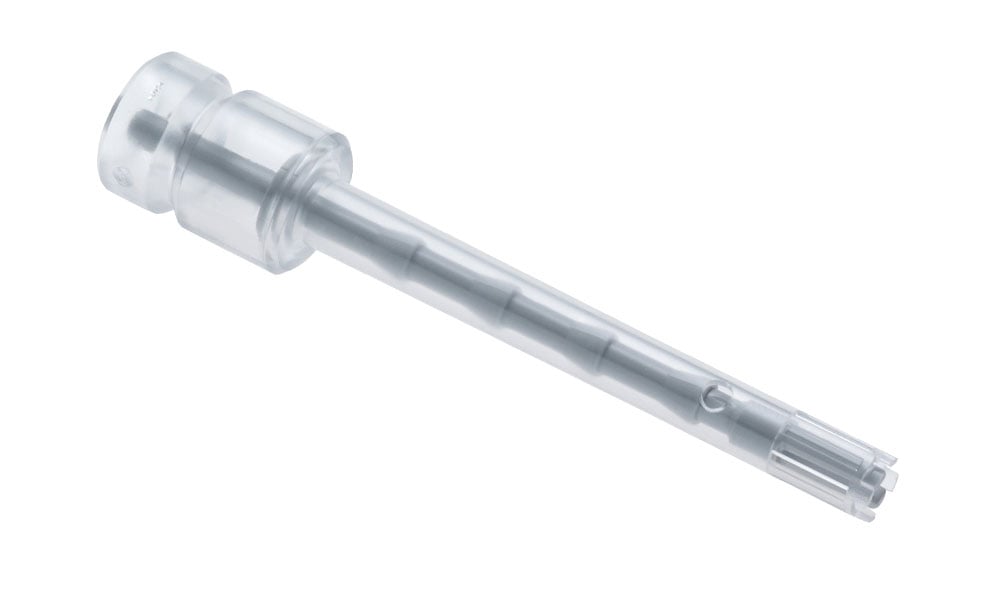

Plastic disposable dispersing elements are available in two sizes, particularly suitable for PCR analysis
High performance drive ensures immense speed stability
Quiet operation
The dispersing tool is not included in the scope of delivery
| Snelheidsbereik (tpm) | 8.000 - 30.000 rpm | |||||||||||||||||||||||||||||||||||||||||
| Volume van het monster | 0,1 L | |||||||||||||||||||||||||||||||||||||||||
| Technische data |
| Motor rating input [W] | 125 |
| Motor rating output [W] | 75 |
| Volume range (H2O) [l] | 0.0005 - 0.1 |
| Viscosity max. [mPas] | 5000 |
| Speed range [rpm] | 8000 - 30000 |
| Speed display | scale |
| Speed adjustment | stepless |
| Noise without element [dB(A)] | 65 |
| Extension arm diameter [mm] | 8 |
| Extension arm length [mm] | 100 |
| Process type | batch |
| Power-ON time [min] | 10 |
| Power-OFF time [min] | 5 |
| Dimensions (W x H x D) [mm] | 56 x 178 x 66 |
| Weight [kg] | 0.61 |
| Permissible ambient temperature [°C] | 5 - 40 |
| Permissible relative humidity [%] | 80 |
| Protection class according to DIN EN 60529 | IP 30 |
| Voltage [V] | 230 |
| Frequency [Hz] | 50/60 |
| Power input [W] | 125 |
Small dispersing instrument for volumes from 0.5 - 100 ml (H2O)
It offers a wide speed range from 8000 – 30, 000 rpm that enables users to work at high circumferential speeds even with small rotor diameters
A broad choice of dispersing elements guarantees a wide range of applications
Quick-connect coupling for changing dispersing elements easily
Ideal for manual operation due to its light weight and ergonomic design
Extremely mobile due to direct line power (no transformer required)
Stainless steel dispersing elements can be cleaned quickly and easily as they can be dismounted without tools
Plastic disposable dispersing elements are available in two sizes, particularly suitable for PCR analysis
High performance drive ensures immense speed stability
Quiet operation
The dispersing tool is not included in the scope of delivery
