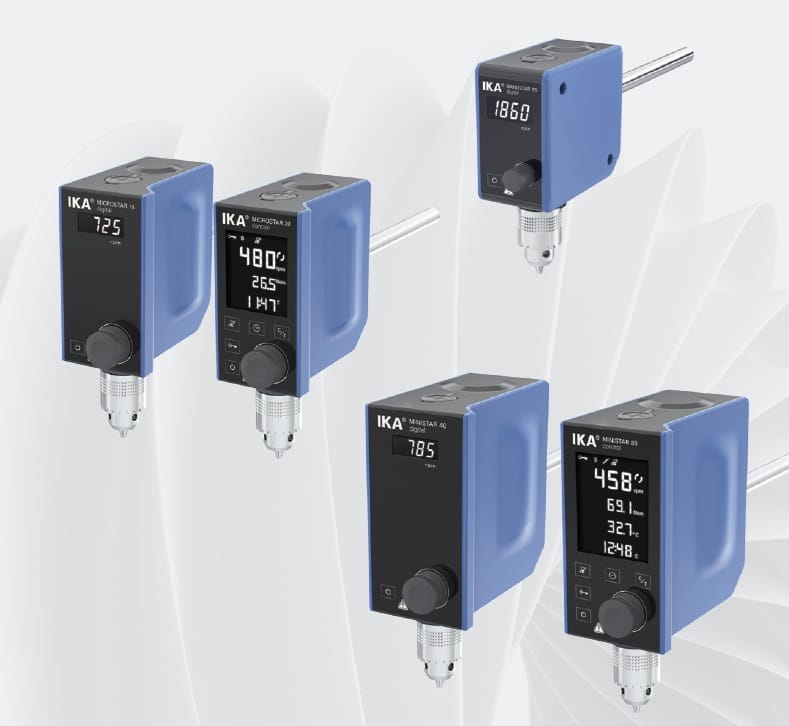

The space-saving high performers from IKA MICROSTAR and MINISTAR series have been complemented by additional models
The new and easy-to-use stirrers convince with perfect basic functionalities, as well as with a compact design
Combining high performance with particular excellence, they require minimum space and come with a lifetime guarantee
See for yourself:
Compact design
The reduced design and the focus on the most essential aspects make the new IKA MICROSTAR and MINISTAR stirrers reliable laboratory companions
Constant torque
All models of the IKA MICROSTAR and MINISTAR series guarantee a constant torque over the entire rpm range
The new devices are available in six different versions with rpms of up to 2, 000 rpm and a torque of up to 80 Ncm
Ease of operation
Operation takes place using a stable rotary knob
The display clearly shows the rotational speed
Rapid updates
Regular software updates can be undertaken rapidly and simply via the USB interface
Max. koppel (Ncm) | 80 Ncm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. viscositeit (mPas) | 60.000 mPas | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. volume vloeistof | 50 L | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Rotatiesnelheid (tpm) | 0 - 500 rpm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Technische data |
Stirring quantity max. per stirring position (H2O) [l] | 50 |
Motor rating input [W] | 60 |
Motor rating output [W] | 46 |
Motor principle | Brushless DC |
Speed display | LED |
Speed range [rpm] | 0/50 - 500 |
Reversible direction of rotation | Nee |
Intermittent operation | Nee |
Viscosity max. [mPas] | 60000 |
Output max. at stirring shaft [W] | 42 |
Permissible ON time [%] | 100 |
Torque max. at stirring shaft [Ncm] | 80 |
Speed adjustment | Turning kNeeb |
Setting accuracy speed [rpm] | ±1 |
Deviation of speed measurement n > 300rpm [%] | ±1 |
Deviation of speed measurement n < 300rpm [rpm] | ±3 |
Stirring element fastening | chuck |
Temperature display | Nee |
Chuck range diameter [mm] | 0.5 - 8.2 |
Hollow shaft, inner diameter [mm] | 8.5 |
Hollow shaft (push-through - when stopped) | Ja |
Fastening on stand | extension arm |
Extension arm diameter [mm] | 13 |
Extension arm length [mm] | 160 |
Torque display | Nee |
Nominal torque [Nm] | 0.8 |
Timer | Nee |
Timer display | Neene |
Housing material | alu-cast coating / thermoplastic polymer |
Clean room qualified | Nee |
Explosion proofed | Nee |
Dimensions (W x H x D) [mm] | 70 x 193 x 147 |
Weight [kg] | 1.72 |
Permissible ambient temperature [°C] | 5 - 40 |
Permissible relative humidity [%] | 80 |
Protection class according to DIN EN 60529 | IP 54 |
RS 232 interface | Nee |
USB interface | Ja |
Analog output | Nee |
Voltage [V] | 100 - 240 |
Frequency [Hz] | 50/60 |
Power input [W] | 69 |
Power input standby [W] | 0.5 |
DC Voltage [V=] | 24 |
Current consumption [mA] | 2900 |
The space-saving high performers from IKA MICROSTAR and MINISTAR series have been complemented by additional models
The new and easy-to-use stirrers convince with perfect basic functionalities, as well as with a compact design
Combining high performance with particular excellence, they require minimum space and come with a lifetime guarantee
See for yourself:
Compact design
The reduced design and the focus on the most essential aspects make the new IKA MICROSTAR and MINISTAR stirrers reliable laboratory companions
Constant torque
All models of the IKA MICROSTAR and MINISTAR series guarantee a constant torque over the entire rpm range
The new devices are available in six different versions with rpms of up to 2, 000 rpm and a torque of up to 80 Ncm
Ease of operation
Operation takes place using a stable rotary knob
The display clearly shows the rotational speed
Rapid updates
Regular software updates can be undertaken rapidly and simply via the USB interface
