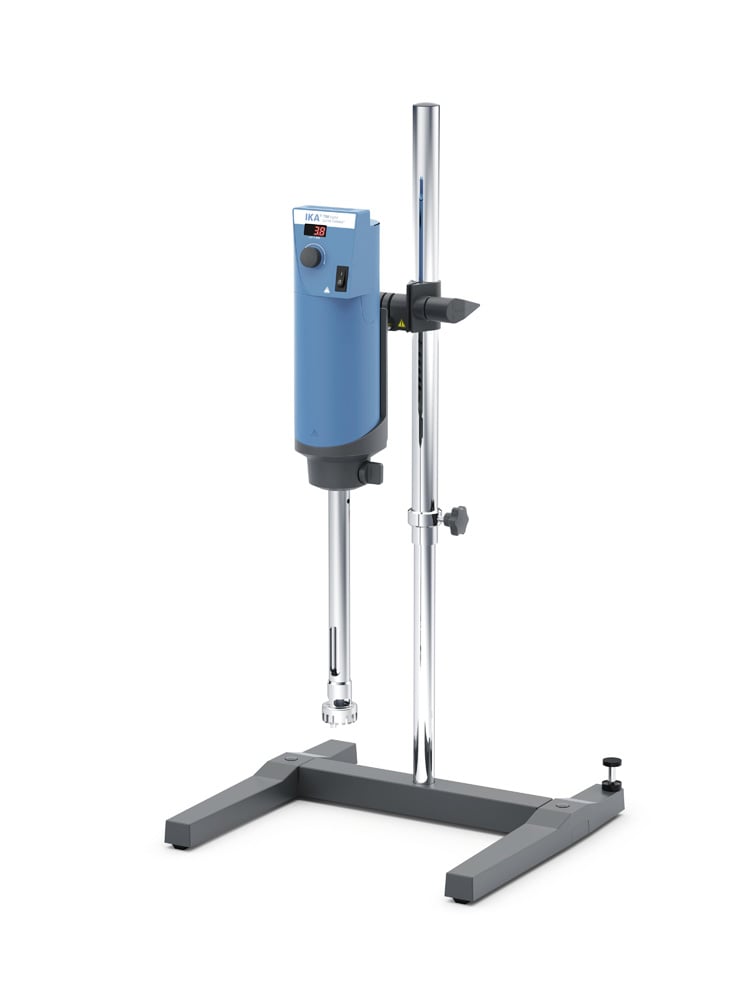

Ika T 50 digital ULTRA-TURRAX®
Powerful dispersing instrument for volumes from 0.25 - 30 l (H2O) with digital speed display
It offers a wide speed range from 600 – 10, 000 rpm that enables users to work at high circumferential speeds even with small rotor diameters
A broad choice of dispersing elements guarantees a wide range of applications
Reproducible operations due to constant speed even with changes in viscosities
Digital speed display
Electronic speed control
Electronic overload protection
Stainless steel dispersing elements can be cleaned quickly and easily
Smooth start
Error code display
The dispersing tool is not included in the scope of delivery
| Snelheidsbereik (tpm) | 600 - 10.000 rpm | |||||||||||||||||||||||||||||||||||||||||||||||||
| Volume van het monster | 30 L | |||||||||||||||||||||||||||||||||||||||||||||||||
| Technische data |
| Motor rating input [W] | 1100 |
| Motor rating output [W] | 700 |
| Volume range (H2O) [l] | 0.25 - 30 |
| Viscosity max. [mPas] | 5000 |
| Speed range [rpm] | 600 - 10000 |
| Speed deviation [%] | 1 |
| Speed display | LED |
| Speed adjustment | stepless |
| Noise without element [dB(A)] | 72 |
| Extension arm diameter [mm] | 16 |
| Extension arm length [mm] | 220 |
| Process type | batch |
| Timer | Nee |
| Permissible ON time [%] | 100 |
| Dimensions (W x H x D) [mm] | 115 x 355 x 139 |
| Weight [kg] | 5.85 |
| Permissible ambient temperature [°C] | 5 - 40 |
| Permissible ambient conditions | 80% (up to 31°C), decreasing linearly to max. 50 (@40°C) |
| Protection class according to DIN EN 60529 | IP 20 |
| RS 232 interface | Nee |
| USB interface | Nee |
| Analog output | Nee |
| Voltage [V] | 220 - 240 |
| Frequency [Hz] | 50/60 |
| Power input [W] | 1100 |
Powerful dispersing instrument for volumes from 0.25 - 30 l (H2O) with digital speed display
It offers a wide speed range from 600 – 10, 000 rpm that enables users to work at high circumferential speeds even with small rotor diameters
A broad choice of dispersing elements guarantees a wide range of applications
Reproducible operations due to constant speed even with changes in viscosities
Digital speed display
Electronic speed control
Electronic overload protection
Stainless steel dispersing elements can be cleaned quickly and easily
Smooth start
Error code display
The dispersing tool is not included in the scope of delivery
