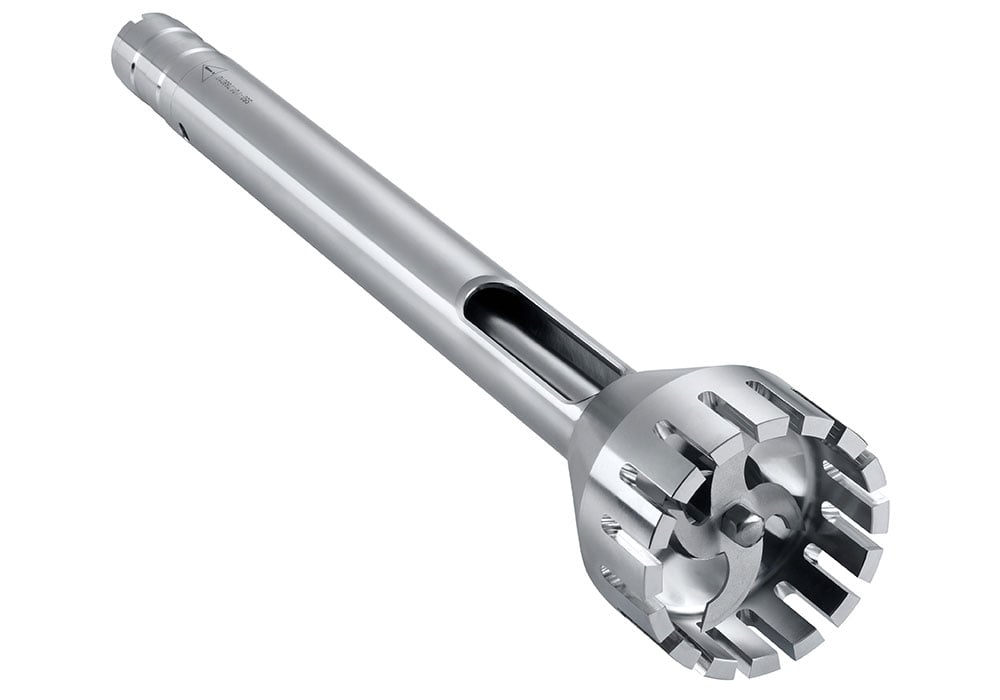

IKA S 50 N – W 65 SK Cutting head
Suitable for dispersing instrument T 50 digital
To crush large pieces (up to 50 mm) of fibrous materials, such as vegetation, vegetables and fruit
Working range: 1
10 l
Stator diameter: 65 mm
Immersion depth: 80
350 mm
Materials in contact with medium: PTFE, AISI 316L
Suitable for solvents: yes
Max
temperature: 180 °C
Sterilization methods: all methods
| Volume range (H2O) [l] | 1 - 10 |
| Stator diameter [mm] | 65 |
| Rotor diameter [mm] | 55 |
| allowable Speed max. [rpm] | 10000 |
| Circumferential speed max. [m/s] | 28.8 |
| Immersion depth [mm] | 80 - 250 |
| Material in contact with medium | PTFE, AISI 316L, AISI 301 |
| pH range | 2 - 13 |
| Suitable for solvents | yes |
| Suitable for abrasive substances | no |
| Working temperature max. [°C] | 180 |
| Sterilization methods | all methods |
| Ultimate fineness, suspensions [µm] | 50 - 200 |
| Ultimate fineness, emulsions [µm] | 5 - 15 |
| FDA conformity | yes |
| Weight [kg] | 1.5457 |
| Permissible ambient temperature [°C] | 5 - 40 |
Suitable for dispersing instrument T 50 digital
To crush large pieces (up to 50 mm) of fibrous materials, such as vegetation, vegetables and fruit
Working range: 1
10 l
Stator diameter: 65 mm
Immersion depth: 80
350 mm
Materials in contact with medium: PTFE, AISI 316L
Suitable for solvents: yes
Max
temperature: 180 °C
Sterilization methods: all methods
