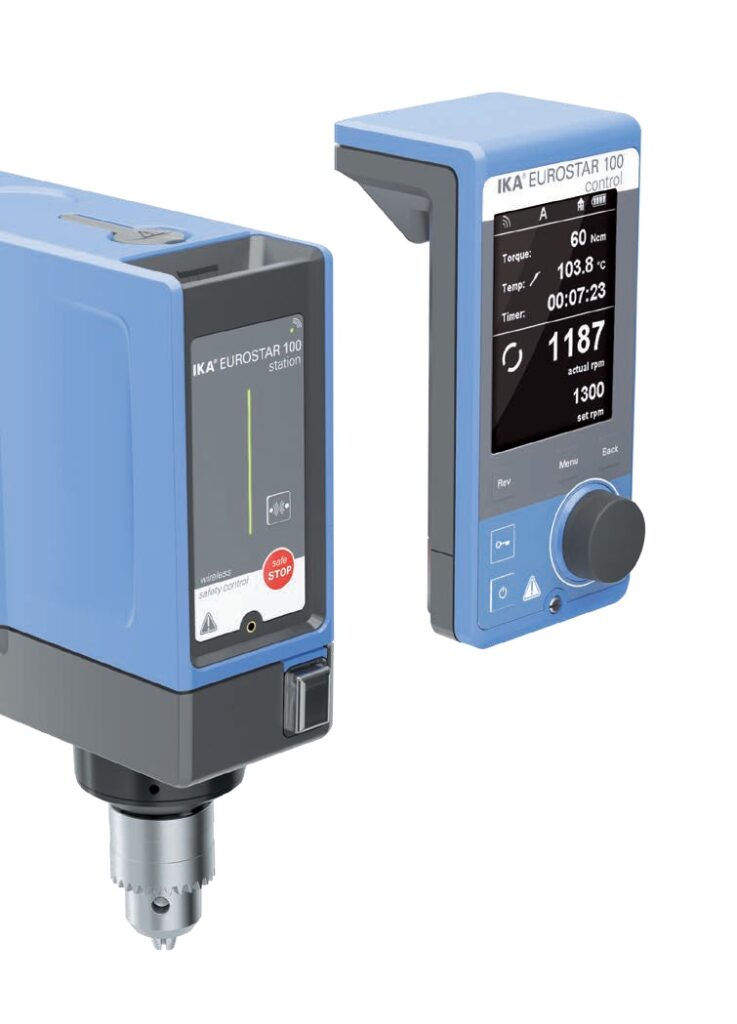

High speed laboratory stirrer designed with a removable wireless controller and a digital TFT display
It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/150 - 6000 rpm
The stirrer comes equipped with a RS 232 and a USB interface to control and document all parameters, and an update of the current firmware
An integrated torque trend display is provided for the measurement of viscosity changes
The included precision stirrer shaft is 280 mm long and has a maximum immersion depth of 220 mm
Multilingual TFT display
Programmable functions
Integrated temperature measurement
Interval operation
Timer function
Adjustable safety circuit
Locked function
Infinitely adjustable speed
Push-through agitator shafts
Overload protection
Short-term overload operation
Slim casing
Quiet operation
Error code display

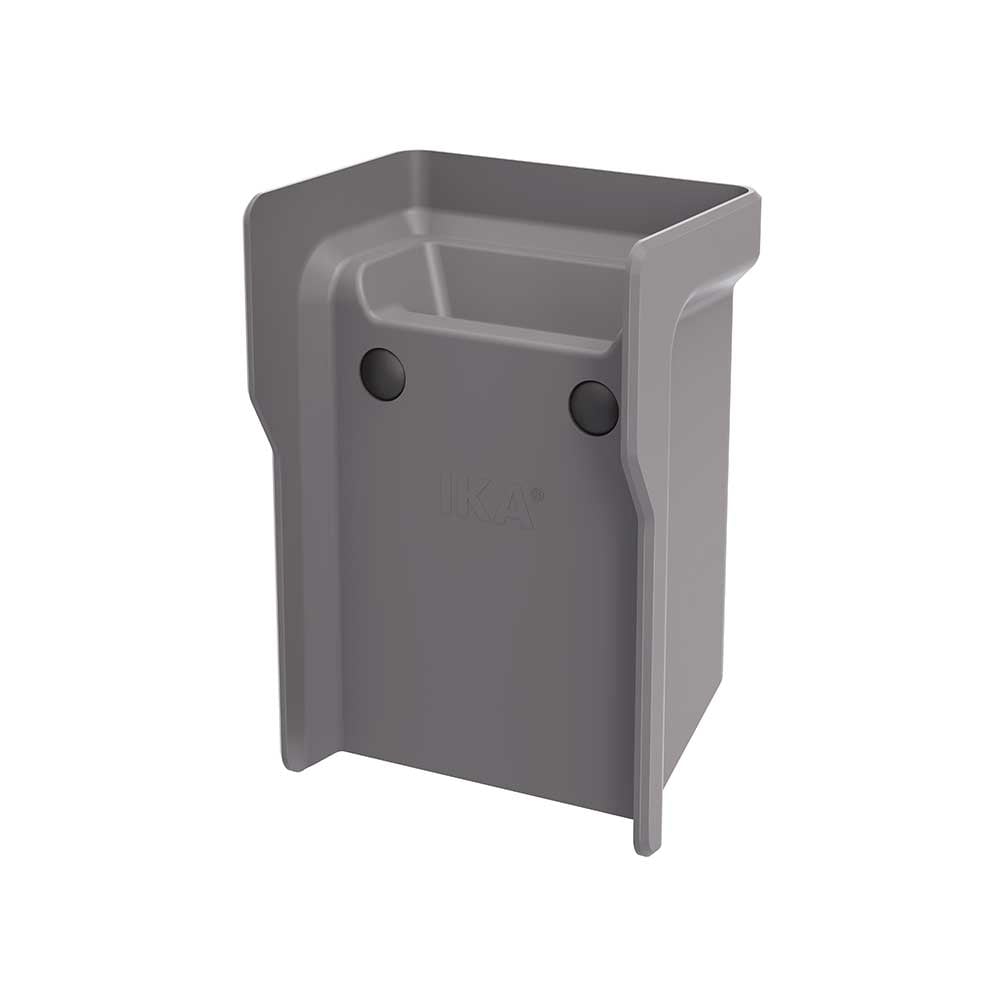

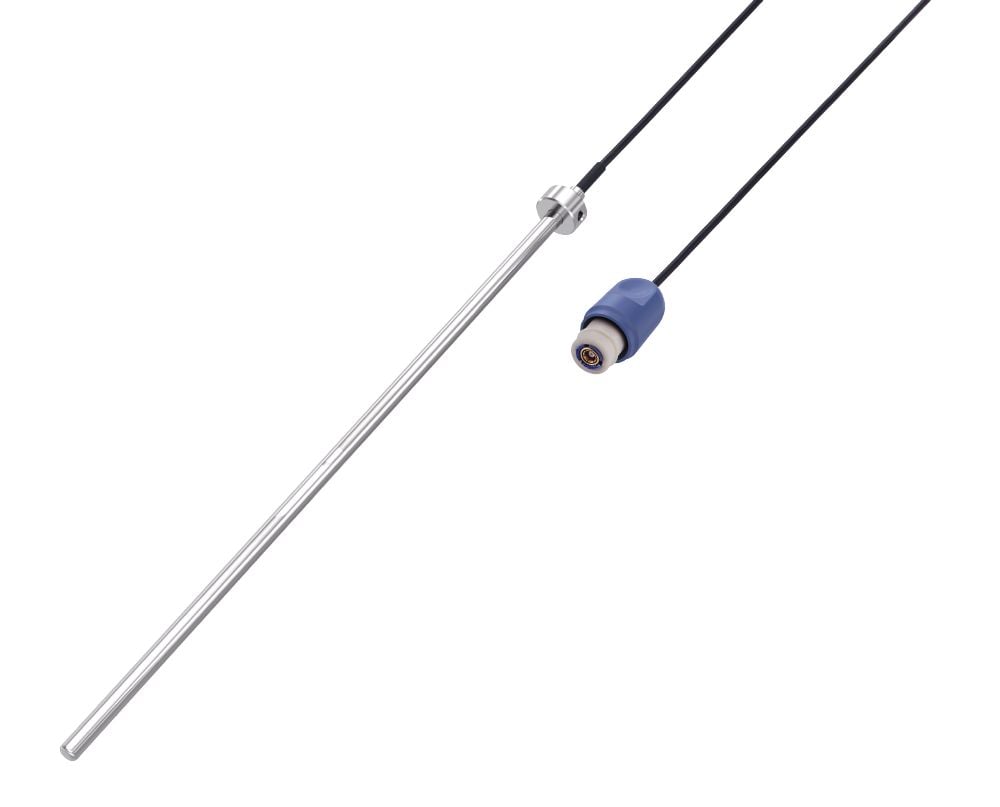

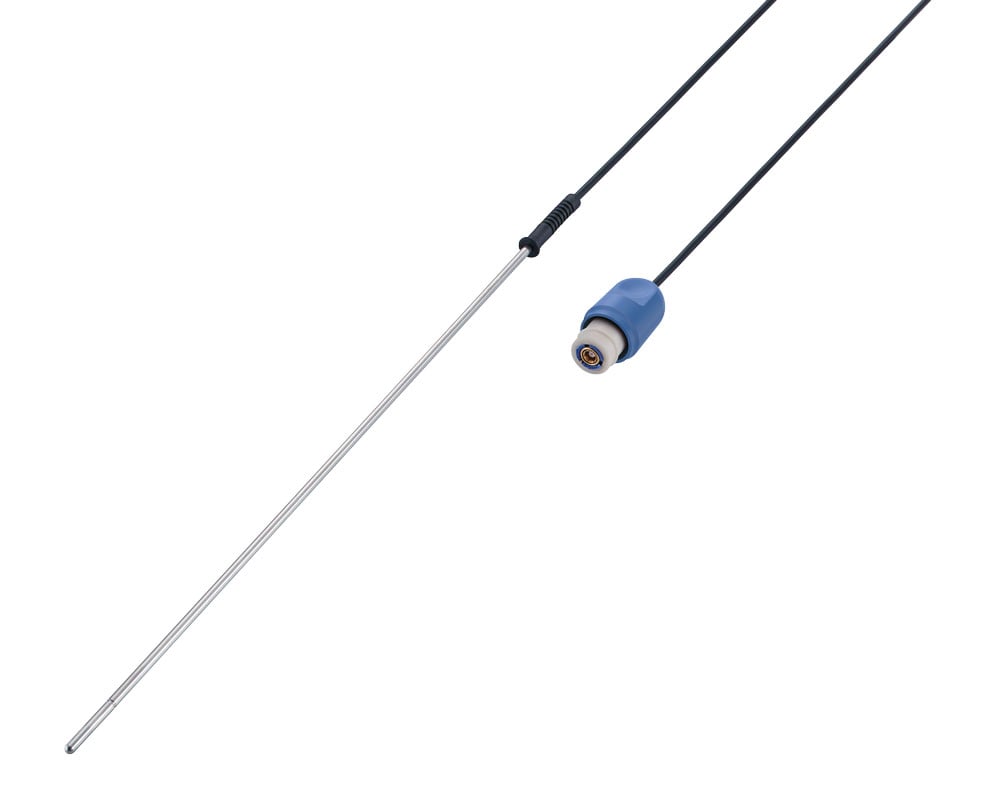

H 67.60 temperature sensor and WH 11 WiCo holder included in delivery
Max. koppel (Ncm) | 20 Ncm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. viscositeit (mPas) | 10.000 mPas | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. volume vloeistof | 20 L | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Rotatiesnelheid (tpm) | 0 - 6.000 rpm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Technische data |
Stirring quantity max. per stirring position (H2O) [l] | 20 |
Motor rating input [W] | 176 |
Motor rating output [W] | 125 |
Motor principle | Brushless DC |
Speed display | TFT |
Speed range [rpm] | 0/150 - 6000 |
Reversible direction of rotation | Nee |
Intermittent operation | Ja |
Viscosity max. [mPas] | 10000 |
Output max. at stirring shaft [W] | 125 |
Permissible ON time [%] | 100 |
Torque max. at stirring shaft [Ncm] | 20 |
Speed adjustment | stepless |
Setting accuracy speed [rpm] | ±1 |
Deviation of speed measurement n > 300rpm [%] | ±1 |
Deviation of speed measurement n < 300rpm [rpm] | ±3 |
Stirring element fastening | special output shaft |
Connection for ext. temperature sensor | PT1000 |
Temperature display | Ja |
Hollow shaft (push-through - when stopped) | Nee |
Fastening on stand | extension arm |
Extension arm diameter [mm] | 16 |
Extension arm length [mm] | 220 |
Torque display | Ja |
Nominal torque [Nm] | 0.2 |
Torque measurement | trend |
Deviation of torque measurement I [Ncm] | ±6 |
Timer | Ja |
Timer display | TFT |
Time setting range [min] | 1 - 6000 |
Temperature measuring range [°C] | -10 - +350 |
Temperature measurement resolution [K] | 0.1 |
Accuracy of temperature measurement [K] | ±0.5 + tolerance PT1000 (DIN EN 60751 Class A) |
Limit deviation temperature sensor [K] | ≤ ± (0.15 + 0.002xITI) |
Housing material | alu-cast coating / thermoplastic polymer |
Clean room qualified | Nee |
Explosion proofed | Nee |
Communication distance (depend onbuilding) max. [m] | 150 |
Dimensions (W x H x D) [mm] | 86 x 325 x 230 |
Weight [kg] | 5.242 |
Permissible ambient temperature [°C] | 5 - 40 |
Permissible relative humidity [%] | 80 |
Protection class according to DIN EN 60529 | IP 40 |
RS 232 interface | Ja |
USB interface | Ja |
Analog output | Nee |
Voltage [V] | 230 |
Frequency [Hz] | 50/60 |
Power input [W] | 176 |
High speed laboratory stirrer designed with a removable wireless controller and a digital TFT display
It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/150 - 6000 rpm
The stirrer comes equipped with a RS 232 and a USB interface to control and document all parameters, and an update of the current firmware
An integrated torque trend display is provided for the measurement of viscosity changes
The included precision stirrer shaft is 280 mm long and has a maximum immersion depth of 220 mm
Multilingual TFT display
Programmable functions
Integrated temperature measurement
Interval operation
Timer function
Adjustable safety circuit
Locked function
Infinitely adjustable speed
Push-through agitator shafts
Overload protection
Short-term overload operation
Slim casing
Quiet operation
Error code display
H 67.60 temperature sensor and WH 11 WiCo holder included in delivery
