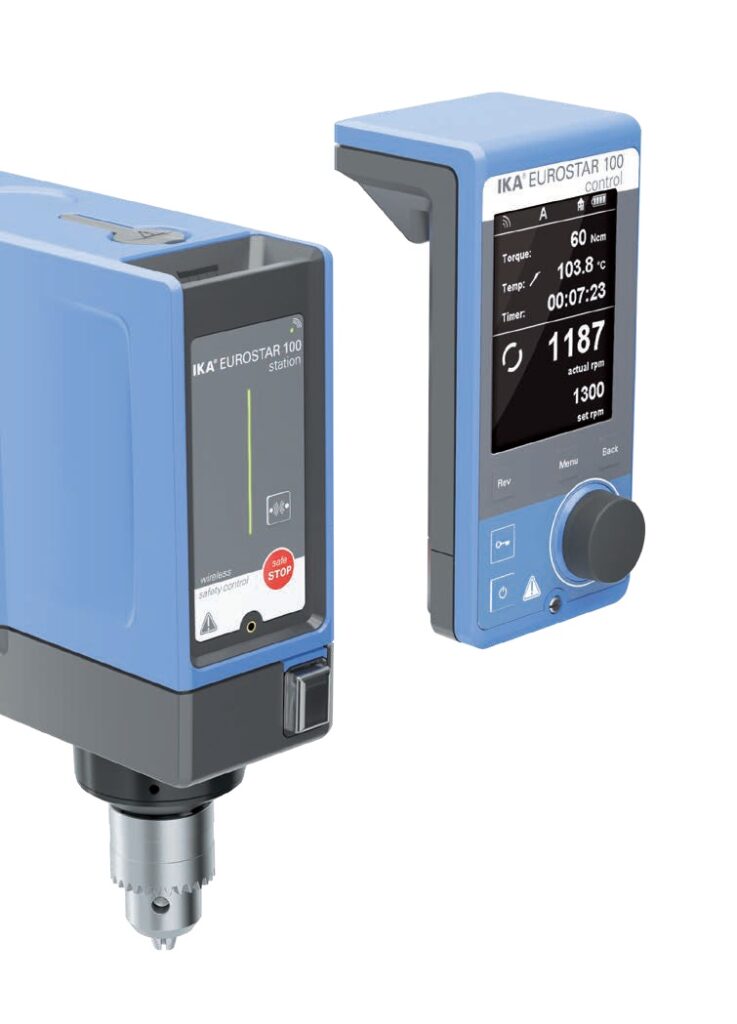

Powerful laboratory stirrer for high viscous applications and intensive mixing for quantities up to 150 l (H2O)
It automatically adjusts the speed within the range of 0/6 – 2000 rpm (two speed ranges) through microprocessor controlled technology
The control stirrer comes equipped with a RS 232 and a USB interface to control and document all parameters
An integrated torque trend display is provided for the measurement of viscosity changes, as well as integrated safety circuits ensure automatic cut-off in an anti-stall or overload conditions
Continuous comparison of shaft to desired speed is performed and variations are adjusted automatically
This ensures constant speed even with changes in viscosities of the sample
-Multilingual TFT display
-Programmable functions
-Integrated temperature measurement
-Interval operation
-Timer function
-Adjustable safety circuit
-Locked function
-Infinitely adjustable speed
-Push-through agitator shafts
-Overload protection
-Short-term overload operation
-Slim casing
-Quiet operation
-Error code display
-H 67.60 temperature sensor and WH 11 WiCo holder included in delivery
Max. koppel (Ncm) | 400 Ncm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. viscositeit (mPas) | 100.000 mPas | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. volume vloeistof | 15 L | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Rotatiesnelheid (tpm) | 0 - 2.000 rpm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Technische data |
Stirring quantity max. per stirring position (H2O) [l] | 150 |
Motor rating input [W] | 220 |
Motor rating output [W] | 176 |
Motor principle | Brushless DC |
Speed display | TFT |
Speed range [rpm] | 0/6 - 2000 |
Reversible direction of rotation | Nee |
Intermittent operation | Ja |
Viscosity max. [mPas] | 100000 |
Output max. at stirring shaft [W] | 167 |
Permissible ON time [%] | 100 |
Torque max. at stirring shaft [Ncm] | 400 |
Torque I max. [Ncm] | 400 |
Torque II max. [Ncm] | 80 |
Speed range I (50 Hz) [rpm] | 6 - 400 |
Speed range II (50 Hz) [rpm] | 30 - 2000 |
Speed range I (60 Hz) [rpm] | 6 - 400 |
Speed range II (60 Hz) [rpm] | 30 - 2000 |
Speed adjustment | stepless |
Setting accuracy speed [rpm] | ±1 |
Deviation of speed measurement n > 300rpm [%] | ±1 |
Deviation of speed measurement n < 300rpm [rpm] | ±3 |
Stirring element fastening | chuck |
Connection for ext. temperature sensor | PT1000 |
Temperature display | Ja |
Chuck range diameter [mm] | 3 - 16 |
Hollow shaft, inner diameter [mm] | 10.3 |
Hollow shaft (push-through - when stopped) | Ja |
Fastening on stand | extension arm |
Extension arm diameter [mm] | 16 |
Extension arm length [mm] | 160 |
Torque display | Ja |
Speed control | electronic |
Nominal torque [Nm] | 4 |
Torque measurement | trend |
Deviation of torque measurement I [Ncm] | ±40 |
Deviation of torque measurement II [Ncm] | ±12 |
Timer | Ja |
Timer display | TFT |
Time setting range [min] | 1 - 6000 |
Temperature measuring range [°C] | -10 - +350 |
Temperature measurement resolution [K] | 0.1 |
Accuracy of temperature measurement [K] | ±0.5 + tolerance PT1000 (DIN EN 60751 Class A) |
Limit deviation temperature sensor [K] | ≤ ± (0.15 + 0.002xITI) |
Housing material | alu-cast coating / thermoplastic polymer |
Clean room qualified | Nee |
Explosion proofed | Nee |
Communication distance (depend onbuilding) max. [m] | 150 |
Dimensions (W x H x D) [mm] | 114 x 345 x 268 |
Weight [kg] | 8.8 |
Permissible ambient temperature [°C] | 5 - 40 |
Permissible relative humidity [%] | 80 |
Protection class according to DIN EN 60529 | IP 40 |
RS 232 interface | Ja |
USB interface | Ja |
Analog output | Nee |
Voltage [V] | 230 |
Frequency [Hz] | 50/60 |
Power input [W] | 226 |
Powerful laboratory stirrer for high viscous applications and intensive mixing for quantities up to 150 l (H2O)
It automatically adjusts the speed within the range of 0/6 – 2000 rpm (two speed ranges) through microprocessor controlled technology
The control stirrer comes equipped with a RS 232 and a USB interface to control and document all parameters
An integrated torque trend display is provided for the measurement of viscosity changes, as well as integrated safety circuits ensure automatic cut-off in an anti-stall or overload conditions
Continuous comparison of shaft to desired speed is performed and variations are adjusted automatically
This ensures constant speed even with changes in viscosities of the sample
-Multilingual TFT display
-Programmable functions
-Integrated temperature measurement
-Interval operation
-Timer function
-Adjustable safety circuit
-Locked function
-Infinitely adjustable speed
-Push-through agitator shafts
-Overload protection
-Short-term overload operation
-Slim casing
-Quiet operation
-Error code display
-H 67.60 temperature sensor and WH 11 WiCo holder included in delivery
