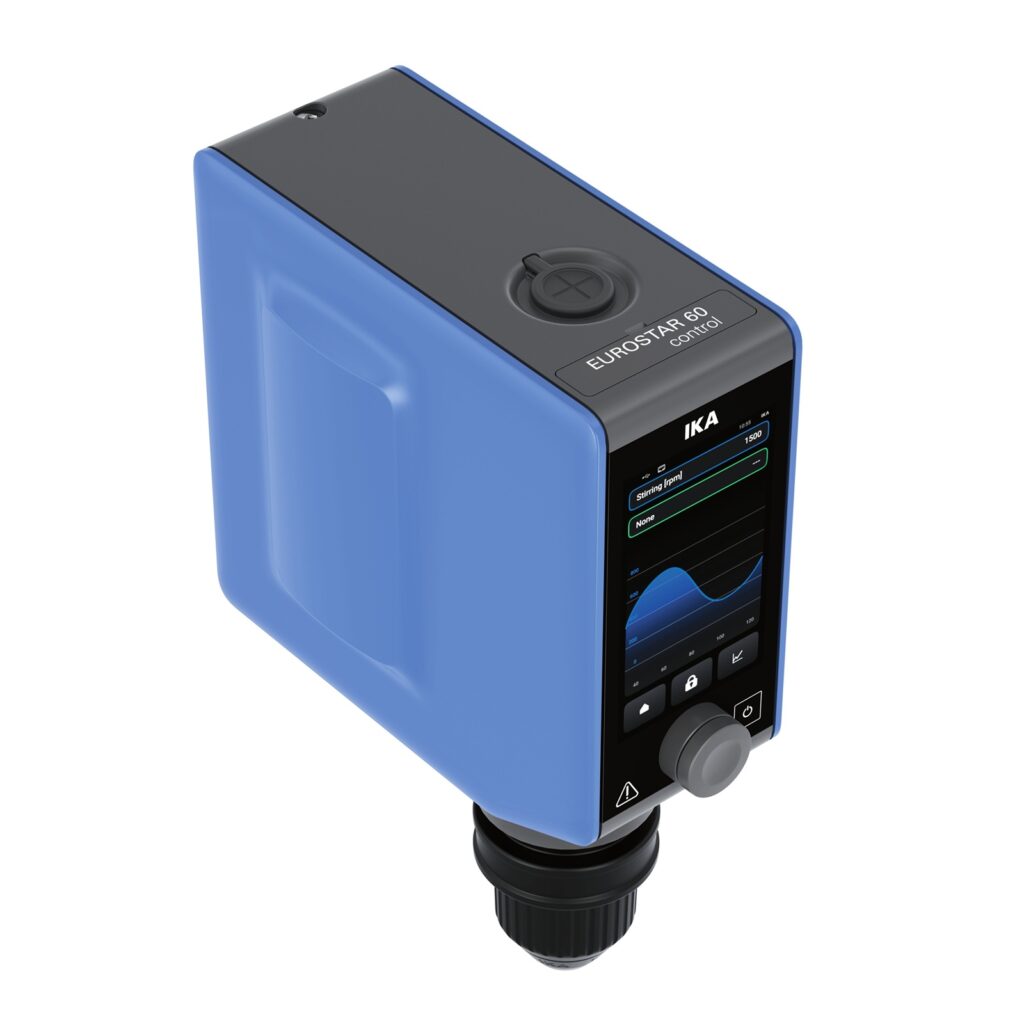

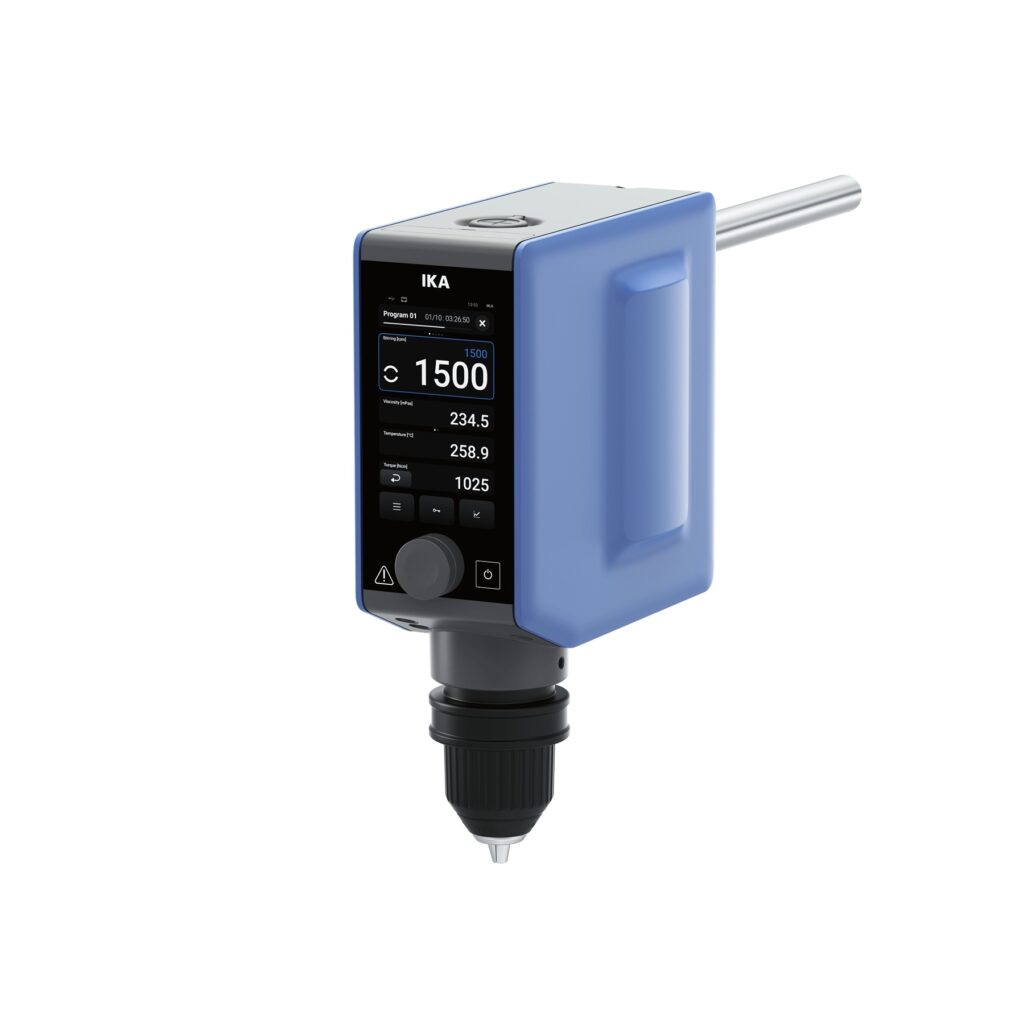

IKA Bovenroerder EUROSTAR 60 control
The new generation of EUROSTAR overhead stirrers combines modern design, user-friendliness and reliable performance
With up to 23% less space required compared to the previous models they fit perfectly into any laboratory
EUROSTAR 60 control is a universal laboratory stirrer and the right solution for advanced mixing tasks up to 60 liters (H2O) and viscosities up to 50 000 mPas
Its maximum torque of 100 Ncm at low speeds and linear adjustment to 60 Ncm at maximum speed guarantee reliable and powerful performance
The EUROSTAR control models come with various advanced features, such as integrated temperature measurement, reversible direction of rotation (left/right), interval mode and an integrated vibration sensor
An integrated torque sensor offers high precision torque monitoring (+/- 1 Ncm accuracy) and will calculate and display the viscosity in mPas directly on the display. This provides important feedback on the mixing process
Thanks to automatic speed adjustment in the range from 30 to 2000 rpm, constant results are ensured, even if the viscosity of the medium changes

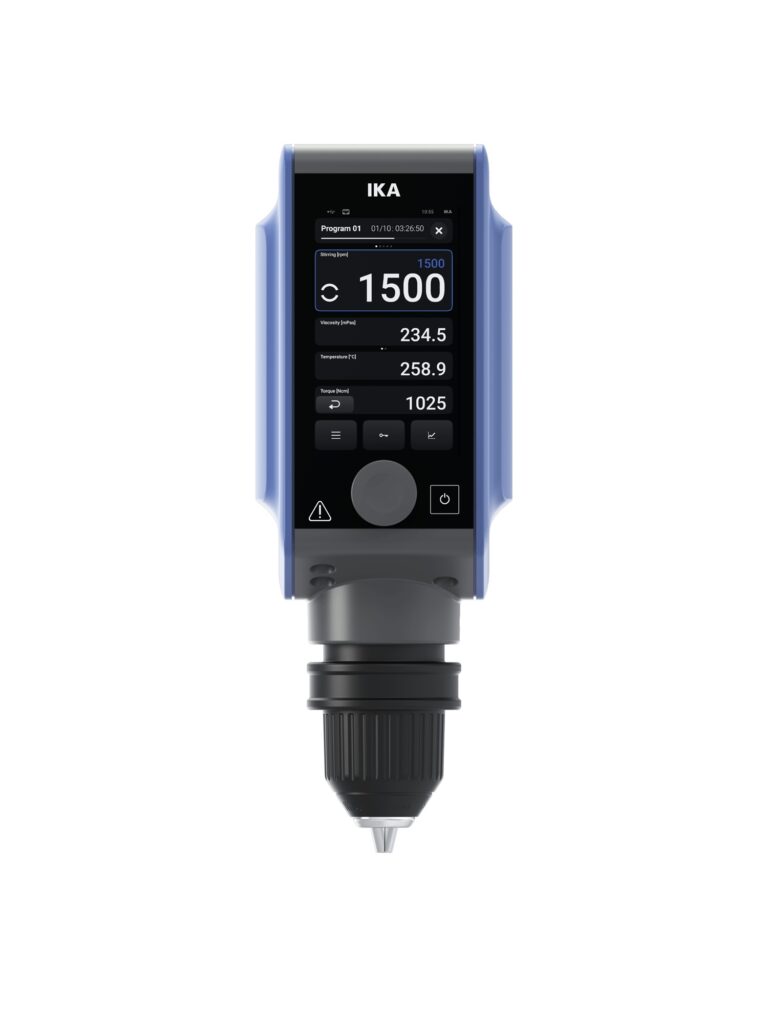

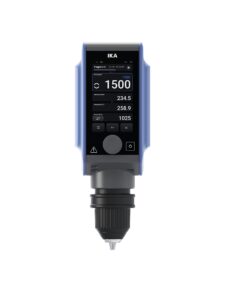

User-friendly: Large TFT display shows all parameters at a glance. The quick-release chuck allows the mixing tools to be changed with one hand, without additional tools
Lock key: Prevents accidental changes to settings
Safety circuits: Automatic shut-off in the event of blocking or overload
Protection class IP 54: Resistant to splash water and steam for reliable use in demanding environments
Brushless motor: Durable, clean and quiet in operation
Program modes and graph display offer advanced control options
More interfaces: USB, RS232, Ethernet, wireless and Wi-Fi connectivity offer enhanced possibilities for automation
Compatible with labworldsoft® laboratory software for integration into digital workflows and documentation of processes
| Stirring quantity max. per stirring position (H2O) [l] | 60 |
| Motor rating input [W] | 168 |
| Motor rating output [W] | 131 |
| Motor principle [-] | Brushless DC |
| Speed display [-] | TFT |
| Speed min. [rpm] | 0/30 |
| Speed max. [rpm] | 2000 |
| Reversible direction of rotation [-] | yes |
| Intermittent operation [-] | yes |
| Viscosity max. [mPas] | 50000 |
| Output max. at stirring shaft [W] | 126 |
| Permissible ON time [%] | 100 |
| Torque max. at stirring shaft [Ncm] | 100 |
| Torque max. at stirring shaft at 30-200 rpm [Ncm] | 100 |
| Torque max. at stirring shaft at 200-2000 rpm [Ncm] | 100-60 |
| Torque I max. [Ncm] | 100 |
| Torque II max. [Ncm] | 60 |
| Speed adjustment [-] | stepless |
| Setting accuracy speed [rpm] | ±1 |
| Deviation of speed measurement n > 300rpm [%] | ±1 |
| Deviation of speed measurement n < 300rpm [rpm] | ±3 |
| Stirring element fastening [-] | chuck |
| Connection for ext. temperature sensor [-] | PT1000 |
| Temperature display [-] | yes |
| Chuck range min. diameter [mm] | 0.5 |
| Chuck range max. diameter [mm] | 10 |
| Hollow shaft, inner diameter [mm] | 11 |
| Hollow shaft (push-through - when stopped) [-] | yes |
| Fastening on stand [-] | extension arm |
| Extension arm diameter [mm] | 16 |
| Extension arm length [mm] | 220 |
| Torque display [-] | yes |
| Speed control [-] | electronic |
| Nominal torque [Nm] | 0.6 |
| Torque measurement [-] | yes |
| Deviation of torque measurement I [Ncm] | ±1 |
| Timer [-] | yes |
| Timer display [-] | TFT |
| Time setting min. [min] | 1 |
| Time setting max. [min] | 6000 |
| Temperature measuring range min. [°C] | -10 |
| Temperature measuring range max. [°C] | 350 |
| Temperature measurement resolution [K] | 0.1 |
| Accuracy of temperature measurement [K] | ±0.5 + tolerance PT1000 (DIN EN 60751 Class A) |
| Limit deviation temperature sensor [K] | ≤ ± (0.15 + 0.002xITI) |
| Housing material [-] | alu-cast coating / thermoplastic polymer |
| Clean room qualified [-] | no |
| Explosion proofed [-] | no |
| Noise without element [dB(A)] | 52 |
| Width [mm] | 89 |
| Depth [mm] | 191 |
| Height [mm] | 237 |
| Weight [kg] | 3.9 |
| Permissible ambient temperature min. [°C] | 5 |
| Permissible ambient temperature max. [°C] | 40 |
| Permissible relative humidity [%] | 80 |
| Protection class according to DIN EN 60529 [-] | IP 54 |
| RS 232 interface [-] | yes |
| USB interface [-] | USB-C |
| WPAN interface [-] | yes |
| WiFi Interface [-] | yes |
| Ethernet interface [-] | yes |
| Analog output [-] | no |
| Voltage [V] | 100 - 240 |
| Frequency [Hz] | 50/60 |
| Power input [W] | 186 |
The new generation of EUROSTAR overhead stirrers combines modern design, user-friendliness and reliable performance
With up to 23% less space required compared to the previous models they fit perfectly into any laboratory
EUROSTAR 60 control is a universal laboratory stirrer and the right solution for advanced mixing tasks up to 60 liters (H2O) and viscosities up to 50 000 mPas
Its maximum torque of 100 Ncm at low speeds and linear adjustment to 60 Ncm at maximum speed guarantee reliable and powerful performance
The EUROSTAR control models come with various advanced features, such as integrated temperature measurement, reversible direction of rotation (left/right), interval mode and an integrated vibration sensor
An integrated torque sensor offers high precision torque monitoring (+/- 1 Ncm accuracy) and will calculate and display the viscosity in mPas directly on the display. This provides important feedback on the mixing process
Thanks to automatic speed adjustment in the range from 30 to 2000 rpm, constant results are ensured, even if the viscosity of the medium changes
User-friendly: Large TFT display shows all parameters at a glance. The quick-release chuck allows the mixing tools to be changed with one hand, without additional tools
Lock key: Prevents accidental changes to settings
Safety circuits: Automatic shut-off in the event of blocking or overload
Protection class IP 54: Resistant to splash water and steam for reliable use in demanding environments
Brushless motor: Durable, clean and quiet in operation
Program modes and graph display offer advanced control options
More interfaces: USB, RS232, Ethernet, wireless and Wi-Fi connectivity offer enhanced possibilities for automation
Compatible with labworldsoft® laboratory software for integration into digital workflows and documentation of processes
