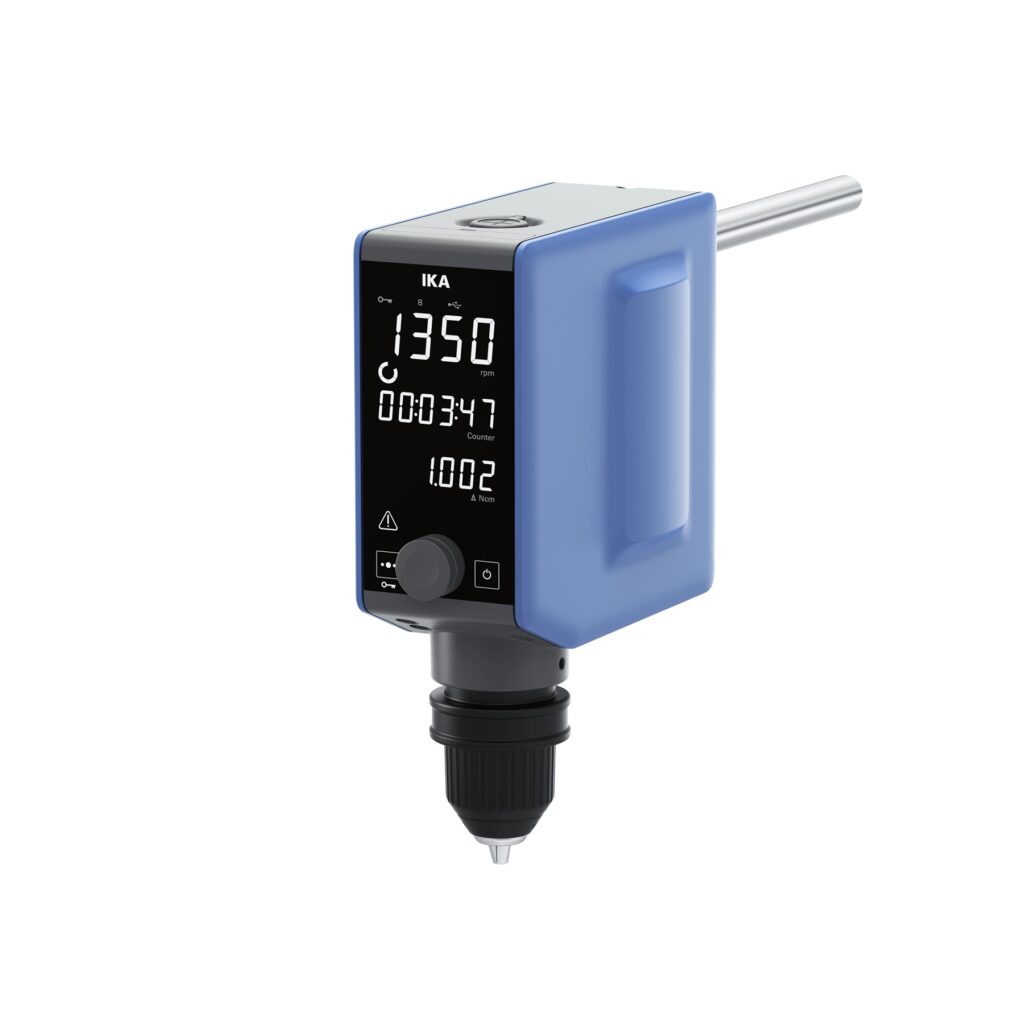

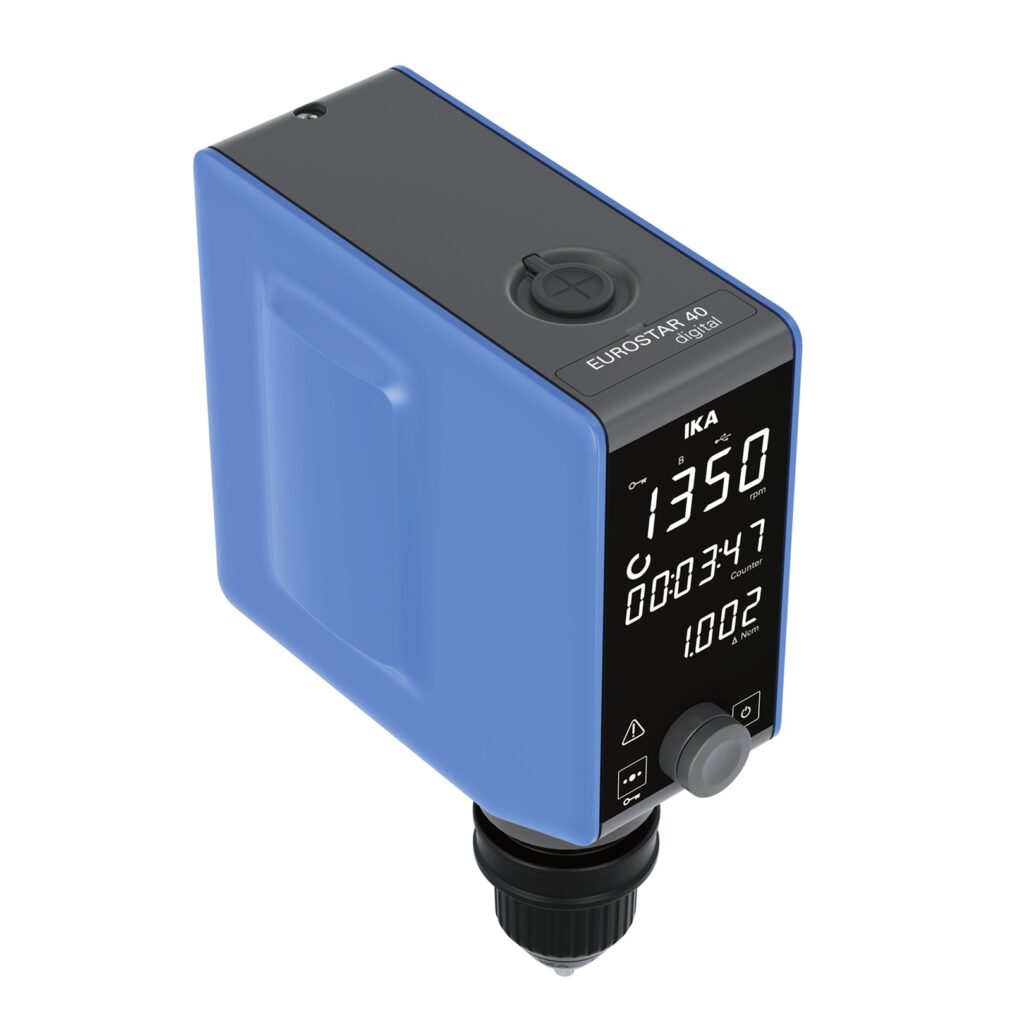

IKA Bovenroerder EUROSTAR 40 digital
The new generation of EUROSTAR overhead stirrers combines modern design, user-friendliness and reliable performance
With up to 23% less space required compared to the previous models they fit perfectly into any laboratory
EUROSTAR 40 digital is the right solution for simple mixing tasks up to 25 liters (H2O) and viscosities up to 30 000 mPas
Its maximum torque of 60 Ncm at low speeds and linear adjustment to 40 Ncm at maximum speed guarantee reliable and powerful performance
The innovative torque trend measurement shows the viscosity trend of the sample (+/- 6 Ncm accuracy)
The torque trend is shown directly on the display and provides important feedback on the mixing process
Thanks to automatic speed adjustment in the range from 30 to 2000 rpm, constant results are ensured, even if the viscosity of the medium changes

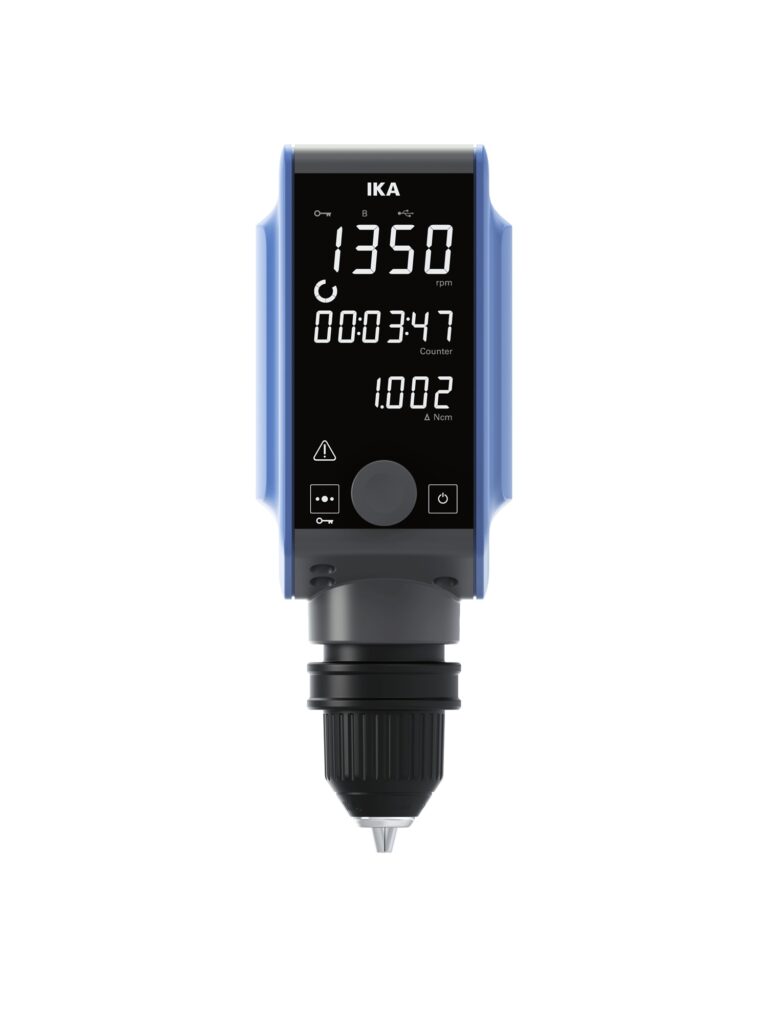

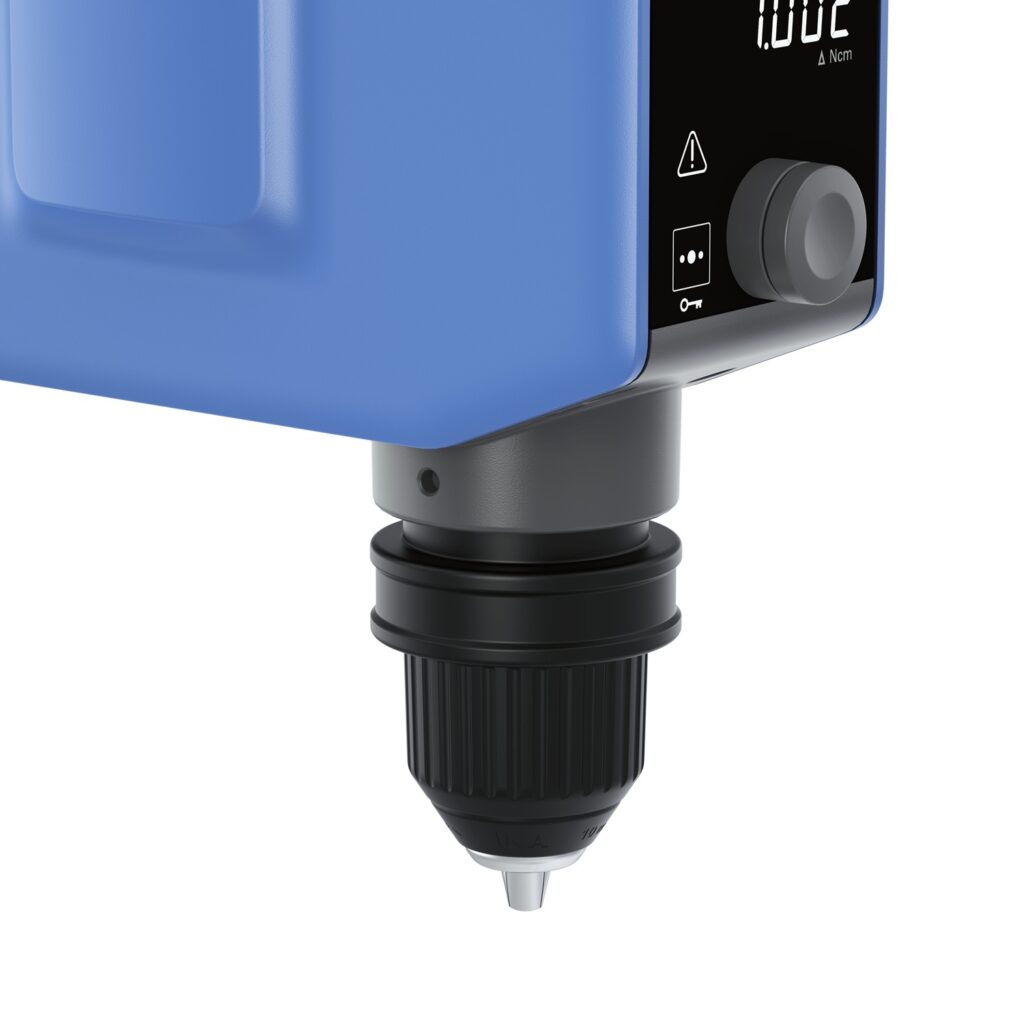

User-friendly: Large LCD display shows all parameters at a glance. The quick-release chuck allows the mixing tools to be changed with one hand, without additional tools
Lock key: Prevents accidental changes to settings
Safety circuits: Automatic shut-off in the event of blocking or overload
Protection class IP 54: Resistant to splash water and steam for reliable use in demanding environments
Brushless motor: Durable, clean and quiet in operation
USB and RS232 interfaces
Compatible with labworldsoft® laboratory software for integration into digital workflows and documentation of processes
| Stirring quantity max. per stirring position (H2O) [l] | 25 |
| Motor rating input [W] | 118 |
| Motor rating output [W] | 84 |
| Motor principle [-] | Brushless DC |
| Speed display [-] | LCD |
| Speed min. [rpm] | 0/30 Speed max. [rpm]: 2000 |
| Reversible direction of rotation [-] | no |
| Intermittent operation [-] | no |
| Viscosity max. [mPas] | 30000 |
| Output max. at stirring shaft [W] | 84 |
| Permissible ON time [%] | 100 |
| Torque max. at stirring shaft [Ncm] | 60 |
| Torque max. at stirring shaft at 30-200 rpm [Ncm] | 60 |
| Torque max. at stirring shaft at 200-2000 rpm [Ncm] | 60-40 |
| Speed adjustment [-] | stepless |
| Setting accuracy speed [rpm] | ±1 |
| Deviation of speed measurement n > 300rpm [%] | ±1 |
| Deviation of speed measurement n < 300rpm [rpm] | ±3 |
| Stirring element fastening [-] | chuck |
| Temperature display [-] | no |
| Chuck range min. diameter [mm] | 0.5 |
| Chuck range max. diameter [mm] | 10 |
| Hollow shaft, inner diameter [mm] | 11 |
| Hollow shaft (push-through - when stopped) [-] | yes |
| Fastening on stand [-] | extension arm |
| Extension arm diameter [mm] | 16 |
| Extension arm length [mm] | 220 |
| Torque display [-] | yes |
| Speed control [-] | electronic |
| Nominal torque [Nm] | 0.4 |
| Torque measurement [-] | trend |
| Deviation of torque measurement I [Ncm] | ±6 |
| Timer [-] | yes |
| Timer display [-] | LCD |
| Time setting min. [min] | 1 |
| Time setting max. [min] | 6000 |
| Housing material [-] | alu-cast coating / thermoplastic polymer |
| Clean room qualified [-] | no |
| Explosion proofed [-] | no |
| Noise without element [dB(A)] | 52 |
| Width [mm] | 89 |
| Depth [mm] | 191 |
| Height [mm] | 237 |
| Weight [kg] | 3.8 |
| Permissible ambient temperature min. [°C] | 5 |
| Permissible ambient temperature max. [°C] | 40 |
| Permissible relative humidity [%] | 80 |
| Protection class according to DIN EN 60529 [-] | IP 54 |
| RS 232 interface [-] | yes |
| USB interface [-] | USB-C |
| WPAN interface [-] | no |
| WiFi Interface [-] | no |
| Ethernet interface [-] | no |
| Analog output [-] | no |
| Voltage [V] | 100 - 240 |
| Frequency [Hz] | 50/60 |
| Power input [W] | 186 |
The new generation of EUROSTAR overhead stirrers combines modern design, user-friendliness and reliable performance
With up to 23% less space required compared to the previous models they fit perfectly into any laboratory
EUROSTAR 40 digital is the right solution for simple mixing tasks up to 25 liters (H2O) and viscosities up to 30 000 mPas
Its maximum torque of 60 Ncm at low speeds and linear adjustment to 40 Ncm at maximum speed guarantee reliable and powerful performance
The innovative torque trend measurement shows the viscosity trend of the sample (+/- 6 Ncm accuracy)
The torque trend is shown directly on the display and provides important feedback on the mixing process
Thanks to automatic speed adjustment in the range from 30 to 2000 rpm, constant results are ensured, even if the viscosity of the medium changes
User-friendly: Large LCD display shows all parameters at a glance. The quick-release chuck allows the mixing tools to be changed with one hand, without additional tools
Lock key: Prevents accidental changes to settings
Safety circuits: Automatic shut-off in the event of blocking or overload
Protection class IP 54: Resistant to splash water and steam for reliable use in demanding environments
Brushless motor: Durable, clean and quiet in operation
USB and RS232 interfaces
Compatible with labworldsoft® laboratory software for integration into digital workflows and documentation of processes
