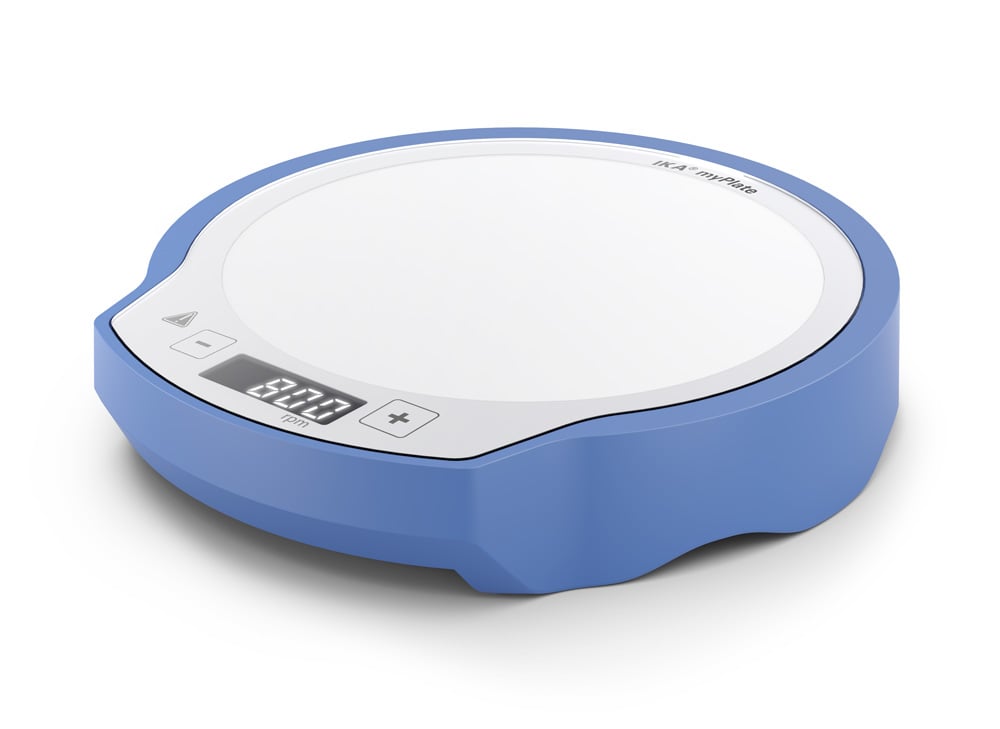

Ika myPlate

Merk: IKA
Referentie: 0025005156
IKA myPlate combines the excellent technical features of the popular and proven IKA magnetic stirrers colour squid and big squid with the option of creative individualization
Personal interchangeable frame
Design the set-up plate of the IKA myPlate by yourself
You receive the device with a decorative image template, that can be exchanged easily through the convenient interchangeable frame
Some people have family photos on their desk - you convert one of the best magnetic stirrers from your day-to-day lab work into a canvas for your favorite pictures
Proven high functionality
Apart from stirring your samples with IKA myPlate on a creative surface, you get all good features of this strong stirrer, just as you are used to from IKA
High chemical resistance
Electronically controlled motor
Digital speed indicator
Speed range between 100 and 2500 rpm
414,00 Excl. BTW
500,94 Incl. BTW
Levertijd op aanvraag
Gratis levering v.a. € 400 in webshop
Voordelige prijzen
Vijfsterrenservice voor & na verkoop
Levering 1 à 3 dagen voor stockartikelen
Afmetingen plaatØ 135 mm
Diameter plaat (Ø)135 mm
Max. volume vloeistof1,5
Rotatiesnelheid (tpm)100 - 2.500 rpm
Verwarming (ja/nee)Nee
Technische data
Number of stirring positions 1
Stirring quantity max. per stirring position (H2O) [l] 1.5
Motor rating output [W] 2
Direction of rotation left
Speed display set-value LED
Speed display actual-value LED
Speed adjustment Touch key
Speed range [rpm] 100 - 2500
Setting accuracy speed [rpm] 10
Stirring bar length max. [mm] 30
Self-heating of the set-up plate by max. stirring (RT22°C/duration
Set-up plate material glass
Set-up plate dimensions [mm] Ø 135
Automatic reverse rotation Nee
Intermittent mode Nee
Viscosity trend measurement Nee
Break detection stirring bar Nee
Timer Nee
pH measurement Nee
Graph function Nee
Programs Nee
Sensor in medium detection (Error 5) Nee
Weighing function Nee
Set-up plate illuminated Nee
Battery operation Nee
Dimensions (W x H x D) [mm] 152 x 30 x 164
Weight [kg] 0.76
Permissible ambient temperature [°C] 5 - 40
Permissible relative humidity [%] 80
Protection class according to DIN EN 60529 IP 54
RS 232 interface Nee
USB interface Nee
Analog output Nee
Voltage [V] 100 - 240
Frequency [Hz] 50/60
Power input [W] 4
Power input standby [W] 1
DC Voltage [V=] 12
Current consumption [mA] 300
IKA myPlate combines the excellent technical features of the popular and proven IKA magnetic stirrers colour squid and big squid with the option of creative individualization
Personal interchangeable frame
Design the set-up plate of the IKA myPlate by yourself
You receive the device with a decorative image template, that can be exchanged easily through the convenient interchangeable frame
Some people have family photos on their desk - you convert one of the best magnetic stirrers from your day-to-day lab work into a canvas for your favorite pictures
Proven high functionality
Apart from stirring your samples with IKA myPlate on a creative surface, you get all good features of this strong stirrer, just as you are used to from IKA
High chemical resistance
Electronically controlled motor
Digital speed indicator
Speed range between 100 and 2500 rpm
