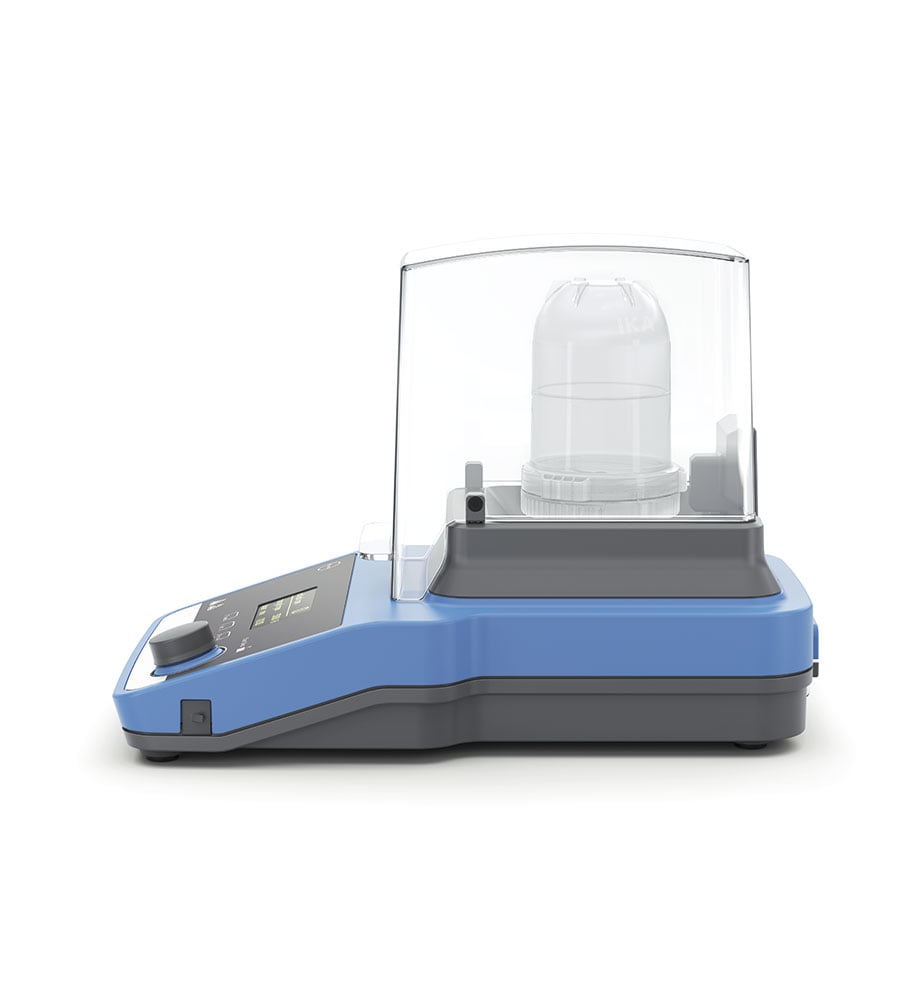

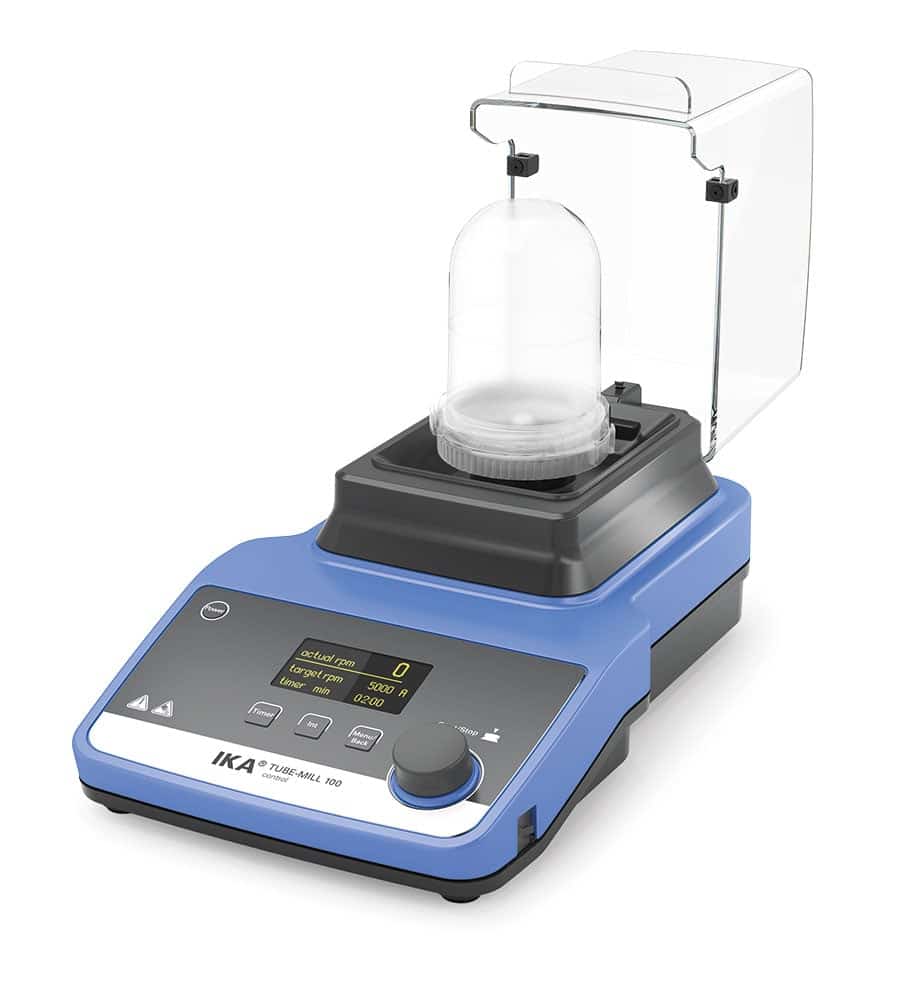

Ika Tube Mill 100 control
The world’s first patented Tube Mill 100 control is a batch mill with disposable grinding chambers
Eliminates possibility of cross-contamination and the effort of cleaning
The Tube Mill 100 control accommodates larger grinding chambers with a maximum volume of 100 ml (MT 100)
The grinding chamber and cover are made of a transparent material so grinding tests can be observed at any time
The mill can be used for hard (Mohs hardness up to 5), dry and brittle materials
It is especially suitable for grinding seeds, such as corn and wheat
The mill will only start when the hood is closed, making it safe to use
Clear and multilingual OLED display (incl
error code display)
Timer, adjustable from 5s - 3 min
USB interface (control and document all parameters)
Interval operation optional
Infinitely variable speed (5, 000 - 25, 000 rpm)
Various operating modes
Adjustable safety speed and time
Programmable and storable test conditions
Reproducible test results
Touch keypad
Scope of delivery includes grinding chambers: 1 x MT 40 - 1 x MT 100 and 1 x MMT 40
| Bruikbaar volume (ml) | 100 ml | |||||||||||||||||||||||||||||||||||||||||||||||||
| Maalmolen of toebehoren (Tube, kogels, schroeven) | Maalmolen | |||||||||||||||||||||||||||||||||||||||||||||||||
| Max. snelheid | 25.000 rpm | |||||||||||||||||||||||||||||||||||||||||||||||||
| Soort maalmolen (snijden, schokken, kogels) | snijden/schokken | |||||||||||||||||||||||||||||||||||||||||||||||||
| Technische data |
| Process type | batch |
| Operating principle | cutting/impact |
| Motor rating input [W] | 100 |
| Motor rating output [W] | 80 |
| Speed range [rpm] | 5000 - 25000 |
| Speed deviation [%] | ±2 |
| Circumferential speed max. [m/s] | 65 |
| Useable volume max. [ml] | 100 |
| Feed hardness max. [Mohs] | 5 |
| Feed grain size max. [mm] | 10 |
| Power-ON time [min] | 3 |
| Milling chamber, can be cooled with water | Nee |
| Mill feed can be cooled in milling chamber with dry ice | Ja |
| Mill feed can be cooled in milling chamber with liquid nitrogen | Nee |
| Dimensions (W x H x D) [mm] | 180 x 212 x 300 |
| Weight [kg] | 2.8 |
| Permissible ambient temperature [°C] | 5 - 40 |
| Permissible relative humidity [%] | 80 |
| Protection class according to DIN EN 60529 | IP 30 |
| RS 232 interface | Nee |
| USB interface | Ja |
| Analog output | Nee |
| Voltage [V] | 220 - 240 |
| Frequency [Hz] | 50/60 |
| Power input [W] | 100 |
The world’s first patented Tube Mill 100 control is a batch mill with disposable grinding chambers
Eliminates possibility of cross-contamination and the effort of cleaning
The Tube Mill 100 control accommodates larger grinding chambers with a maximum volume of 100 ml (MT 100)
The grinding chamber and cover are made of a transparent material so grinding tests can be observed at any time
The mill can be used for hard (Mohs hardness up to 5), dry and brittle materials
It is especially suitable for grinding seeds, such as corn and wheat
The mill will only start when the hood is closed, making it safe to use
Clear and multilingual OLED display (incl
error code display)
Timer, adjustable from 5s - 3 min
USB interface (control and document all parameters)
Interval operation optional
Infinitely variable speed (5, 000 - 25, 000 rpm)
Various operating modes
Adjustable safety speed and time
Programmable and storable test conditions
Reproducible test results
Touch keypad
Scope of delivery includes grinding chambers: 1 x MT 40 - 1 x MT 100 and 1 x MMT 40
