Ika EUROSTAR 200 P4 control
Extremely powerful laboratory stirrer for highly viscous applications for quantities up to 100 l (H2O)

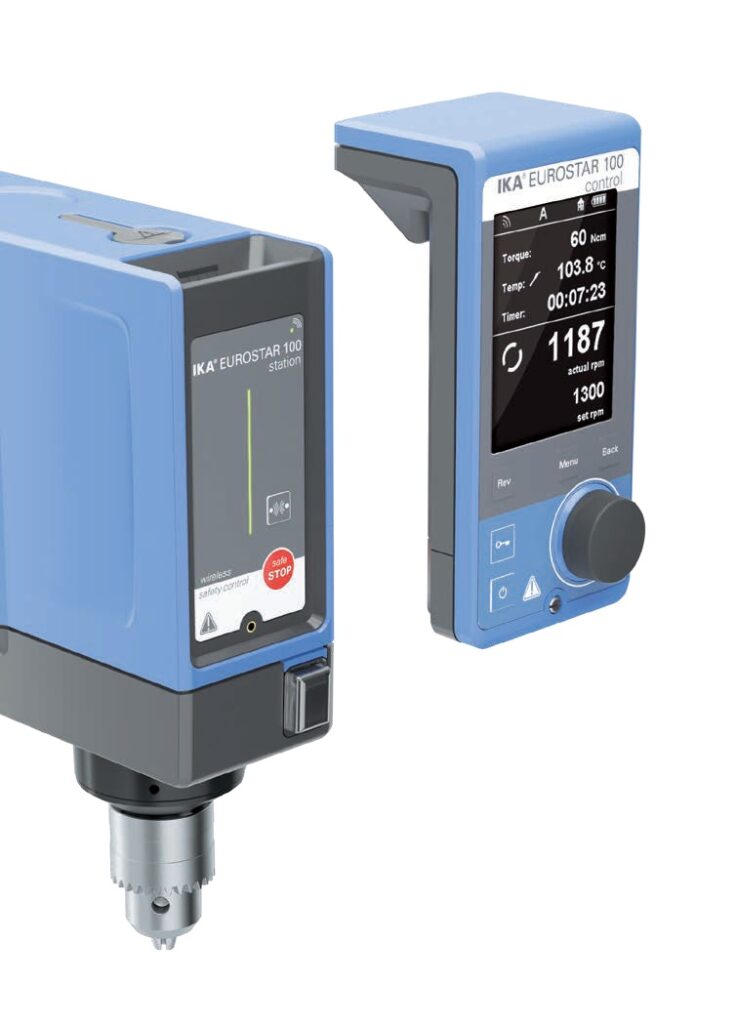

It is designed with a removable wireless controller and a digital TFT display
It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/4 - 530 rpm (two speed ranges)
The stirrer comes equipped with a RS 232 and a USB interface to control and document all parameters
An integrated torque trend display is provided for the measurement of viscosity changes
Safety circuits installed ensures automatic cut-off in an anti-stall or overload conditions
Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically
This guarantees a constant speed even with changes in viscosities of the sample
Multilingual TFT display
Programmable functions
Integrated temperature measurement
Interval operation
Timer function
Adjustable safety circuit
Locked function
Infinitely adjustable speed
Overload protection
Short-term overload operation
Slim casing
Quiet operation
Error code display
H 67.60 temperature sensor and WH 11 WiCo holder included in delivery
| Max. koppel (Ncm) | 660 Ncm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. viscositeit (mPas) | 150.000 mPas | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. volume vloeistof | 100 L | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Rotatiesnelheid (tpm) | 0 - 530 rpm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Technische data |
| Stirring quantity max. per stirring position (H2O) [l] | 100 |
| Motor rating input [W] | 134 |
| Motor rating output [W] | 76 |
| Motor principle | Brushless DC |
| Speed display | TFT |
| Speed range [rpm] | 0/4 - 530 |
| Reversible direction of rotation | Nee |
| Intermittent operation | Ja |
| Viscosity max. [mPas] | 150000 |
| Output max. at stirring shaft [W] | 76 |
| Permissible ON time [%] | 100 |
| Torque max. at stirring shaft [Ncm] | 660 |
| Torque I max. [Ncm] | 660 |
| Torque II max. [Ncm] | 130 |
| Speed range I (50 Hz) [rpm] | 4 - 108 |
| Speed range II (50 Hz) [rpm] | 16 - 530 |
| Speed range I (60 Hz) [rpm] | 4 - 108 |
| Speed range II (60 Hz) [rpm] | 16 - 530 |
| Speed adjustment | stepless |
| Setting accuracy speed [rpm] | ±1 |
| Deviation of speed measurement n > 300rpm [%] | ±1 |
| Deviation of speed measurement n < 300rpm [rpm] | ±3 |
| Stirring element fastening | chuck |
| Connection for ext. temperature sensor | PT1000 |
| Temperature display | Ja |
| Chuck range diameter [mm] | 0.5 - 10 |
| Hollow shaft (push-through - when stopped) | Nee |
| Fastening on stand | extension arm |
| Extension arm diameter [mm] | 16 |
| Extension arm length [mm] | 220 |
| Torque display | Ja |
| Speed control | electronic |
| Nominal torque [Nm] | 6.6 |
| Torque measurement | trend |
| Deviation of torque measurement I [Ncm] | ±60 |
| Deviation of torque measurement II [Ncm] | ±10 |
| Timer | Ja |
| Timer display | TFT |
| Time setting range [min] | 1 - 6000 |
| Temperature measuring range [°C] | -10 - +350 |
| Temperature measurement resolution [K] | 0.1 |
| Accuracy of temperature measurement [K] | ±0.5 + tolerance PT1000 (DIN EN 60751 Class A) |
| Limit deviation temperature sensor [K] | ≤ ± (0.15 + 0.002xITI) |
| Housing material | alu-cast coating / thermoplastic polymer |
| Clean room qualified | Nee |
| Explosion proofed | Nee |
| Communication distance (depend onbuilding) max. [m] | 150 |
| Dimensions (W x H x D) [mm] | 91 x 379 x 231 |
| Weight [kg] | 5.8 |
| Permissible ambient temperature [°C] | 5 - 40 |
| Permissible relative humidity [%] | 80 |
| Protection class according to DIN EN 60529 | IP 40 |
| RS 232 interface | Ja |
| USB interface | Ja |
| Analog output | Nee |
| Voltage [V] | 230 |
| Frequency [Hz] | 50/60 |
| Power input [W] | 134 |
Extremely powerful laboratory stirrer for highly viscous applications for quantities up to 100 l (H2O)
It is designed with a removable wireless controller and a digital TFT display
It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/4 - 530 rpm (two speed ranges)
The stirrer comes equipped with a RS 232 and a USB interface to control and document all parameters
An integrated torque trend display is provided for the measurement of viscosity changes
Safety circuits installed ensures automatic cut-off in an anti-stall or overload conditions
Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically
This guarantees a constant speed even with changes in viscosities of the sample
Multilingual TFT display
Programmable functions
Integrated temperature measurement
Interval operation
Timer function
Adjustable safety circuit
Locked function
Infinitely adjustable speed
Overload protection
Short-term overload operation
Slim casing
Quiet operation
Error code display
H 67.60 temperature sensor and WH 11 WiCo holder included in delivery
