Ika EasySyn 2000 Starter Reactor system
EasySyn is the reactor system for organic or aqueous syntheses
It ensures safe and reproducible chemical reactions on the way from laboratory to pilot scale
Our EasySyn 2000 Starter package comprises a complete reactor system for use in the laboratory
The high quality of the used materials allows operation at temperatures from -50 to 200 °C and up to a negative pressure of 3 mbar
EasySyn 2000 Starter includes:
Ergonomically designed stand system for quick and easy exchange of reactor vessels and adjustment of the working height to your body size

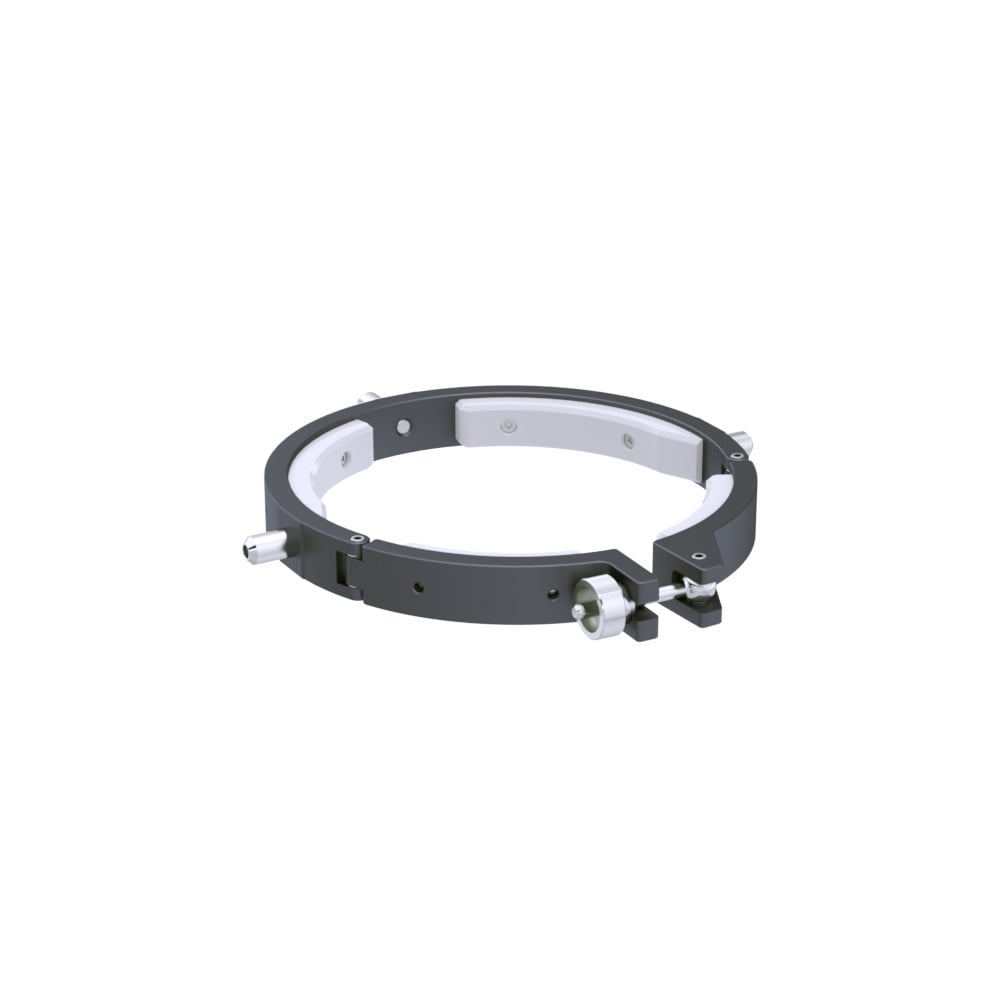

DN 150 vessel clamp for mounting the reactor vessel

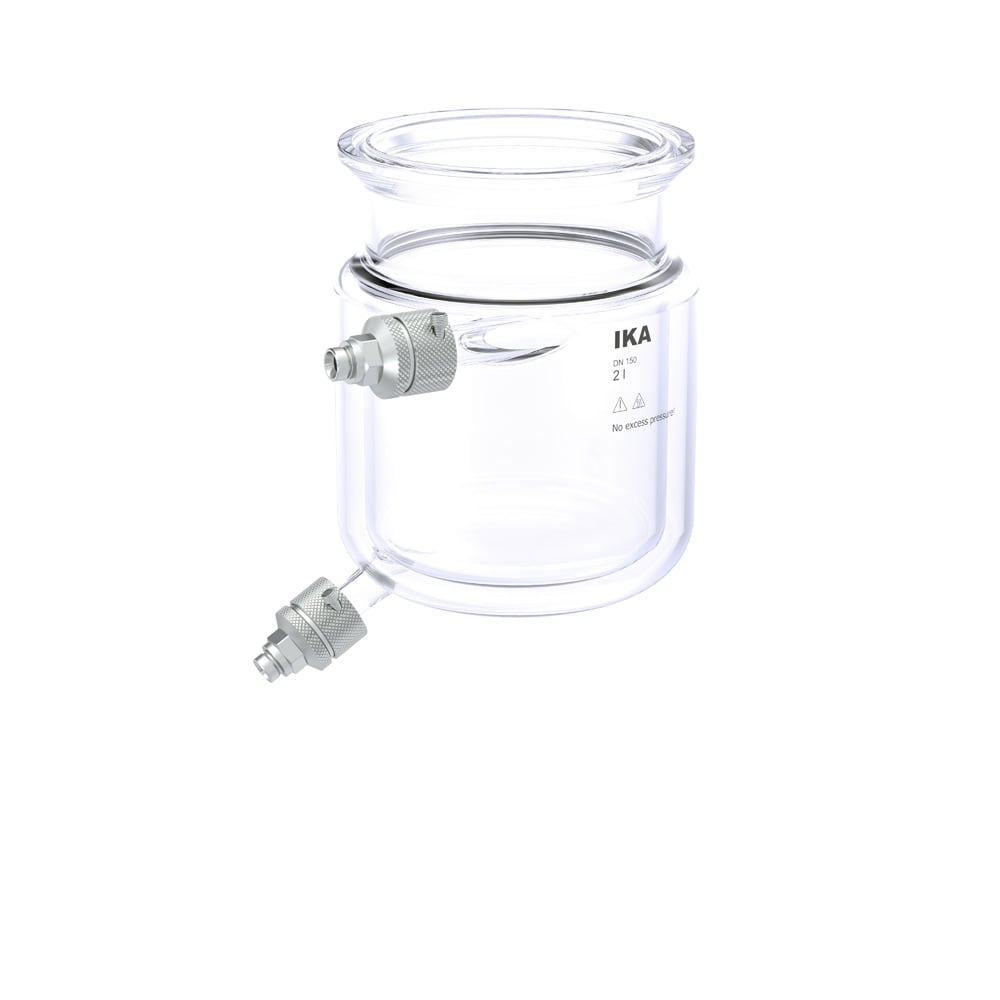

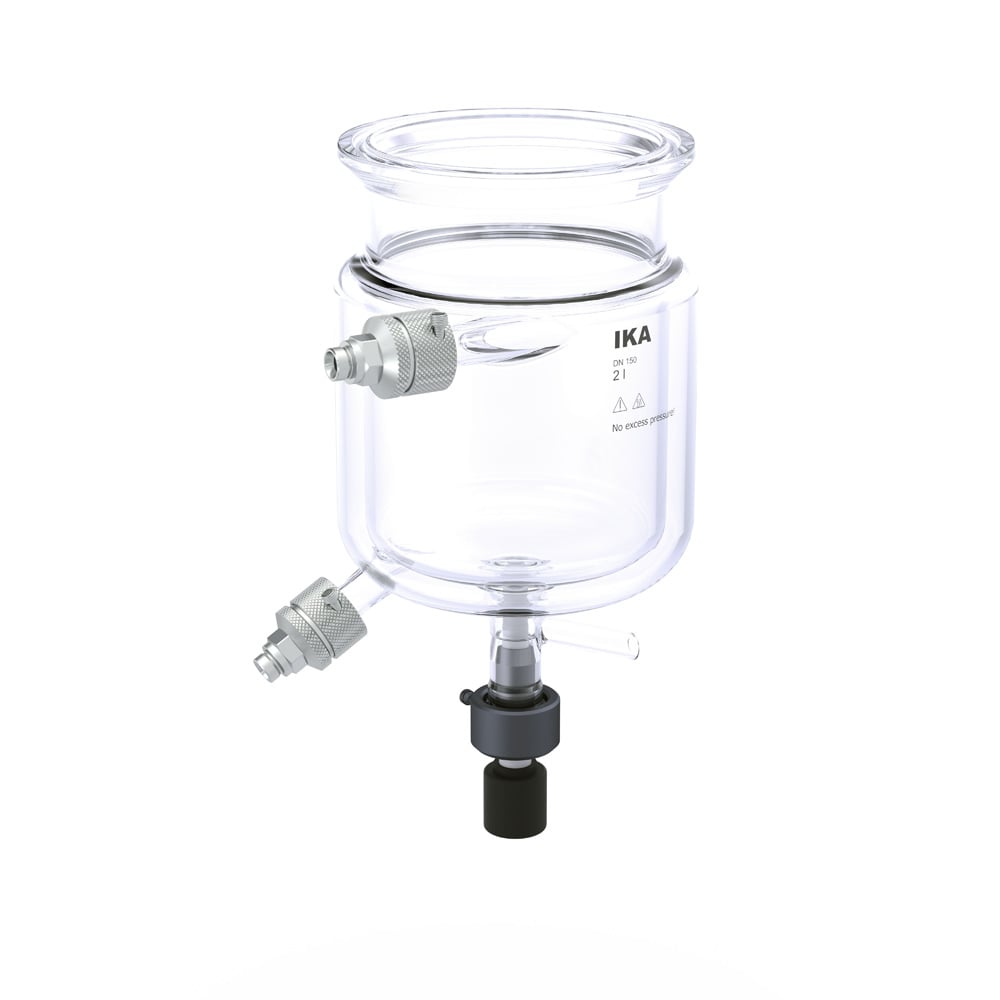

Double-walled 2000 ml reactor vessel made of chemically resistant borosilicate 3.3 glass with bottom discharge valve
Spring-loaded valve spindle of the drain valve to prevent glass breakage

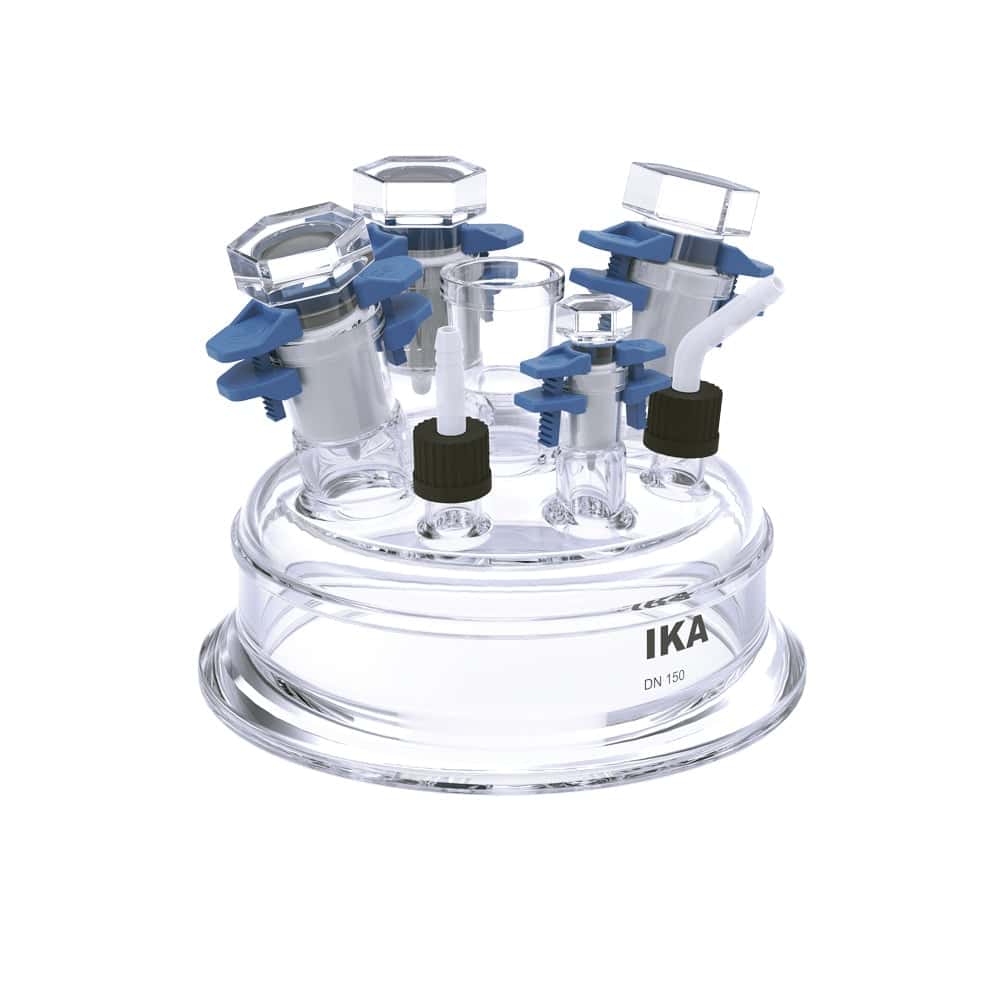

Reactor lid with various openings (1 x NS 29/32 center glass joint, 2 x NS 29/32, 1 x NS 14/23) for flexible adaptation to the desired application

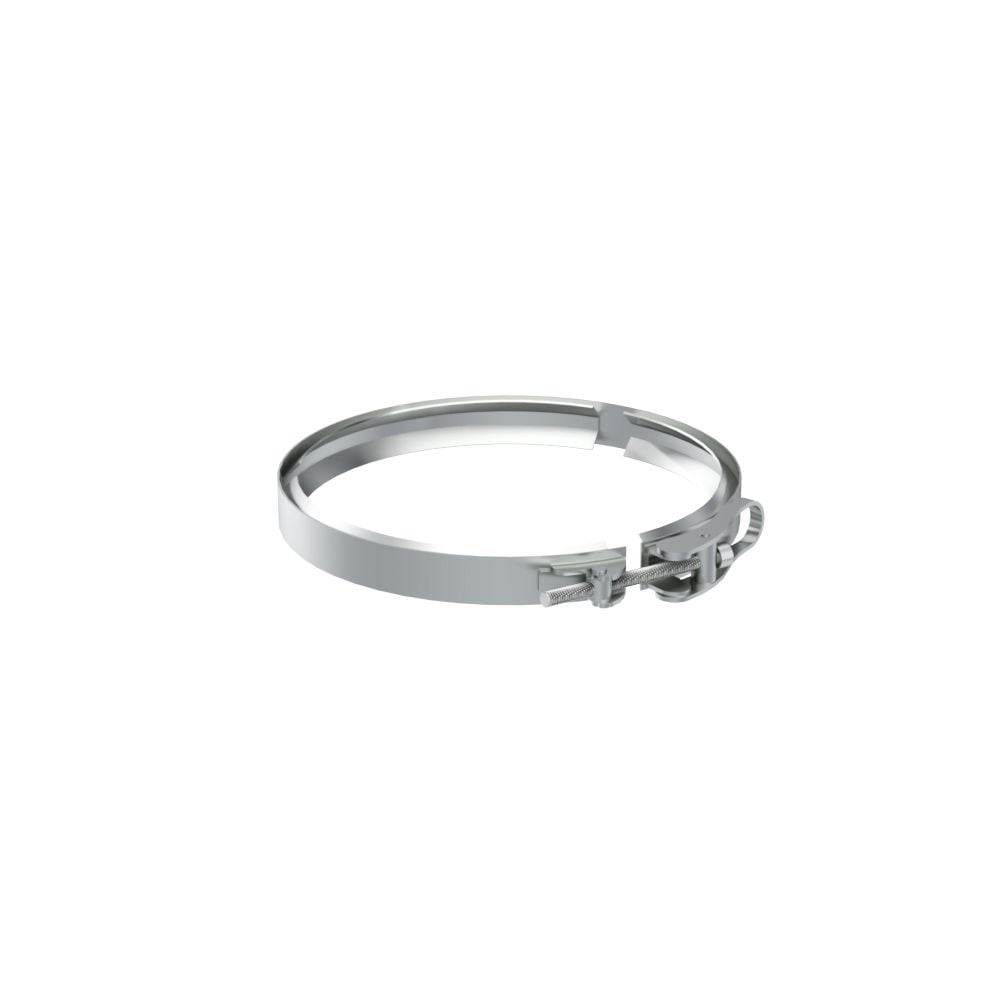

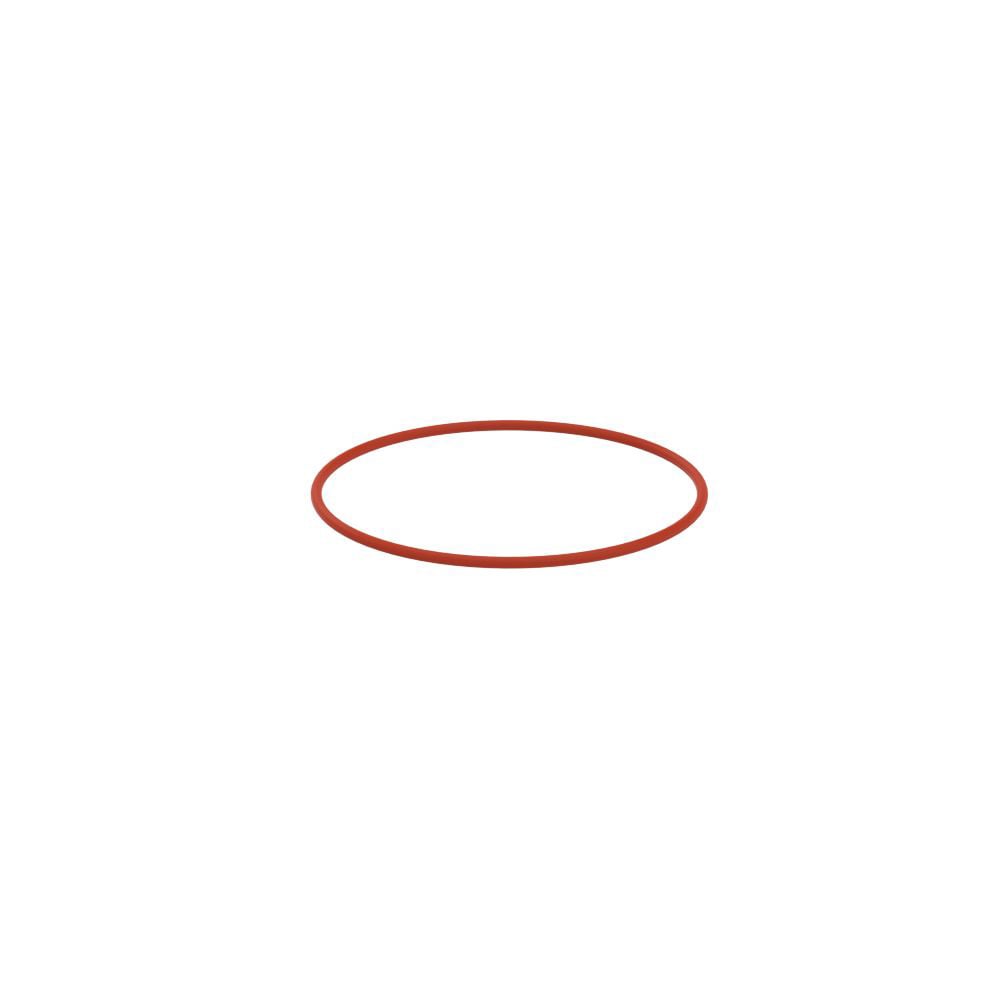

DN 150 clamp ring and DN 150 FEP-coated O-ring to ensure chemical resistance

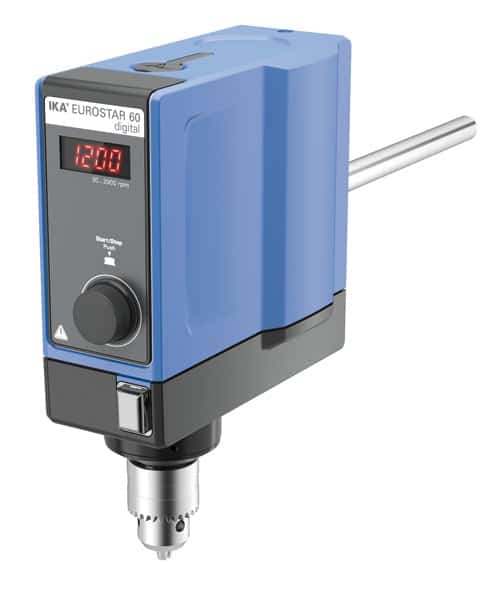

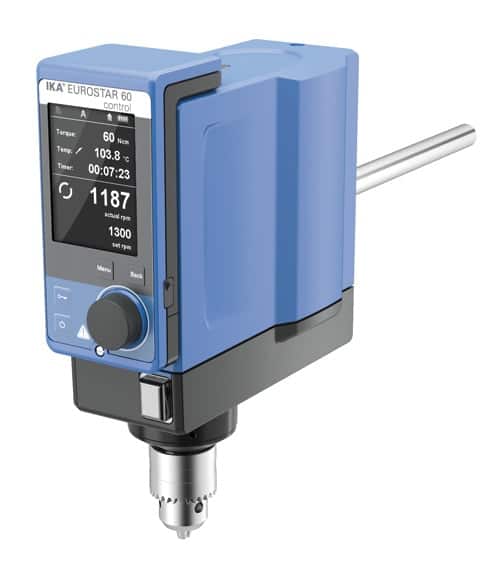

Powerful overhead stirrer EUROSTAR 60 digital with 60 Ncm, including keyless chuck for easy and fast mounting of the stirring tool

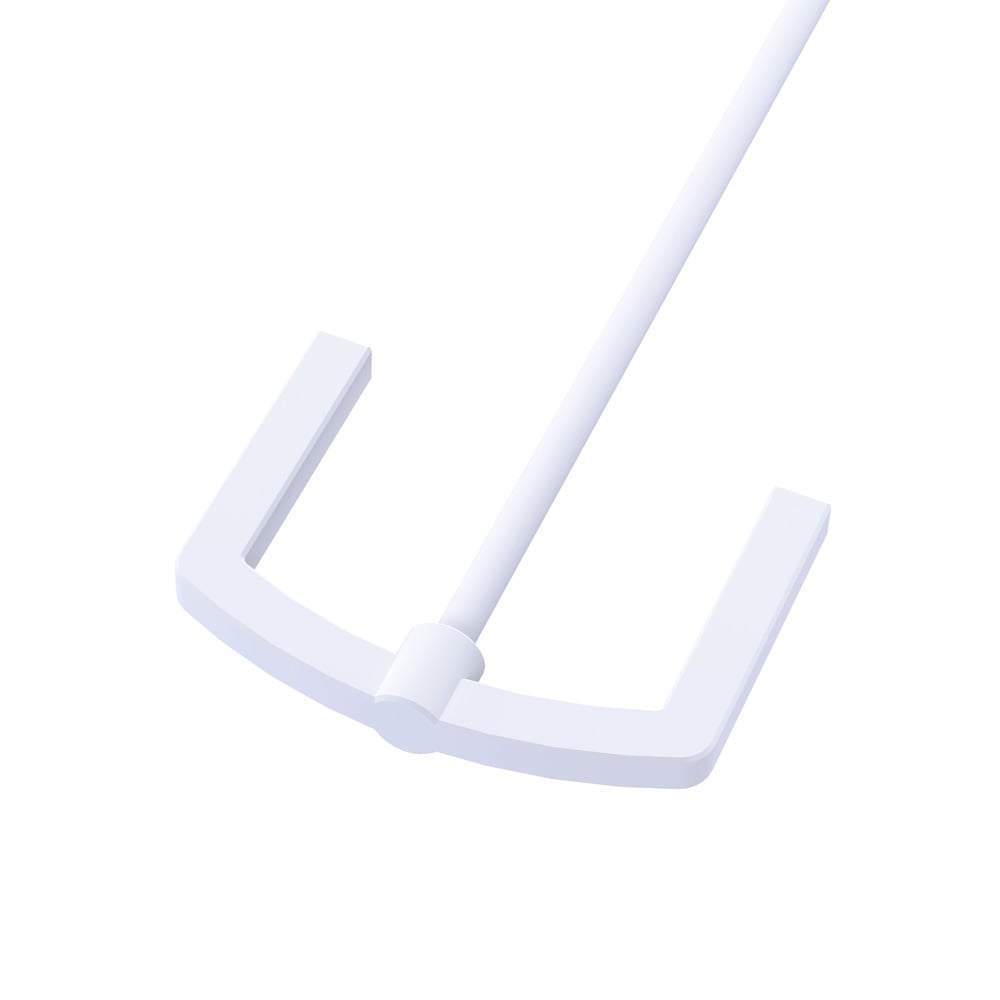

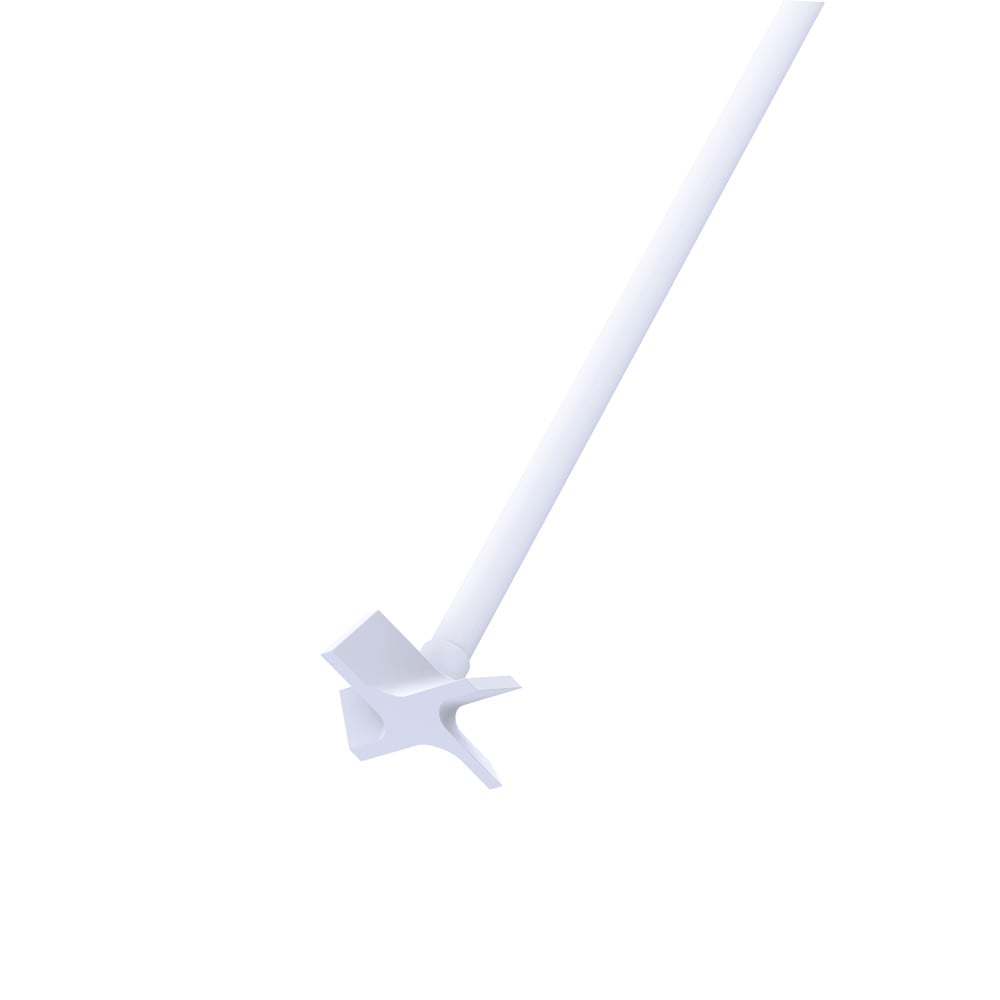

PTFE-coated propeller stirrer for optimum mixing and chemical resistance
High-quality stirrer guide for vacuum operation up to 3 mbar

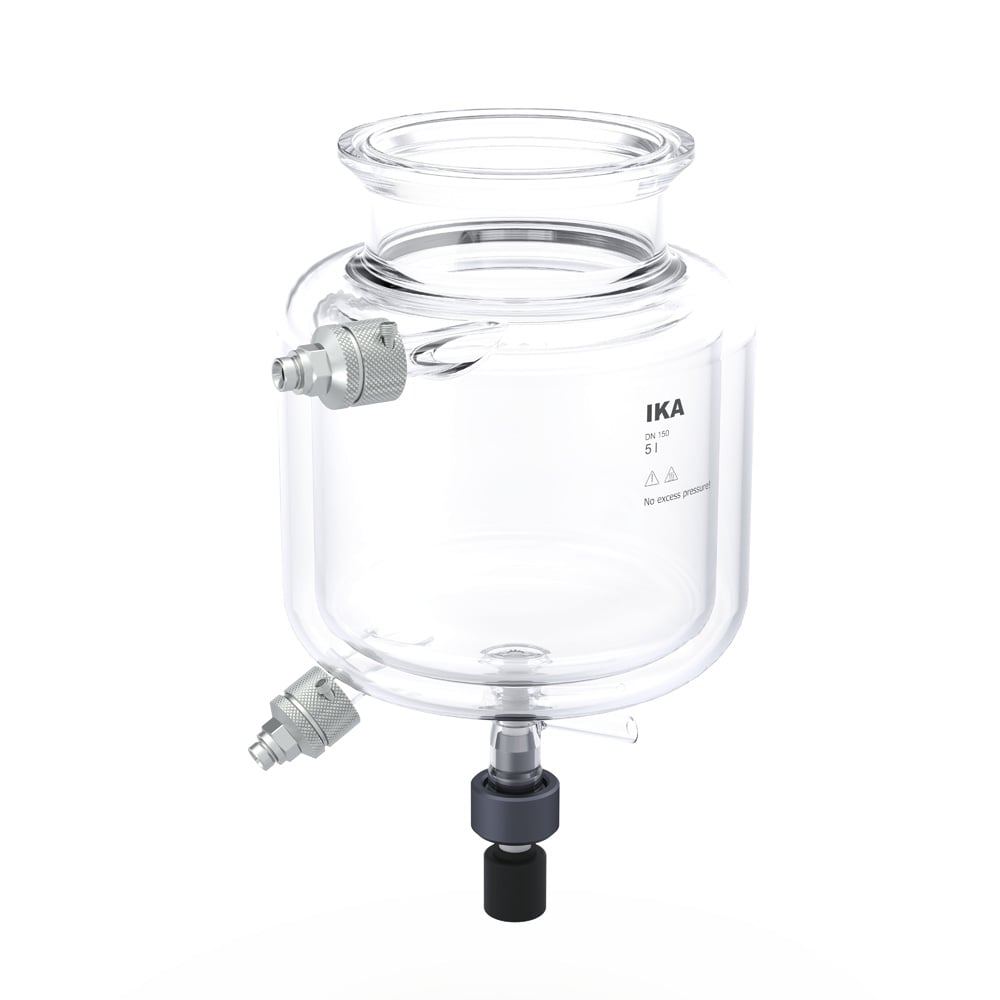

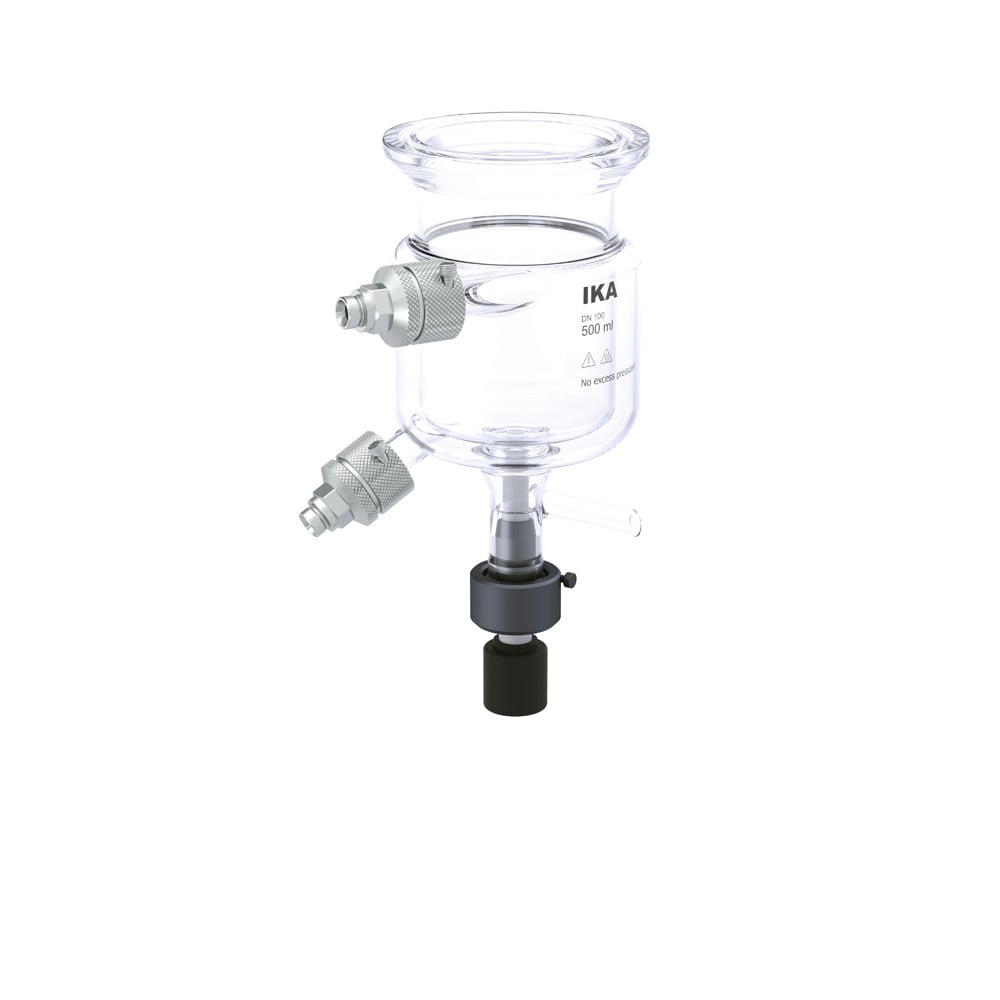

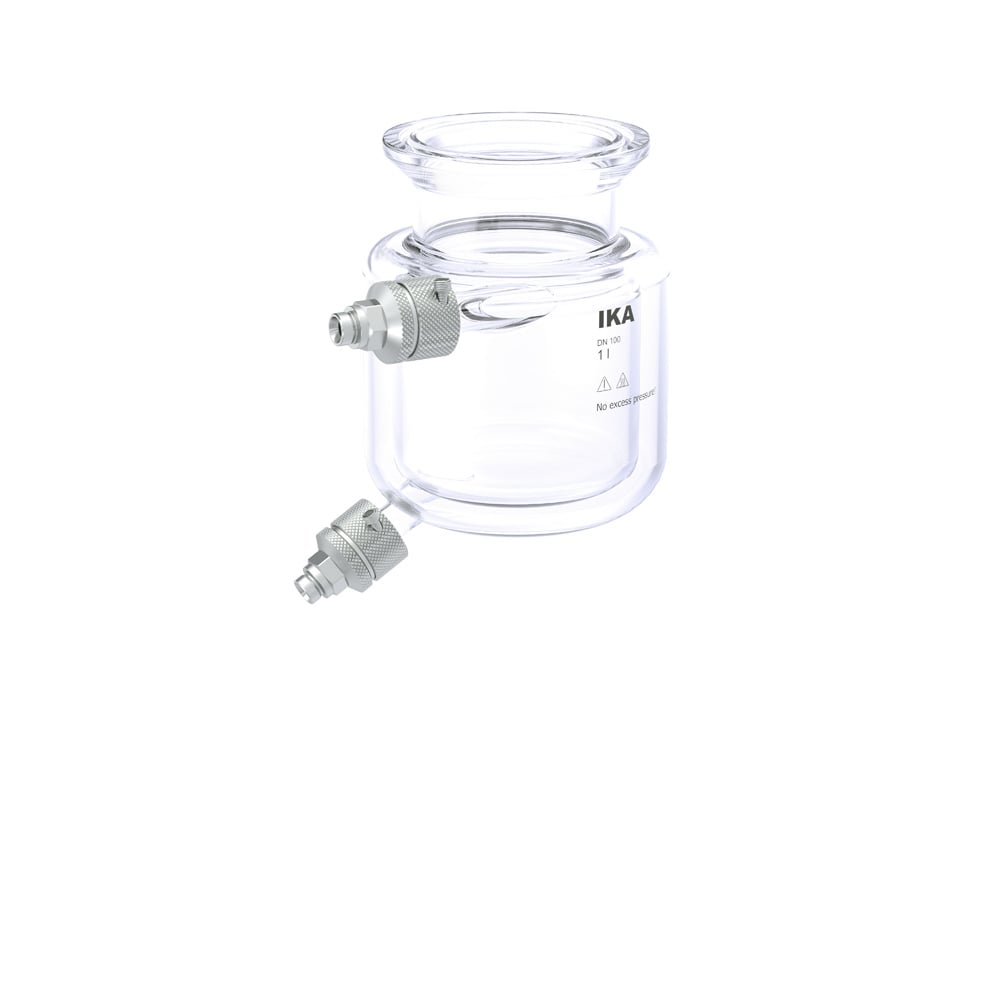

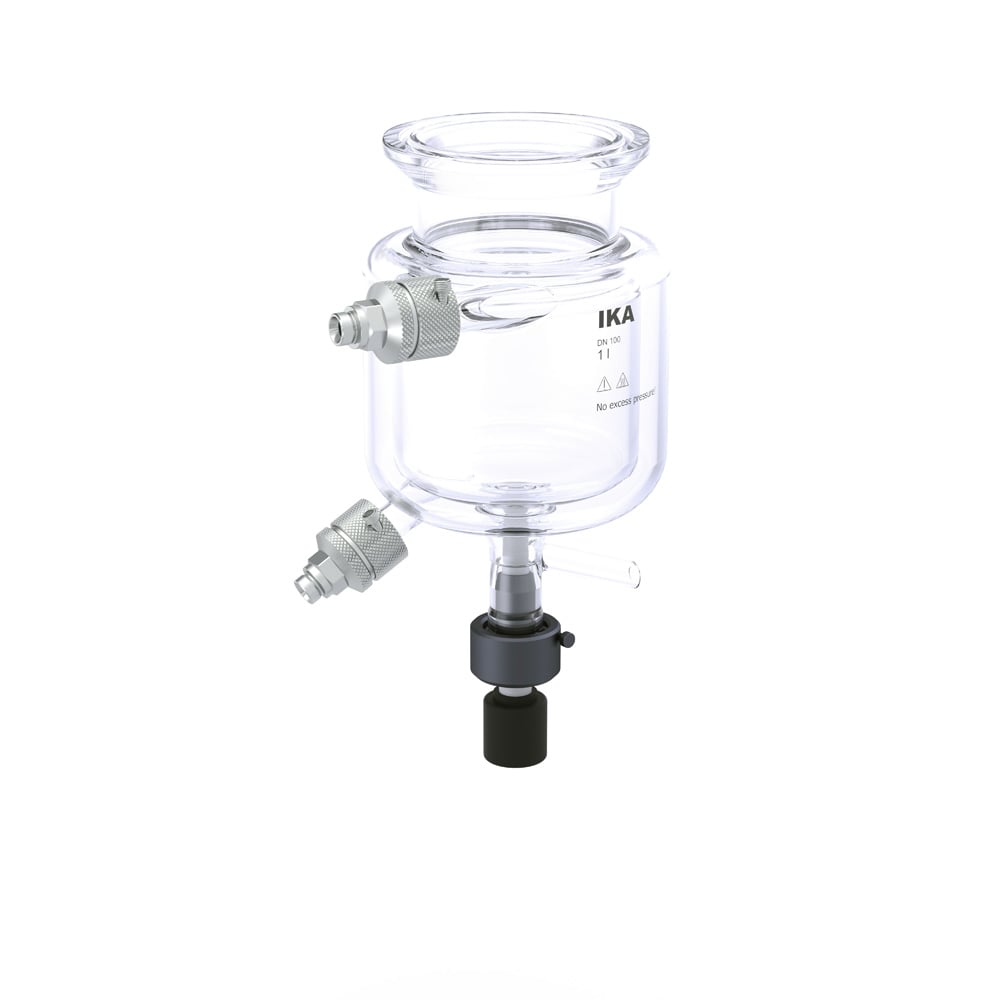

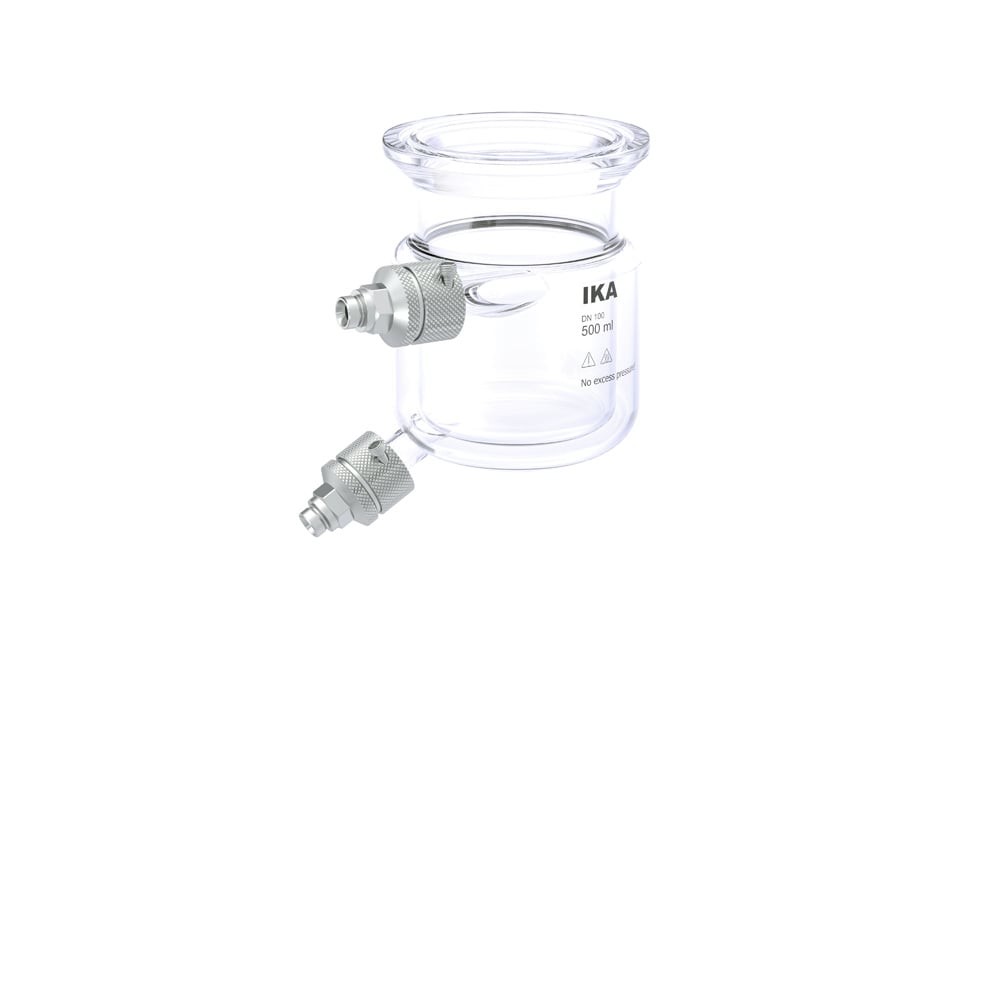

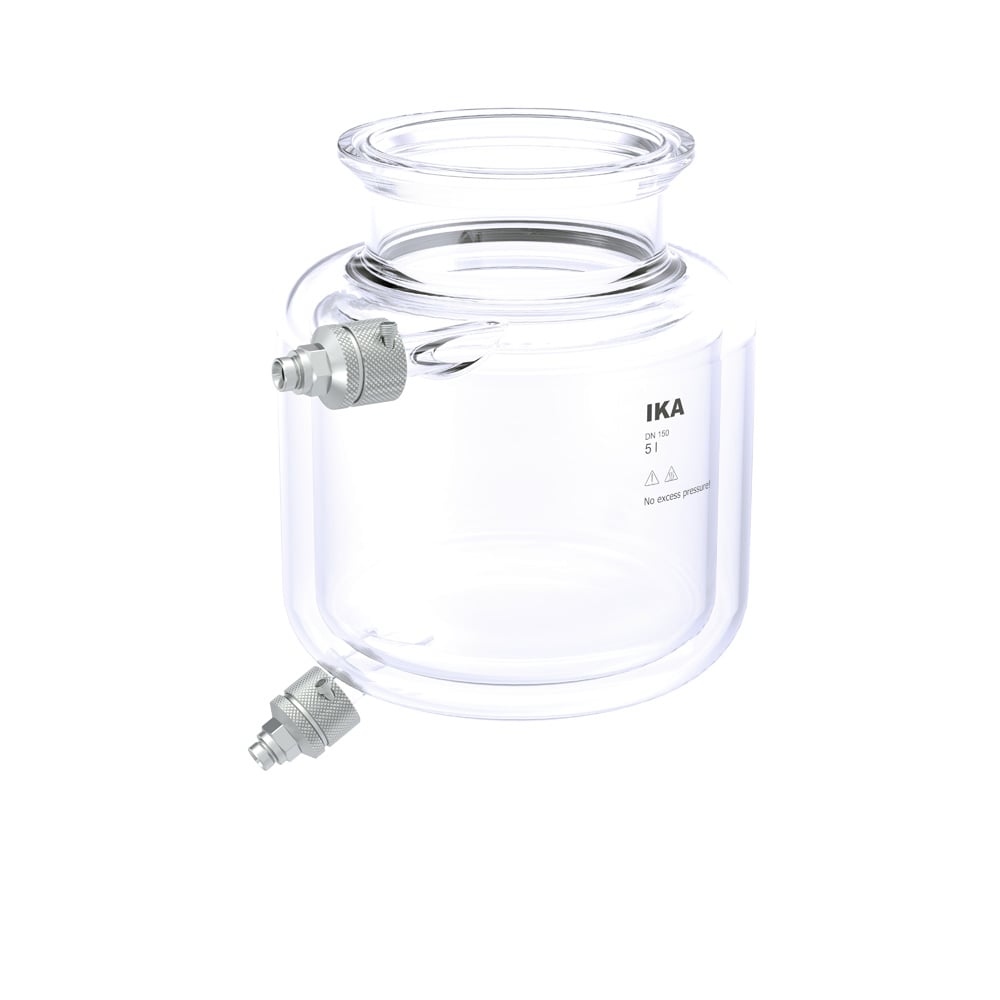

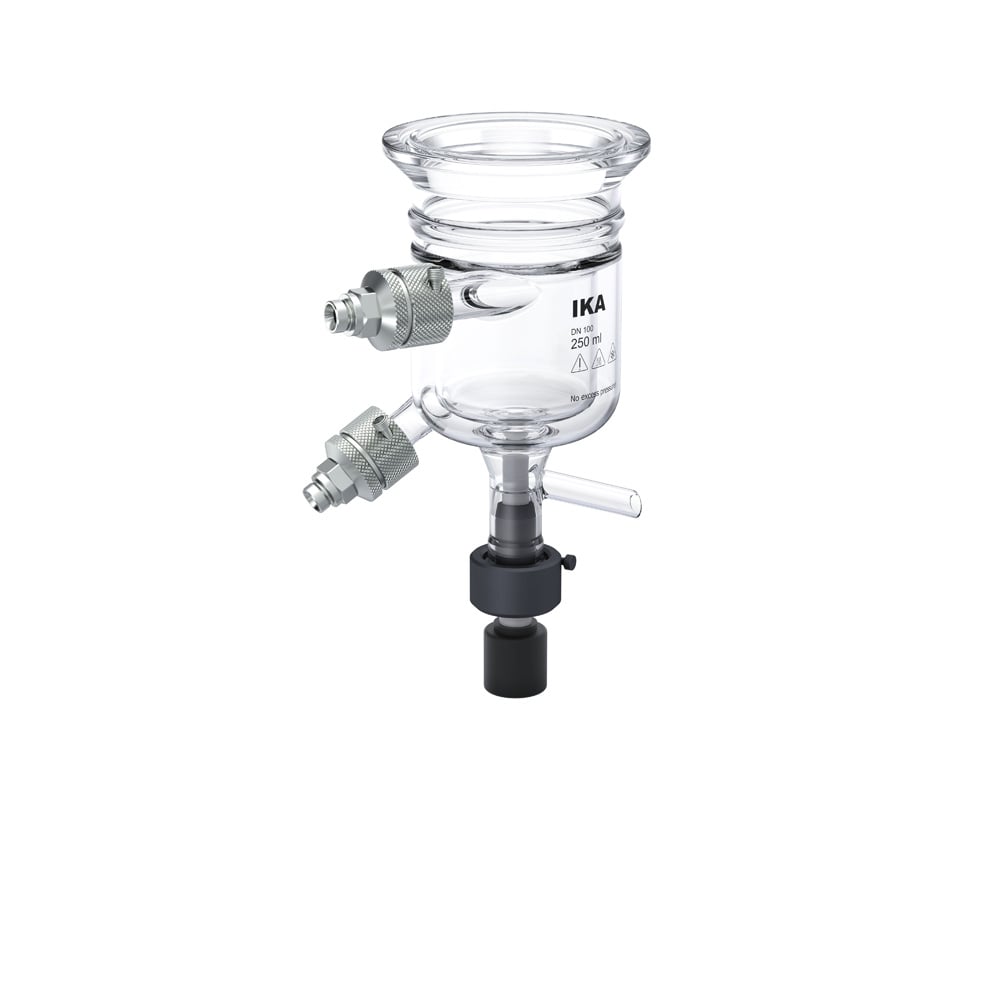

Further reactor vessels (with and without bottom discharge), reactor covers, stirring tools, temperature sensors, circualtors, laboratory automation and much more can be found in the section "Accessories"

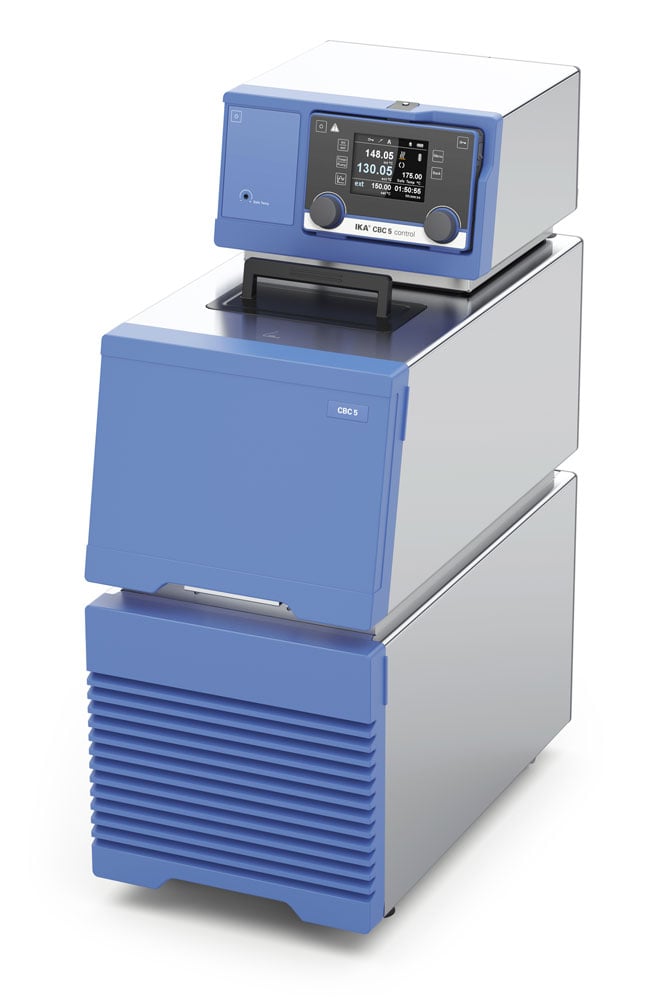

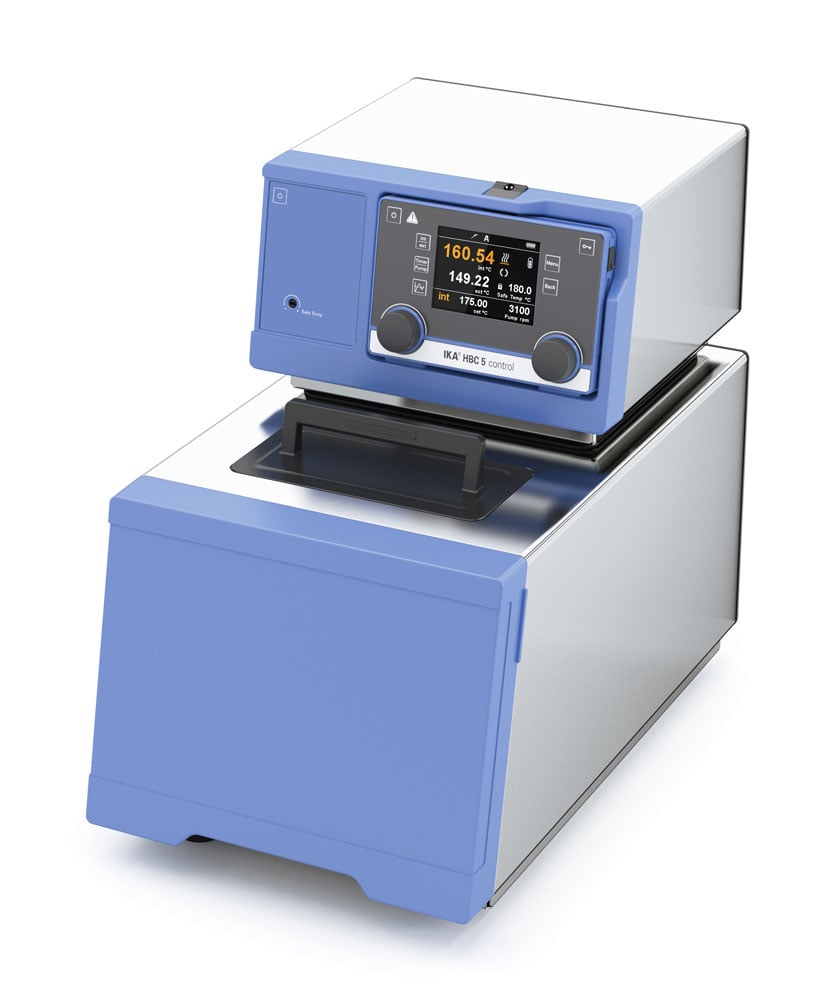

To complete your system, you get all the complementary components from a single source: overhead stirrers, circulators, vacuum pumps and controllers, sensors and automation software
All from IKA and all perfectly matched to each other
Would you like your own desired configuration? Or do you need an offer? You are welcome to contact our sales team
Note: The scope of delivery does not include temperature hoses for connecting a thermostat
| Technische data |
| Volume [l] | 2 |
| Flange dimension | DN150 |
| Vacuum application | Ja |
| Useable volume min. [ml] | 120 |
| Useable volume with temperature probe min. [ml] | 400 |
| Attainable vacuum [mbar] | 3 |
| Dimensions (W x H x D) [mm] | 500 x 950 x 580 |
| Permissible ambient temperature [°C] | 5 - 40 |
EasySyn is the reactor system for organic or aqueous syntheses
It ensures safe and reproducible chemical reactions on the way from laboratory to pilot scale
Our EasySyn 2000 Starter package comprises a complete reactor system for use in the laboratory
The high quality of the used materials allows operation at temperatures from -50 to 200 °C and up to a negative pressure of 3 mbar
EasySyn 2000 Starter includes:
Ergonomically designed stand system for quick and easy exchange of reactor vessels and adjustment of the working height to your body size
DN 150 vessel clamp for mounting the reactor vessel
Double-walled 2000 ml reactor vessel made of chemically resistant borosilicate 3.3 glass with bottom discharge valve
Spring-loaded valve spindle of the drain valve to prevent glass breakage
Reactor lid with various openings (1 x NS 29/32 center glass joint, 2 x NS 29/32, 1 x NS 14/23) for flexible adaptation to the desired application
DN 150 clamp ring and DN 150 FEP-coated O-ring to ensure chemical resistance
Powerful overhead stirrer EUROSTAR 60 digital with 60 Ncm, including keyless chuck for easy and fast mounting of the stirring tool
PTFE-coated propeller stirrer for optimum mixing and chemical resistance
High-quality stirrer guide for vacuum operation up to 3 mbar
Further reactor vessels (with and without bottom discharge), reactor covers, stirring tools, temperature sensors, circualtors, laboratory automation and much more can be found in the section "Accessories"
To complete your system, you get all the complementary components from a single source: overhead stirrers, circulators, vacuum pumps and controllers, sensors and automation software
All from IKA and all perfectly matched to each other
Would you like your own desired configuration? Or do you need an offer? You are welcome to contact our sales team
Note: The scope of delivery does not include temperature hoses for connecting a thermostat
