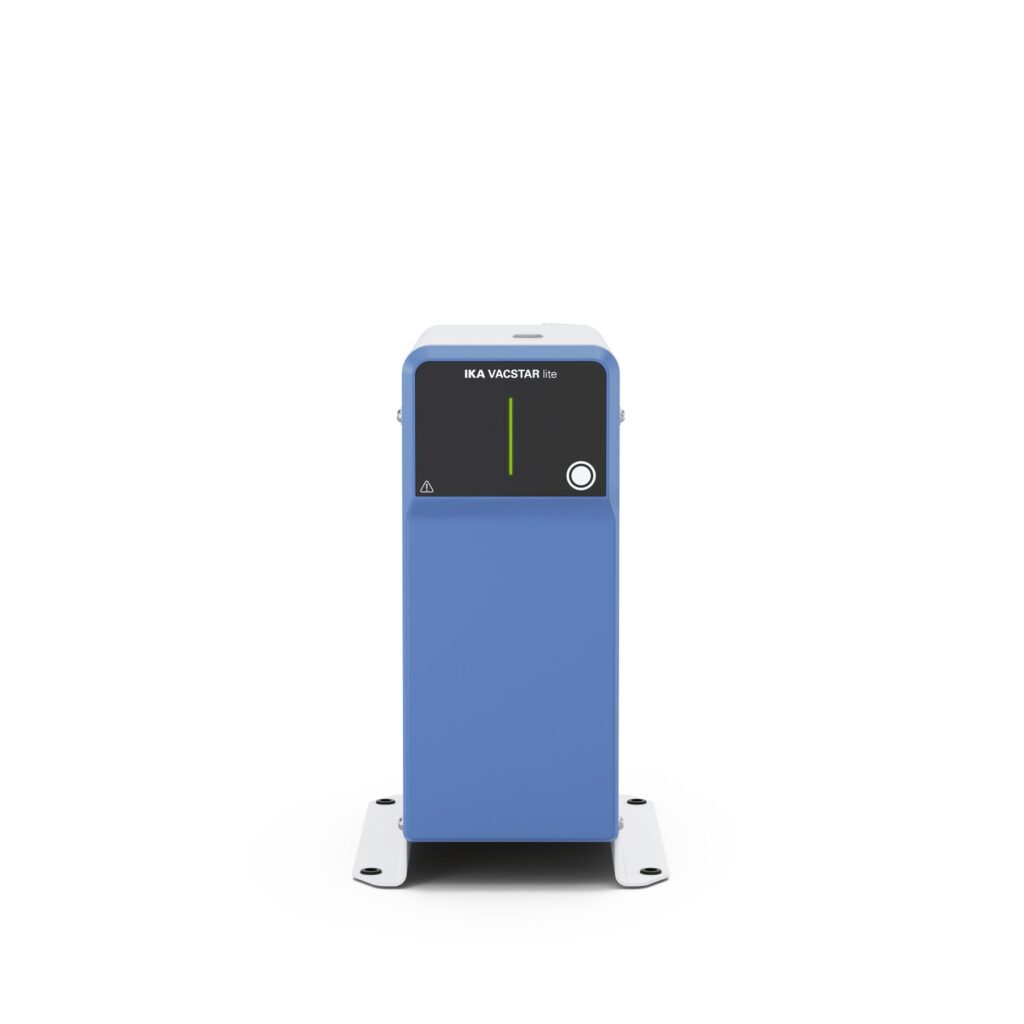

IKA Vacuümpomp VACSTAR lite
VACSTAR lite is a speed-controlled, 2-cylinder vacuum pump for universal use in dry and oil-free vacuum applications
Equipped with chemically resistant membranes and an ultimate vacuum pressure of 9 mbar, this vacuum pump is ideal for almost all standard vacuum applications in the laboratory
Optimized for use with rotary evaporators, laboratory reactors, temperature chambers, centrifuges and other laboratory equipment, as well as classic Schlenk line and standard filtration systems, VACSTAR lite offers high operating efficiency and flexibility
The robust design ensures long-term reliability with minimal maintenance, making it an ideal peripheral device for standard laboratory processes
Compact and thin design: Thanks to its small footprint, VACSTAR lite can be conveniently placed behind other lab equipment, saving valuable bench space while remaining easily accessible
Integrated device communication: The pump enables seamless communication between devices such as vacuum controllers and circulators, ensuring synchronized laboratory processes. This feature optimizes process control and increases overall system performance
Longer system life: In combination with the VC 10 lite vacuum controller, the system has an integrated valve cleaning function that removes solvent residues and thus extends the life of the vacuum system. Regular ventilation prevents the build-up of contamination and reduces maintenance costs
The use of the VSE 1 emission condenser (available as an accessory) is recommended. This ensures the safety of users from escaping solvent vapors and at the same time keeps the ambient air clean
| Pump rate max. (50/60Hz) [m³/h] | 1 |
| Pump rate max. (50/60Hz) [l/min] | 16.67 |
| Final pressure without gas ballast [mbar] | 9 |
| Suction levels | 2 |
| Cylinder | 2 |
| Connection diameter suction side [mm] | 8 |
| Connection diameter pressure side [mm] | 8 |
| Gas ballast valve | no |
| Input pressure [mbar] | 10 - 1030 |
| Boiling point detection | no |
| Solvent library | no |
| Two-point control | no |
| Analog speed vacuum control | no |
| Speed range [rpm] | 285 - 1100 |
| Speed (50Hz) [rpm] | 1100 |
| Speed (60Hz) [rpm] | 1100 |
| Nominal speed [rpm] | 1100 |
| Display | LED line |
| Vacuum sensor | no |
| Venting valve | no |
| Condensate trap | no |
| Emission condenser | no |
| Noise at low. pressure [dB(A)] | 54 |
| Material in contact with medium | Al2O3; PTFE; FFPM; PPS; NBR |
| Housing material | alu-cast coating / thermoplastic polymer |
| Clean room qualified | no |
| Explosion proofed | no |
| Dimensions (W x H x D) [mm] | 115 x 292 x 280 |
| Weight [kg] | 8.5 |
| Permissible ambient temperature [°C] | 5 - 40 |
| Permissible relative humidity | 80% (up to 31°C), decreasing linearly to max. 50 (@40°C) |
| Protection class according to DIN EN 60529 | IP 20 |
| RS 232 interface | no |
| RS 485 interface | no |
| USB interface | USB-C |
| WPAN interface | no |
| WiFi Interface | no |
| Ethernet interface | no |
| Analog output | no |
| Analog input | yes |
| Voltage [V] | 100 - 240 |
| Frequency [Hz] | 50/60 |
| Power input [W] | 120 |
| Power input standby [W] | 1.5 |
| Fuse | 2x T4A 250V |
VACSTAR lite is a speed-controlled, 2-cylinder vacuum pump for universal use in dry and oil-free vacuum applications
Equipped with chemically resistant membranes and an ultimate vacuum pressure of 9 mbar, this vacuum pump is ideal for almost all standard vacuum applications in the laboratory
Optimized for use with rotary evaporators, laboratory reactors, temperature chambers, centrifuges and other laboratory equipment, as well as classic Schlenk line and standard filtration systems, VACSTAR lite offers high operating efficiency and flexibility
The robust design ensures long-term reliability with minimal maintenance, making it an ideal peripheral device for standard laboratory processes
Compact and thin design: Thanks to its small footprint, VACSTAR lite can be conveniently placed behind other lab equipment, saving valuable bench space while remaining easily accessible
Integrated device communication: The pump enables seamless communication between devices such as vacuum controllers and circulators, ensuring synchronized laboratory processes. This feature optimizes process control and increases overall system performance
Longer system life: In combination with the VC 10 lite vacuum controller, the system has an integrated valve cleaning function that removes solvent residues and thus extends the life of the vacuum system. Regular ventilation prevents the build-up of contamination and reduces maintenance costs
The use of the VSE 1 emission condenser (available as an accessory) is recommended. This ensures the safety of users from escaping solvent vapors and at the same time keeps the ambient air clean
