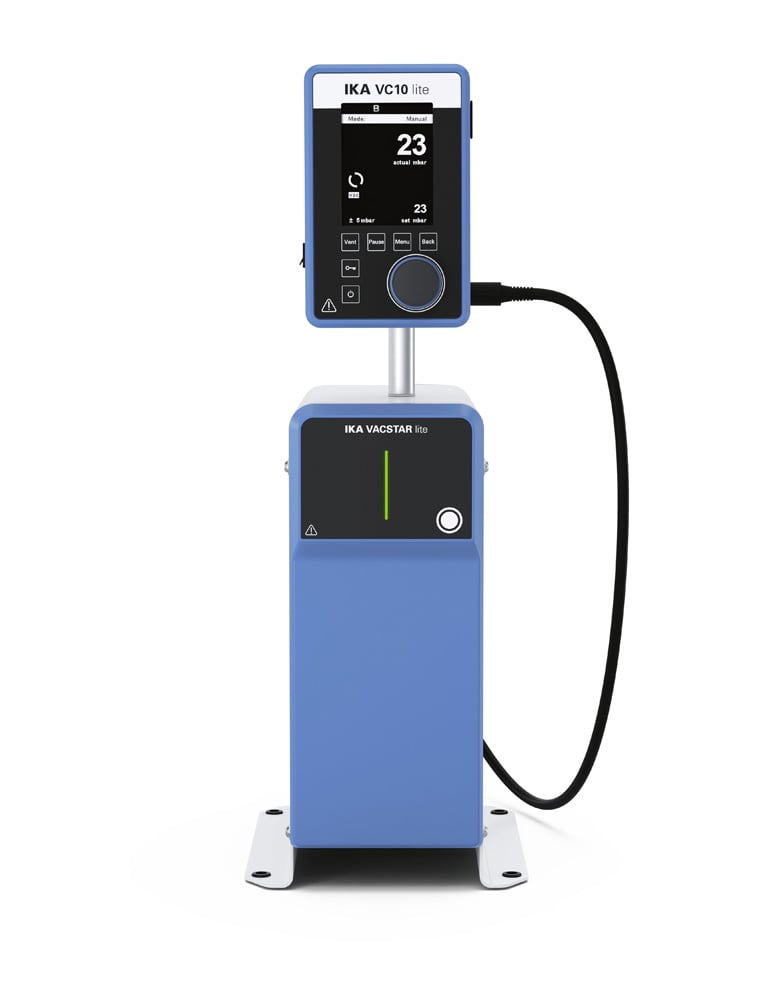

IKA Vacuümpomp VACSTAR lite Starter Plus Solution
The VACSTAR lite Starter Plus Solution package is a modern, user and environmentally friendly solution for your vacuum applications in the laboratory
By combining the VC 10 lite vacuum controller with the VACSTAR lite vacuum pump, the desired setpoint can be conveniently set manually via the large and easy-to-read TFT display
In addition, the program mode enables simple programming of several ramp steps to efficiently control complex simulations
The VSE 1 emission condenser prevents solvents from being released into the room air, thus protecting users and the environment
This solution is perfect for a variety of classic laboratory applications, including separation, filtration and drying processes. Ideal for use in conjunction with rotary evaporators, reactors, tempering chambers, centrifuges and other laboratory equipment
Integrated device communication: the vacuum controller seamlessly synchronizes with circulators, resulting in optimized lab procedures and increased overall performance
Longer lifecycle: An integrated valve cleaning function removes solvent residues, extending system life and reducing maintenance
USB/RS232 interfaces: These allow connection to labworldsoft laboratory software for advanced process control
Increased safety: The VSE 1 emission condenser ensures increased user safety by preventing solvent residues from entering the room air
| Pump rate max. (50/60Hz) [m³/h] | 1 |
| Pump rate max. (50/60Hz) [l/min] | 16.67 |
| Final pressure without gas ballast [mbar] | 9 |
| Suction levels | 2 |
| Cylinder | 2 |
| Connection diameter suction side [mm] | 8 |
| Connection diameter pressure side [mm] | 8 |
| Gas ballast valve | no |
| Input pressure [mbar] | 10 - 1030 |
| Boiling point detection | no |
| Solvent library | no |
| Two-point control | no |
| Analog speed vacuum control | yes |
| Speed range [rpm] | 285 - 1100 |
| Speed (50Hz) [rpm] | 1100 |
| Speed (60Hz) [rpm] | 1100 |
| Nominal speed [rpm] | 1100 |
| Display | TFT |
| Pressure unit / scale | mbar, hPa, mmHg, Torr |
| Vacuum sensor | yes |
| Vacuum sensor type | ceramic Al2O3 |
| Pressure max. for pressure sensor [bar] | 1.6 |
| Measurement range (absolute) [mbar] | 1 - 1100 |
| Control range [mbar] | 1 - 1100 |
| Resolution pressure [mbar] | 1 |
| Measurement uncertainty [mbar] | 1 |
| Medium temperature (gas) [°C] | 5 - 40 |
| Vacuum valve | no |
| Venting valve | yes |
| Condensate trap | no |
| Emission condenser | yes |
| Timer | yes |
| Time setting min. [s] | 1 |
| Time setting max. [min] | 6000 |
| Noise at low. pressure [dB(A)] | 54 |
| Material in contact with medium | Al2O3; PTFE; FFPM; PPS; NBR |
| Housing material | alu-cast coating / thermoplastic polymer |
| Clean room qualified | no |
| Explosion proofed | no |
| Mode manual | yes |
| Mode pump % | yes |
| Mode program | yes |
| Graph function | yes |
| Chiller control | yes |
| Vacuum leakage test | yes |
| Dimensions (W x H x D) [mm] | 260 x 502 x 377 |
| Weight [kg] | 11 |
| Permissible ambient temperature [°C] | 5 - 40 |
| Permissible relative humidity | 80% (up to 31°C), decreasing linearly to max. 50 (@40°C) |
| Protection class according to DIN EN 60529 | IP 20 |
| RS 232 interface | yes |
| RS 485 interface | no |
| USB interface | USB-C |
| WPAN interface | no |
| WiFi Interface | no |
| Ethernet interface | no |
| Analog output | yes |
| Analog input | yes |
| Voltage [V] | 100 - 240 |
| Frequency [Hz] | 50/60 |
| Power input [W] | 144 |
| Power input standby [W] | 3.5 |
| Fuse | 2x T4A 250V |
The VACSTAR lite Starter Plus Solution package is a modern, user and environmentally friendly solution for your vacuum applications in the laboratory
By combining the VC 10 lite vacuum controller with the VACSTAR lite vacuum pump, the desired setpoint can be conveniently set manually via the large and easy-to-read TFT display
In addition, the program mode enables simple programming of several ramp steps to efficiently control complex simulations
The VSE 1 emission condenser prevents solvents from being released into the room air, thus protecting users and the environment
This solution is perfect for a variety of classic laboratory applications, including separation, filtration and drying processes. Ideal for use in conjunction with rotary evaporators, reactors, tempering chambers, centrifuges and other laboratory equipment
Integrated device communication: the vacuum controller seamlessly synchronizes with circulators, resulting in optimized lab procedures and increased overall performance
Longer lifecycle: An integrated valve cleaning function removes solvent residues, extending system life and reducing maintenance
USB/RS232 interfaces: These allow connection to labworldsoft laboratory software for advanced process control
Increased safety: The VSE 1 emission condenser ensures increased user safety by preventing solvent residues from entering the room air
