IKA EasySyn 1000 Starter Reactor system Synthesis Reactor

EasySyn is the reactor system for organic or aqueous syntheses

It ensures safe and reproducible chemical reactions on the way from laboratory to pilot scale

Our EasySyn 1000 Starter package comprises a complete reactor system for use in the laboratory

The high quality of the used materials allows operation at temperatures from -50 to 200 °C and up to a negative pressure of 3 mbar

EasySyn 1000 Starter includes:

Ergonomically designed stand system for quick and easy exchange of reactor vessels and adjustment of the working height to your body size

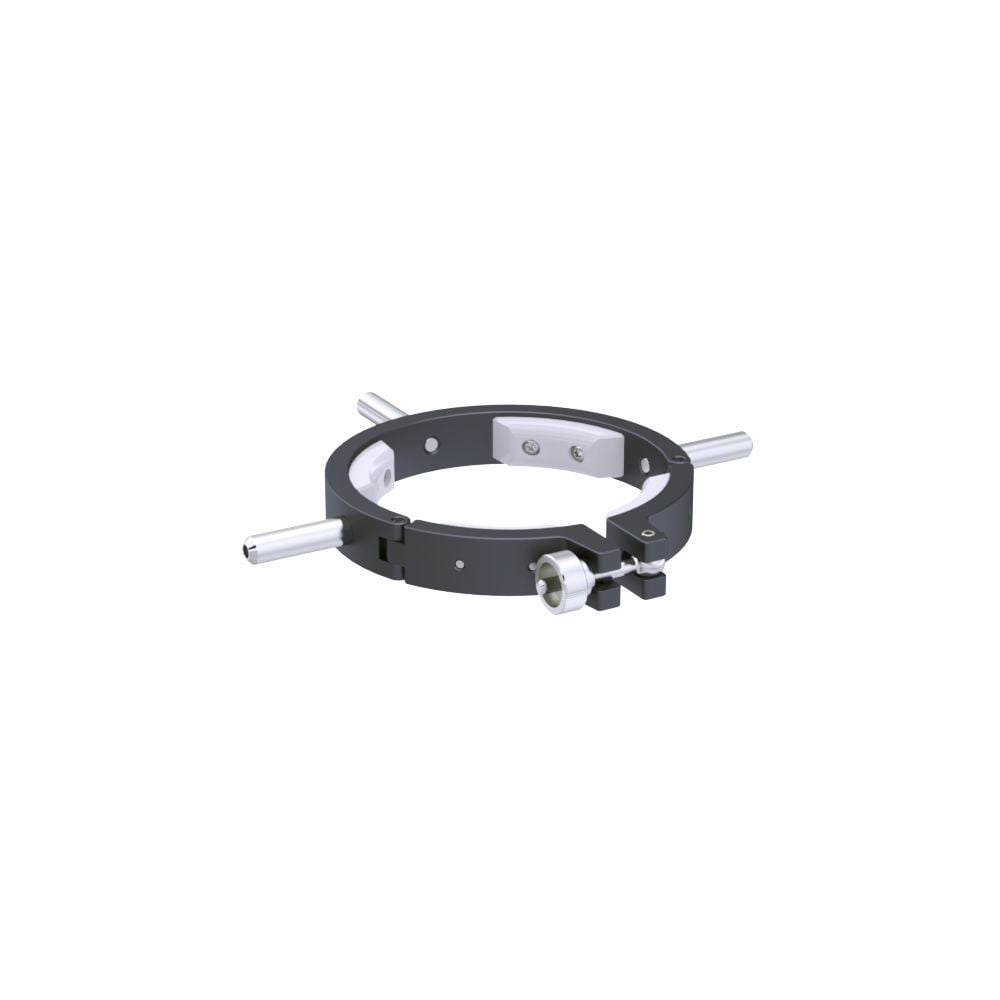

DN 100 vessel clamp for mounting the reactor vessel

Double-walled 1000 ml reactor vessel made of chemically resistant borosilicate 3.3 glass with bottom discharge valve

Spring-loaded valve spindle of the drain valve to prevent glass breakage

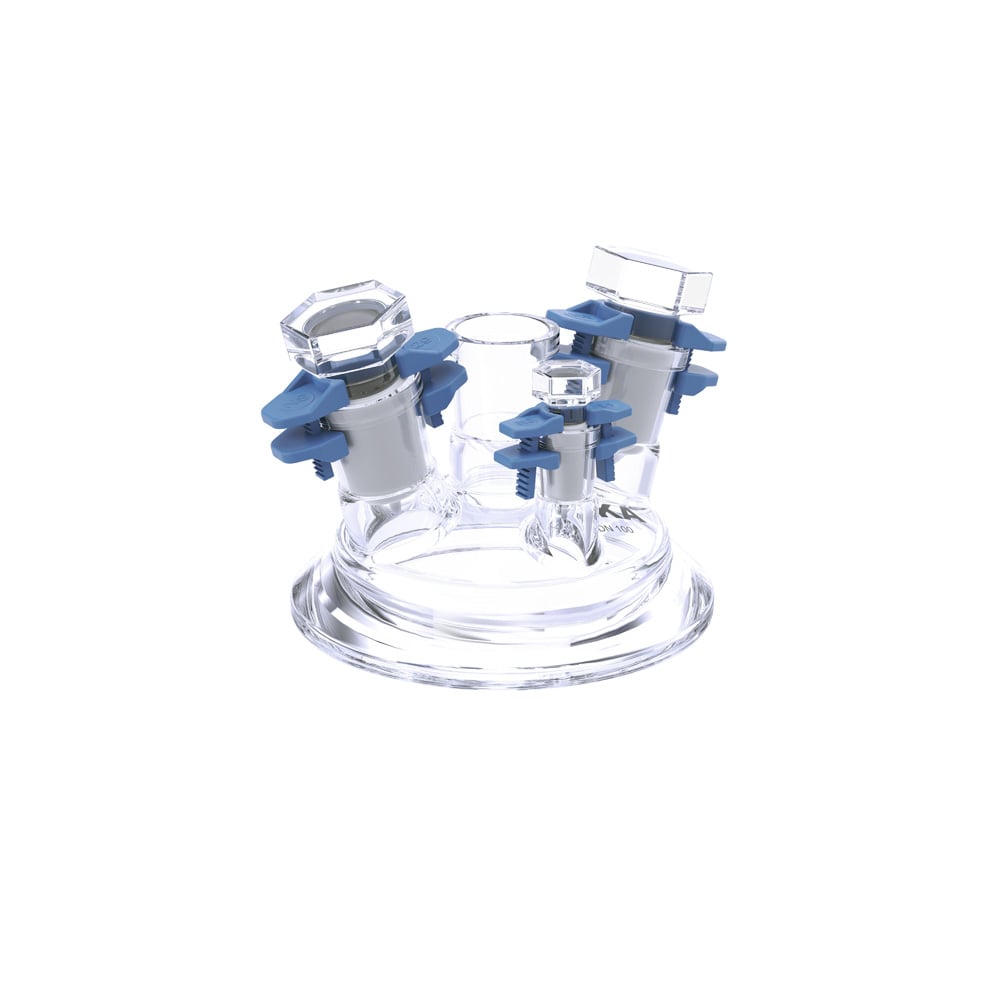

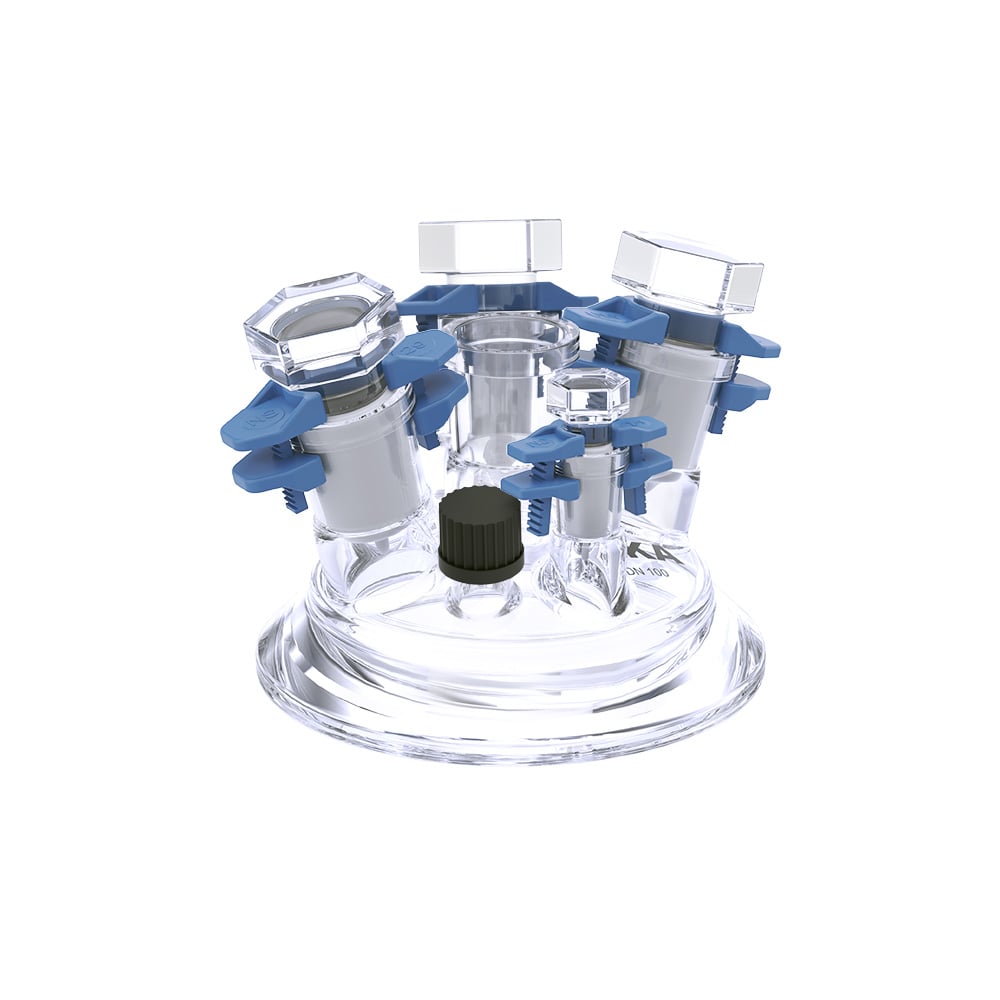

Reactor lid with various openings (1 x NS 29/32 center glass joint, 2 x NS 29/32, 1 x NS 14/23) for flexible adaptation to the desired application

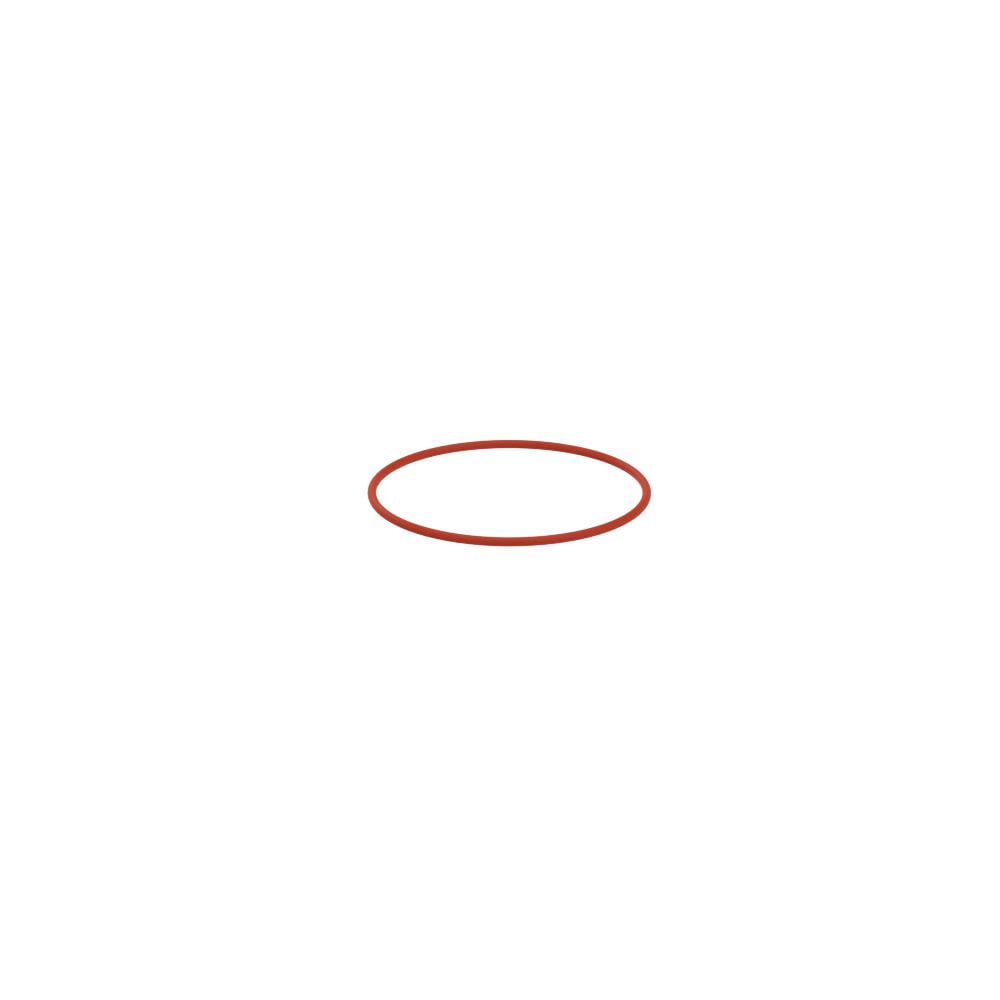

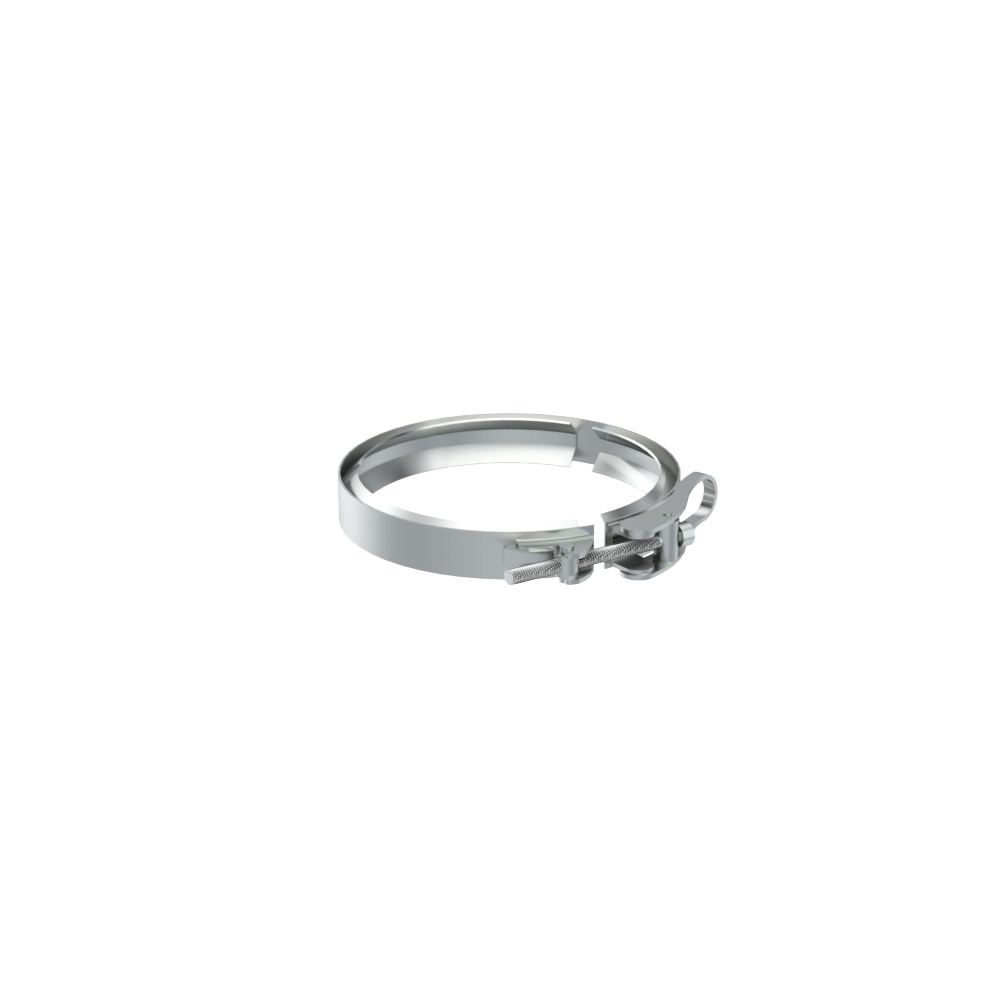

DN 100 clamp ring and DN 100 FEP-coated O-ring to ensure chemical resistance

Powerful overhead stirrer EUROSTAR 60 digital with 60 Ncm, including keyless chuck for easy and fast mounting of the stirring tool

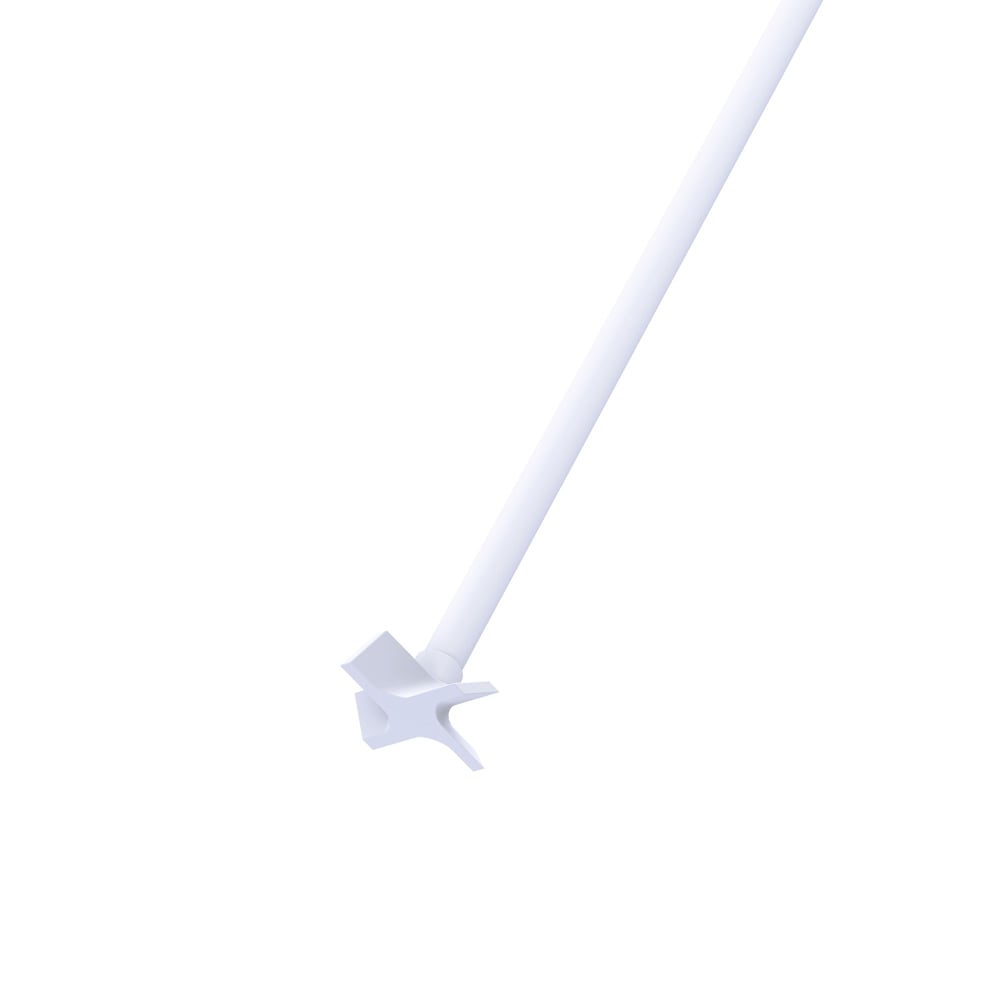

PTFE-coated propeller stirrer for optimum mixing and chemical resistance

High-quality stirrer guide for vacuum operation up to 3 mbar

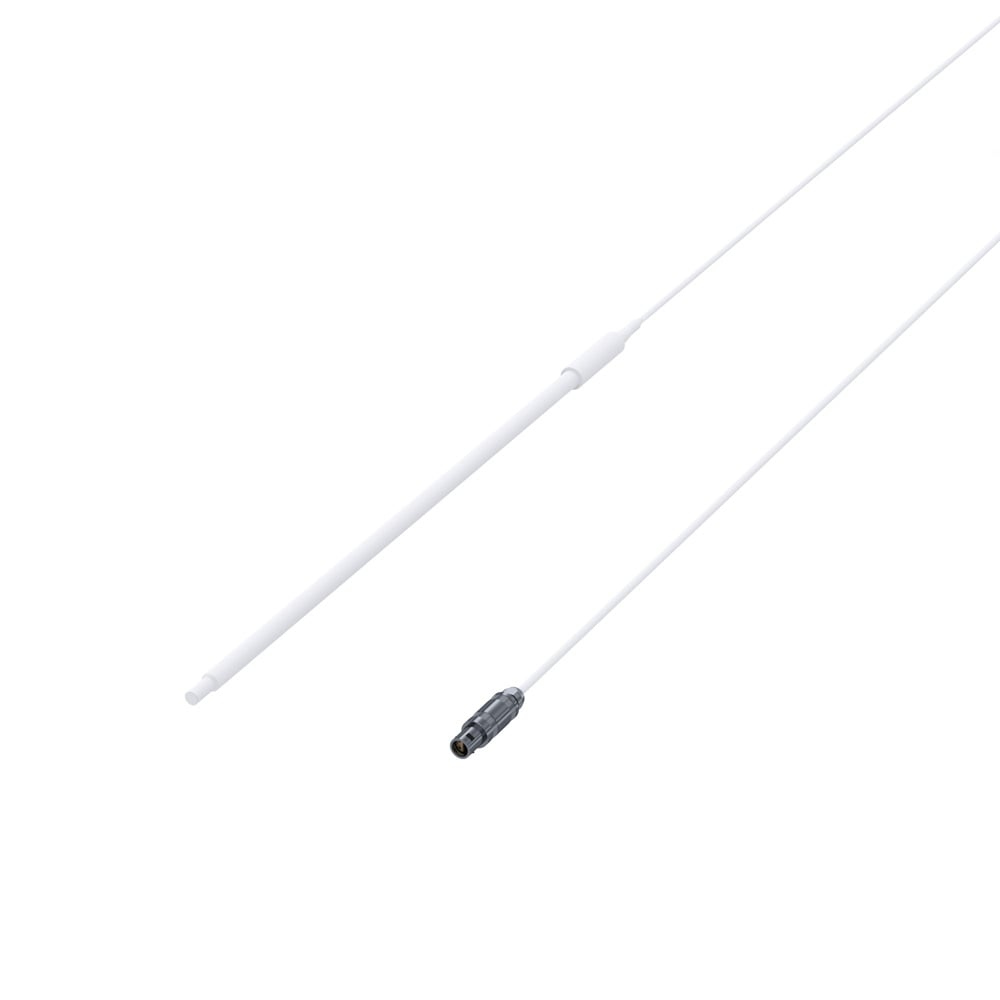

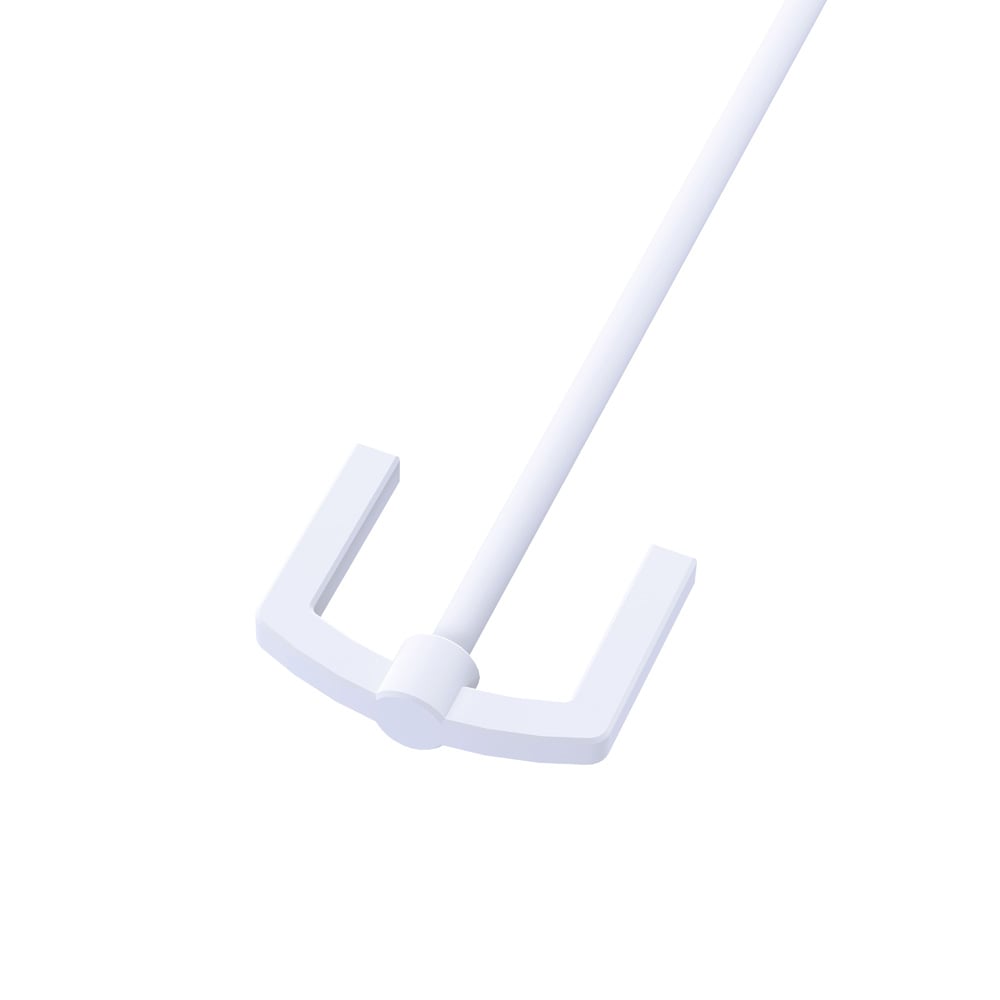

Further reactor vessels (with and without bottom discharge), reactor covers, stirring tools, temperature sensors, circulators, laboratory automation and much more can be found in the section "Accessories"

To complete your system, you get all the complementary components from a single source: overhead stirrers, circulators, vacuum pumps and controllers, sensors and automation software

All from IKA and all perfectly matched to each other

Would you like your own desired configuration? Or do you need an offer? You are welcome to contact our sales team

Note: The scope of delivery does not include temperature hoses for connecting a thermostat
