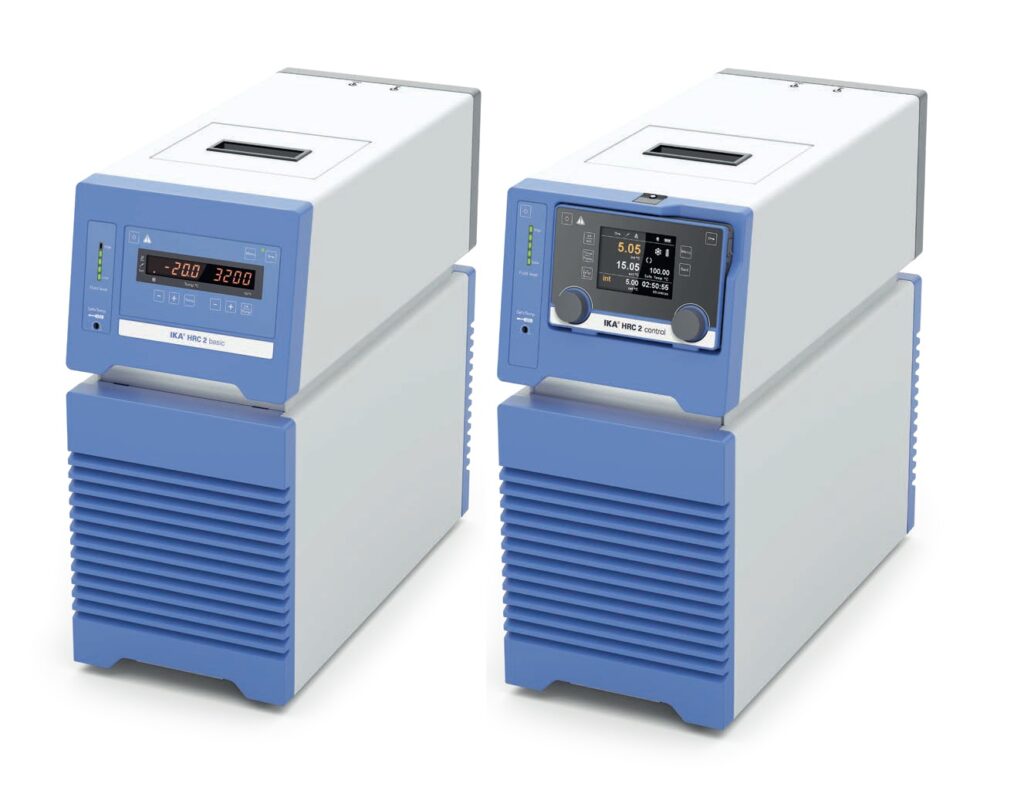

Ika HRC 2 control
The compact refrigerated and heating circulator HRC 2 control is renowned for its high energy efficiency, a working temperature range from -30°C to 100°C and a powerful and infinitely variable pressure and suction pump
The on-demand and speed-controlled compressor reduces noise and operating costs
The HRC 2 control in combination with an external temperature sensor is perfectly suitable to precisely temper external closed or open applications
The high-quality Isolation of the 4 l bath allows fast heating and reduces heat input when cooling
Using the external temperature control circuit is possible for up to 2, 5 l thermofluid without a refill
The integrated hopper and drain valve ensure a safe and clean handling of the thermofluid
The easy-to-open front flap allows an easy cleaning of the cooling unit’s air filter.There is a drain valve on the front side of the bath
A hose can be connected to empty the bath, so the user does not get in direct contact with the thermofluid
Speed-controlled refrigeration system unit with 400 W cooling capacity
Speed-controlled PEEK pump (0, 5 bar - 22 l/min)
1500 W heating capacity (1200 W @115V)
digital level indicator
Safety classification III (FL) according to DIN 12876
Adjustable temperature safety circuit
With the Wireless Controller (Wico) the HRC 2 control can be operated safely and conveniently everywhere
Processes can be automated and simplified through 10 freely programmable temperature ramps with each 10 steps
Additional features of the control device:
Operating Mode D (Confirmation Mode)
Signal if Set Point is reached
Timer/Counter
outgassing function for Labreactors
Interfaces:
Connection socket for external PT 100 temperature sensor (Accessory: PT100.30 - Lemo connector)
Connection of magnetic valves possible (Mulit IO)
Alarm contact (Multi IO)
Connector for Standby contact input (Multi IO)
RS 232
USB
| Afkoelingsvermogen (W) | 400 W | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Debiet (L/min) | 21 L/min | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. volume bad (L) | 4 L | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Temperatuurbereik (°C) | -30 - +100 °C | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Verwarmingsvermogen (W) | 1.500 W | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Technische data |
| Appliance type | Circulation thermostat |
| Class designation acc. DIN 12876 | III |
| Identification according to DIN 12876 | FL |
| Cooling agent | R134a |
| Cooling agent quantity [g] | 230 |
| Cooling agent pressure max. [bar] | 20 |
| Heat output [W] | 1500 |
| Cooling capacity (@20°C) [W] | 400 |
| Cooling capacity (@10°C) [W] | 370 |
| Cooling capacity (@0°C) [W] | 320 |
| Cooling capacity (@-10°C) [W] | 240 |
| Cooling capacity (@-20°C) [W] | 130 |
| Working temperature [°C] | -30 - 100 |
| Operating temperature min. [°C] | -30 |
| Temperature display | Ja |
| Temperature stability DIN 12876 (@+70°C) [K] | ±0.05 |
| Temperature stability DIN 12876 (@-10°C) [K] | ±0.05 |
| Temperature control | PT 100 |
| Working temperature sensor | PT 100 |
| Safety temperature sensor | PT1000 |
| Working temperature display | LED |
| Safety temperature display | LED |
| Temperature stability DIN 12876 [K] | ±0.05 |
| Connection for ext. temperature sensor | PT 100 |
| Display resolution [K] | 0.01 |
| Display for operation with ext. sensor | Ja |
| Set temperature resolution [K] | ±0.1 |
| Warning function optical | Ja |
| Warning function acoustic | Ja |
| Warning function excess temperature | Ja |
| Warning function insufficient temperature | Ja |
| Adjustable safety circuit [°C] | 0 - 110 |
| Sub-level protection | Ja |
| Over-level protection | Ja |
| Filling volume [l] | 1.4 - 4.0 |
| Pump type | Pressure- / suction pump |
| Pump capacity adjustable | Ja |
| Pump pressure max. (0 liters discharge flow) [bar] | 0.5 |
| Pressure pump (suction side) (0 liter flow) [bar] | 0.25 |
| Flow rate max. (0 bar back pressure) [l/min] | 21 |
| Pump connection | M16x1 |
| Calibration option | Ja |
| Technical data complies with the standard | DIN 12876 |
| Permissible ON time [%] | 100 |
| Multi-Interface | Ja |
| Alarm output (potential-free contact) max. [V AC/DC] | 30 |
| Alarm output (potential-free contact) max. [A] | 1 |
| SoleNeeid valve output [VDC] | 24 |
| SoleNeeid valve output max. [A] | 0.8 |
| Standby input [VDC] | 5 |
| Noise level [dB(A)] | 52 |
| Dimensions (W x H x D) [mm] | 220 x 475 x 525 |
| Weight [kg] | 33.3 |
| Permissible ambient temperature [°C] | 5 - 32 |
| Permissible relative humidity [%] | 80 |
| Protection class according to DIN EN 60529 | IP 21 |
| RS 232 interface | Ja |
| USB interface | Ja |
| Analog output | Ja |
| Voltage [V] | 230 |
| Frequency [Hz] | 50/60 |
| Power input [W] | 1800 |
