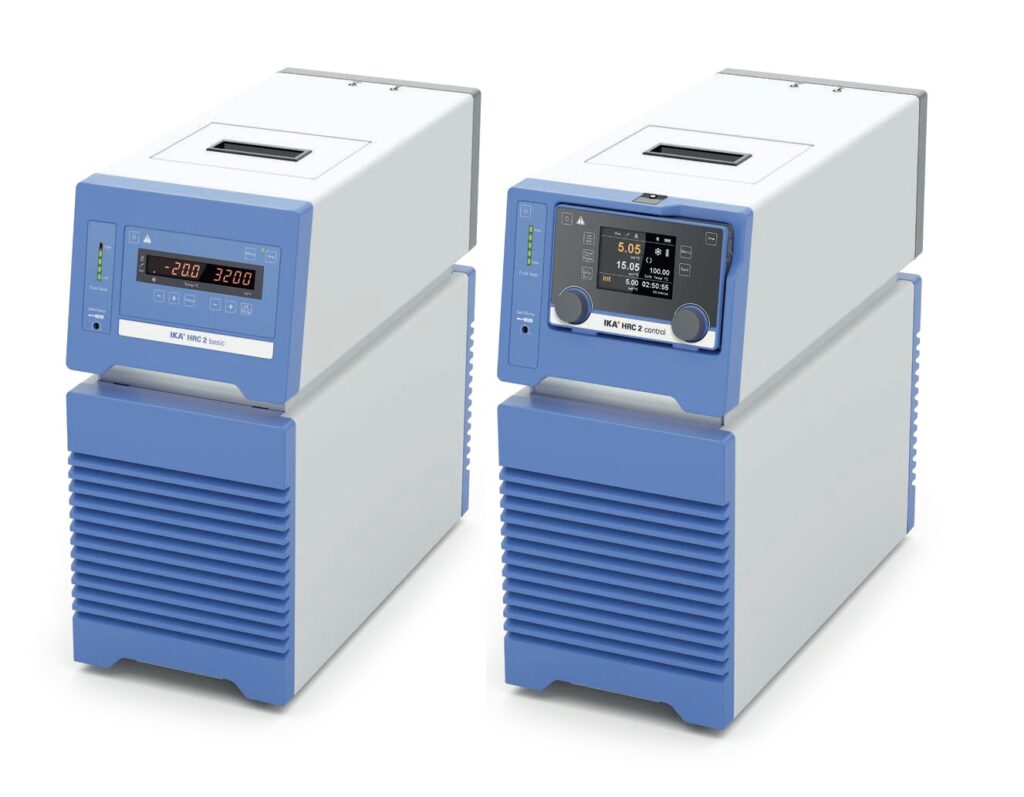

The compact refrigerated and heating circulator HRC 2 basic is renowned for its high energy efficiency, a working temperature powerful infinitelyrange from -20°C to 100°C and a variable pressure and suction pump
The on-demand and speed-controlled compressor reduces noise and operating costs
The high-quality Isolation of the 4 l bath allows fast heating and reduces heat input when cooling
Using the external temperature control circuit is possible for up to 2.5 l thermofluid without a refill
The integrated hopper and drain valve ensure a safe and clean handling of the thermofluid
The easy-to-open front flap allows an easy cleaning of the cooling unit’s air filter.There is a drain valve on the front side of the bath
A hose can be connected to empty the bath, so the user does not get in direct contact with the thermofluid
Speed-controlled refrigeration system with 400 W cooling capacity
Speed-controlled pump make of PEEK: (0.5 bar - 22 l/min)
1500 W heating capacity (1200 W @115V)
Digital level indicator
Safety classification III (FL) according to DIN 12876
Adjustable temperature safety circuit
Interfaces:
RS 232
USB
Afkoelingsvermogen (W) | 400 W | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Debiet (L/min) | 21 L/min | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. volume bad (L) | 4 L | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Temperatuurbereik (°C) | -20 - +100 °C | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Verwarmingsvermogen (W) | 1.500 W | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Technische data |
Appliance type | Circulation thermostat |
Class designation acc. DIN 12876 | III |
Identification according to DIN 12876 | FL |
Cooling agent | R134a |
Cooling agent quantity [g] | 230 |
Cooling agent pressure max. [bar] | 20 |
Heat output [W] | 1500 |
Cooling capacity (@20°C) [W] | 400 |
Cooling capacity (@10°C) [W] | 370 |
Cooling capacity (@0°C) [W] | 320 |
Cooling capacity (@-10°C) [W] | 240 |
Cooling capacity (@-20°C) [W] | 130 |
Working temperature [°C] | -20 - 100 |
Operating temperature min. [°C] | -20 |
Temperature display | Ja |
Temperature stability DIN 12876 (@+70°C) [K] | ±0.1 |
Temperature stability DIN 12876 (@-10°C) [K] | ±0.1 |
Temperature control | PT 100 |
Working temperature sensor | PT 100 |
Safety temperature sensor | PT1000 |
Working temperature display | LED |
Safety temperature display | LED |
Temperature stability DIN 12876 [K] | ±0.1 |
Display resolution [K] | 0.1 |
Set temperature resolution [K] | ±0.1 |
Warning function optical | Ja |
Warning function acoustic | Ja |
Warning function excess temperature | Ja |
Warning function insufficient temperature | Nee |
Adjustable safety circuit [°C] | 0 - 110 |
Sub-level protection | Ja |
Over-level protection | Ja |
Filling volume [l] | 1.4 - 4.0 |
Pump type | Pressure- / suction pump |
Pump capacity adjustable | Ja |
Pump pressure max. (0 liters discharge flow) [bar] | 0.5 |
Pressure pump (suction side) (0 liter flow) [bar] | 0.25 |
Flow rate max. (0 bar back pressure) [l/min] | 21 |
Pump connection | M16x1 |
Calibration option | Ja |
Technical data complies with the standard | DIN 12876 |
Permissible ON time [%] | 100 |
Noise level [dB(A)] | 52 |
Dimensions (W x H x D) [mm] | 220 x 475 x 525 |
Weight [kg] | 32.8 |
Permissible ambient temperature [°C] | 5 - 32 |
Permissible relative humidity [%] | 80 |
Protection class according to DIN EN 60529 | IP 21 |
RS 232 interface | Ja |
USB interface | Ja |
Voltage [V] | 230 |
Frequency [Hz] | 50/60 |
Power input [W] | 1800 |
The compact refrigerated and heating circulator HRC 2 basic is renowned for its high energy efficiency, a working temperature powerful infinitelyrange from -20°C to 100°C and a variable pressure and suction pump
The on-demand and speed-controlled compressor reduces noise and operating costs
The high-quality Isolation of the 4 l bath allows fast heating and reduces heat input when cooling
Using the external temperature control circuit is possible for up to 2.5 l thermofluid without a refill
The integrated hopper and drain valve ensure a safe and clean handling of the thermofluid
The easy-to-open front flap allows an easy cleaning of the cooling unit’s air filter.There is a drain valve on the front side of the bath
A hose can be connected to empty the bath, so the user does not get in direct contact with the thermofluid
Speed-controlled refrigeration system with 400 W cooling capacity
Speed-controlled pump make of PEEK: (0.5 bar - 22 l/min)
1500 W heating capacity (1200 W @115V)
Digital level indicator
Safety classification III (FL) according to DIN 12876
Adjustable temperature safety circuit
Interfaces:
RS 232
USB
