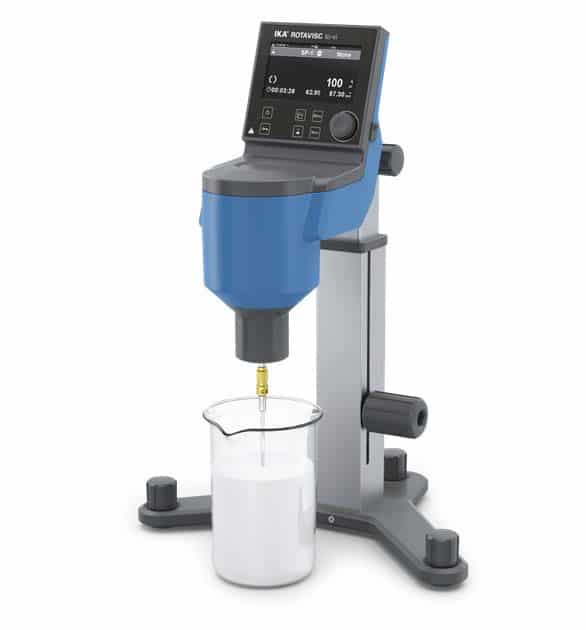

The ROTAVISC series determines the viscosity of liquids in all areas of application ranging from the laboratory to quality control
The four devices measure in different viscosity ranges
Regardless of a simple or demanding viscosity measurement - the ROTAVISC delivers rapid and accurate results
The scope of delivery includes a standard spindle set (SP1-SP4), a protective bracket, temperature sensor and ROTASTAND stand
Easy to operate
The generous 4.3″ TFT display allows for an intuitive menu guidance
A digital spirit level also supports the correct set-up of the start-up condition
The simple ramp function simplifies repetitive tasks
Highest measurement accuracy
The level of measurement accuracy of the ROTAVISC rotational viscometer for both Newtonian and non-Newtonian fluids is +/- 1 % of the measuring range
The reproducibility is +/- 0.2 %
Stepless speed
ROTAVISC is a viscometer, which offers stepless speed adjustment
IKA ROTAVISC lo-vi Complete
Viscosity measuring range: 1 - 6, 000, 000 mPas
Snelheidsbereik (tpm) | 200 rpm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Viscositeitsmeetbereik (mPas) | 6.000.000 mPas | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Technische data |
Viscosity Measuring Range [mPas] | 6000000 |
Viscosity Accuracy (FSR) [%] | 1 |
Viscosity Repeatibility (FSR) [%] | 0.2 |
Spring torque [mNm] | 0.0673 |
Guard rail | lo-vi |
Measuring spindle series | SP set-1 |
Motor rating output [W] | 4.8 |
Overload protection | Ja |
Direction of rotation | right |
Display | TFT |
Speed display | TFT |
Speed range [rpm] | 0.01 - 200 |
Setting accuracy speed [rpm] | ±0.01 |
Speed adjustment | TFT |
Torque display | Ja |
Torque measurement | trend |
Timer | Ja |
Timer display | TFT |
Time setting range [min] | 0.017 - 6000 |
Temperature measurement resolution [K] | 0.1 |
Working temperature display | TFT |
Connection for ext. temperature sensor | PT 100 |
Graph function | Ja |
Operating mode | timer and continuous operation |
Calibration option | Ja |
Touch function | Ja |
Pemitted density [kg/dm3] | 9999 |
Working temperature [°C] | -100 - 300 |
Fastening on stand | extension arm |
Support rod diameter (with integrated fastening on stand) [mm] | 16 |
Telescope stand stroke [mm] | 200 |
Plug-in coupling (Ø) [mm] | 12 |
Basic container volume [ml] | 600 |
Stand | Rotastand |
Stroke max. [mm] | 200 |
Diameter [mm] | 16 |
Dynamic load [kg] | 5 |
Dimensions (W x H x D) [mm] | 351 x 629 x 372 |
Weight [kg] | 7.1 |
Permissible ambient temperature [°C] | 5 - 40 |
Permissible relative humidity [%] | 80 |
Protection class according to DIN EN 60529 | IP 40 |
RS 232 interface | Ja |
USB interface | Ja |
Voltage [V] | 100 - 240 |
Frequency [Hz] | 50/60 |
Power input [W] | 24 |
Power input standby [W] | 0.06 |
DC Voltage [V=] | 24 |
Current consumption [mA] | 1000 |
The ROTAVISC series determines the viscosity of liquids in all areas of application ranging from the laboratory to quality control
The four devices measure in different viscosity ranges
Regardless of a simple or demanding viscosity measurement - the ROTAVISC delivers rapid and accurate results
The scope of delivery includes a standard spindle set (SP1-SP4), a protective bracket, temperature sensor and ROTASTAND stand
Easy to operate
The generous 4.3″ TFT display allows for an intuitive menu guidance
A digital spirit level also supports the correct set-up of the start-up condition
The simple ramp function simplifies repetitive tasks
Highest measurement accuracy
The level of measurement accuracy of the ROTAVISC rotational viscometer for both Newtonian and non-Newtonian fluids is +/- 1 % of the measuring range
The reproducibility is +/- 0.2 %
Stepless speed
ROTAVISC is a viscometer, which offers stepless speed adjustment
IKA ROTAVISC lo-vi Complete
Viscosity measuring range: 1 - 6, 000, 000 mPas
