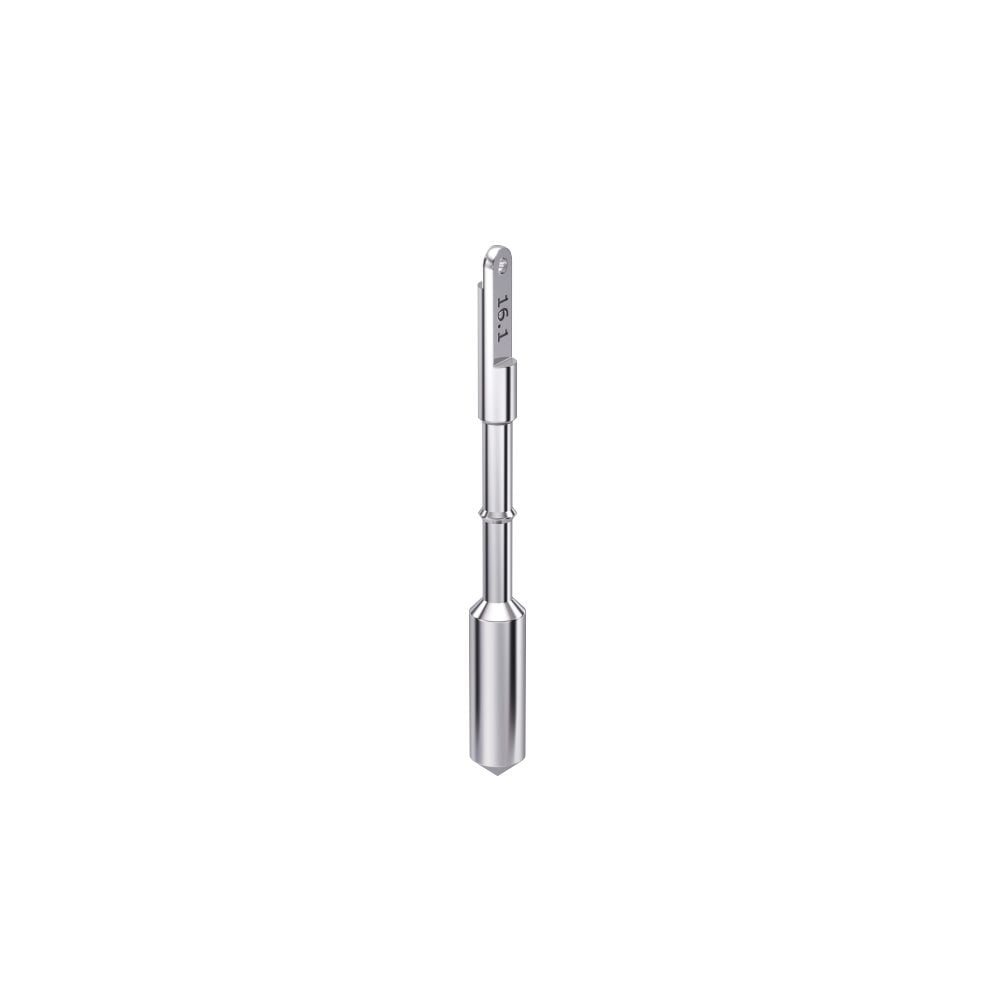

IKA VOL-SP-16.1
VOL-SP-16.1 is an optional spindle for an extended viscosity range
It is especially suitable for sample volumes of 16.1 ml
| Spindle geometry | Cylinder |
| Connection | Thread M2.5 LH |
| Hook connector | yes |
| Diameter [mm] | 4.8 |
| Immersion depth [mm] | 23.9 |
| Spindle length [mm] | 46.6 |
| Sample volume [ml] | 16.1 |
| Flow Jacket | yes |
| Mounting Bracket | yes |
| Sample container | : Specified chamber |
| Working temperature max. [°C] | 100 |
| Viscosity Accuracy (FSR) [%] | 2 |
| Viscosity Repeatibility (FSR) [%] | 0.2 |
| Min. FSR match ROTAVISC lo-vi [mPa.s] | 2399.5 |
| Max. FSR match ROTAVISC lo-vi [mPa.s] | 479898 |
| Min. FSR match ROTAVISC me-vi [mPa.s] | 25600 |
| Max. FSR match ROTAVISC me-vi [mPa.s] | 5120000 |
| Min. FSR match ROTAVISC hi-vi I [mPa.s] | 51200 |
| Max. FSR match ROTAVISC hi-vi I [mPa.s] | 10240000 |
| Min. FSR match ROTAVISC hi-vi II [mPa.s] | 204800 |
| Max. FSR match ROTAVISC hi-vi II [mPa.s] | 40960000 |
| Material in contact with medium | stainless steel 1.4404 |
| Dimensions (W x H x D) [mm] | 7 x 49 x 7 |
| Weight [kg] | 0.003 |
| Permissible ambient temperature [°C] | 5 - 40 |
VOL-SP-16.1 is an optional spindle for an extended viscosity range
It is especially suitable for sample volumes of 16.1 ml
