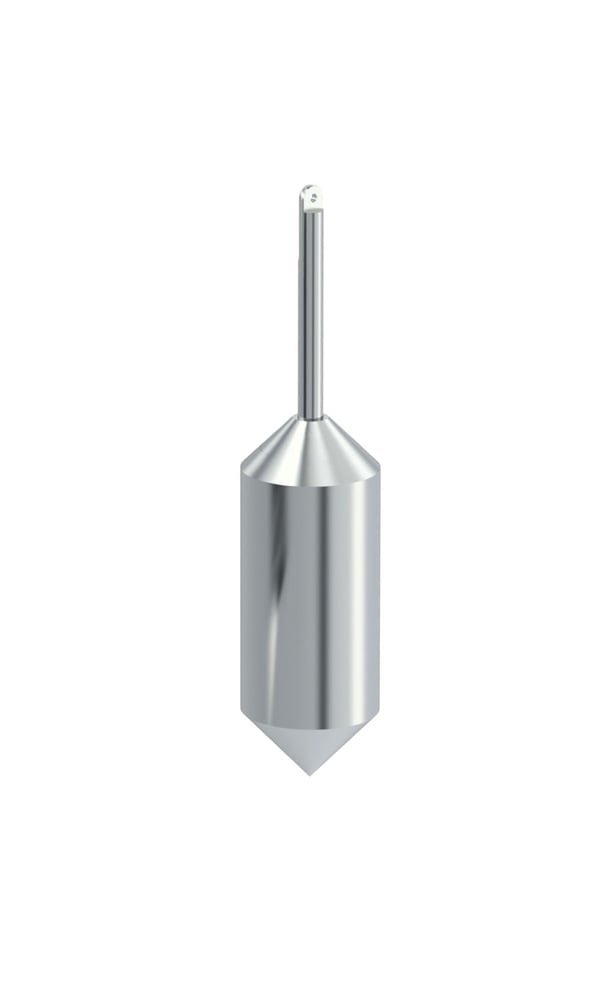

Adapter to measure the viscosity of especially valuable and expensive samples
A double jacket with temperature sensor to quickly heat up or cool down the sample as well as a coaxial cylinder system for the analysis of the sample at a specific shear rate is included
Further spindles and chambers for different volumes can be purchased separately
Technische data |
Spindle geometry | Cylinder |
Connection | Thread M2.5 LH |
Hook connector | Ja |
Sample volume [ml] | 6.7 |
Flow Jacket | Ja |
Mounting Bracket | Ja |
Sample container | |
Working temperature max. [°C] | 100 |
Viscosity Accuracy (FSR) [%] | 2 |
Viscosity Repeatibility (FSR) [%] | 0.2 |
Min. FSR match ROTAVISC lo-vi [mPa.s] | 1.5 |
Max. FSR match ROTAVISC lo-vi [mPa.s] | 30000 |
Min. FSR match ROTAVISC me-vi [mPa.s] | 16 |
Max. FSR match ROTAVISC me-vi [mPa.s] | 320000 |
Min. FSR match ROTAVISC hi-vi I [mPa.s] | 32 |
Max. FSR match ROTAVISC hi-vi I [mPa.s] | 640000 |
Min. FSR match ROTAVISC hi-vi II [mPa.s] | 128 |
Max. FSR match ROTAVISC hi-vi II [mPa.s] | 2600000 |
Material in contact with medium | stainless steel 1.4404 |
Dimensions (W x H x D) [mm] | 300 x 110 x 275 |
Weight [kg] | 1.656 |
Permissible ambient temperature [°C] | 5 - 40 |
Adapter to measure the viscosity of especially valuable and expensive samples
A double jacket with temperature sensor to quickly heat up or cool down the sample as well as a coaxial cylinder system for the analysis of the sample at a specific shear rate is included
Further spindles and chambers for different volumes can be purchased separately
