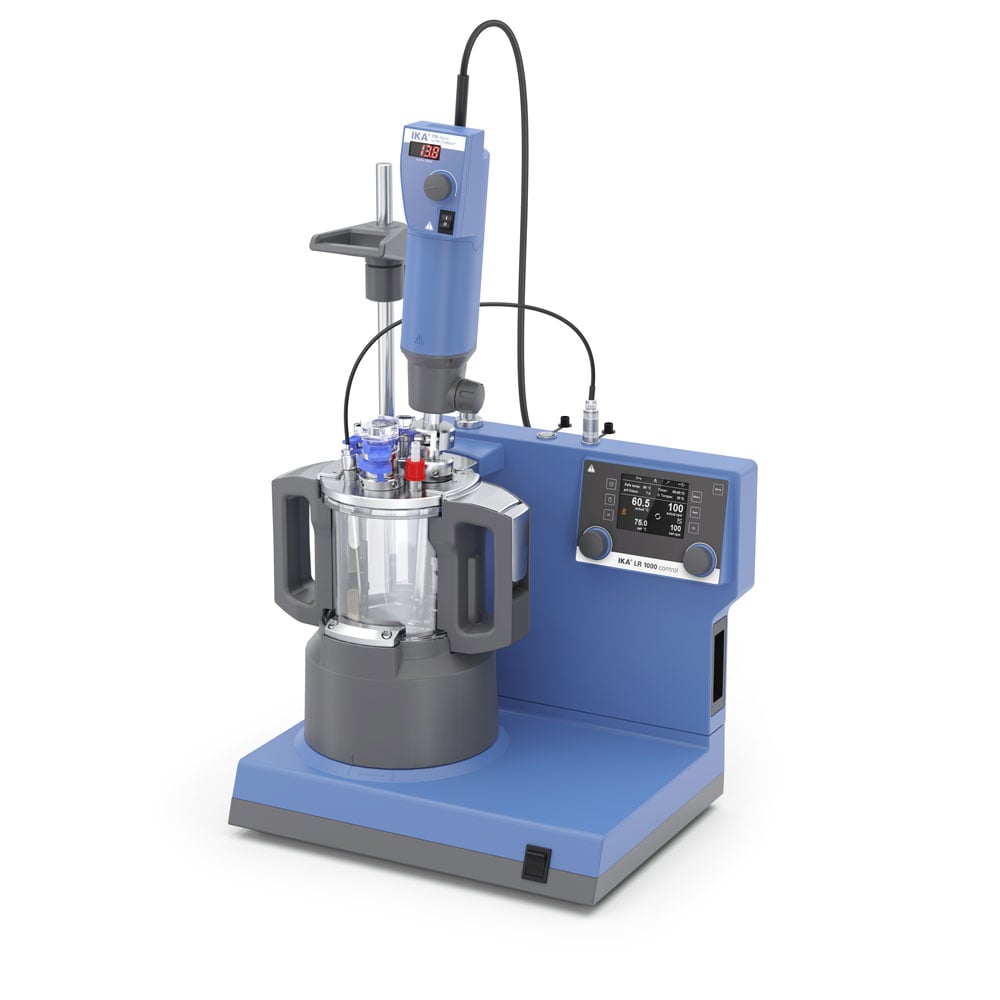

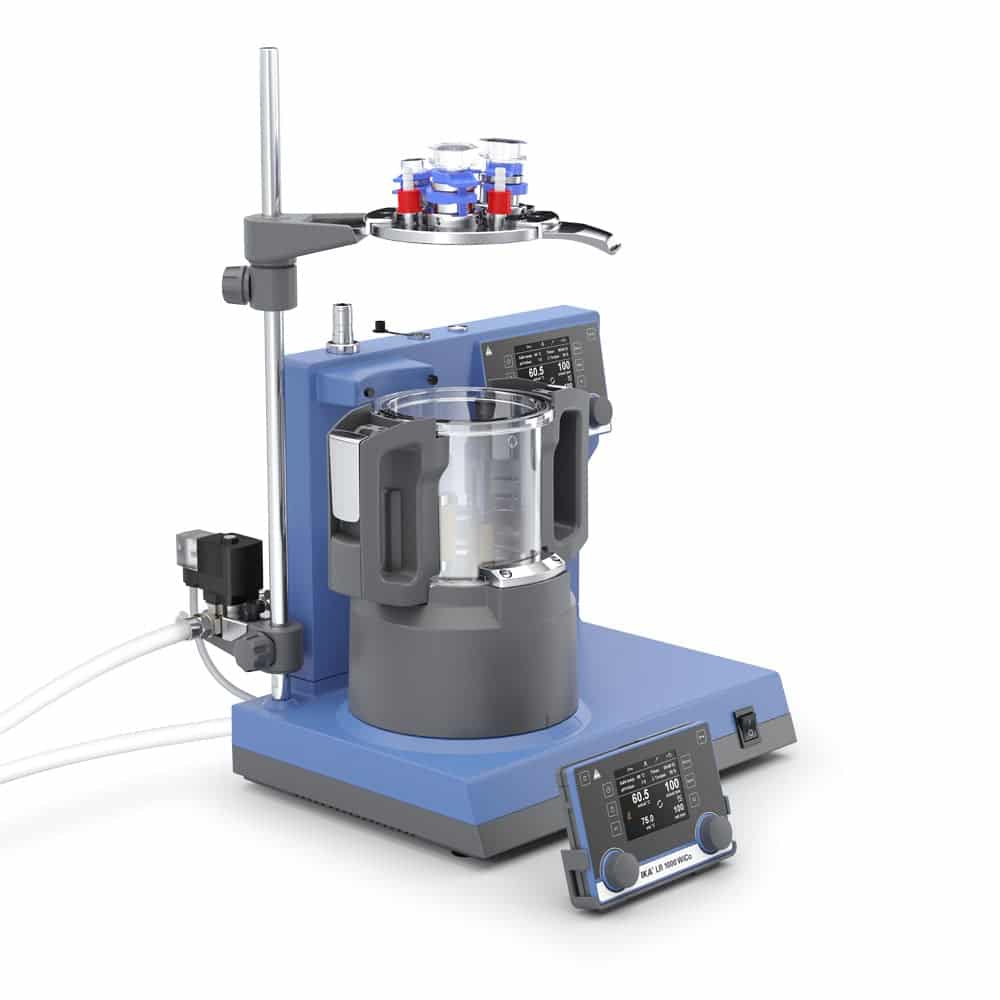

IKA LR 1000 control System High Viscosity Reactor
The LR 1000 control is a cost efficient, modular laboratory reactor designed to optimize chemical reaction processes as well as for mixing, dispersing and homogenization tasks on a lab scale particularly in the cosmetic and pharmaceutical industry
The system can be adapted quickly and easily to a wide range of applications and specific requirements
Prominent features are its intuitive menu navigation, integrated pH and temperature sensor connection as well as several interfaces that allow display and storage of process-relevant data on a PC
By using the laboratory software labworldsoft® (accessory) it is possible to even control the reactor via PC and make further settings
In addition, a control valve connection to attach a magnetic valve (accessory) for program-based cooling water control is integrated
The medium can be heated either to a fixed maximum temperature of 120 °C or to a set temperature by the heater at the bottom of the vessel
A temperature sensor inside the medium ensures that the set temperature is reached
Both, a PT 100.30 temperature sensor and the corresponding receptacle LR 1000.62 for the lid are included in the delivery
Components in contact with medium: stainless steel (ALSI 316 L), FFKM, PTFE, PEEK, borosilicate glass 3.3
Large easy to read TFT display for easy menu navigation
Integrated control valve connection to attach a magnetic valve (accessory) for program-based cooling water control
Integrated weighing function
Torque trend measurement indicates changes in product viscosity
Integrated pH sensor connection
RS 232 and USB interface to operate the unit with the laboratory software labworldsoft
Standard joint fittings on the lid: 2 x NS 29, 2x NS 14, 2 x GL 14 for flexible adaptation of further equipment
Expandable for use with the ULTRA-TURRAX® T 25 digital (accessory)
Vacuum valve included in delivery
Connections to attach a cooling source to the back of the unit
Manual adjustable safety circuit
Integrated safety shutdown when vessel or lid is removed from the base
| Useable volume max. [ml] | 1000 |
| Useable volume with disperser tool min. [ml] | 500 |
| Working temperature max. [°C] | 120 |
| Attainable vacuum [mbar] | 25 |
| Viscosity max. [mPas] | 100000 |
| Speed range [rpm] | 10 - 150 |
| Support rod diameter (with integrated fastening on stand) [mm] | 16 |
| Material in contact with medium | AISI 316L, 1.4571, borosilicate glass 3.3, PTFE, PEEK, FFKM |
| Reactor vessel openings (units/standard) | 2x NS 29/32, 2x NS 14/23 & 2x GL 14 |
| Permissible ON time [%] | 100 |
| Temperature measurement resolution [K] | 0.1 |
| Nominal torque [Nm] | 3 |
| Heat output [W] | 1000 |
| Cooling medium permissible operating pressure [bar] | 1 |
| Weighing range max. [g] | 2000 |
| Weighing resolution [g] | 1 |
| pH measuring range [pH] | 0 - 14 |
| pH measurement resolution [pH] | 0.1 |
| Speed min (adjustable) [rpm] | 10 |
| Heating temperature max. [°C] | 180 |
| Adjustable safety circuit [°C] | 47 - 225 |
| Adjustable safety circuit, temperature deviation [K] | ±10 - ±20 |
| Cooling medium temperature min. [°C] | 3 |
| Set temperature resolution [K] | ±1 |
| Heat control accuracy of medium with sensor [K] | ±0.2 |
| Speed deviation [rpm] | ±5 |
| Speed display | TFT |
| Heat control | TFT |
| Connection for ext. temperature sensor | PT 100 |
| Stirring element fastening | special output shaft |
| Torque display | yes |
| Torque measurement | trend |
| Timer | yes |
| Timer display | TFT |
| Speed adjustment | 1 RPM steps |
| Type of cooling | flow |
| Temperature display | yes |
| Working temperature sensor | PT 100 |
| Safety temperature sensor | PT1000 |
| Working temperature display | TFT |
| Safety temperature display | TFT |
| Display for operation with ext. sensor | yes |
| Safety cutout | yes |
| Reversible direction of rotation | no |
| MV1 interface | yes |
| pH meter interface | yes / BNC socket female |
| pH value display | TFT |
| Dimensions (W x H x D) [mm] | 443 x 360 x 295 |
| Weight [kg] | 23 |
| Permissible ambient temperature [°C] | 5 - 40 |
| Permissible relative humidity [%] | 80 |
| Protection class according to DIN EN 60529 | IP 21 |
| RS 232 interface | yes |
| USB interface | yes |
| Bluetooth interface | yes |
| Analog output | no |
| Voltage [V] | 230 |
| Frequency [Hz] | 50/60 |
| Power input [W] | 1200 |
The LR 1000 control is a cost efficient, modular laboratory reactor designed to optimize chemical reaction processes as well as for mixing, dispersing and homogenization tasks on a lab scale particularly in the cosmetic and pharmaceutical industry
The system can be adapted quickly and easily to a wide range of applications and specific requirements
Prominent features are its intuitive menu navigation, integrated pH and temperature sensor connection as well as several interfaces that allow display and storage of process-relevant data on a PC
By using the laboratory software labworldsoft® (accessory) it is possible to even control the reactor via PC and make further settings
In addition, a control valve connection to attach a magnetic valve (accessory) for program-based cooling water control is integrated
The medium can be heated either to a fixed maximum temperature of 120 °C or to a set temperature by the heater at the bottom of the vessel
A temperature sensor inside the medium ensures that the set temperature is reached
Both, a PT 100.30 temperature sensor and the corresponding receptacle LR 1000.62 for the lid are included in the delivery
Components in contact with medium: stainless steel (ALSI 316 L), FFKM, PTFE, PEEK, borosilicate glass 3.3
Large easy to read TFT display for easy menu navigation
Integrated control valve connection to attach a magnetic valve (accessory) for program-based cooling water control
Integrated weighing function
Torque trend measurement indicates changes in product viscosity
Integrated pH sensor connection
RS 232 and USB interface to operate the unit with the laboratory software labworldsoft
Standard joint fittings on the lid: 2 x NS 29, 2x NS 14, 2 x GL 14 for flexible adaptation of further equipment
Expandable for use with the ULTRA-TURRAX® T 25 digital (accessory)
Vacuum valve included in delivery
Connections to attach a cooling source to the back of the unit
Manual adjustable safety circuit
Integrated safety shutdown when vessel or lid is removed from the base
