Ika TWISTER SET 4

Marque :IKA
Référence :0020027390
TWISTER is a universal and compact mixing device with magnetic drive

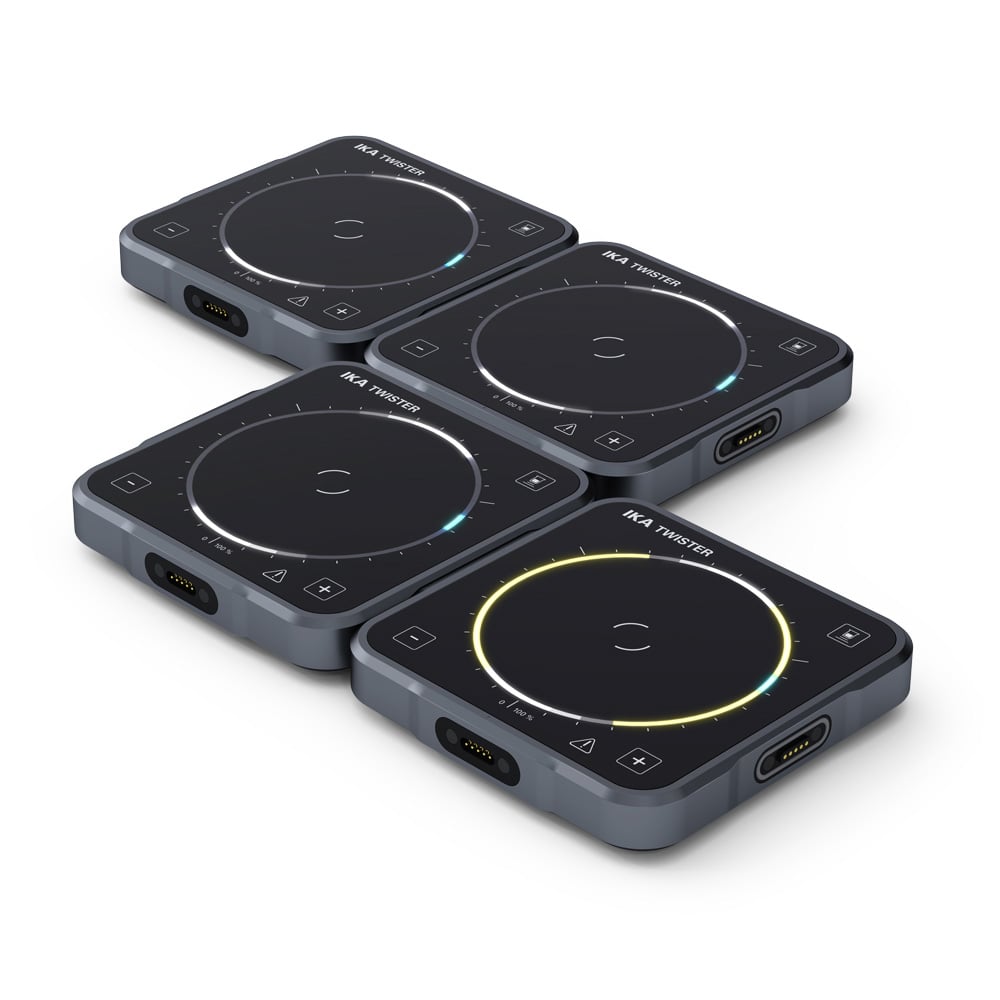

TWISTER SET 4 is multi-position magnetic stirrer with four drive units

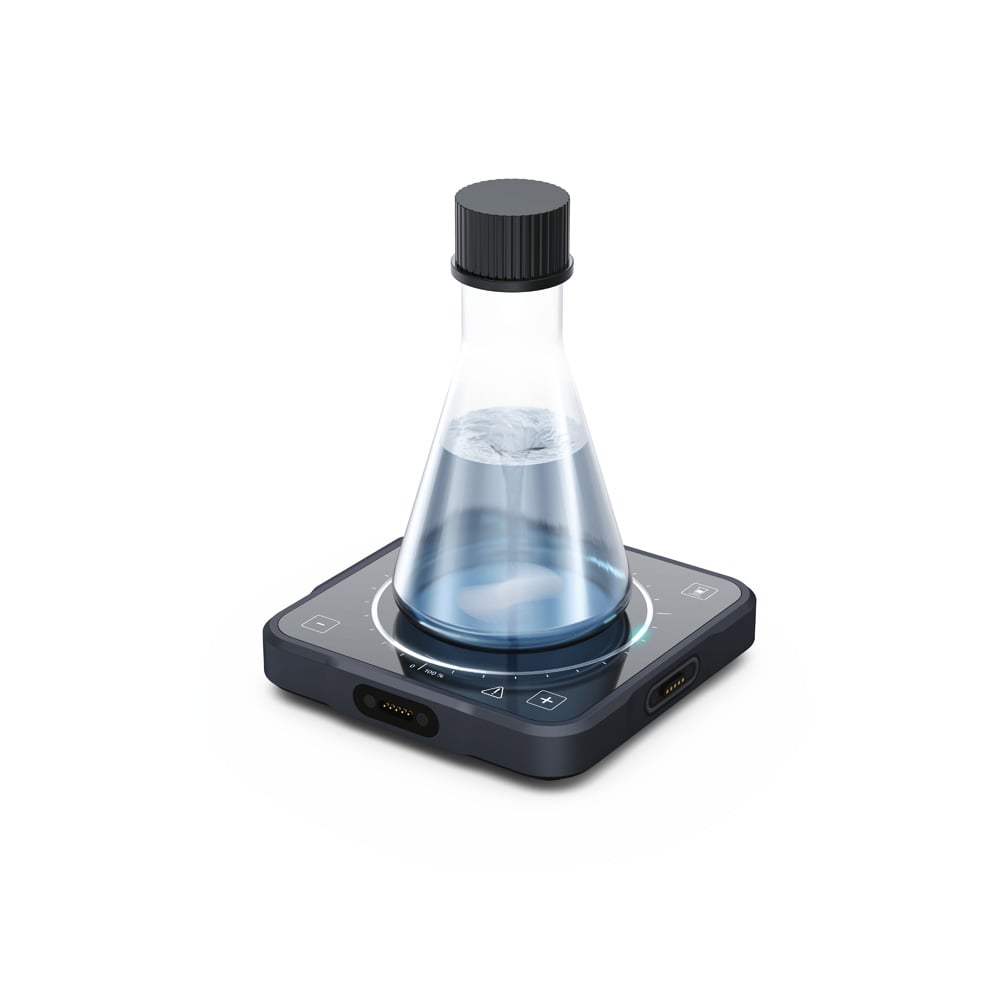

In the default version, TWISTER is a powerful single-position magnetic stirrer for mixing up to 5 liters at a maximum speed of 3000 rpm and a viscosity of up to 500 mPas
By connecting additional TWISTER stirring units (available as accessories, ID no
0020112621), TWISTER can be expanded to a multi-position magnetic stirrer with up to 30 stirring positions.* The stirring positions can be controlled either separately or simultaneously (leader-follower principle)
Versatile accessories

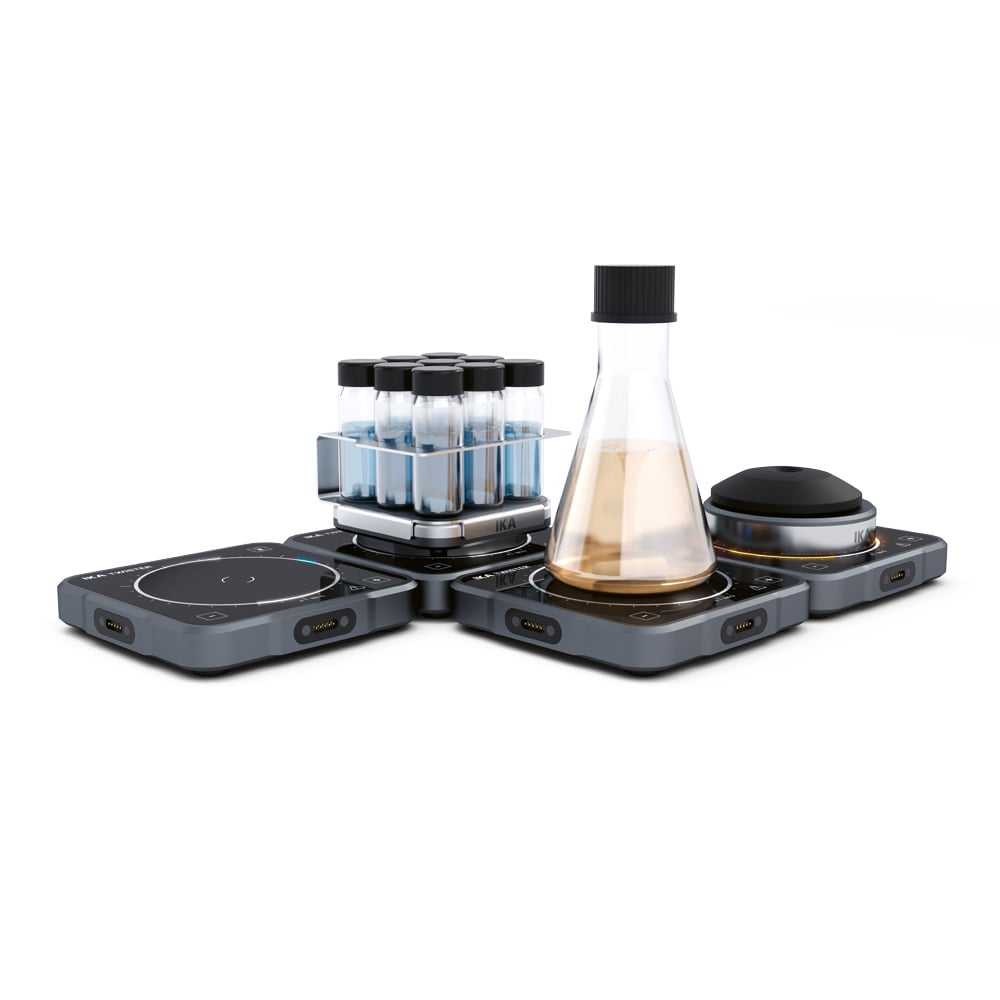

With the multi-position stirring attachment TW.IX, the drive is transformed into a magnetic stirrer with 9 stirring positions for efficient mixing of sample vessels with small volumes (8 - 60 ml)

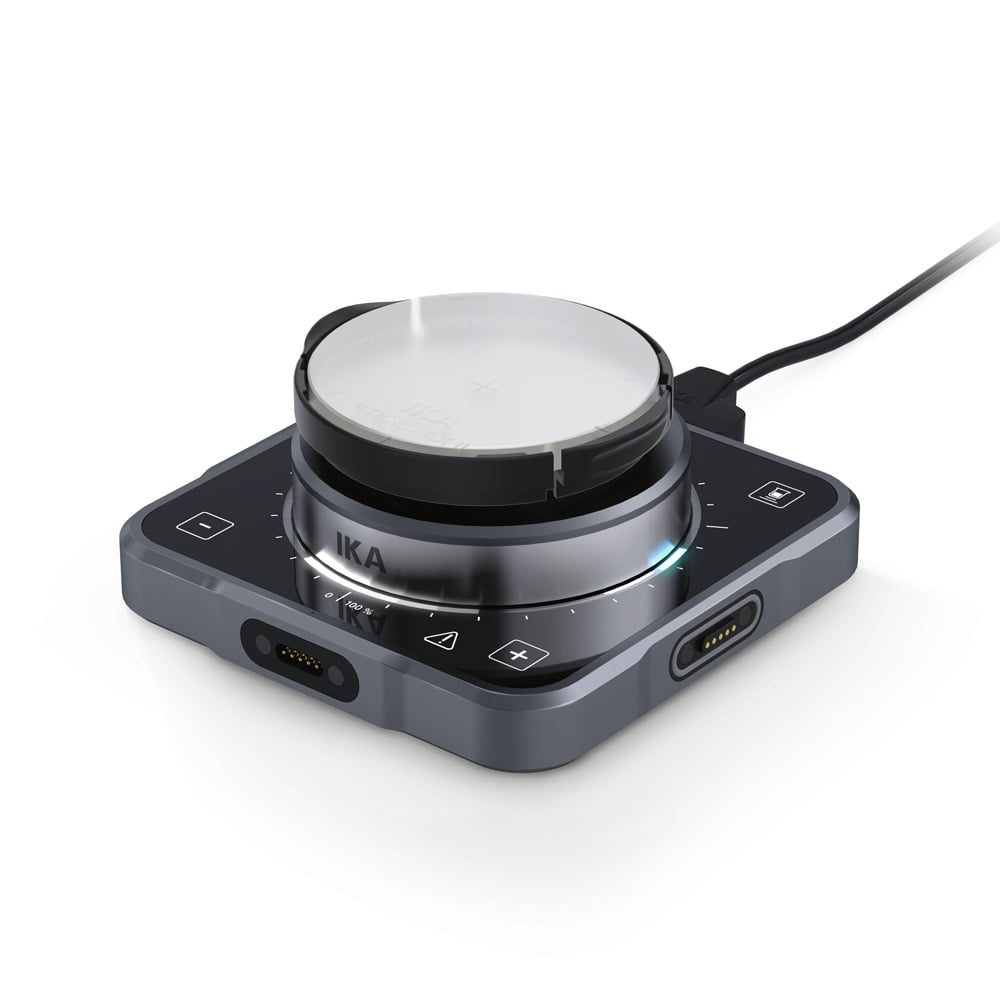

The TW.VX shaker attachment transforms the universal magnetic drive into a vortex or orbital shaker
Innovative operating concept
TWISTER enables a new way of interaction between user and laboratory instrument
Via the intuitive and chemically resistant 360° LED glass display, all information is intuitively conveyed without any alpha-numeric display
During operation, either the speed or the power required for stirring can be displayed
For example, viscosity changes can be observed and displayed as a percentage
Mixing can be started by pressing a button as well as (thanks to integrated beaker recognition) by placing or touching the beaker
The reverse function changes the direction of rotation at definable time intervals
This leads to a significant improvement of the mixing result, especially with samples that are difficult to mix
Robust and safe
The high protection class IP 66 allows operation under harsh conditions
TWISTER can thus be cleaned under the tap, for example, or operated in an incubator at temperatures up to 40°C
The compact and innovative design has already been awarded the reddot Award 2022
It is particularly suitable for use in laboratories with limited space
* Depending on the number of devices, a different power supply may have to be used
The included power supply is designed to power up to four devices
1.588,00 HT
1.921,48 TTC
Délai sur demande
Livraison offerte à partir de 400 €
Prix avantageux
Service 5 étoiles avant et après la vente
Délai de 3 jours ouvrables pour articles de stock
Dimensions plaque124 x 124 mm
Volume maximum de liquide5
Vitesse de rotation (rpm)100 - 3.000 rpm
Chauffage (oui/non)Non
Données techniques
Nombre de postes 4
Espaces entre les postes [mm] 135
quantité min. (H2O) [l] 0.005
Capacité d'agitation max. (H2O) [l] 5
Puissance du moteur débitée [W] 5
Sens de rotation du moteur À droite/à gauche
Affichage de la vitesse de rotation valeur de consigne LED
Affichage de la vitesse de rotation valeur réelle LED
Possibilité de réglage de la vitesse Bouton poussoir
Plage de vitesse [rpm] 100 - 3000
Précision de réglage de la vitesse [rpm] 100
longueur du barreau aimanté [mm] 10 - 30
auto-chauffage de la plaque (RT22°C pour une durée 1h) [K]
Matériaux de la plaque verre
Dimensions de la plaque [mm] 124 x 124
Inversion du sens de rotation automatique oui
Fonctionnement par intermittence oui
Mesure de l'évolution de la viscosité oui
Réglage de la durée min. [s] 6
Réglage de la durée max. [min] 30
Écart de vitesse (aucune charge, tension Nonminale, à 1500 tr/min + 25 °C) [%] ±2
Système d’agitation modulaire extensible (2 à 30 unités) oui
Opération leader-suiveur (minimum 2 unités requises, l’unité leader contrôle l’unité suiveuse de manière synchrone) oui
Détection des récipients (optionnel activé/désactivé) oui
Réglage du temps de montée de l’accélération du moteur (Fonction disponible avec des accessoires supplémentaires) Nonn
Definition of up to 6 stirring groups (Function available with additional accessories) Nonn
Dimensions (L x H x P) [mm] 135 x 24 x 135
Poids [kg] 0.6
Plage de température du milieu admise [°C] 5 - 40
Humidité relative admissible [%] 80
Protection selon DIN EN 60529 IP 66
Interface numérique USB option
Tension [V] 100-240
Fréquence [Hz] 50/60
Puissance absorbée de l'appareil [W] 10
Puissance absorbée de l'appareil Standby [W] 2
Tension continue [V=] 24
Consommation électrique max. [mA] 400
TWISTER is a universal and compact mixing device with magnetic drive
TWISTER SET 4 is multi-position magnetic stirrer with four drive units
In the default version, TWISTER is a powerful single-position magnetic stirrer for mixing up to 5 liters at a maximum speed of 3000 rpm and a viscosity of up to 500 mPas
By connecting additional TWISTER stirring units (available as accessories, ID no
0020112621), TWISTER can be expanded to a multi-position magnetic stirrer with up to 30 stirring positions.* The stirring positions can be controlled either separately or simultaneously (leader-follower principle)
Versatile accessories
With the multi-position stirring attachment TW.IX, the drive is transformed into a magnetic stirrer with 9 stirring positions for efficient mixing of sample vessels with small volumes (8 - 60 ml)
The TW.VX shaker attachment transforms the universal magnetic drive into a vortex or orbital shaker
Innovative operating concept
TWISTER enables a new way of interaction between user and laboratory instrument
Via the intuitive and chemically resistant 360° LED glass display, all information is intuitively conveyed without any alpha-numeric display
During operation, either the speed or the power required for stirring can be displayed
For example, viscosity changes can be observed and displayed as a percentage
Mixing can be started by pressing a button as well as (thanks to integrated beaker recognition) by placing or touching the beaker
The reverse function changes the direction of rotation at definable time intervals
This leads to a significant improvement of the mixing result, especially with samples that are difficult to mix
Robust and safe
The high protection class IP 66 allows operation under harsh conditions
TWISTER can thus be cleaned under the tap, for example, or operated in an incubator at temperatures up to 40°C
The compact and innovative design has already been awarded the reddot Award 2022
It is particularly suitable for use in laboratories with limited space
* Depending on the number of devices, a different power supply may have to be used
The included power supply is designed to power up to four devices
