Ika TWISTER SET 3
TWISTER is a universal and compact mixing device with magnetic drive
TWISTER SET 3 is multi-position magnetic stirrer with three drive units
In the default version, TWISTER is a powerful single-position magnetic stirrer for mixing up to 5 liters at a maximum speed of 3000 rpm and a viscosity of up to 500 mPas

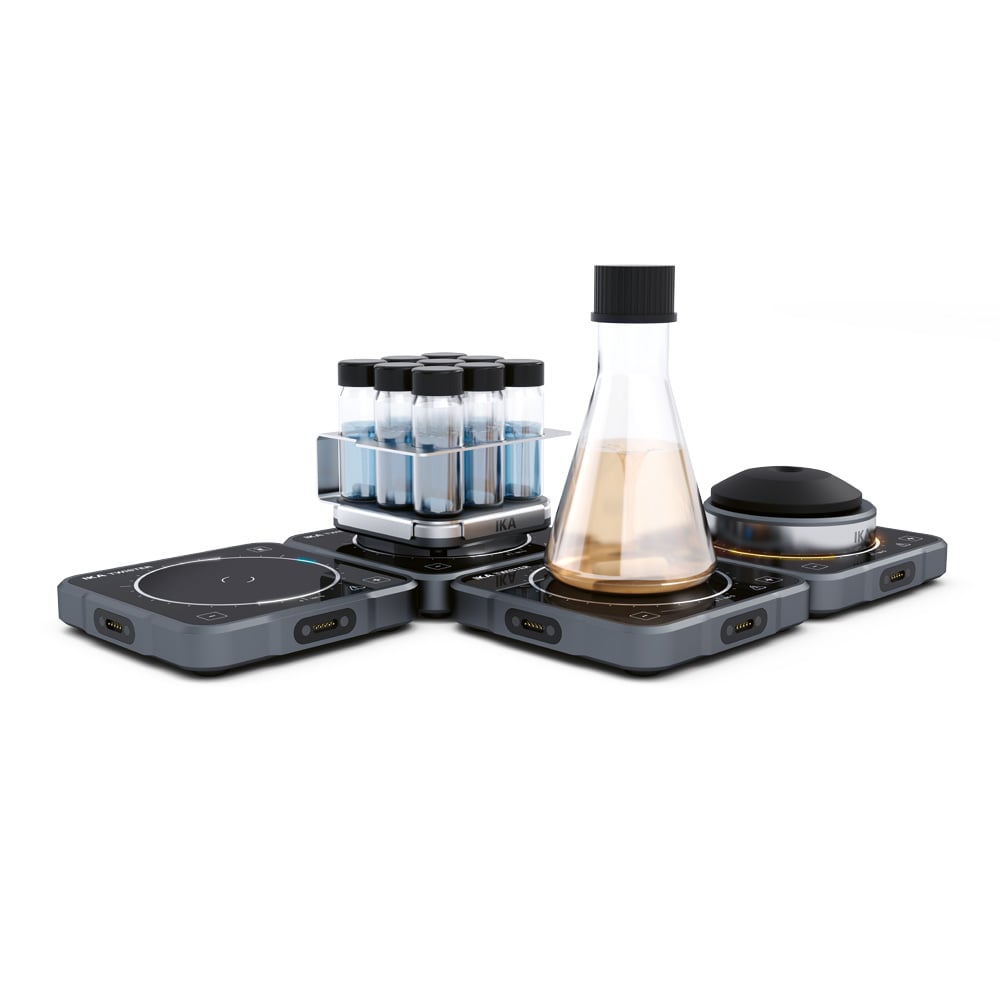

By connecting additional TWISTER stirring units (available as accessories, ID no
0020112621), TWISTER can be expanded to a multi-position magnetic stirrer with up to 30 stirring positions.* The stirring positions can be controlled either separately or simultaneously (leader-follower principle)
Versatile accessories
With the multi-position stirring attachment TW.IX, the drive is transformed into a magnetic stirrer with 9 stirring positions for efficient mixing of sample vessels with small volumes (8 - 60 ml)
The TW.VX shaker attachment transforms the universal magnetic drive into a vortex or orbital shaker
Innovative operating concept
TWISTER enables a new way of interaction between user and laboratory instrument
Via the intuitive and chemically resistant 360° LED glass display, all information is intuitively conveyed without any alpha-numeric display
During operation, either the speed or the power required for stirring can be displayed
For example, viscosity changes can be observed and displayed as a percentage
Mixing can be started by pressing a button as well as (thanks to integrated beaker recognition) by placing or touching the beaker
The reverse function changes the direction of rotation at definable time intervals
This leads to a significant improvement of the mixing result, especially with samples that are difficult to mix
Robust and safe
The high protection class IP 66 allows operation under harsh conditions

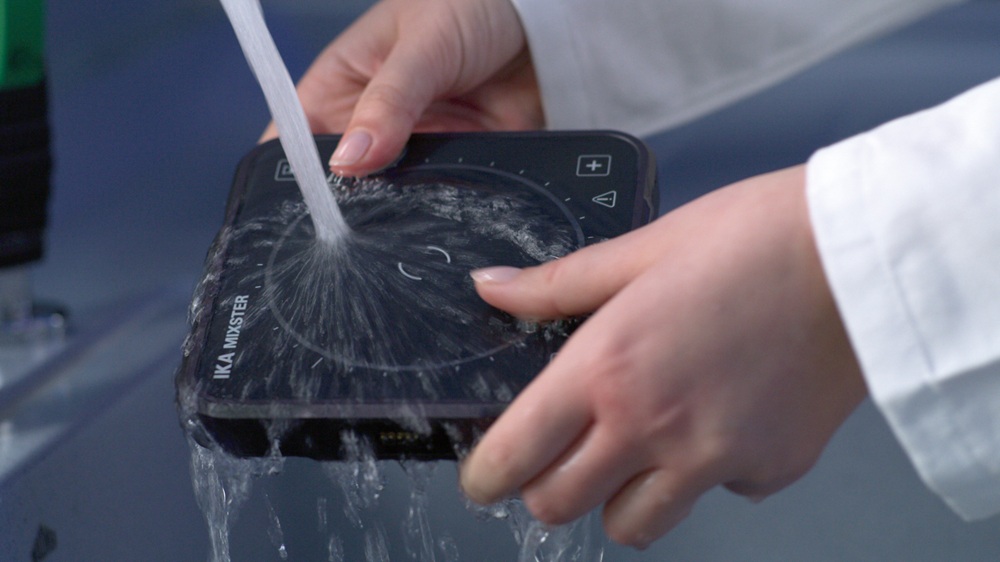

TWISTER can thus be cleaned under the tap, for example, or operated in an incubator at temperatures up to 40°C
The compact and innovative design has already been awarded the reddot Award 2022
It is particularly suitable for use in laboratories with limited space
* Depending on the number of devices, a different power supply may have to be used
The included power supply is designed to power up to four devices
| Dimensions plaque | 124 x 124 mm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Volume maximum de liquide | 5 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Vitesse de rotation (rpm) | 100 - 3.000 rpm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Chauffage (oui/non) | Non | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Données techniques |
| Nombre de postes | 3 |
| Espaces entre les postes [mm] | 135 |
| quantité min. (H2O) [l] | 0.005 |
| Capacité d'agitation max. (H2O) [l] | 5 |
| Puissance du moteur débitée [W] | 5 |
| Sens de rotation du moteur | À droite/à gauche |
| Affichage de la vitesse de rotation valeur de consigne | LED |
| Affichage de la vitesse de rotation valeur réelle | LED |
| Possibilité de réglage de la vitesse | Bouton poussoir |
| Plage de vitesse [rpm] | 100 - 3000 |
| Précision de réglage de la vitesse [rpm] | 100 |
| longueur du barreau aimanté [mm] | 10 - 30 |
| auto-chauffage de la plaque (RT | 22°C pour une durée 1h) [K] |
| Matériaux de la plaque | verre |
| Dimensions de la plaque [mm] | 124 x 124 |
| Inversion du sens de rotation automatique | oui |
| Fonctionnement par intermittence | oui |
| Mesure de l'évolution de la viscosité | oui |
| Réglage de la durée min. [s] | 6 |
| Réglage de la durée max. [min] | 30 |
| Écart de vitesse (aucune charge, tension Nonminale, à 1500 tr/min + 25 °C) [%] | ±2 |
| Système d’agitation modulaire extensible (2 à 30 unités) | oui |
| Opération leader-suiveur (minimum 2 unités requises, l’unité leader contrôle l’unité suiveuse de manière synchrone) | oui |
| Détection des récipients (optionnel activé/désactivé) | oui |
| Réglage du temps de montée de l’accélération du moteur (Fonction disponible avec des accessoires supplémentaires) | Nonn |
| Definition of up to 6 stirring groups (Function available with additional accessories) | Nonn |
| Dimensions (L x H x P) [mm] | 135 x 24 x 135 |
| Poids [kg] | 0.6 |
| Plage de température du milieu admise [°C] | 5 - 40 |
| Humidité relative admissible [%] | 80 |
| Protection selon DIN EN 60529 | IP 66 |
| Interface numérique USB | option |
| Tension [V] | 100-240 |
| Fréquence [Hz] | 50/60 |
| Puissance absorbée de l'appareil [W] | 10 |
| Puissance absorbée de l'appareil Standby [W] | 2 |
| Tension continue [V=] | 24 |
| Consommation électrique max. [mA] | 400 |
TWISTER is a universal and compact mixing device with magnetic drive
TWISTER SET 3 is multi-position magnetic stirrer with three drive units
In the default version, TWISTER is a powerful single-position magnetic stirrer for mixing up to 5 liters at a maximum speed of 3000 rpm and a viscosity of up to 500 mPas
By connecting additional TWISTER stirring units (available as accessories, ID no
0020112621), TWISTER can be expanded to a multi-position magnetic stirrer with up to 30 stirring positions.* The stirring positions can be controlled either separately or simultaneously (leader-follower principle)
Versatile accessories
With the multi-position stirring attachment TW.IX, the drive is transformed into a magnetic stirrer with 9 stirring positions for efficient mixing of sample vessels with small volumes (8 - 60 ml)
The TW.VX shaker attachment transforms the universal magnetic drive into a vortex or orbital shaker
Innovative operating concept
TWISTER enables a new way of interaction between user and laboratory instrument
Via the intuitive and chemically resistant 360° LED glass display, all information is intuitively conveyed without any alpha-numeric display
During operation, either the speed or the power required for stirring can be displayed
For example, viscosity changes can be observed and displayed as a percentage
Mixing can be started by pressing a button as well as (thanks to integrated beaker recognition) by placing or touching the beaker
The reverse function changes the direction of rotation at definable time intervals
This leads to a significant improvement of the mixing result, especially with samples that are difficult to mix
Robust and safe
The high protection class IP 66 allows operation under harsh conditions
TWISTER can thus be cleaned under the tap, for example, or operated in an incubator at temperatures up to 40°C
The compact and innovative design has already been awarded the reddot Award 2022
It is particularly suitable for use in laboratories with limited space
* Depending on the number of devices, a different power supply may have to be used
The included power supply is designed to power up to four devices
