INC 125 FS digital is the first incubator shaker with a patented removable shaking platform
Without the shaking platform, the unit can be used like a normal incubator

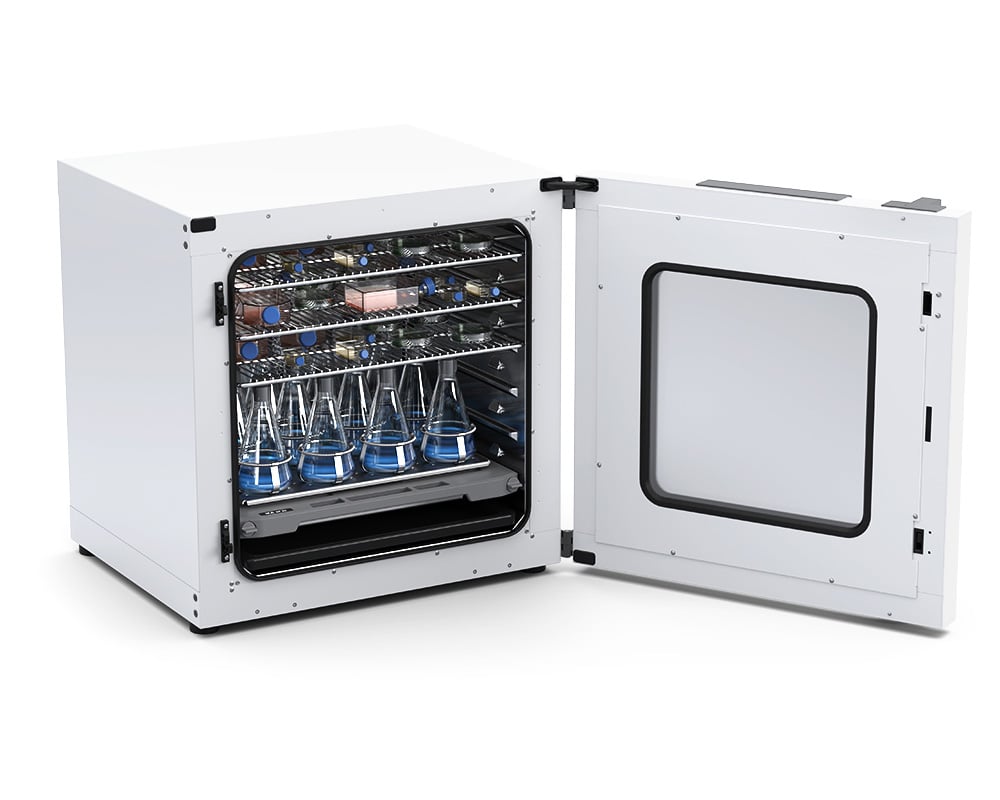

The large inner chamber with a volume of 125 liters offers space for up to 6 grid shelves (without shaking platform)
Thanks to high temperature stability and a uniform shaking motion that improves oxygenation, the incubation shaker is the perfect so0lution for cell cultivation and other microbiological applications
Patented removable shaker platform
• High shaking speed up to 300 rpm
• Shaking stroke: 25 mm (optional: 20 mm) for optimum oxygen input

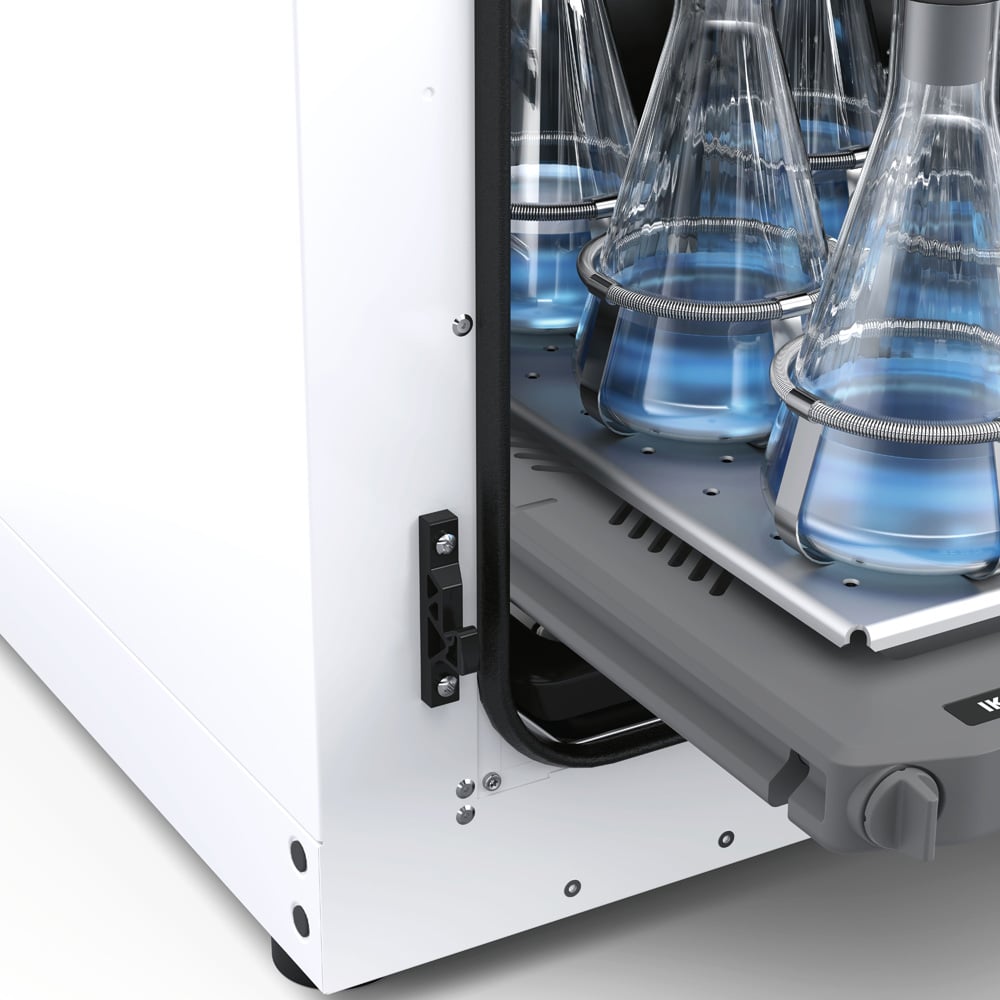

• The shaker platform can be pulled out halfway (with line indicator) for comfortable and tilt-proof loading
• The threaded grid on the platform allows the mounting of fixing clips or STICKMAX adhesive mat for different vessels and sizes
• Automatic detection of the shaker platform allows the temperature to be automatically adjusted in decontamination mode (100 or 120°C)
• When the door is opened, the shaking function stops automatically
• Shaking and temperature control function can be used independently of each other
Easy to clean
• Simple cleaning of the interior thanks to rounded corners and flat surfaces made of corrosion-resistant material AISI 304
• The optional drip pan provides additional safety in case of liquid overflow or can be used as water reservoir to increase humidity in the chamber
• Decontamination mode for disinfection and reduction of cross-contamination (100/120°C)
Optimal temperature control
• Wide temperature range: RT +8°C to 80 °C
• Excellent temperature management and optimized energy consumption thanks to very good insulation of the inner chamber and triple-glazed door with window
• Internal air circulation can be influenced by electronically adjustable fan speed (0-100%)
Simple and intuitive operation
• Very large LCD display for easy reading
• Large viewing window and switchable interior lighting for observation of samples
• Counter, timer and timer auto (temperature-controlled) function to ensure reproducible test conditions
Versatile accessories
• Up to two devices (incubator shaker or incubator) can be stacked (with corresponding accessories)
• Different trays available
• Shaking platform available with 20 or 25 mm shaking stroke
Services
• Door hinge on the right, changeable on request
• Installation and Operation Qualification (IQ/OQ) available on request
Technologie de convection | Mécanique | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Plage de température | 8 - 80 °C | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Volume total de la chambre interne (L) | 125 L | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Données techniques |
Puissance de chauffage [W] | 750 |
Température de travail [°C] | temp ambiante +8 - 80 |
réglage et résolution de l'écran [K] | 0.1 |
Temperature stability (37°C @22°C) [±°K] | 0.1 |
Temperature homogeneity (37°C @22°C) [±°K] | 0.2 |
Temperature heat up time (37°C @22°C) [min] | 12 |
Temperature door recovery (37°C @22°C) [min] | 2 |
Affichage de la température | oui |
Affichage | LCD |
Réglage de la durée max. [d] | 100 |
Nombre max. de fonds grillagés | 6 |
Chargement max. par tablette [kg] | 20 |
Zone de fonctionnement de la chambre interne [mm] | 550 x 550 x 415 |
Volume total de la chambre interne [l] | 125 |
Dispositifs de sécurité thermique selon la Nonrme DIN 12880 | TB class 1 |
Cleaning thermal decontamination (100°C / 2h) | oui |
Agitateurs orbitaux [mm] | 25 |
Plage de vitesse [rpm] | 10 - 300 |
Capacité admissible (support inclus) [kg] | 7.5 |
Dimensions de la plaque [mm] | 340 x 480 |
Power consumption at 37°C [W] | 95 |
Dimensions (L x H x P) [mm] | 700 x 720 x 635 |
Poids [kg] | 70 |
Plage de température du milieu admise [°C] | 15 - 32 |
Humidité relative admissible [%] | 80 |
Protection selon DIN EN 60529 | IP 20 |
Interface numérique RS 232 | Nonn |
Interface numérique USB | oui |
Interface numérique Bluetooth | Nonn |
Interface WiFi | Nonn |
Ethernet interface | Nonn |
Sortie analogique | Nonn |
Analog input | Nonn |
Tension [V] | 200 - 240 |
Fréquence [Hz] | 50/60 |
Puissance absorbée de l'appareil [W] | 850 |
Puissance absorbée max. [W] | 850 |
Puissance absorbée de l'appareil Standby [W] | 2 |
Fuse | 2x T5.0A 250V |
INC 125 FS digital is the first incubator shaker with a patented removable shaking platform
Without the shaking platform, the unit can be used like a normal incubator
The large inner chamber with a volume of 125 liters offers space for up to 6 grid shelves (without shaking platform)
Thanks to high temperature stability and a uniform shaking motion that improves oxygenation, the incubation shaker is the perfect so0lution for cell cultivation and other microbiological applications
Patented removable shaker platform
• High shaking speed up to 300 rpm
• Shaking stroke: 25 mm (optional: 20 mm) for optimum oxygen input
• The shaker platform can be pulled out halfway (with line indicator) for comfortable and tilt-proof loading
• The threaded grid on the platform allows the mounting of fixing clips or STICKMAX adhesive mat for different vessels and sizes
• Automatic detection of the shaker platform allows the temperature to be automatically adjusted in decontamination mode (100 or 120°C)
• When the door is opened, the shaking function stops automatically
• Shaking and temperature control function can be used independently of each other
Easy to clean
• Simple cleaning of the interior thanks to rounded corners and flat surfaces made of corrosion-resistant material AISI 304
• The optional drip pan provides additional safety in case of liquid overflow or can be used as water reservoir to increase humidity in the chamber
• Decontamination mode for disinfection and reduction of cross-contamination (100/120°C)
Optimal temperature control
• Wide temperature range: RT +8°C to 80 °C
• Excellent temperature management and optimized energy consumption thanks to very good insulation of the inner chamber and triple-glazed door with window
• Internal air circulation can be influenced by electronically adjustable fan speed (0-100%)
Simple and intuitive operation
• Very large LCD display for easy reading
• Large viewing window and switchable interior lighting for observation of samples
• Counter, timer and timer auto (temperature-controlled) function to ensure reproducible test conditions
Versatile accessories

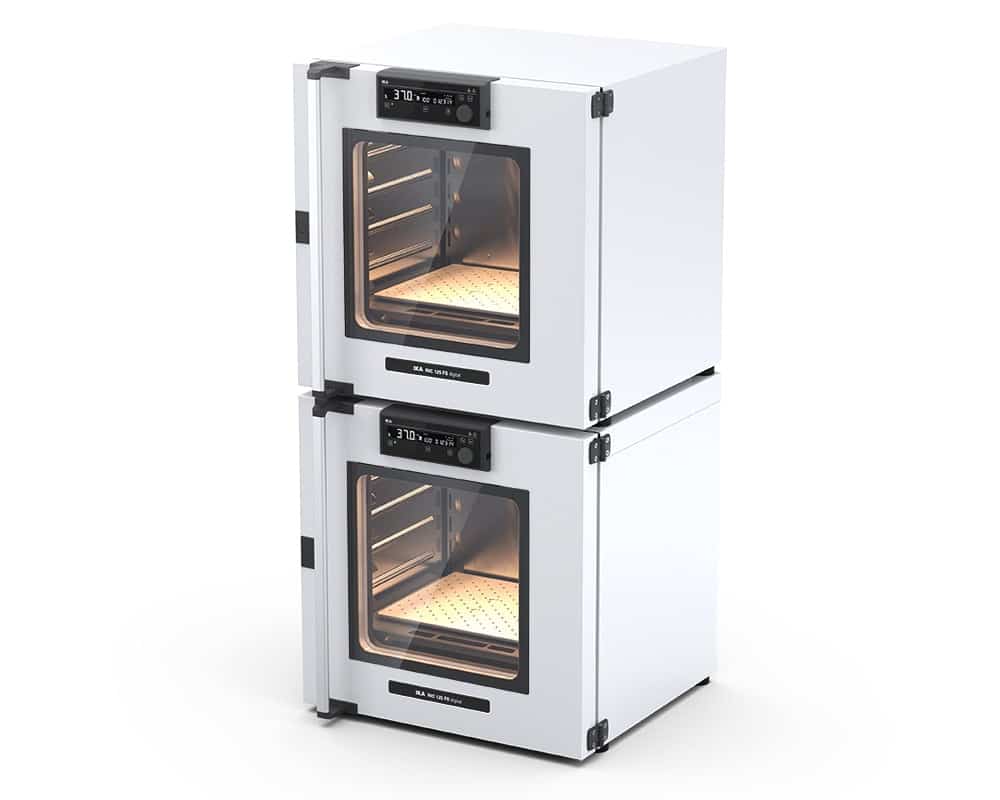

• Up to two devices (incubator shaker or incubator) can be stacked (with corresponding accessories)
• Different trays available
• Shaking platform available with 20 or 25 mm shaking stroke
Services
• Door hinge on the right, changeable on request
• Installation and Operation Qualification (IQ/OQ) available on request
