Ika I-MAG Industry stirrer
I-MAG is a powerful yet compact magnetic stirrer for applications in laboratory and production environments

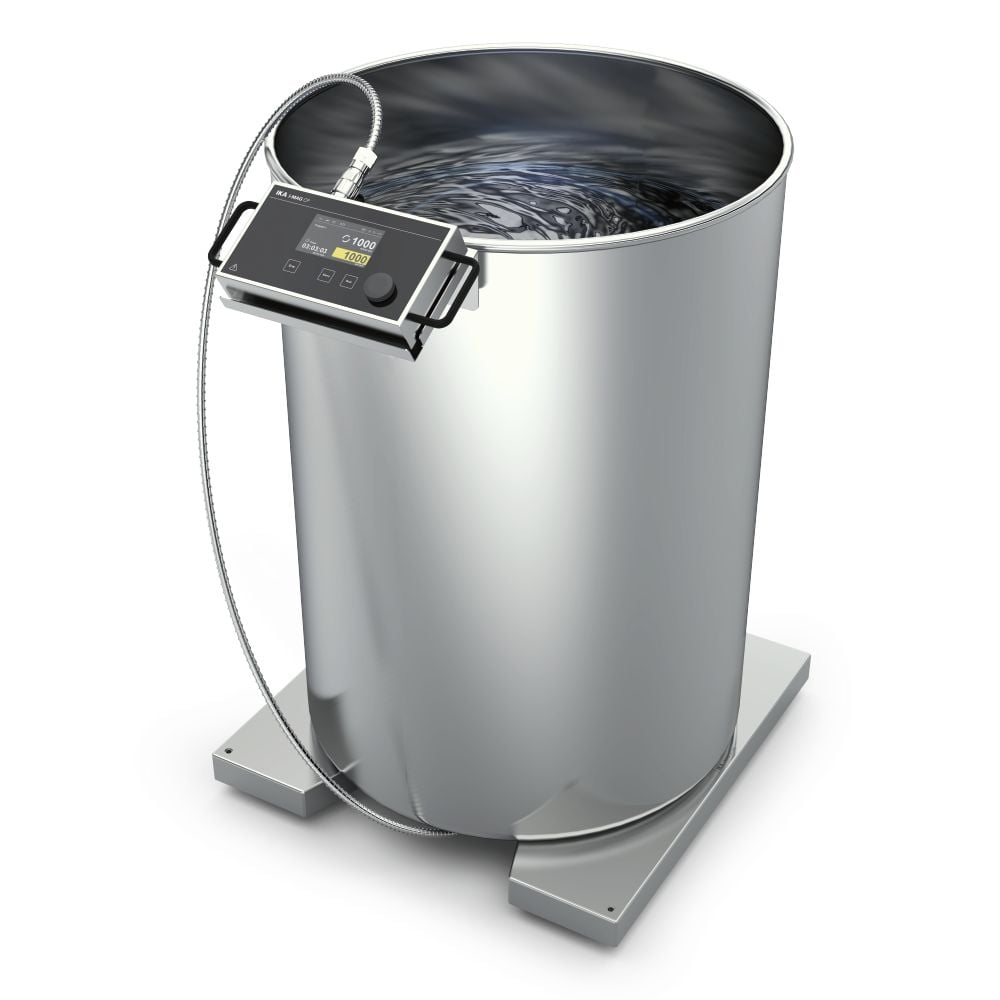

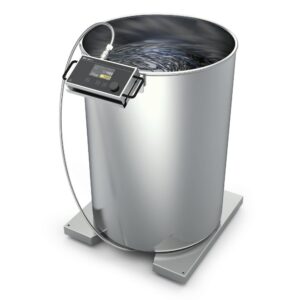

In combination with the I-MAG SP set-up frames for large vessels, which are available as accessories, up to 300 liters of water can be mixed efficiently

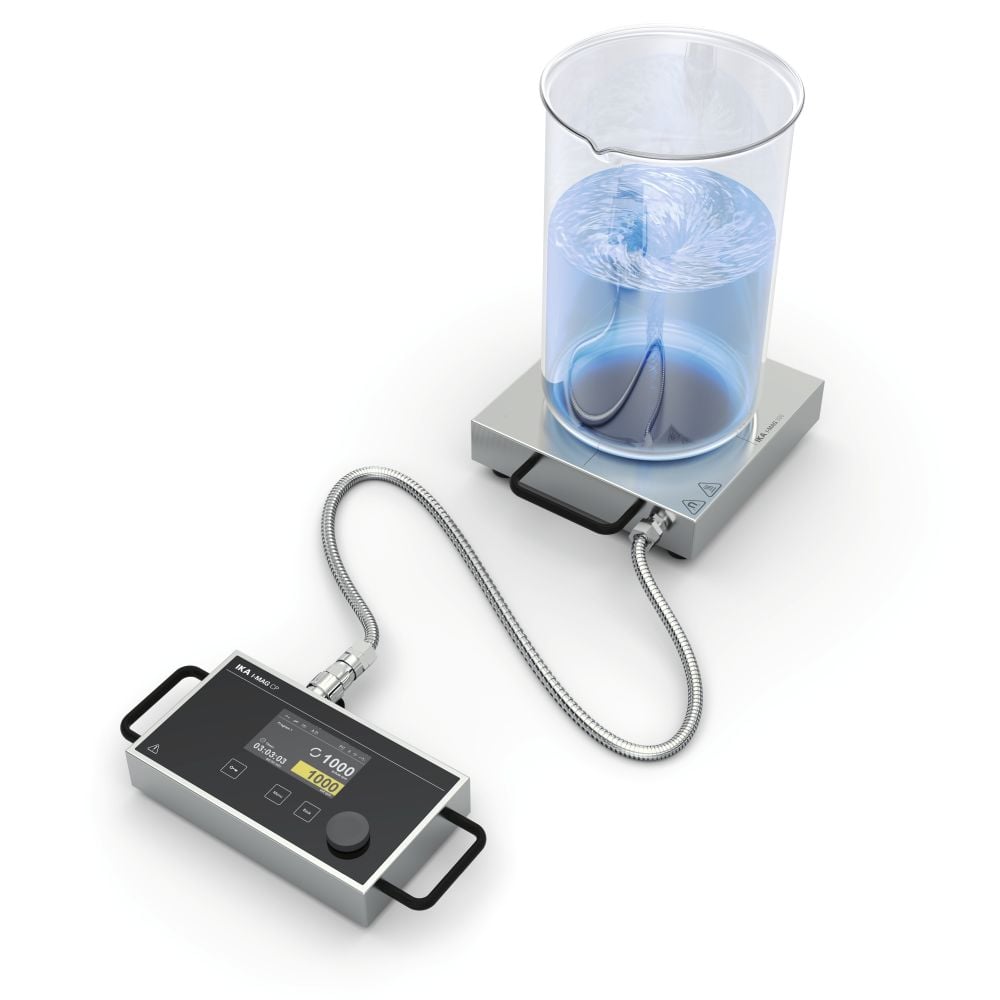

The wired operating unit (controller) ensures convenient handling and simple integration into e.g
process engineering systems
The robust drive unit (IP protection class 64) consists of the high-torque and wear-free motor and the magnetic coupling with high-performance neodymium magnets
This enables the effective mixing of viscous media as well as mixing in vessels with a larger distance between the installation surface and the stirring rod (e.g
double-walled containers or vessels with insulated bottoms)
In order to reliably achieve high speeds even under difficult conditions, I-MAG has an adjustable start-up speed that prevents the magnetic stirring bar from breaking off during the acceleration phase
Process reliability is additionally achieved by the integrated detection of the magnetic stirring bar coupling
In the event of a tear-off or failure of the magnetic coupling, the user is informed via the operating unit
The I-MAG controller has a variety of digital and analog interfaces
Equipped in this way, the device can, for example, be controlled with a foot switch or operating button or can be integrated into a network via USB/LAN/WIFI
With appropriate software (for example labworldsoft® 6), I-MAG can thus be integrated into an automated plant process
Further features:
Drive with very high IP protection class 64: unrestricted use even under harsh environmental conditions thanks to enclosed stainless steel housing
Electronically controlled motor for very stable speeds even under load for reproducible results
Secure and ergonomic mounting of the controller directly on the vessel or with a stand rod using the I-MAG UHC universal holder (available as accessory)
Multilingual menu navigation
| Dimensions plaque | 260 x 260 mm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Volume maximum de liquide | 300 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Vitesse de rotation (rpm) | 100 - 1.500 rpm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Chauffage (oui/non) | Non | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Données techniques |
| Nombre de postes | 1 |
| variation de la vitesse [rpm] | ±10 |
| Capacité d'agitation max. (H2O) [l] | 300 |
| Charge maximale [kg] | 75 |
| Stirring quantity max. (without extension platform I-MAG SP) [l] | 50 |
| Puissance du moteur débitée [W] | 90 |
| Sens de rotation du moteur | À droite/à gauche |
| Affichage de la vitesse de rotation valeur de consigne | TFT |
| Affichage de la vitesse de rotation valeur réelle | TFT |
| Possibilité de réglage de la vitesse | Bouton rotatif |
| Plage de vitesse [rpm] | 100 - 1500 |
| Précision de réglage de la vitesse [rpm] | 10 |
| longueur du barreau aimanté [mm] | 30 - 140 |
| auto-chauffage de la plaque (RT | 22°C pour une durée 1h) [K] |
| Matériaux de la plaque | INonx 1.4301 |
| Dimensions de la plaque [mm] | 260 x 260 |
| Inversion du sens de rotation automatique | oui |
| Fonctionnement par intermittence | oui |
| Mesure de l'évolution de la viscosité | Nonn |
| Barreau avec détection de rupture | oui |
| Minuterie | oui |
| Affichage de la minuterie | TFT |
| Minuterie (réglage des heures et des minutes) [min] | 1 - 14399 |
| Fonction graphique | Nonn |
| Programme | oui |
| Fonction de pesage | Nonn |
| Surface éclairée | Nonn |
| Fonctionnement sur batterie | Nonn |
| Analog pedal control | oui |
| Cable from controller to device [mm] | 2000 |
| Dimensions (L x H x P) [mm] | 260 x 70 x 300 |
| Poids [kg] | 8 |
| Plage de température du milieu admise [°C] | 5 - 40 |
| Humidité relative admissible [%] | 80 |
| Protection selon DIN EN 60529 | IP 64 / IP 22 |
| Interface numérique RS 232 | oui |
| Interface numérique USB | oui |
| Interface numérique Bluetooth | Nonn |
| Interface WiFi | Nonn |
| Sortie analogique | oui |
| Analog input | oui |
| Tension [V] | 100-240 |
| Fréquence [Hz] | 50/60 |
| Puissance absorbée de l'appareil [W] | 140 |
| Puissance absorbée de l'appareil Standby [W] | 5 |
I-MAG is a powerful yet compact magnetic stirrer for applications in laboratory and production environments
In combination with the I-MAG SP set-up frames for large vessels, which are available as accessories, up to 300 liters of water can be mixed efficiently
The wired operating unit (controller) ensures convenient handling and simple integration into e.g
process engineering systems
The robust drive unit (IP protection class 64) consists of the high-torque and wear-free motor and the magnetic coupling with high-performance neodymium magnets
This enables the effective mixing of viscous media as well as mixing in vessels with a larger distance between the installation surface and the stirring rod (e.g
double-walled containers or vessels with insulated bottoms)
In order to reliably achieve high speeds even under difficult conditions, I-MAG has an adjustable start-up speed that prevents the magnetic stirring bar from breaking off during the acceleration phase
Process reliability is additionally achieved by the integrated detection of the magnetic stirring bar coupling
In the event of a tear-off or failure of the magnetic coupling, the user is informed via the operating unit
The I-MAG controller has a variety of digital and analog interfaces
Equipped in this way, the device can, for example, be controlled with a foot switch or operating button or can be integrated into a network via USB/LAN/WIFI
With appropriate software (for example labworldsoft® 6), I-MAG can thus be integrated into an automated plant process
Further features:
Drive with very high IP protection class 64: unrestricted use even under harsh environmental conditions thanks to enclosed stainless steel housing
Electronically controlled motor for very stable speeds even under load for reproducible results
Secure and ergonomic mounting of the controller directly on the vessel or with a stand rod using the I-MAG UHC universal holder (available as accessory)
Multilingual menu navigation
