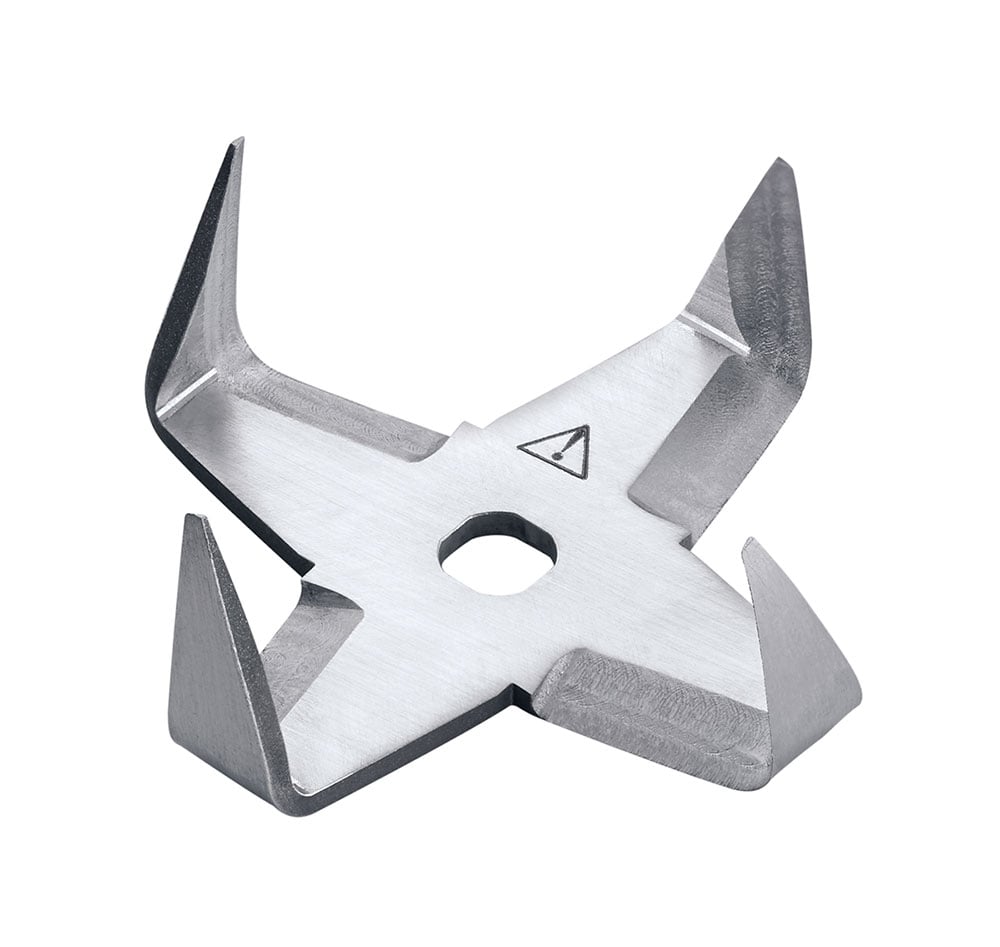

IKA A 10.2 Star shaped cutter
€176,00
Ajouté à votre panier

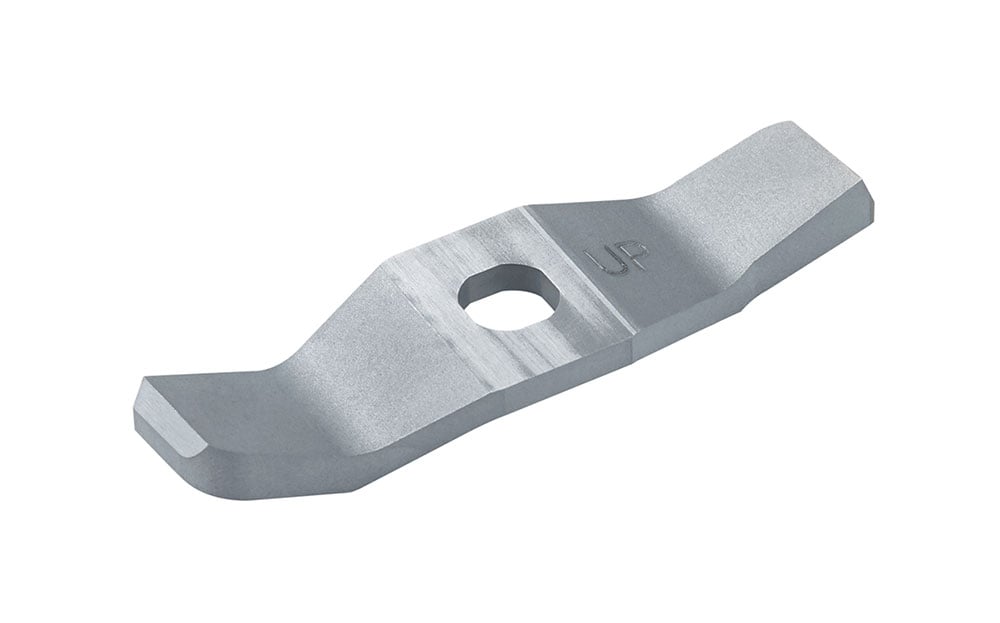

IKA A 10.1 Stainless steel cutter
€63,00

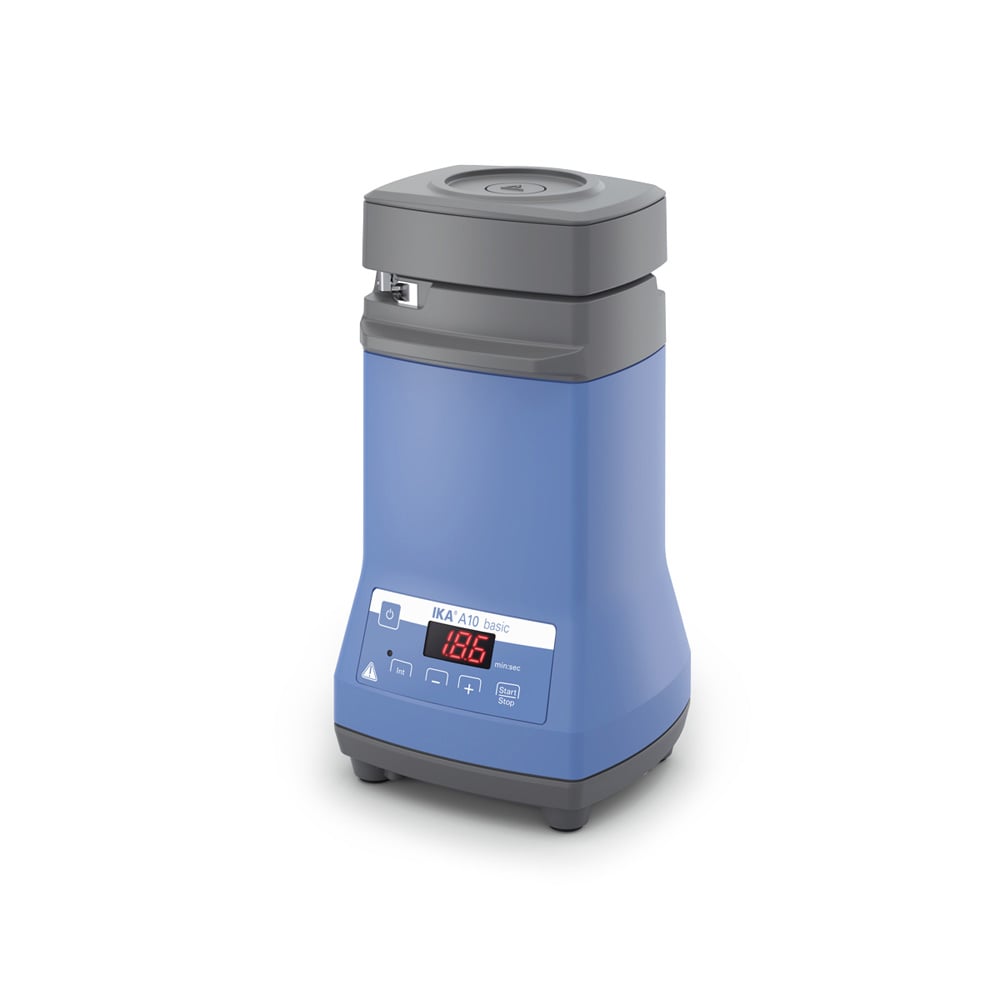

The redesigned batch mill grinds hard, brittle, soft and fibrous materials for volumes up to 50 ml
Because samples may be embrittled directly in the grinding chamber - tough, oily and aqueous samples can also be grinded
The development of the mill placed particular emphasis on safety
The mill will only start when the lid is closed and can only be opened at standstill
A quick stop feature further increases the safety of the user
Test results of the new A 10 basic are comparable with the ones of the previous model A 10, due to the same grinding chamber, cutter geometrics and speed
The new mill A 10 basic offers the following features:
Digital timer
Counter: Display of grinding time
Interval function
Brushless motor for long service life and low noise level
Integrated cooling connections
Error code display
Simple handling with keypads
Easily exchangeable beater/cutter for a variety of applications

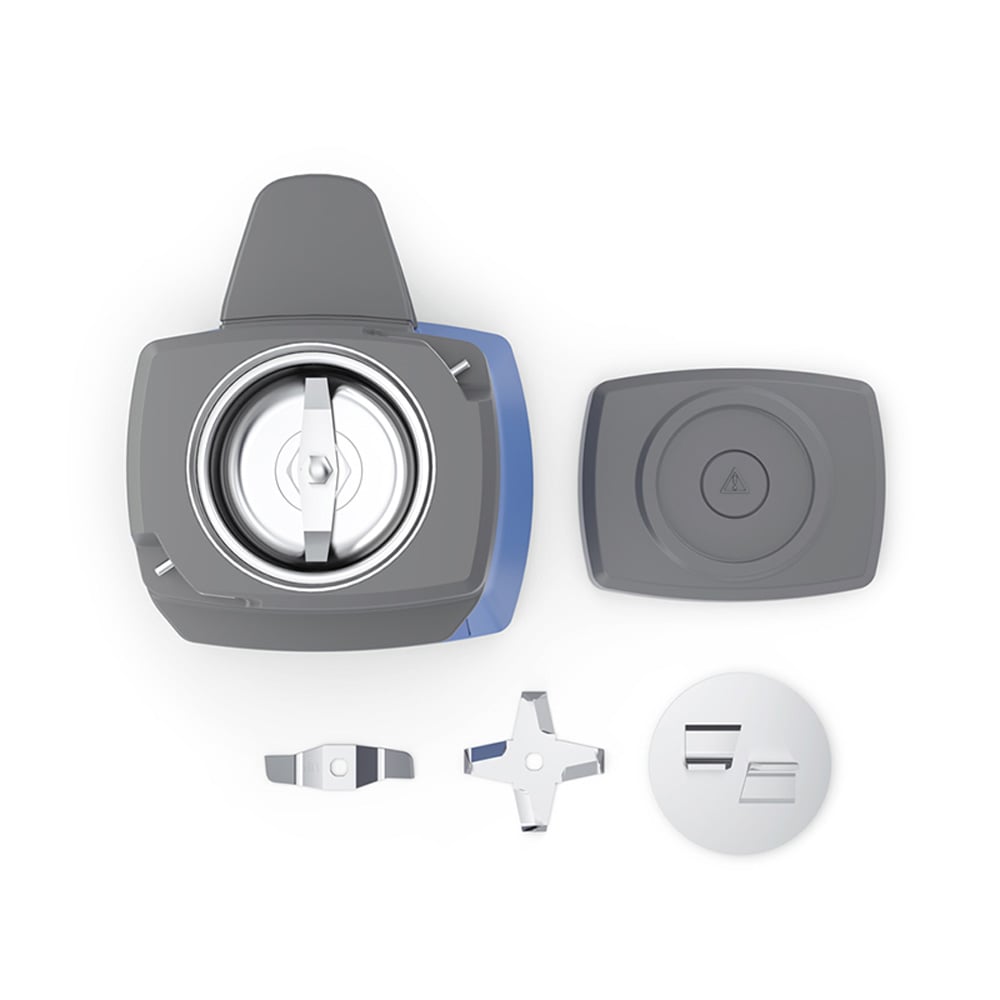

Grinding chamber reduction for small sample sizes and stainless steel cutter A 10.1 included with delivery
Bayonet lock for lid to enable simple and safe locking
Type de fonctionnement | batch |
Système de travail | découpage/impact |
Puissance du moteur absorbée [W] | 300 |
Puissance du moteur débitée [W] | 240 |
Vitesse max. [rpm] | 25000 |
variation de la vitesse [rpm] | ±500 |
Vitesse périphérique [m/s] | 73 |
Volume utile max. [ml] | 50 |
Dureté de la sustance à travailler max. [Mohs] | 5 |
Granulométrie max. de la charge [mm] | 6 |
Matériau fléau/lame | inox 1.4034 |
Matériau broyeur | Inox 1.4301 |
Durée de fonctionnement MARCHE [min] | 5 |
Durée de fonctionnement ARRET [min] | 10 |
Broyeur, avec refroidissement à l'eau | oui |
Matière broyée peut être réfrigérée dans le broyeur avec de la glace carbonique | oui |
Matière broyée peut être réfrigérée dans le broyeur avec de l'azote liquide | non |
Dimensions (L x H x P) [mm] | 130 x 250 x 145 |
Poids [kg] | 3.13 |
Plage de température du milieu admise [°C] | 5 - 40 |
Humidité relative admissible [%] | 80 |
Protection selon DIN EN 60529 | IP 41 |
Interface numérique RS 232 | non |
Interface numérique USB | non |
Sortie analogique | non |
Tension [V] | 220 - 240 |
Fréquence [Hz] | 50/60 |
Puissance absorbée de l'appareil [W] | 300 |
The redesigned batch mill grinds hard, brittle, soft and fibrous materials for volumes up to 50 ml
Because samples may be embrittled directly in the grinding chamber - tough, oily and aqueous samples can also be grinded
The development of the mill placed particular emphasis on safety
The mill will only start when the lid is closed and can only be opened at standstill
A quick stop feature further increases the safety of the user
Test results of the new A 10 basic are comparable with the ones of the previous model A 10, due to the same grinding chamber, cutter geometrics and speed
The new mill A 10 basic offers the following features:
Digital timer
Counter: Display of grinding time
Interval function
Brushless motor for long service life and low noise level
Integrated cooling connections
Error code display
Simple handling with keypads
Easily exchangeable beater/cutter for a variety of applications
Grinding chamber reduction for small sample sizes and stainless steel cutter A 10.1 included with delivery
Bayonet lock for lid to enable simple and safe locking
