Ika A 10 basic
The redesigned batch mill grinds hard, brittle, soft and fibrous materials for volumes up to 50 ml
Because samples may be embrittled directly in the grinding chamber - tough, oily and aqueous samples can also be grinded
The development of the mill placed particular emphasis on safety
The mill will only start when the lid is closed and can only be opened at standstill
A quick stop feature further increases the safety of the user
Test results of the new A 10 basic are comparable with the ones of the previous model A 10, due to the same grinding chamber, cutter geometrics and speed
The new mill A 10 basic offers the following features:
Digital timer
Counter: Display of grinding time
Interval function
Brushless motor for long service life and low noise level
Integrated cooling connections
Error code display
Simple handling with keypads

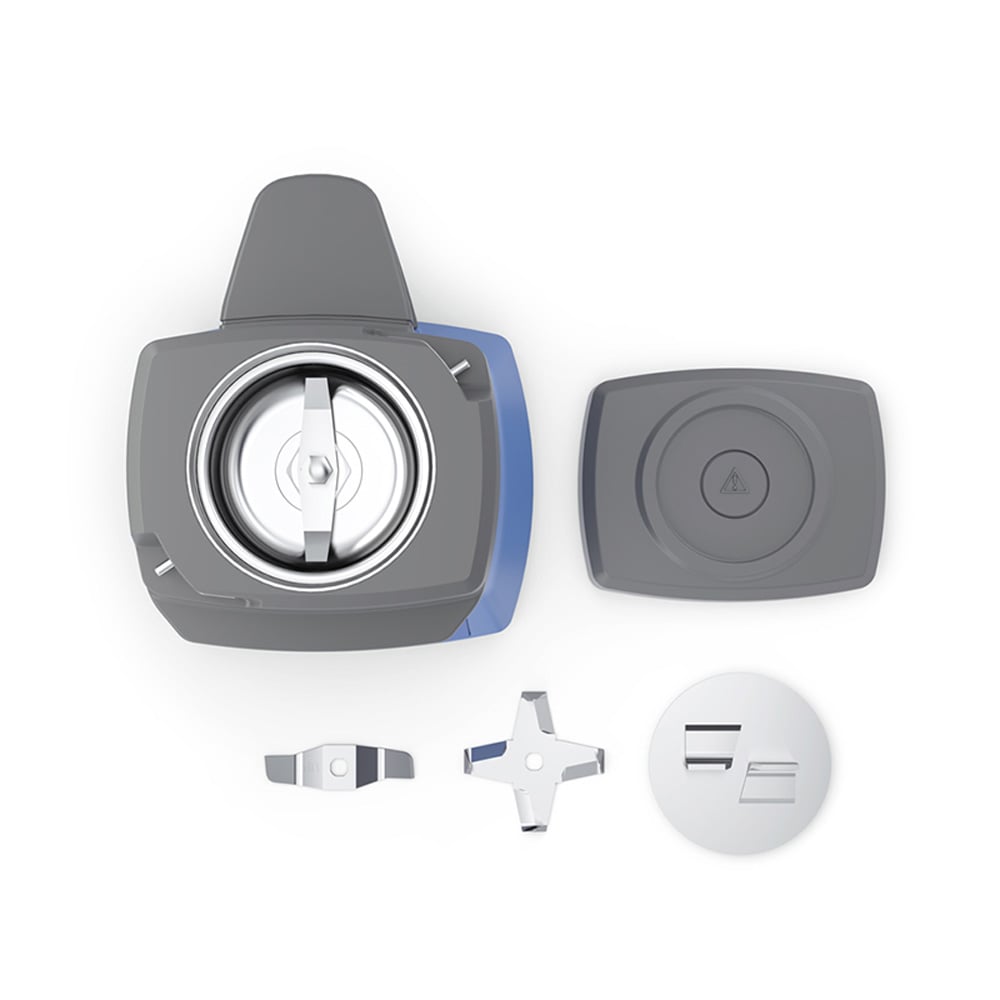

Easily exchangeable beater/cutter for a variety of applications
Grinding chamber reduction for small sample sizes and stainless steel cutter A 10.1 included with delivery
Bayonet lock for lid to enable simple and safe locking
| Bruikbaar volume (ml) | 50 ml | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Maalmolen of toebehoren (Tube, kogels, schroeven) | Maalmolen | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. snelheid | 25.000 rpm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Soort maalmolen (snijden, schokken, kogels) | snijden/schokken | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Technische data |
| Process type | batch |
| Operating principle | cutting/impact |
| Motor rating input [W] | 300 |
| Motor rating output [W] | 240 |
| Speed max. [rpm] | 25000 |
| Speed deviation [rpm] | ±500 |
| Circumferential speed max. [m/s] | 73 |
| Useable volume max. [ml] | 50 |
| Feed hardness max. [Mohs] | 5 |
| Feed grain size max. [mm] | 6 |
| Material beater/cutter | stainless steel 1.4034 |
| Material milling chamber | stainless steel 1.4301 |
| Power-ON time [min] | 5 |
| Power-OFF time [min] | 10 |
| Milling chamber, can be cooled with water | Ja |
| Mill feed can be cooled in milling chamber with dry ice | Ja |
| Mill feed can be cooled in milling chamber with liquid nitrogen | Nee |
| Dimensions (W x H x D) [mm] | 130 x 250 x 145 |
| Weight [kg] | 3.13 |
| Permissible ambient temperature [°C] | 5 - 40 |
| Permissible relative humidity [%] | 80 |
| Protection class according to DIN EN 60529 | IP 41 |
| RS 232 interface | Nee |
| USB interface | Nee |
| Analog output | Nee |
| Voltage [V] | 220 - 240 |
| Frequency [Hz] | 50/60 |
| Power input [W] | 300 |
The redesigned batch mill grinds hard, brittle, soft and fibrous materials for volumes up to 50 ml
Because samples may be embrittled directly in the grinding chamber - tough, oily and aqueous samples can also be grinded
The development of the mill placed particular emphasis on safety
The mill will only start when the lid is closed and can only be opened at standstill
A quick stop feature further increases the safety of the user
Test results of the new A 10 basic are comparable with the ones of the previous model A 10, due to the same grinding chamber, cutter geometrics and speed
The new mill A 10 basic offers the following features:
Digital timer
Counter: Display of grinding time
Interval function
Brushless motor for long service life and low noise level
Integrated cooling connections
Error code display
Simple handling with keypads
Easily exchangeable beater/cutter for a variety of applications
Grinding chamber reduction for small sample sizes and stainless steel cutter A 10.1 included with delivery
Bayonet lock for lid to enable simple and safe locking
