IKA RV 3 pro V Complete Rotatieverdamper
The RV 3 pro V Complete package is the complete solution for your rotary evaporator setup.

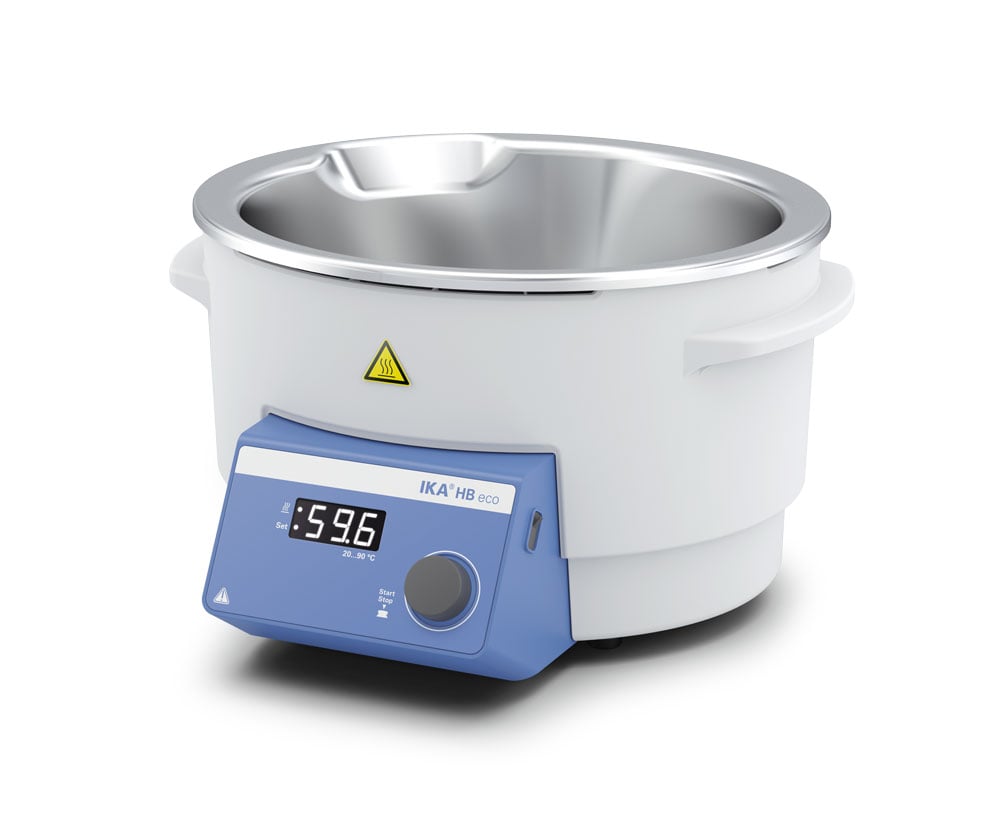

In addition to the rotary evaporator RV 3 V, the package includes the HB eco heating bath with a capacity of 4 liters, a highly efficient vertical glass condenser set with 1L receiver and evaporator flask, as well as the VACSTAR digital vacuum pump with VC 10 lite vacuum controller and the RC 2 lite recirculating chiller
All components and connections required for operation are included.
The RV 3 rotary evaporator is the ideal entry-level model of the IKA rotary evaporator portfolio
It finds a multitude of uses in the chemical, pharmaceutical, and biotechnology industries, in research and development, in manufacturing and quality assurance, in laboratories, and in plant construction
Thanks to specially designed glass guides, the condenser makes extremely efficient use of the 1500 cm² cooling surface.
The included VACSTAR digital vacuum pump is extremely space-saving and achieves a minimum vacuum of 2 mbar
It is controlled by the supplied VC 10 lite vacuum controller
In addition to controlling the recirculating chiller, the controller also enables manual setting of the vacuum as well as program-controlled operation.
The compact RC 2 lite recirculating chiller with strong 400 watt cooling capacity and a powerful pressure and suction pump (0.35 bar) is designed for simple cooling tasks down to -10 °C
The easily accessible and easy-to-clean mesh filter made of stainless steel ensures a consistently high cooling performance for years
Thanks to the natural refrigerant R290, the RC 2 lite is particularly environmentally friendly and well prepared for the future.
| Glaswerk | Ja | |||||||||||||||||||||||||||||||||||||||||||
| Max. temperatuur (°C) | 99 °C | |||||||||||||||||||||||||||||||||||||||||||
| Motorlift (ja/nee) | Nee | |||||||||||||||||||||||||||||||||||||||||||
| Technische data |
| Type of cooling | vertical |
| Cooling surface [cm2] | 1600 |
| Motor principle | DC |
| Speed range [rpm] | 20 - 300 |
| Reversible direction of rotation | Nee |
| Speed tolerance set rotation speed < 100rpm [rpm] | ±1 |
| Speed tolerance set rotation speed > 100rpm [%] | ±1 |
| Lift | manual |
| Stroke [mm] | 150 |
| Heating temperature range [°C] | room temp. - 99 |
| Timer | Nee |
| Dimensions (W x H x D) [mm] | 440 x 530 x 330 |
| Weight [kg] | 28.3 |
| Permissible ambient temperature [°C] | 5 - 40 |
| Permissible relative humidity [%] | 80 |
| Protection class according to DIN EN 60529 | IP 20 |
| RS 232 interface | Nee |
| USB interface | Nee |
| Analog output | Nee |
| Voltage [V] | 100 - 240 |
| Frequency [Hz] | 50/60 |
| Power input [W] | 1400 |
The RV 3 pro V Complete package is the complete solution for your rotary evaporator setup.
In addition to the rotary evaporator RV 3 V, the package includes the HB eco heating bath with a capacity of 4 liters, a highly efficient vertical glass condenser set with 1L receiver and evaporator flask, as well as the VACSTAR digital vacuum pump with VC 10 lite vacuum controller and the RC 2 lite recirculating chiller
All components and connections required for operation are included.
The RV 3 rotary evaporator is the ideal entry-level model of the IKA rotary evaporator portfolio
It finds a multitude of uses in the chemical, pharmaceutical, and biotechnology industries, in research and development, in manufacturing and quality assurance, in laboratories, and in plant construction
Thanks to specially designed glass guides, the condenser makes extremely efficient use of the 1500 cm² cooling surface.
The included VACSTAR digital vacuum pump is extremely space-saving and achieves a minimum vacuum of 2 mbar
It is controlled by the supplied VC 10 lite vacuum controller
In addition to controlling the recirculating chiller, the controller also enables manual setting of the vacuum as well as program-controlled operation.
The compact RC 2 lite recirculating chiller with strong 400 watt cooling capacity and a powerful pressure and suction pump (0.35 bar) is designed for simple cooling tasks down to -10 °C
The easily accessible and easy-to-clean mesh filter made of stainless steel ensures a consistently high cooling performance for years
Thanks to the natural refrigerant R290, the RC 2 lite is particularly environmentally friendly and well prepared for the future.
