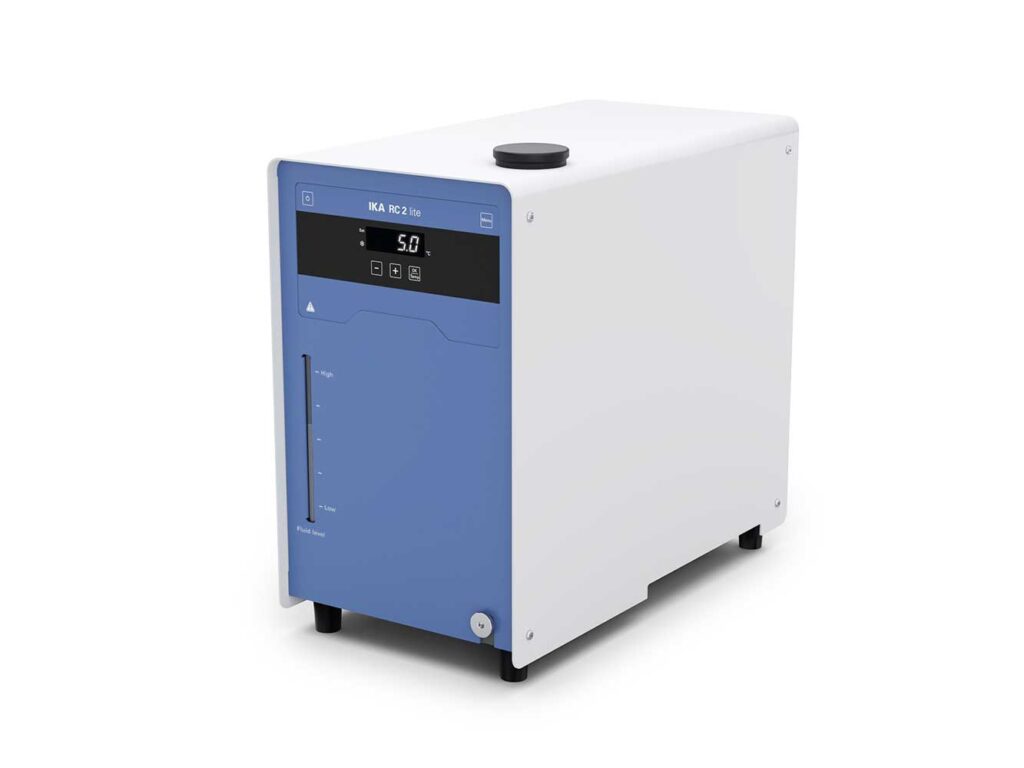

Compact recirculating chiller with powerful 400 W cooling capacity, designed for simple cooling tasks down to -10 °C
The RC 2 lite is the perfect peripheral device for the cooling of rotary evaporators, reflux condensers or as a cooling source for devices that dissipate heat with the help of a heat exchanger (e
g
double-walled grinding containers, cooled incubators, laboratory reactors, cooling coils)
The easily accessible and easy-to-clean mesh filter (stainless steel) ensure a consistently high cooling capacity over years
Thanks to the low filling volume of just one liter, the RC 2 lite is able to reach low temperatures particularly fast
The large working volume of 2.5 liters enables a high number of external applications without refill of liquids
The filling level in the reservoir can be clearly observed through the large, illuminated sight glass
The powerful pressure and suction pump enables the simultanous operation of several small applications as well as external applications in open bath vessels in combination with a level controller
Thanks to the natural refrigerant R290, the RC 2 lite is remarkably environmentally friendly and well prepared for the future
Puissance de refroidissement (W) | 400 W | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Débit (L/min) | 18 L/min | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Plage de température (°C) | -10 - +70 °C | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Données techniques |
Type d'appareil | Boucle réfrigérée |
Classement selon DIN 12876 | I |
Caractérisation selon DIN 12876 | NFL |
liquide de refroidissant | R290 |
quantité du liquide de refroidissement [g] | 70 |
Pression max. du fluide réfrigérant [bar] | 21 |
Capacité de refroidissement (@20°C) [W] | 400 |
Capacité de refroidissement (@10°C) [W] | 350 |
Capacité de refroidissement (@0°C) [W] | 250 |
Capacité de refroidissement (@-10°C) [W] | 140 |
Température de travail [°C] | -10 - temp ambiante |
Plage de température min. [°C] | -10 |
Plage de température max. (avec chauffage externe) [°C] | 70 |
Affichage de la température | oui |
Réglage de la température | PT1000 |
Thermostat de température de travail | PT1000 |
Affichage de la température de travail | LED |
Température constante DIN 12876 [K] | ±0.5 |
Résolution d'affichage [K] | 0.1 |
Précision de réglage de la température de chauffage [K] | ±0.1 |
Volume de bain [l] | 1 - 3.5 |
Type de pompe | Pompe de pression / d'aspiration |
Pression de pompe max. (0 litre débité ) [bar] | 0.35 |
Pompe à pression (côté aspiration) (débit 0 litre) [bar] | 0.15 |
Pression de refoulement (0 bar de contrepression) [l/min] | 18 |
raccordement pour pompe | M16x1 |
Durée de fonctionnement admissible [%] | 100 |
Noise level [dB(A)] | 51 |
Dimensions (L x H x P) [mm] | 225 x 385 x 430 |
Poids [kg] | 24.5 |
Plage de température du milieu admise [°C] | 5 - 32 |
Humidité relative admissible [%] | 80 |
Protection selon DIN EN 60529 | IP 21 |
Interface numérique RS 232 | oui |
Interface numérique USB | oui |
Tension [V] | 230 |
Fréquence [Hz] | 50/60 |
Puissance absorbée de l'appareil [W] | 250 |
Compact recirculating chiller with powerful 400 W cooling capacity, designed for simple cooling tasks down to -10 °C
The RC 2 lite is the perfect peripheral device for the cooling of rotary evaporators, reflux condensers or as a cooling source for devices that dissipate heat with the help of a heat exchanger (e
g
double-walled grinding containers, cooled incubators, laboratory reactors, cooling coils)
The easily accessible and easy-to-clean mesh filter (stainless steel) ensure a consistently high cooling capacity over years
Thanks to the low filling volume of just one liter, the RC 2 lite is able to reach low temperatures particularly fast
The large working volume of 2.5 liters enables a high number of external applications without refill of liquids
The filling level in the reservoir can be clearly observed through the large, illuminated sight glass
The powerful pressure and suction pump enables the simultanous operation of several small applications as well as external applications in open bath vessels in combination with a level controller
Thanks to the natural refrigerant R290, the RC 2 lite is remarkably environmentally friendly and well prepared for the future
