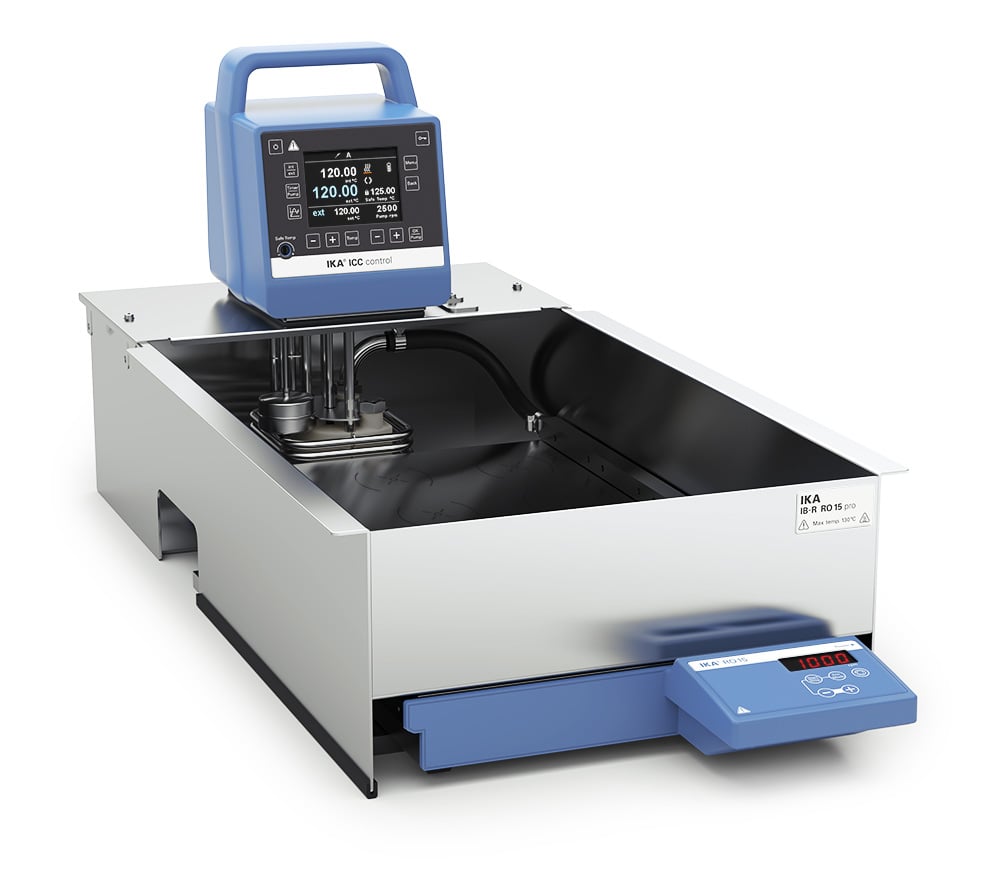

ICC control IB R RO 15 pro is an integrated temperature control and mixing system with 15 stirring positions for glass vessels up to 250 ml
The system includes the ICC control immersion circulator and the bath bridge BL.ICC as well as the pump connection set PDS.IB.R.RO with flow distributor for even temperature control of the stainless steel bath over the entire bath length
15 laser markings make it easier to position the sample vessels in the bath
Max
temperature: 130 °C
Bath opening (usable sample area): 489 x 313 x 98 mm
Immersion depth of the samples: 35-75 mm
Stainless steel bath for magnetic stirrer RO 15, size L, 25 l volume
Total external dimensions (depth/ width/ height): 678 x 361 x 355 mm
In order to achieve temperatures >
80 °C in the bath when using water as a tempering medium, we recommend our floating balls made of PP
*Technical data are related to the temperature control device included in the package
Débit (L/min) | 18 L/min | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Plage de température (°C) | (room T°+10°C) - 130 °C | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Puissance de chauffage (W) | 2.000 W | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Données techniques |
Type d'appareil | Thermoplongeurs compacts |
Classement selon DIN 12876 | III |
Caractérisation selon DIN 12876 | FL |
Puissance de chauffage [W] | 2000 |
Température de travail [°C] | temp ambiante +10K @1000rpm - 150 |
Température de service min. (avec refroidissement externe) [°C] | -20 |
Affichage de la température | oui |
Réglage de la température | PT 100 |
Thermostat de température de travail | PT 100 |
Thermostat de température de sécurité | PT1000 |
Affichage de la température de travail | TFT |
Affichage de température de sécurité | TFT |
Température constante DIN 12876 [K] | ±0.01 |
Connexion pour une sonde de température externe | PT 100 |
Résolution d'affichage [K] | 0.01 |
Affichage par opération avec thermostat externe | oui |
Précision de réglage de la température de chauffage [K] | ±0.1 |
Avertissement optique | oui |
Avertissement accoustique | oui |
Avertissement de surchauffe | oui |
Avertissement température | Nonn |
Circuit de sécurité réglable [°C] | 0 - 160 |
Sous-niveau de sécurité | oui |
protection au plus haut niveau | oui |
Type de pompe | Pompe de pression / d'aspiration |
Puissance pompe modifiable | oui |
Pression de pompe max. (0 litre débité ) [bar] | 0.3 |
Pompe à pression (côté aspiration) (débit 0 litre) [bar] | 0.2 |
Pression de refoulement (0 bar de contrepression) [l/min] | 18 |
Profondeur min. du bain [mm] | 150 |
Possibilité d'étalonnage | oui |
Support d'appareil | pinces |
Données techniques selon la Nonrme | DIN 12876 |
Durée de fonctionnement admissible [%] | 100 |
Dimensions (L x H x P) [mm] | 145 x 340 x 200 |
Poids [kg] | 3.75 |
Plage de température du milieu admise [°C] | 5 - 40 |
Humidité relative admissible [%] | 80 |
Protection selon DIN EN 60529 | IP 21 |
Interface numérique RS 232 | oui |
Interface numérique USB | oui |
Tension [V] | 230 |
Fréquence [Hz] | 50/60 |
Puissance absorbée de l'appareil [W] | 2100 |
ICC control IB R RO 15 pro is an integrated temperature control and mixing system with 15 stirring positions for glass vessels up to 250 ml
The system includes the ICC control immersion circulator and the bath bridge BL.ICC as well as the pump connection set PDS.IB.R.RO with flow distributor for even temperature control of the stainless steel bath over the entire bath length
15 laser markings make it easier to position the sample vessels in the bath
Max
temperature: 130 °C
Bath opening (usable sample area): 489 x 313 x 98 mm
Immersion depth of the samples: 35-75 mm
Stainless steel bath for magnetic stirrer RO 15, size L, 25 l volume
Total external dimensions (depth/ width/ height): 678 x 361 x 355 mm
In order to achieve temperatures >
80 °C in the bath when using water as a tempering medium, we recommend our floating balls made of PP
*Technical data are related to the temperature control device included in the package
