Flow chemistry made easy and affordable with IKA FLOW
Its secret: Unlike other commercially available flow chemistry equipment, you just purchase the necessary part of the flow chemistry apparatus
The portable IKA FLOW is an attachment that forms a flow chemistry reactor in combination with your IKA magnetic stirrer RCT digital
In addition, it has been designed to be used with any fume hood gas source such as compressed air or nitrogen
IKA FLOW’s scope of delivery includes in addition to the attachment, a glass bottle, a mixing chip, support screws, three on-and-off valves, a heating block, four disc reactors, and a labeled tubing set

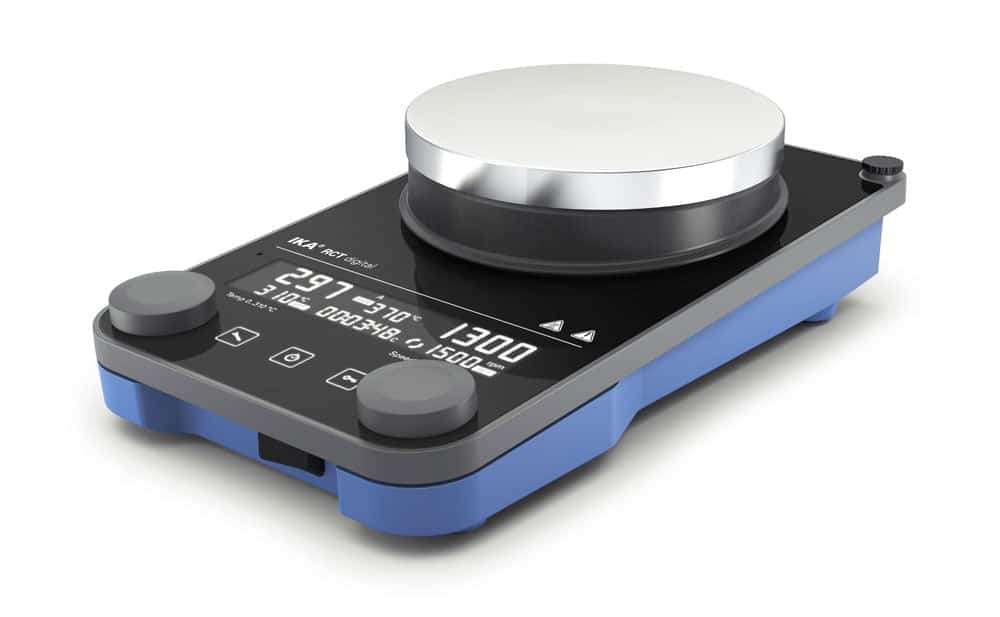

We absolutely recommend pairing your IKA FLOW with the RCT digital stirrer hotplate
| Données techniques |
| Standard | DIN EN 1595 |
| [ml] | 500 |
| Push-to-Connect // Raccords à vis | |
| [mm] | 6.35 |
| [mm] | 3.2 |
| [mm] | 1.6 |
| [mm] | 1.6 |
| [mm] | 0.8 |
| Acier iNonxydable 304, Nylon (PA) | |
| [mm] | 250 x 375 x 140 |
| [kg] | 2.7 |
| Aluminium | |
| [mm] | 175 x 25.5 |
| [kg] | 0.65 |
| Polypropylène (PP) | |
| [mm^3] | 4092 |
| [MPa ] | 1 |
| Pression du gaz provenant de la hotte | |
| [kPa ] | 137 |
| Pression du gaz dans la bouteille de solvant | |
| [°C] | 100 |
| [mm] | 0.125 |
| [mm] | 50 |
| [mm] | 0.125 |
| [mm] | 100 |
| [mm] | 0.18 |
| [mm] | 50 |
| [mm] | 0.25 |
| [mm] | 100 |
| Dimensions (L x H x P) [mm] | 250 x 400 x 350 |
| Plage de température du milieu admise [°C] | 5 - 40 |
Flow chemistry made easy and affordable with IKA FLOW
Its secret: Unlike other commercially available flow chemistry equipment, you just purchase the necessary part of the flow chemistry apparatus
The portable IKA FLOW is an attachment that forms a flow chemistry reactor in combination with your IKA magnetic stirrer RCT digital
In addition, it has been designed to be used with any fume hood gas source such as compressed air or nitrogen
IKA FLOW’s scope of delivery includes in addition to the attachment, a glass bottle, a mixing chip, support screws, three on-and-off valves, a heating block, four disc reactors, and a labeled tubing set
We absolutely recommend pairing your IKA FLOW with the RCT digital stirrer hotplate
