IKA Capteur de température sans fil ETS-D7
ETS‑D7 – More than just a temperature sensor: The ETS‑D7 redefines temperature measurement
As an intelligent, wireless temperature sensor, it combines precise measurement, maximum flexibility and true independence – perfectly tailored to the demands of modern laboratories
Thanks to wireless communication, the ETS‑D7 reliably measures the medium temperature and transmits the values wirelessly or, alternatively, via USB‑C to compatible IKA devices

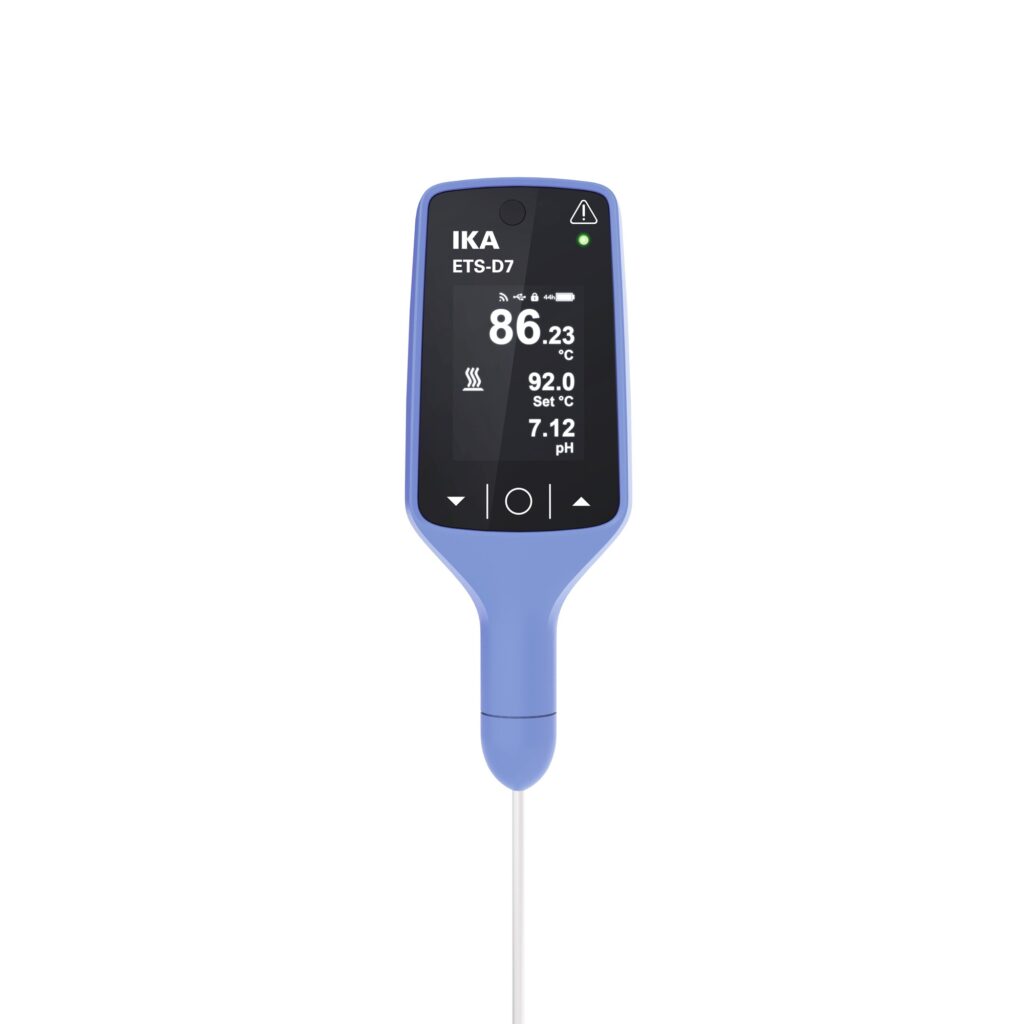

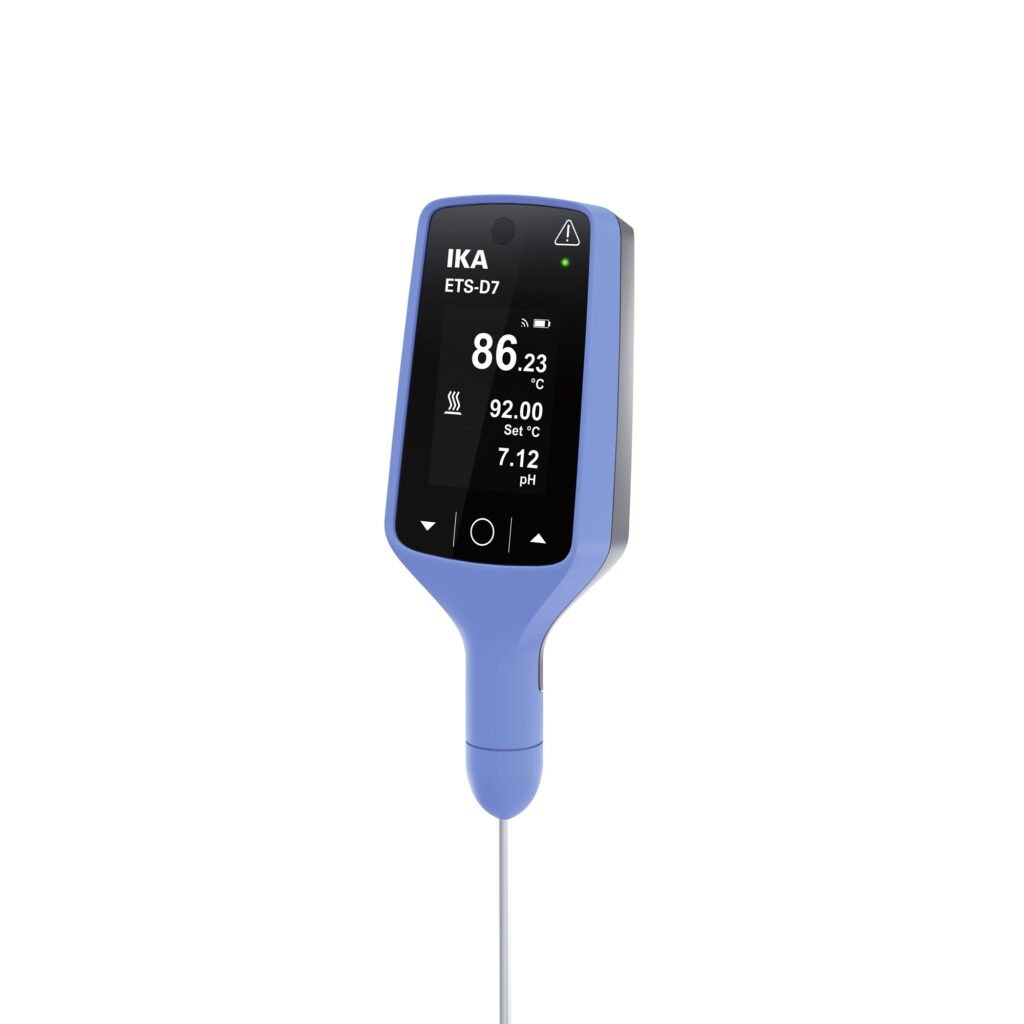

The integrated high‑resolution touch display shows temperature and pH values with a display resolution of two decimal places (0.01) – ensuring precise and reliable readability directly at the measuring point
But the ETS‑D7 offers even more: it is a fully functional stand‑alone measuring device for both temperature and pH
Via the integrated BNC interface, a pH electrode can be connected directly – without the need for an additional measuring instrument
This makes the ETS‑D7 a compact all‑in‑one solution for a wide range of laboratory applications
The intelligently controlled display automatically detects when a user wants to read a measured value and activates only when needed
This enables a battery life of up to 100 hours
Alternatively, the display can be permanently switched on – deliberately at the expense of battery life and ideal for applications where continuous visibility is required

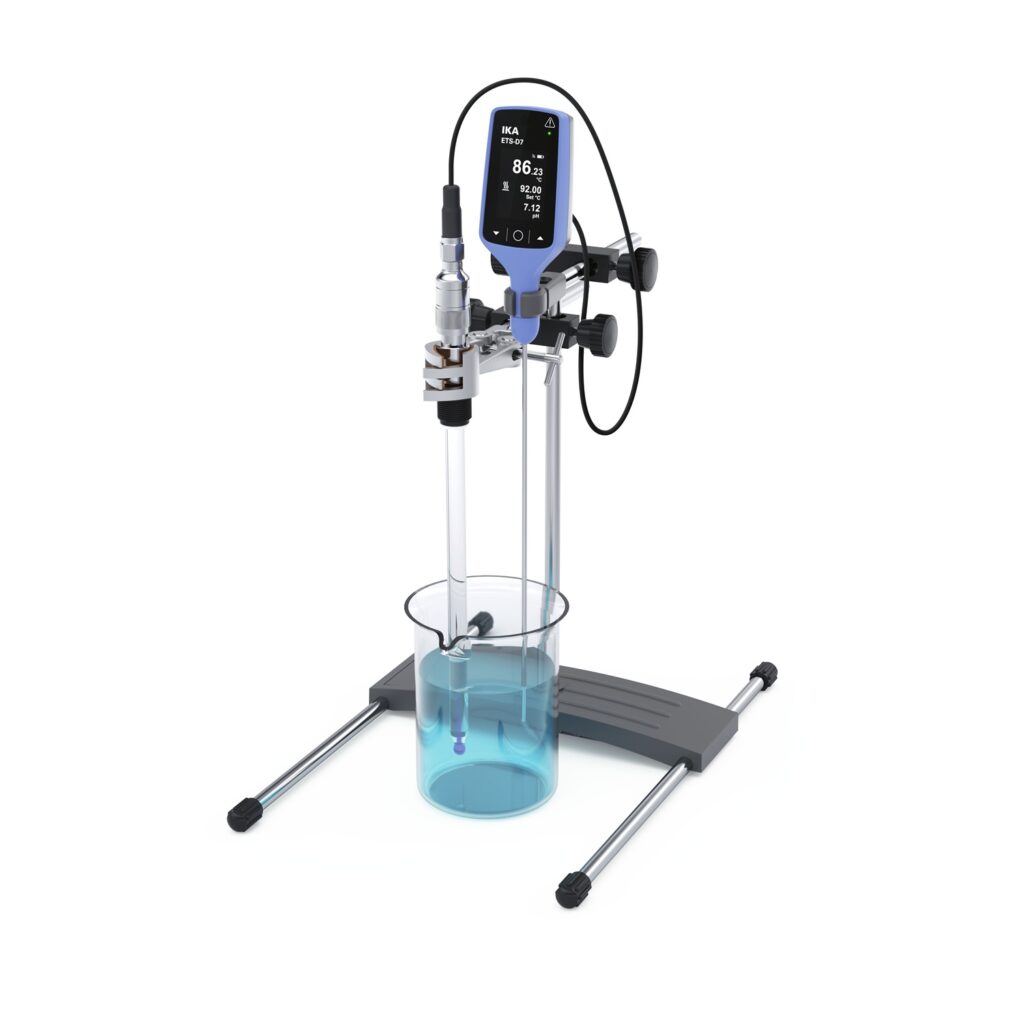

In combination with IKA magnetic stirrers (RCT and RET basic), EUROSTAR control, and the laboratory software LWS, the ETS‑D7 can be seamlessly integrated into existing laboratory environments
Thanks to bidirectional communication, set values can be synchronized and – depending on the device combination – even adjusted directly via the sensor
In addition, the ETS‑D7 can be used as a second, independent temperature sensor, further increasing process safety
Compatibility with LWS enables central acquisition, control, visualization and documentation of measurement data, supporting reproducible processes and efficient data management
With exchangeable temperature probes, IP54 protection class, intelligent power management and a well‑designed operating concept, the ETS‑D7 is consistently developed for everyday laboratory use
Compatible with devices from the new series: RET basic, Eurostar control, RCT basic (wired, or wireless with USB WD)
| Temperature measuring range min. (with H62 sensor) [°C] | -20 |
| Temperature measuring range max. (with H62 sensor) [°C] | 400 |
| Temperature measurement resolution [K] | 0.01 |
| Accuracy of temperature measurement [K] | ±0.05 + tolerance PT1000 (DIN IEC 751 Class A) |
| pH measurement [-] | yes / BNC socket female |
| pH measuring range min. [pH] | 0 |
| pH measuring range max. [pH] | 14 |
| Accuracy of pH measurement [pH] | ±0.1 |
| pH measurement resolution [pH] | 0.01 |
| Battery capacity [mAh] | 700 |
| Display [-] | TFT |
| Immersion depth min. [mm] | 20 |
| Touch function [-] | yes |
| Warning function acoustic [-] | yes |
| Rechargeable battery [-] | yes |
| Perm. duration of operation (battery) [-] | max. 50 h (display on) / 100 h (display off) |
| Battery charging time [-] | 50% at 60 Minutes; 75% at 90 Minutes |
| Battery charging current max. [mA] | 500 |
| Changeable temperature sensor [-] | H62.51 |
| Thermometer connector type (to main device) [-] | no |
| Brightness detection [-] | yes |
| Infrared detection [-] | yes |
| Status LED [-] | yes |
| Sensor type [-] | PT1000 (DIN IEC 751 Class A) |
| Communication distance (depend onbuilding) max. [m] | 15 |
| Width [mm] | 52 |
| Depth [mm] | 385 |
| Height [mm] | 40 |
| Weight [kg] | 0.125 |
| Permissible ambient temperature min. [°C] | 5 |
| Permissible ambient temperature max. [°C] | 40 |
| Permissible relative humidity [%] | 80 |
| Protection class according to DIN EN 60529 [-] | IP 54 |
| USB interface [-] | USB-C |
| WPAN interface [-] | yes |
| DC Voltage [V=] | 5 |
ETS‑D7 – More than just a temperature sensor: The ETS‑D7 redefines temperature measurement
As an intelligent, wireless temperature sensor, it combines precise measurement, maximum flexibility and true independence – perfectly tailored to the demands of modern laboratories
Thanks to wireless communication, the ETS‑D7 reliably measures the medium temperature and transmits the values wirelessly or, alternatively, via USB‑C to compatible IKA devices
The integrated high‑resolution touch display shows temperature and pH values with a display resolution of two decimal places (0.01) – ensuring precise and reliable readability directly at the measuring point
But the ETS‑D7 offers even more: it is a fully functional stand‑alone measuring device for both temperature and pH
Via the integrated BNC interface, a pH electrode can be connected directly – without the need for an additional measuring instrument
This makes the ETS‑D7 a compact all‑in‑one solution for a wide range of laboratory applications
The intelligently controlled display automatically detects when a user wants to read a measured value and activates only when needed
This enables a battery life of up to 100 hours
Alternatively, the display can be permanently switched on – deliberately at the expense of battery life and ideal for applications where continuous visibility is required
In combination with IKA magnetic stirrers (RCT and RET basic), EUROSTAR control, and the laboratory software LWS, the ETS‑D7 can be seamlessly integrated into existing laboratory environments
Thanks to bidirectional communication, set values can be synchronized and – depending on the device combination – even adjusted directly via the sensor
In addition, the ETS‑D7 can be used as a second, independent temperature sensor, further increasing process safety
Compatibility with LWS enables central acquisition, control, visualization and documentation of measurement data, supporting reproducible processes and efficient data management
With exchangeable temperature probes, IP54 protection class, intelligent power management and a well‑designed operating concept, the ETS‑D7 is consistently developed for everyday laboratory use
Compatible with devices from the new series: RET basic, Eurostar control, RCT basic (wired, or wireless with USB WD)
