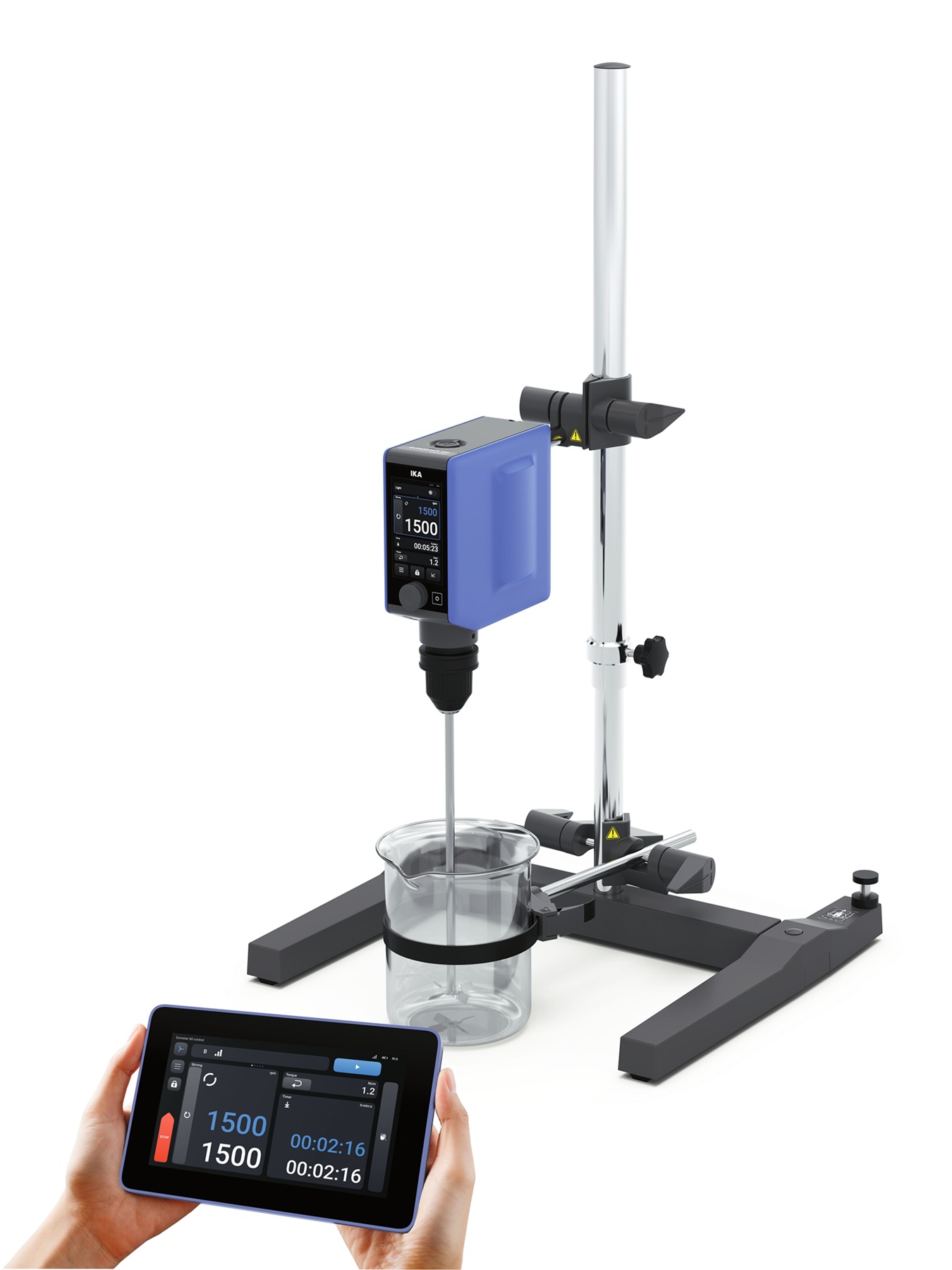

IKA Agitateur à hélices EUROSTAR 100c Hub Solution
€4.998,00
Ajouté à votre panier
IKA Agitateur à hélices EUROSTAR 60c Hub Solution
€4.498,00
Ajouté à votre panier
IKA Agitateur à hélices EUROSTAR 60c H-stand Solution
€3.898,00
Ajouté à votre panier

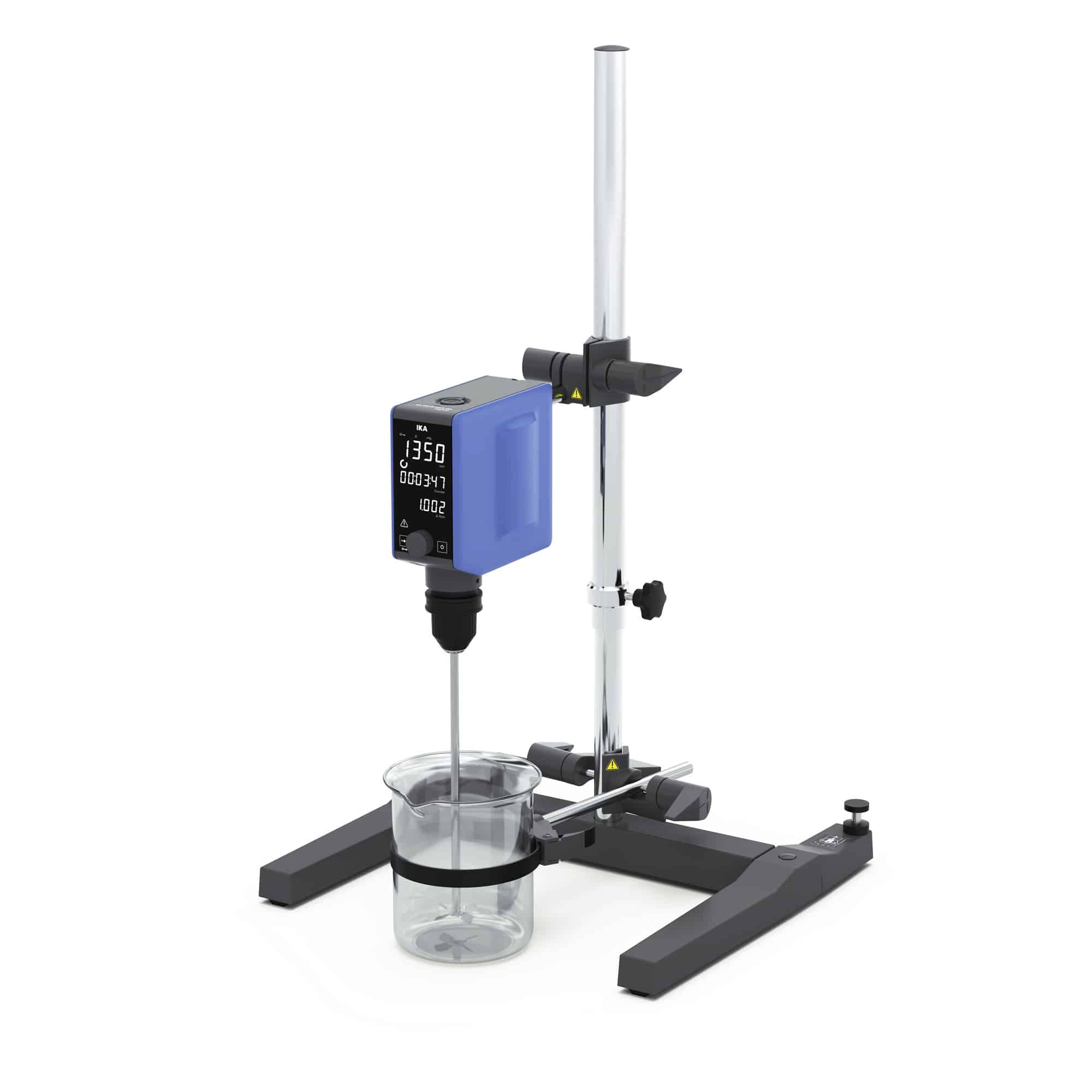

IKA Agitateur à hélices EUROSTAR 60d H-stand Solution
€3.298,00
Ajouté à votre panier
IKA Agitateur à hélices EUROSTAR 40d plate stand Solution
€1.898,00
Ajouté à votre panier

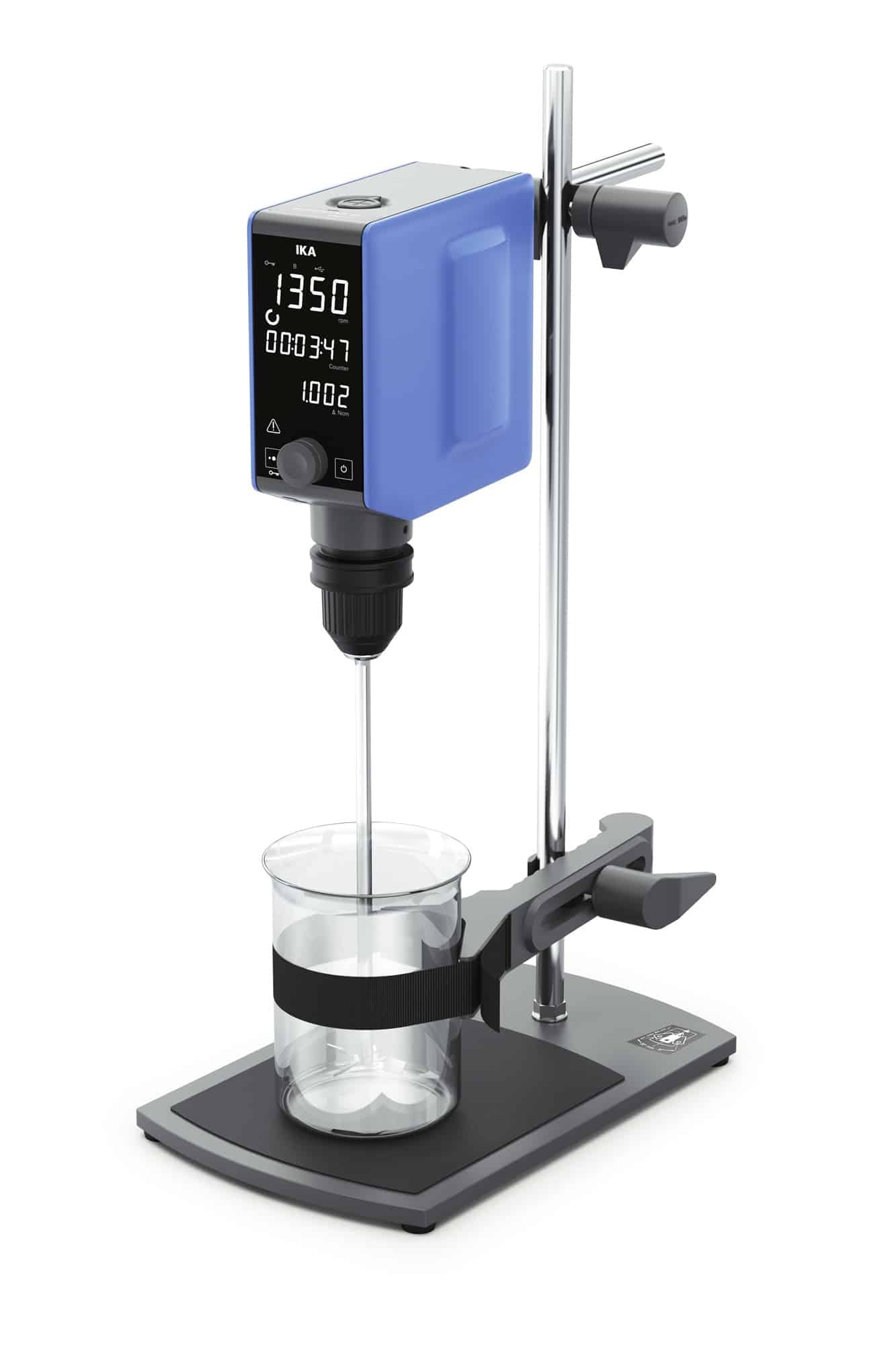

IKA Agitateur à hélices EUROSTAR 20d plate stand Solution
€1.648,00
Ajouté à votre panier

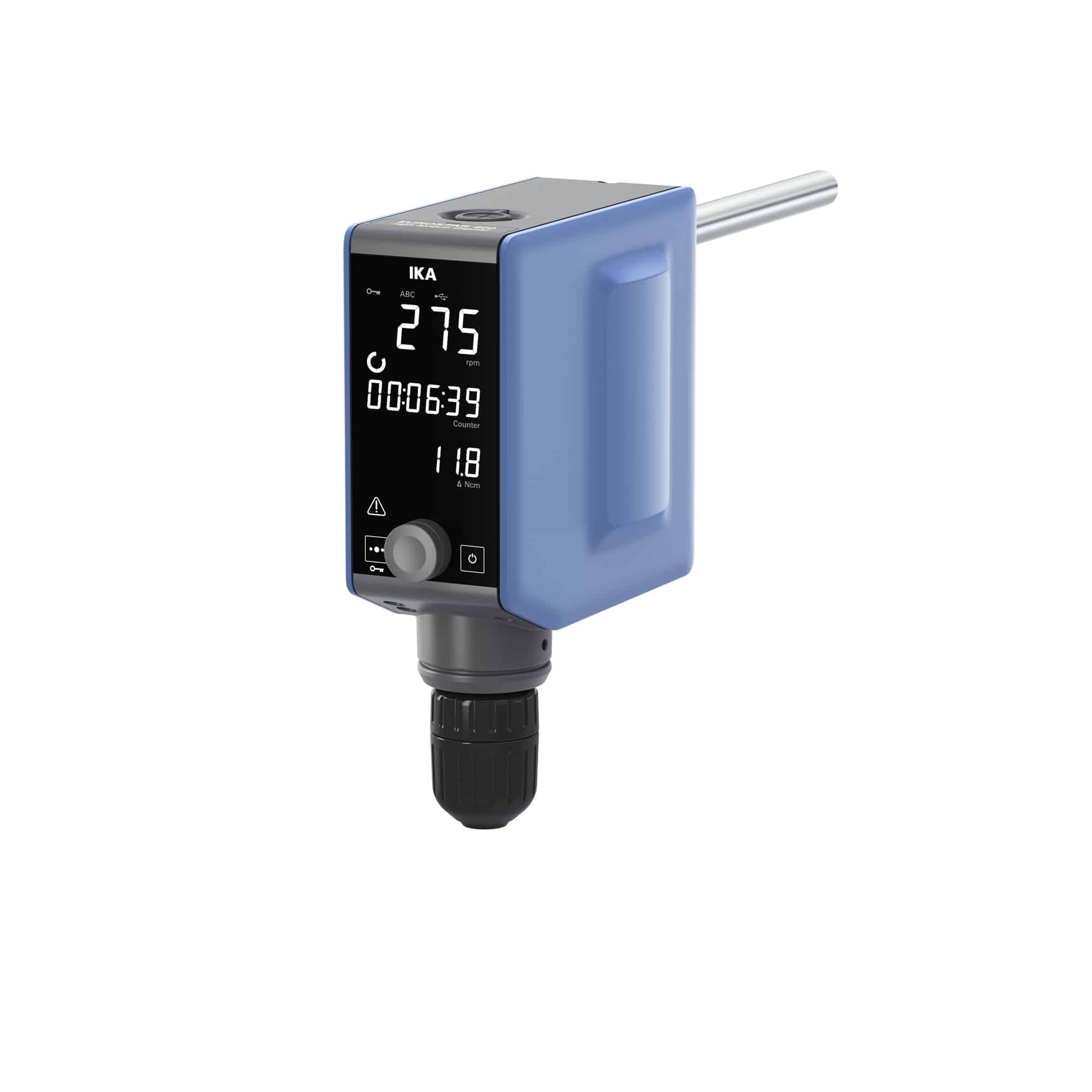

IKA Agitateur à hélices EUROSTAR 400 high torque digital
€3.998,00
Ajouté à votre panier

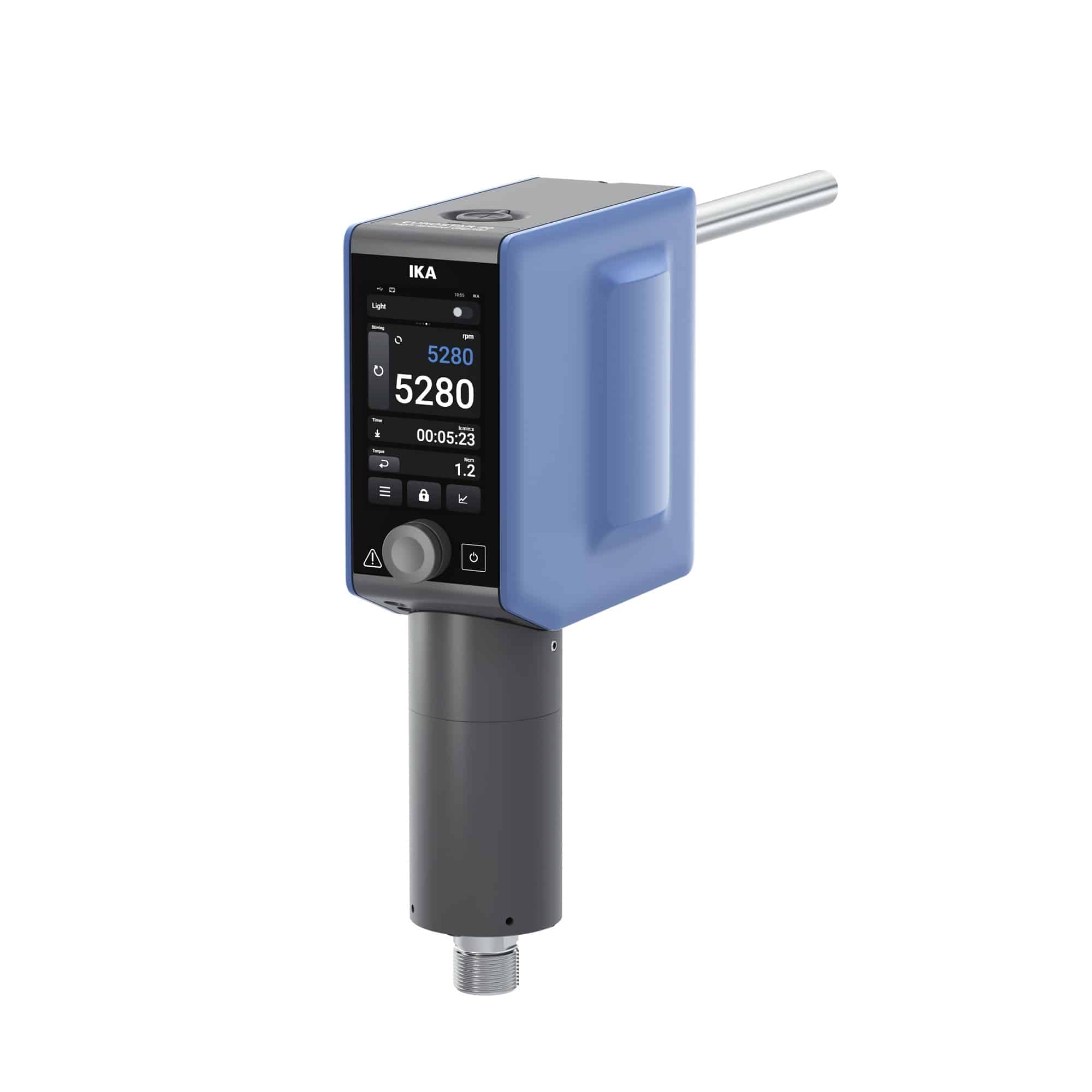

IKA Agitateur à hélices EUROSTAR 20 high speed control
€3.498,00
Ajouté à votre panier
IKA Agitateur à hélices EUROSTAR 100 control
€2.998,00
Ajouté à votre panier

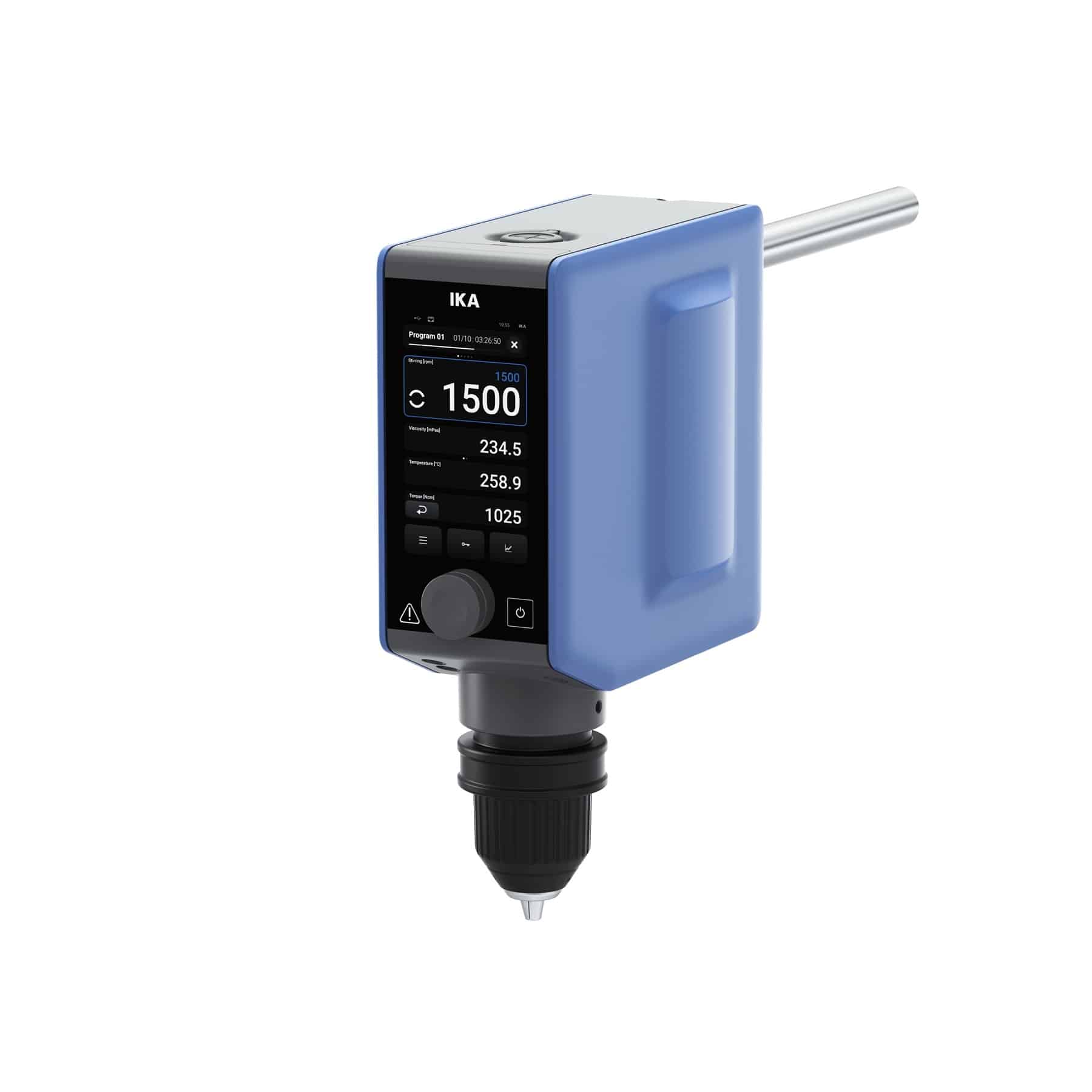

IKA Agitateur à hélices EUROSTAR 60 control
€2.398,00
Ajouté à votre panier
IKA Agitateur à hélices EUROSTAR 100 digital
€2.298,00
Ajouté à votre panier

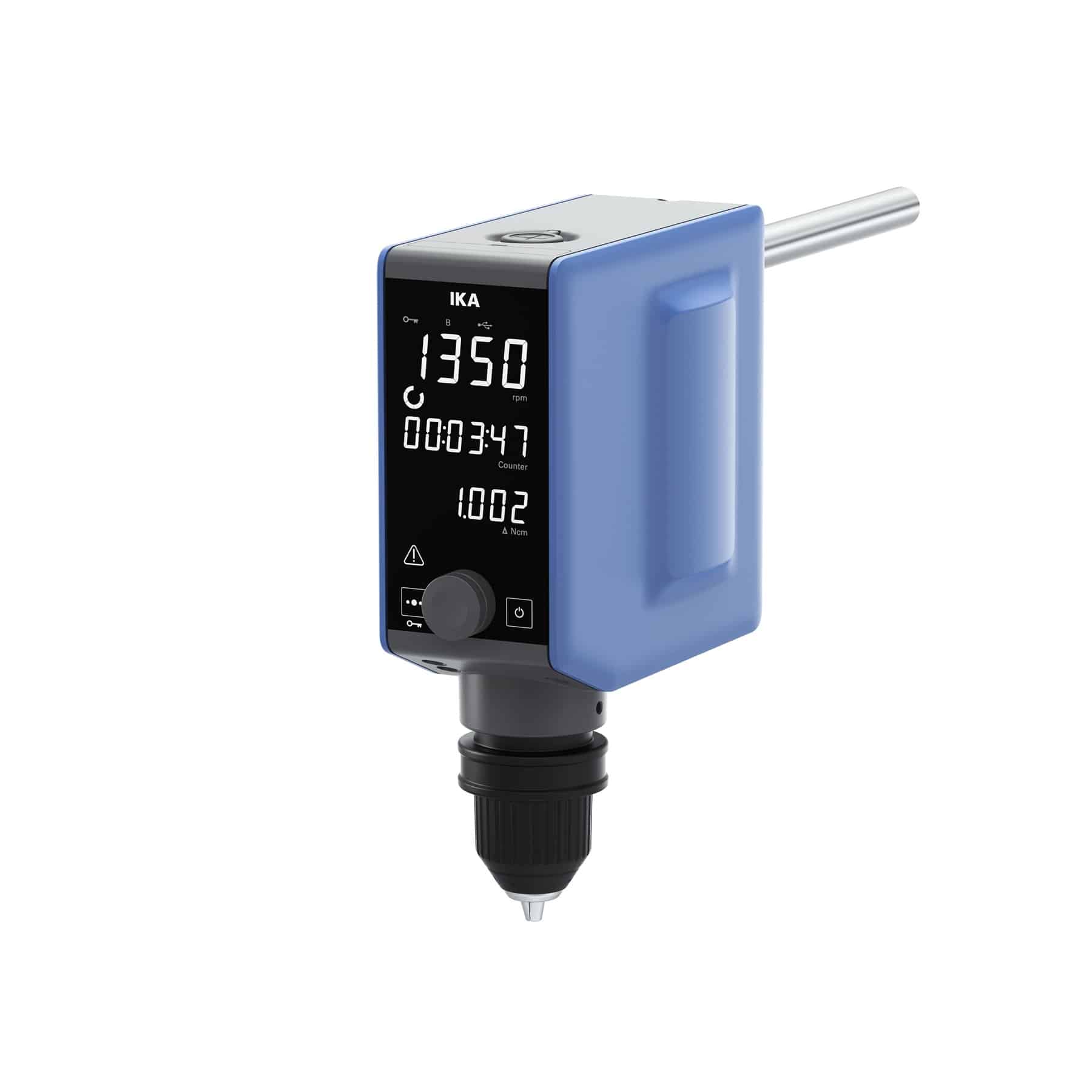

IKA Agitateur à hélices EUROSTAR 60 digital
€1.648,00
Ajouté à votre panier
IKA Agitateur à hélices EUROSTAR 40 digital
€1.298,00
Ajouté à votre panier
IKA Agitateur à hélices EUROSTAR 20 digital
€998,00
Ajouté à votre panier
IKA EUROSTAR 200 control Agitateur à hélices
€4.062,00
Ajouté à votre panier
IKA EUROSTAR 200 digital Agitateur à hélices
€3.150,00
Ajouté à votre panier
IKA EUROSTAR 100 control Agitateur à hélices
€3.413,00
Ajouté à votre panier
IKA EUROSTAR 400 digital Agitateur à hélices
€4.392,00
Ajouté à votre panier
IKA EUROSTAR 400 control Agitateur à hélices
€4.906,00
Ajouté à votre panier
IKA EUROSTAR 100 P4 control Agitateur à hélices
€4.775,00
Ajouté à votre panier
IKA EUROSTAR 200 P4 control Agitateur à hélices
€5.423,00
Ajouté à votre panier
IKA EUROSTAR 100 digital Agitateur à hélices
€2.643,00
Ajouté à votre panier
IKA EUROSTAR 60 control Agitateur à hélices
€2.700,00
Ajouté à votre panier
IKA EUROSTAR 40 digital Agitateur à hélices
€1.470,00
Ajouté à votre panier
IKA EUROSTAR 60 digital Agitateur à hélices
€1.851,00
Ajouté à votre panier
IKA EUROSTAR 20 high speed control Agitateur à hélices
€3.479,00
Ajouté à votre panier
IKA EUROSTAR 20 high speed digital Agitateur à hélices
€2.070,40
Ajouté à votre panier
IKA EUROSTAR 20 digital Agitateur à hélices
€1.271,00

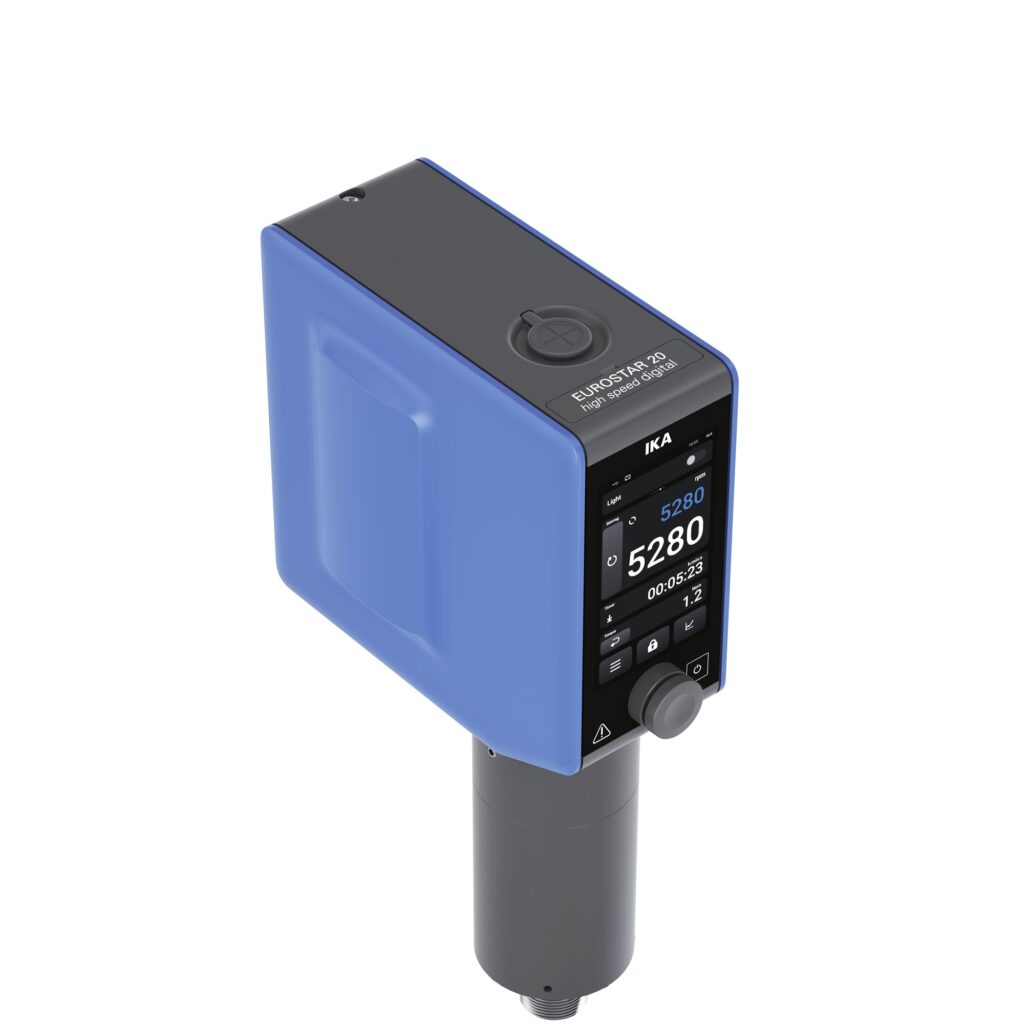

IKA Agitateur à hélices EUROSTAR 20 high speed digital
The new generation of EUROSTAR overhead stirrers combines modern design, user-friendliness and reliable performance
With up to 23% less space required compared to the previous models they fit perfectly into any laboratory
EUROSTAR 20 high speed digital is a high speed laboratory stirrer and the right solution for simple mixing tasks up to 20 liters (H2O) and viscosities up to 50 000 mPas
Its maximum torque of 40 Ncm at lower speeds from 150 to 600 rpm and linear adjustment to 20 Ncm at maximum speed of 600 to 6000 rpm guarantee reliable and powerful performance
The innovative torque trend measurement shows the viscosity trend of the sample (+/- 6 Ncm accuracy)
The torque trend is shown directly on the display and provides important feedback on the mixing process
Thanks to automatic speed adjustment in the range from 150 to 6000 rpm, constant results are ensured, even if the viscosity of the medium changes
Included with delivery is the R 6000 precision stirring shaft with 280 mm length and a maximum immersion depth of 220 mm
User-friendly: Large LCD display shows all parameters at a glance. The quick-release chuck allows the mixing tools to be changed with one hand, without additional tools
Lock key: Prevents accidental changes to settings
Safety circuits: Automatic shut-off in the event of blocking or overload
Protection class IP 54: Resistant to splash water and steam for reliable use in demanding environments
Brushless motor: Durable, clean and quiet in operation
Timer and counter function for timed experiments
USB and RS232 interfaces
Compatible with labworldsoft® laboratory software for integration into digital workflows and documentation of processes
| Stirring quantity max. per stirring position (H2O) [l] | 20 |
| Motor rating input [W] | 176 |
| Motor rating output [W] | 125 |
| Motor principle [-] | Brushless DC |
| Speed display [-] | LCD |
| Speed min. [rpm] | 0/150 |
| Speed max. [rpm] | 6000 |
| Reversible direction of rotation [-] | no |
| Intermittent operation [-] | no |
| Viscosity max. [mPas] | 10000 |
| Output max. at stirring shaft [W] | 125 |
| Permissible ON time [%] | 100 |
| Torque max. at stirring shaft [Ncm] | 40 |
| Torque max. at stirring shaft at 150-600 rpm [Ncm] | 40 |
| Torque max. at stirring shaft at 600-6000 rpm [Ncm] | 20 |
| Speed adjustment [-] | stepless |
| Setting accuracy speed [rpm] | ±1 |
| Deviation of speed measurement n > 300rpm [%] | ±1 |
| Deviation of speed measurement n < 300rpm [rpm] | ±3 |
| Stirring element fastening [-] | chuck |
| Temperature display [-] | no |
| Chuck range min. diameter [mm] | 0.5 |
| Chuck range max. diameter [mm] | 10 |
| Hollow shaft, inner diameter [mm] | 11 |
| Hollow shaft (push-through - when stopped) [-] | yes |
| Fastening on stand [-] | extension arm |
| Extension arm diameter [mm] | 16 |
| Extension arm length [mm] | 220 |
| Torque display [-] | yes |
| Speed control [-] | electronic |
| Nominal torque [Nm] | 0.2 |
| Torque measurement [-] | trend |
| Deviation of torque measurement I [Ncm] | ±6 |
| Timer [-] | yes |
| Timer display [-] | LCD |
| Time setting min. [min] | 1 |
| Time setting max. [min] | 6000 |
| Housing material [-] | alu-cast coating / thermoplastic polymer |
| Clean room qualified [-] | no |
| Explosion proofed [-] | no |
| Width [mm] | 89 |
| Depth [mm] | 191 |
| Height [mm] | 306 |
| Weight [kg] | 5.2 |
| Permissible ambient temperature min. [°C] | 5 |
| Permissible ambient temperature max. [°C] | 40 |
| Permissible relative humidity [%] | 80 |
| Protection class according to DIN EN 60529 [-] | IP 54 |
| RS 232 interface [-] | yes |
| USB interface [-] | USB-C |
| WPAN interface [-] | no |
| WiFi Interface [-] | no |
| Ethernet interface [-] | no |
| Analog output [-] | no |
| Voltage [V] | 100 - 240 |
| Frequency [Hz] | 50/60 |
| Power input [W] | 176 |
The new generation of EUROSTAR overhead stirrers combines modern design, user-friendliness and reliable performance
With up to 23% less space required compared to the previous models they fit perfectly into any laboratory
EUROSTAR 20 high speed digital is a high speed laboratory stirrer and the right solution for simple mixing tasks up to 20 liters (H2O) and viscosities up to 50 000 mPas
Its maximum torque of 40 Ncm at lower speeds from 150 to 600 rpm and linear adjustment to 20 Ncm at maximum speed of 600 to 6000 rpm guarantee reliable and powerful performance
The innovative torque trend measurement shows the viscosity trend of the sample (+/- 6 Ncm accuracy)
The torque trend is shown directly on the display and provides important feedback on the mixing process
Thanks to automatic speed adjustment in the range from 150 to 6000 rpm, constant results are ensured, even if the viscosity of the medium changes
Included with delivery is the R 6000 precision stirring shaft with 280 mm length and a maximum immersion depth of 220 mm
User-friendly: Large LCD display shows all parameters at a glance. The quick-release chuck allows the mixing tools to be changed with one hand, without additional tools
Lock key: Prevents accidental changes to settings
Safety circuits: Automatic shut-off in the event of blocking or overload
Protection class IP 54: Resistant to splash water and steam for reliable use in demanding environments
Brushless motor: Durable, clean and quiet in operation
Timer and counter function for timed experiments
USB and RS232 interfaces
Compatible with labworldsoft® laboratory software for integration into digital workflows and documentation of processes
