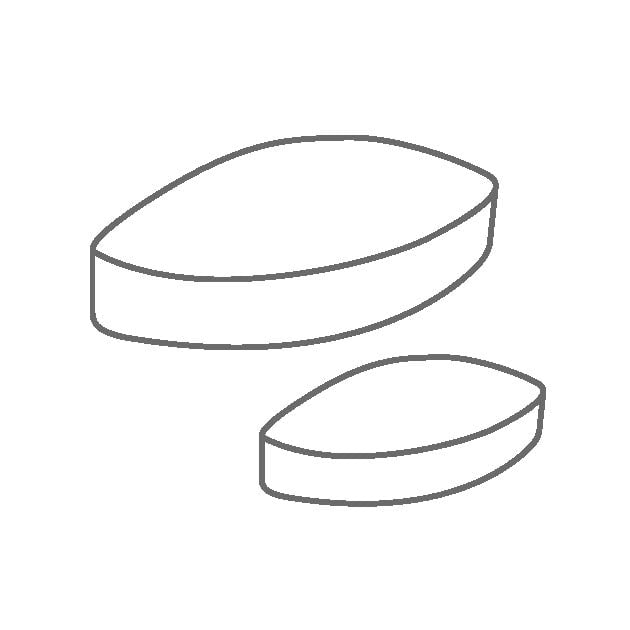

IKA FLON 15 power ellipse (5 pcs.)
€38,00
Toegevoegd aan je winkelmand!
IKA STICKMAX II Adhesive mat
€44,50
Toegevoegd aan je winkelmand!
IKA MS 3.5 PCR plate attachment
€66,50
Toegevoegd aan je winkelmand!
IKA FLON 10 power ellipse (5 pcs.)
€26,00
Toegevoegd aan je winkelmand!

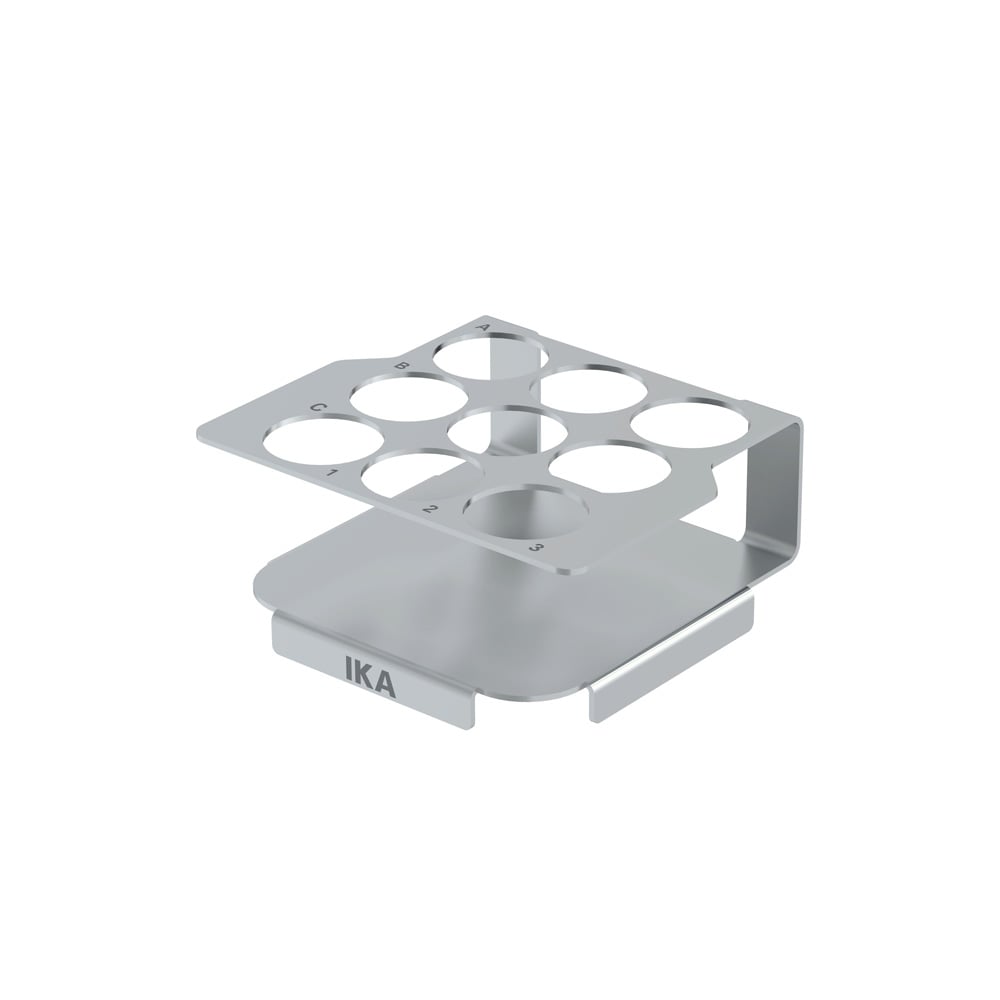

IKA TW.IX.23 Vessel holder
€61,00
Toegevoegd aan je winkelmand!

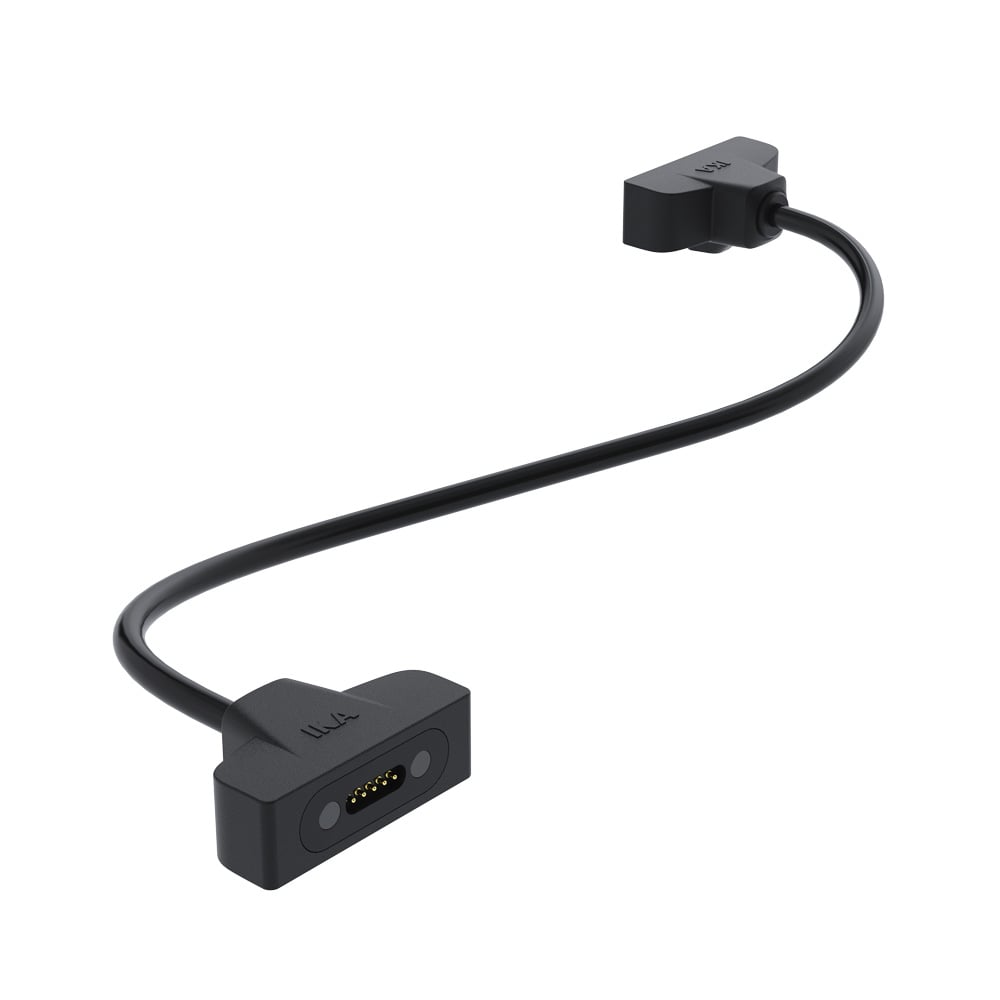

IKA TW.CABLE Connection cable
€39,00
Toegevoegd aan je winkelmand!
IKA FLON 25 power ellipse (5 pcs.)
€50,00
Toegevoegd aan je winkelmand!
IKA TW.PWR.0
€76,50
Toegevoegd aan je winkelmand!

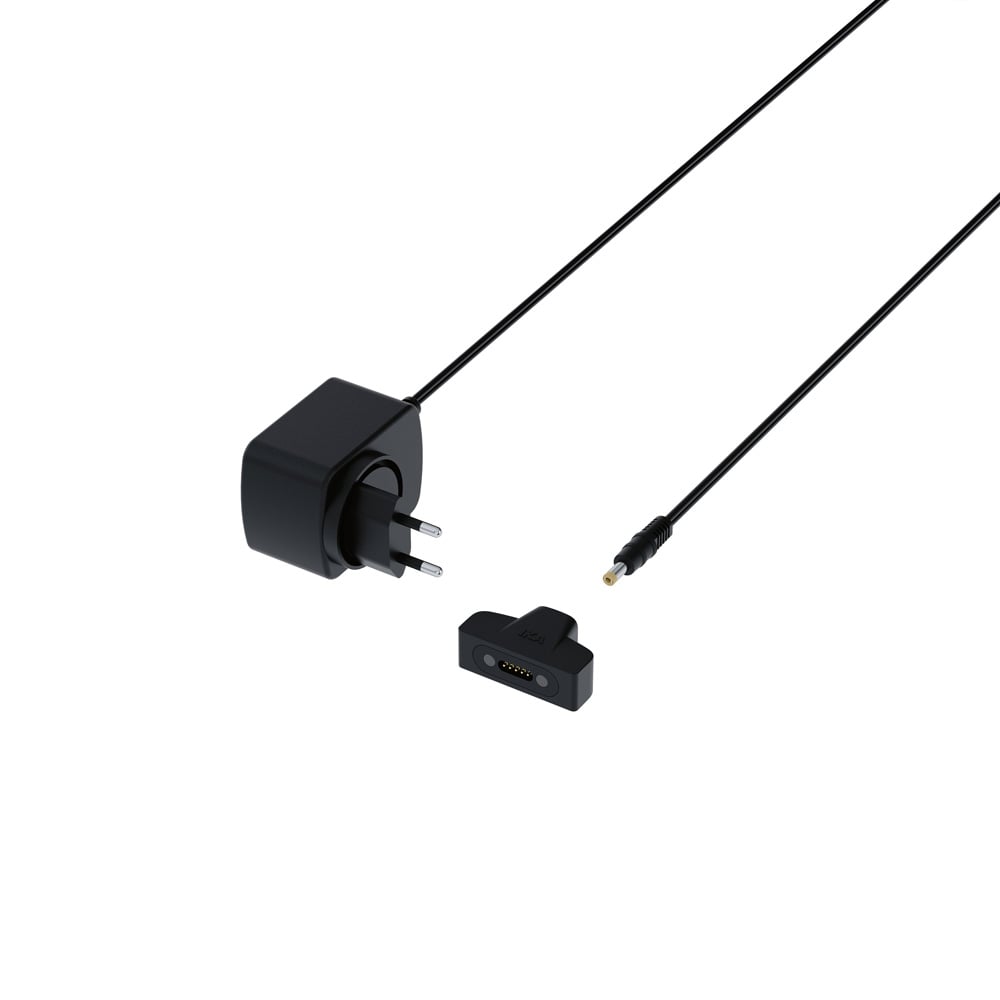

IKA TW.PWR.1 Power supply
€61,00
Toegevoegd aan je winkelmand!

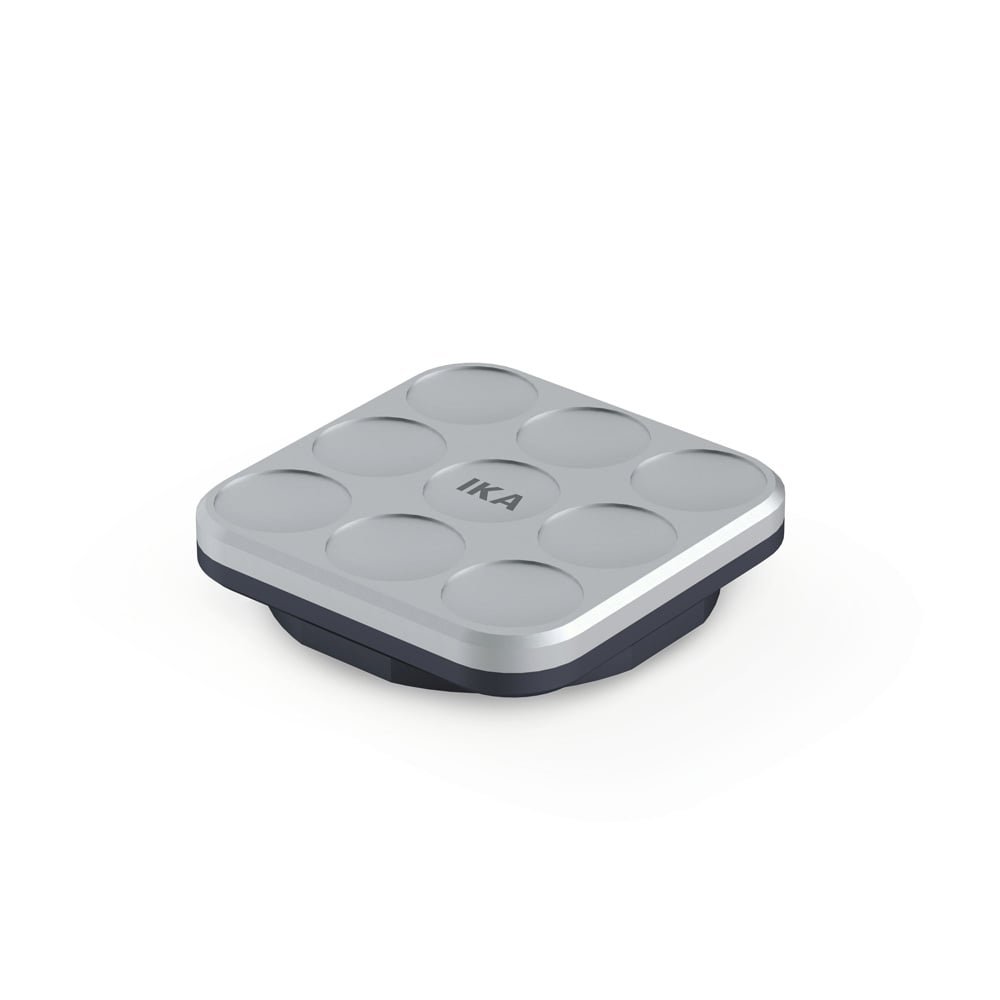

IKA TW.IX Stirring attachment
€308,00
Toegevoegd aan je winkelmand!
IKA MS 3.3 Universal attachment
€21,50
Toegevoegd aan je winkelmand!

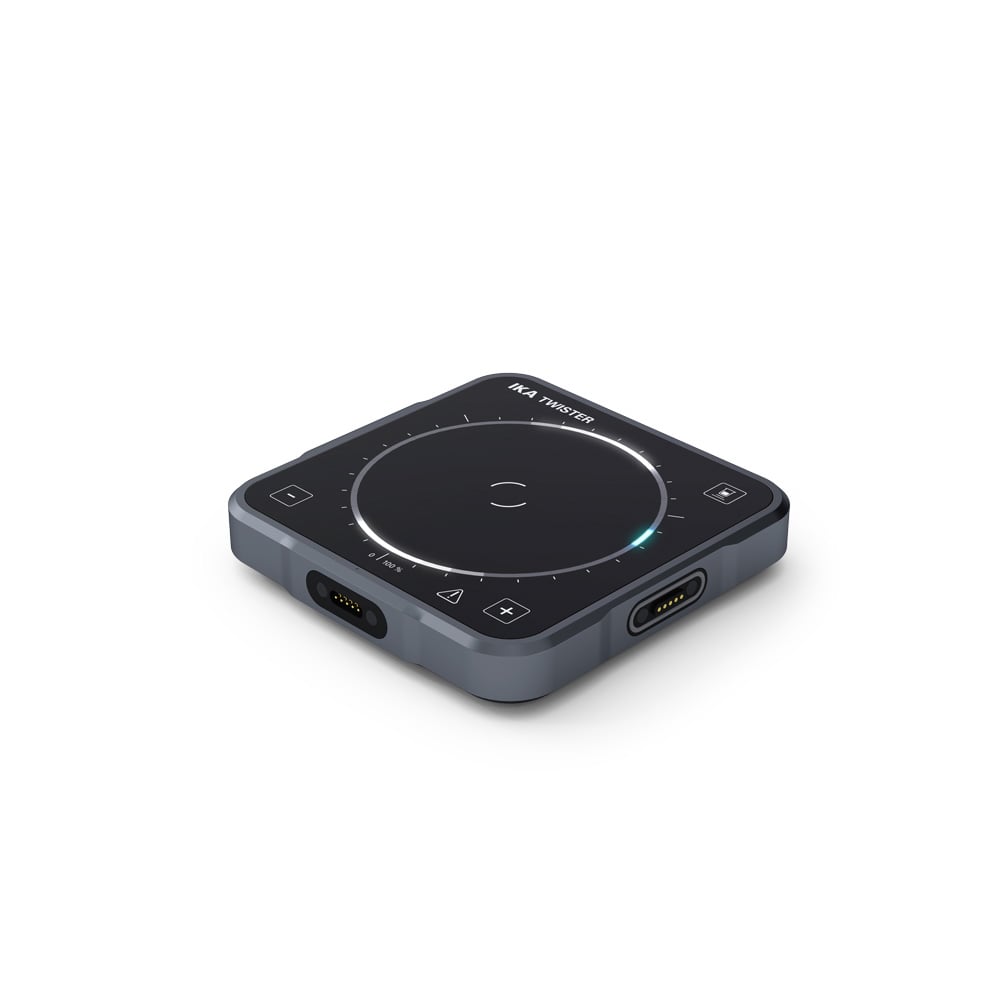

IKA TWISTER Add-on unit Magnetische roerder
€396,00
Toegevoegd aan je winkelmand!
IKA TW.IX.ANTISLIP
€12,40
Toegevoegd aan je winkelmand!
IKA MS 1.30
€64,00
Toegevoegd aan je winkelmand!
IKA TW.IX.28 Vessel holder
€61,00
Toegevoegd aan je winkelmand!
IKA TW.PWR.2
€132,00
Toegevoegd aan je winkelmand!
IKA MS 3.4 Microtiter attachment
€66,50
IKA TWISTER SET 2 Magnetische roerder

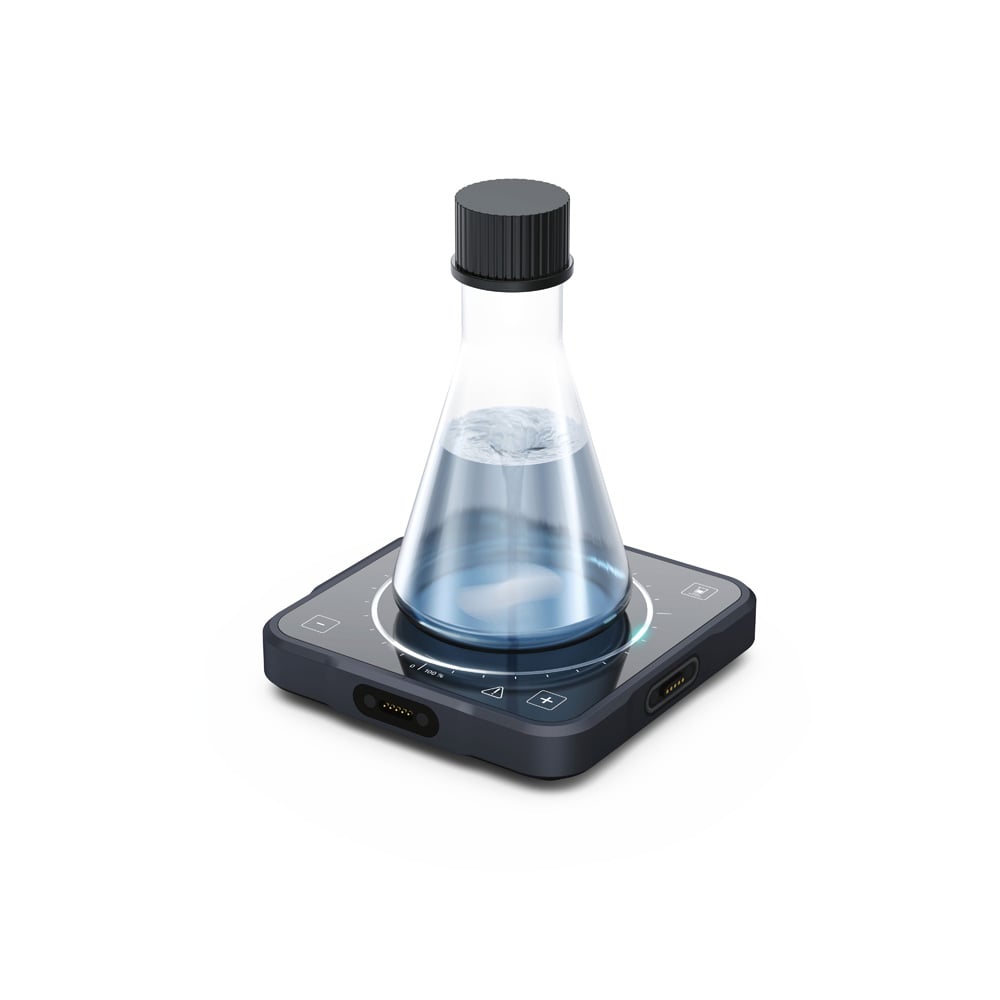

TWISTER is a universal and compact mixing device with magnetic drive
TWISTER SET 2 is multi-position magnetic stirrer with two drive units
In the default version, TWISTER is a powerful single-position magnetic stirrer for mixing up to 5 liters at a maximum speed of 3000 rpm and a viscosity of up to 500 mPas
By connecting additional TWISTER stirring units (available as accessories, ID no

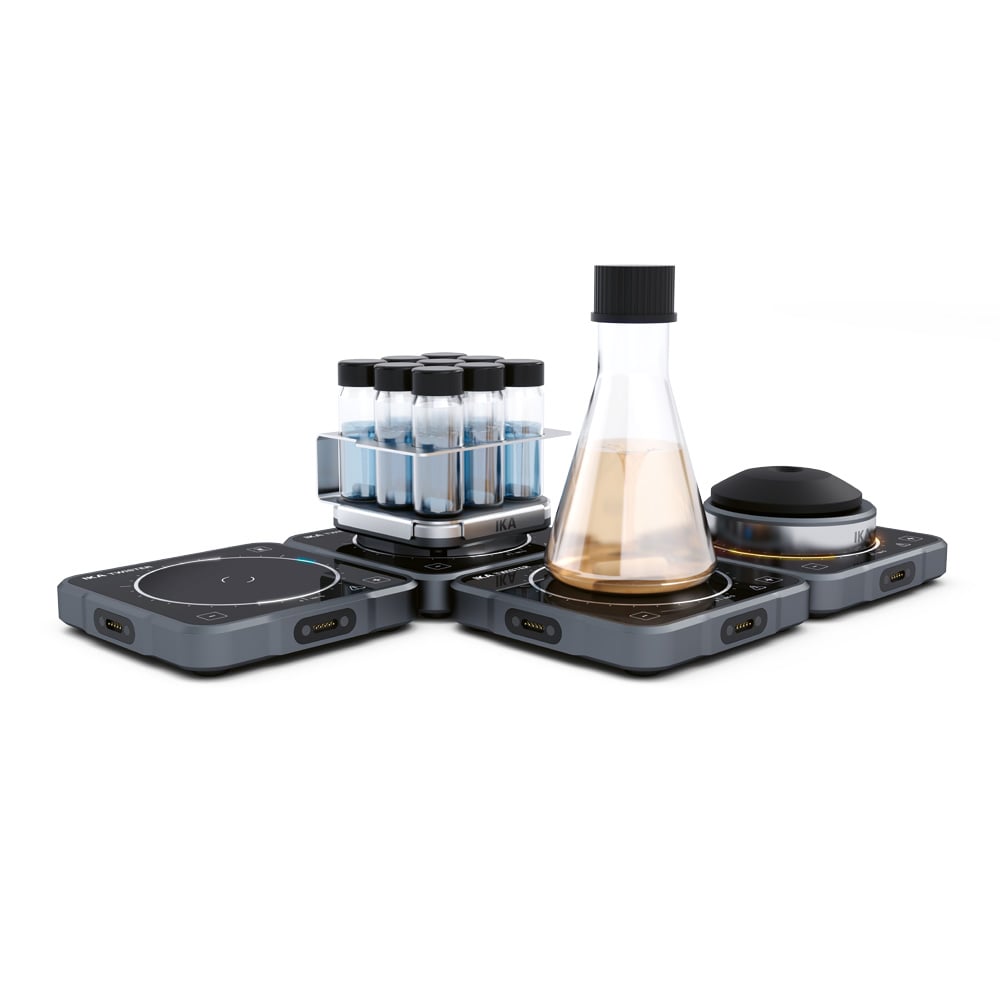

0020112621), TWISTER can be expanded to a multi-position magnetic stirrer with up to 30 stirring positions.* The stirring positions can be controlled either separately or simultaneously (leader-follower principle)
Versatile accessories

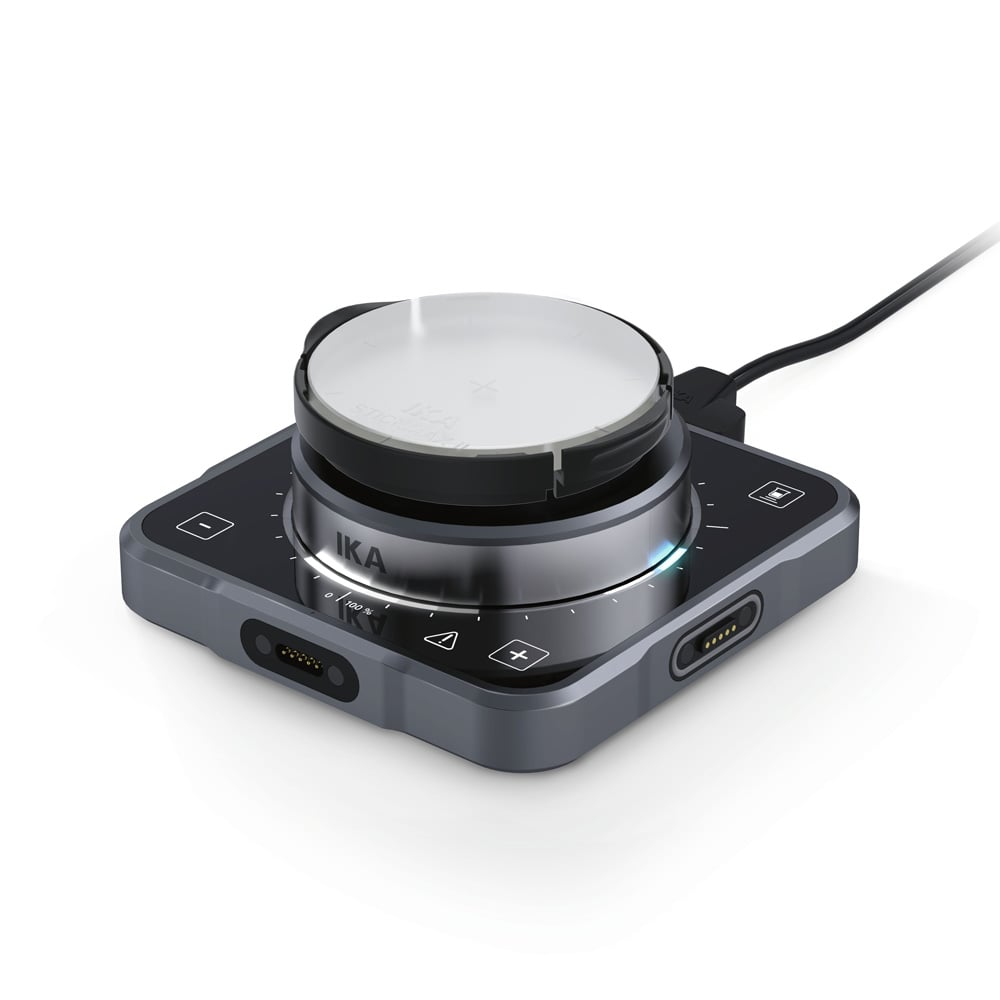

With the multi-position stirring attachment TW.IX, the drive is transformed into a magnetic stirrer with 9 stirring positions for efficient mixing of sample vessels with small volumes (8
60 ml)
The TW.VX shaker attachment transforms the universal magnetic drive into a vortex or orbital shaker
Innovative operating concept
TWISTER enables a new way of interaction between user and laboratory instrument
Via the intuitive and chemically resistant 360° LED glass display, all information is intuitively conveyed without any alpha-numeric display
During operation, either the speed or the power required for stirring can be displayed
For example, viscosity changes can be observed and displayed as a percentage
Mixing can be started by pressing a button as well as (thanks to integrated beaker recognition) by placing or touching the beaker
The reverse function changes the direction of rotation at definable time intervals
This leads to a significant improvement of the mixing result, especially with samples that are difficult to mix
Robust and safe
The high protection class IP 66 allows operation under harsh conditions
TWISTER can thus be cleaned under the tap, for example, or operated in an incubator at temperatures up to 40°C
The compact and innovative design has already been awarded the reddot Award 2022
It is particularly suitable for use in laboratories with limited space
* Depending on the number of devices, a different power supply may have to be used
The included power supply is designed to power up to two devices
| Number of stirring positions | 2 |
| Stirring position distance [mm] | 135 |
| Stirring quantity min. per stirring position (H2O) [l] | 0.005 |
| Stirring quantity max. per stirring position (H2O) [l] | 5 |
| Maximun load [kg] | 7.5 |
| Motor rating output [W] | 5 |
| Direction of rotation | right / left |
| Speed display set-value | LED |
| Speed display actual-value | LED |
| Speed adjustment | Touch key |
| Speed range [rpm] | 100 - 3000 |
| Setting accuracy speed [rpm] | 100 |
| Stirring bar length [mm] | 10 - 30 |
| Self-heating of the set-up plate by max. stirring (RT | 22°C/duration:1h) [K]: +6 |
| Set-up plate material | glass |
| Set-up plate dimensions [mm] | 124 x 124 |
| Automatic reverse rotation | yes |
| Intermittent mode | 6sec - 30min |
| Viscosity trend measurement | yes |
| Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C) [%] | ±2 |
| Modular expandable stirring system (2-30 units) | yes |
| Leader- follower operation (minimum 2 units required, leader unit controls synchronously follower unit) | yes |
| Vessel detection (optional activated/deactivated) | yes |
| Motor acceleration rise time adjustment (Function available with additional accessories) | no |
| Definition of up to 6 stirring groups (Function available with additional accessories) | no |
| Dimensions (W x H x D) [mm] | 135 x 24 x 135 |
| Weight [kg] | 0.6 |
| Permissible ambient temperature [°C] | 5 - 40 |
| Permissible relative humidity [%] | 80 |
| Protection class according to DIN EN 60529 | IP 66 |

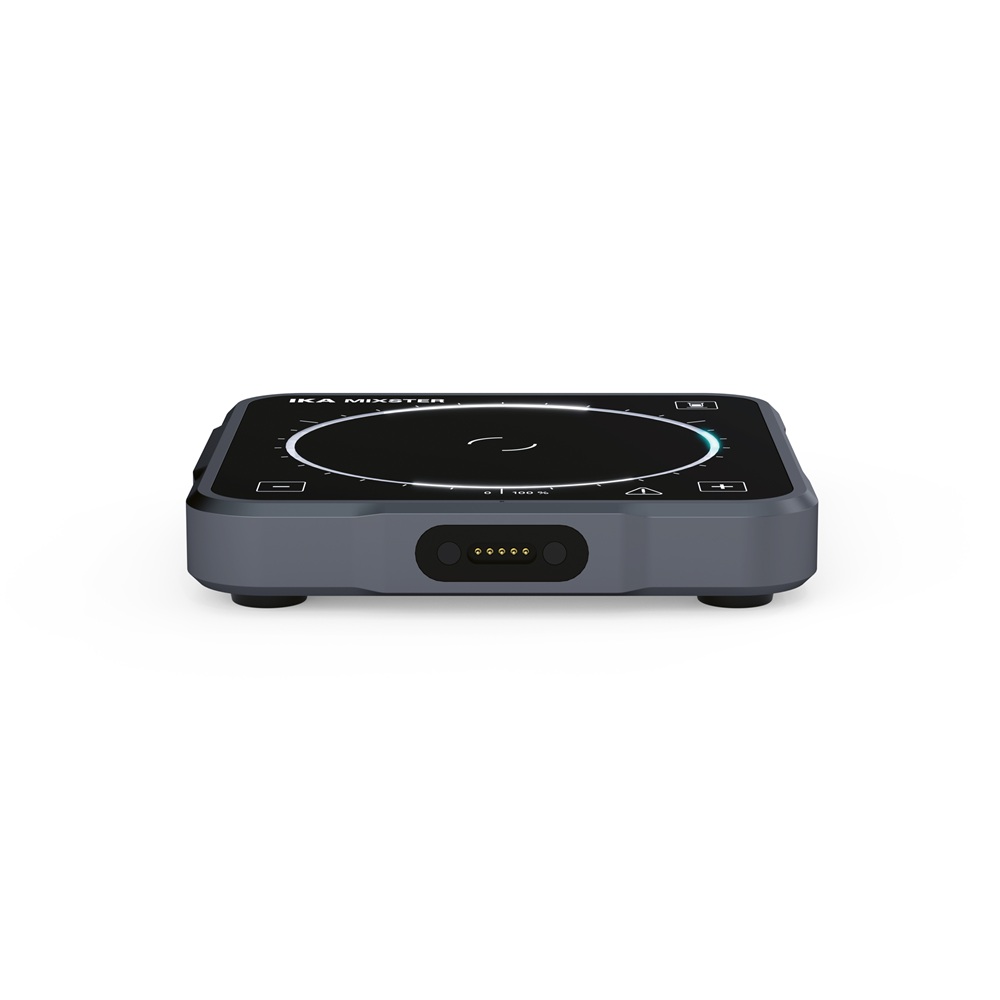

| USB interface | optional |
| Voltage [V] | 100 - 240 |
| Frequency [Hz] | 50/60 |
| Power input [W] | 10 |
| Power input standby [W] | 2 |
| DC Voltage [V=] | 24 |
| Current consumption [mA] | 400 |
TWISTER is a universal and compact mixing device with magnetic drive
TWISTER SET 2 is multi-position magnetic stirrer with two drive units
In the default version, TWISTER is a powerful single-position magnetic stirrer for mixing up to 5 liters at a maximum speed of 3000 rpm and a viscosity of up to 500 mPas
By connecting additional TWISTER stirring units (available as accessories, ID no
0020112621), TWISTER can be expanded to a multi-position magnetic stirrer with up to 30 stirring positions.* The stirring positions can be controlled either separately or simultaneously (leader-follower principle)
Versatile accessories
With the multi-position stirring attachment TW.IX, the drive is transformed into a magnetic stirrer with 9 stirring positions for efficient mixing of sample vessels with small volumes (8
60 ml)
The TW.VX shaker attachment transforms the universal magnetic drive into a vortex or orbital shaker
Innovative operating concept
TWISTER enables a new way of interaction between user and laboratory instrument
Via the intuitive and chemically resistant 360° LED glass display, all information is intuitively conveyed without any alpha-numeric display
During operation, either the speed or the power required for stirring can be displayed
For example, viscosity changes can be observed and displayed as a percentage
Mixing can be started by pressing a button as well as (thanks to integrated beaker recognition) by placing or touching the beaker
The reverse function changes the direction of rotation at definable time intervals
This leads to a significant improvement of the mixing result, especially with samples that are difficult to mix
Robust and safe
The high protection class IP 66 allows operation under harsh conditions

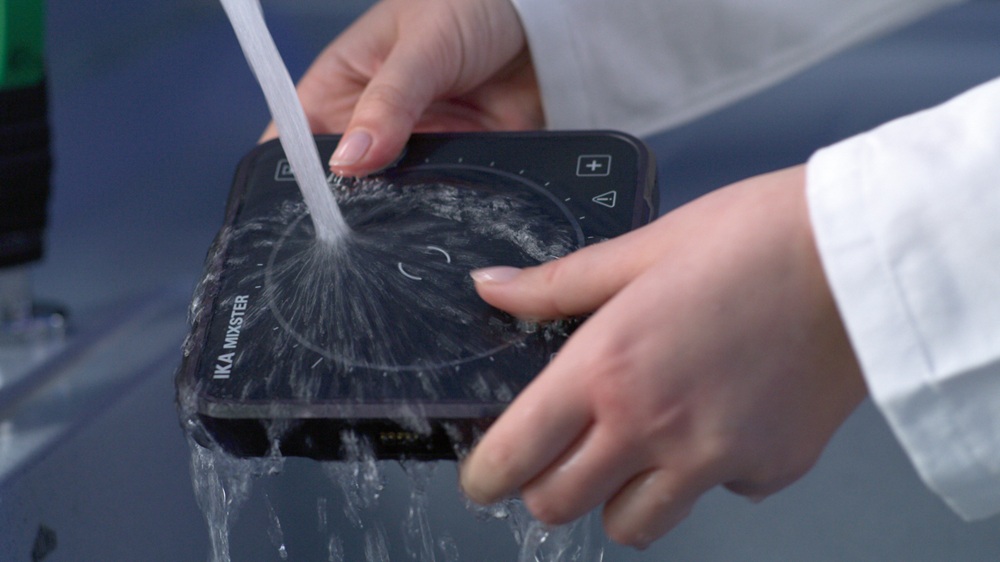

TWISTER can thus be cleaned under the tap, for example, or operated in an incubator at temperatures up to 40°C
The compact and innovative design has already been awarded the reddot Award 2022
It is particularly suitable for use in laboratories with limited space
* Depending on the number of devices, a different power supply may have to be used
The included power supply is designed to power up to two devices
