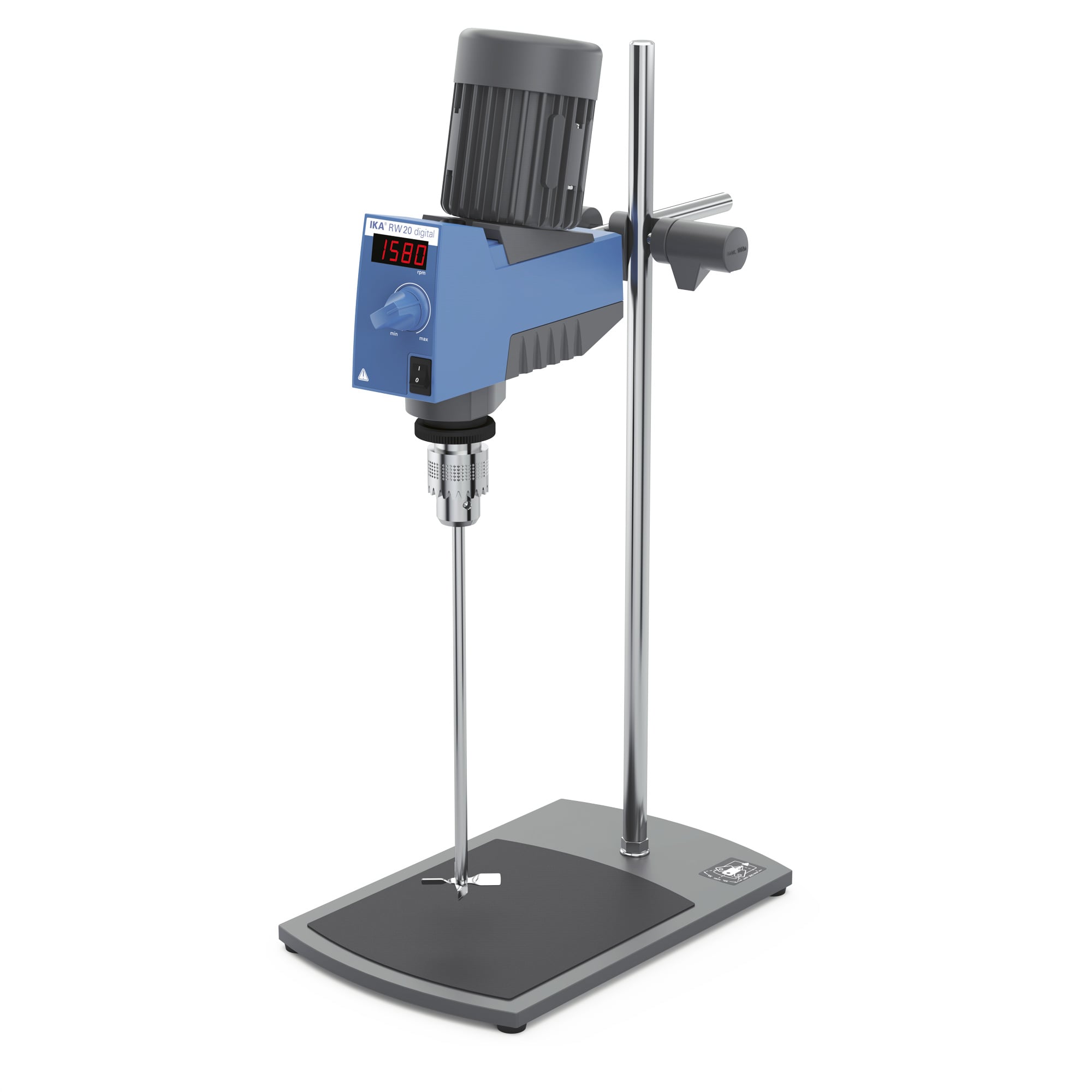

Powerful, mechanically controlled laboratory stirrer designed for highly viscous applications for quantities up to 80 l (H2O)
It is suitable for intensive mixing for use in laboratories and pilot plants
The stirrer comes equipped with a protection for overheating of the motor by means of self-locking temperature limiter
Additionally, to secure bowls, a stirring shaft protection and clamping fixture are optionally available
Digital speed display
Infinitely adjustable speed from 60 to 1400 rpm in two speed ranges
Push-through agitator shafts
Overload protection
Error code display
Robust, ergonomic design
Quiet operation
With constant power-drive
Max. koppel (Ncm) | 1.144 Ncm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. viscositeit (mPas) | 50.000 mPas | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. volume vloeistof | 80 L | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Rotatiesnelheid (tpm) | 60 - 1.400 rpm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Technische data |
Stirring quantity max. per stirring position (H2O) [l] | 80 |
Motor rating input [W] | 220 |
Motor rating output [W] | 90 |
Speed display | LED |
Speed range [rpm] | 60 - 1400 |
Viscosity max. [mPas] | 50000 |
Output max. at stirring shaft [W] | 90 |
Permissible ON time [%] | 100 |
Torque max. at stirring shaft [Ncm] | 900 |
Torque max. at stirring shaft at 60 1/min (overload) [Ncm] | 1144 |
Torque max. at stirring shaft at 100 1/min [Ncm] | 900 |
Torque max. at stirring shaft at 1.000 1/min [Ncm] | 86 |
Torque I max. [Ncm] | 900 |
Torque II max. [Ncm] | 300 |
Speed range I (50 Hz) [rpm] | 60 - 400 |
Speed range II (50 Hz) [rpm] | 240 - 1400 |
Speed range I (60 Hz) [rpm] | 72 - 480 |
Speed range II (60 Hz) [rpm] | 288 - 1680 |
Speed adjustment | stepless |
Setting accuracy speed [rpm] | ±1 |
Deviation of speed measurement [rpm] | ±10 |
Stirring element fastening | chuck |
Chuck range diameter [mm] | 1 - 10 |
Hollow shaft, inner diameter [mm] | 10.5 |
Hollow shaft (push-through - when stopped) | Ja |
Fastening on stand | extension arm |
Extension arm diameter [mm] | 16 |
Extension arm length [mm] | 145 |
Torque display | Nee |
Speed control | mechanical |
Nominal torque [Nm] | 9 |
Housing material | alu-cast coating / thermoplastic polymer |
Clean room qualified | Nee |
Explosion proofed | Nee |
Noise without element [dB(A)] | 62.5 |
Dimensions (W x H x D) [mm] | 123 x 364 x 252 |
Weight [kg] | 7.5 |
Permissible ambient temperature [°C] | 5 - 40 |
Permissible relative humidity [%] | 80 |
Protection class according to DIN EN 60529 | IP 40 |
RS 232 interface | Nee |
USB interface | Nee |
Analog output | Nee |
Voltage [V] | 220 - 240 |
Frequency [Hz] | 50/60 |
Power input [W] | 220 |
Powerful, mechanically controlled laboratory stirrer designed for highly viscous applications for quantities up to 80 l (H2O)
It is suitable for intensive mixing for use in laboratories and pilot plants
The stirrer comes equipped with a protection for overheating of the motor by means of self-locking temperature limiter
Additionally, to secure bowls, a stirring shaft protection and clamping fixture are optionally available
Digital speed display
Infinitely adjustable speed from 60 to 1400 rpm in two speed ranges
Push-through agitator shafts
Overload protection
Error code display
Robust, ergonomic design
Quiet operation
With constant power-drive
