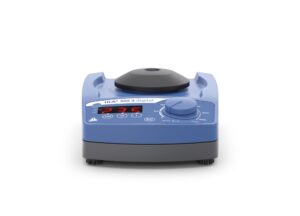

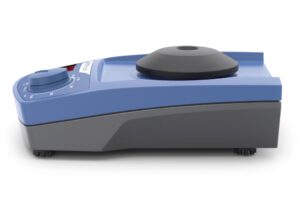

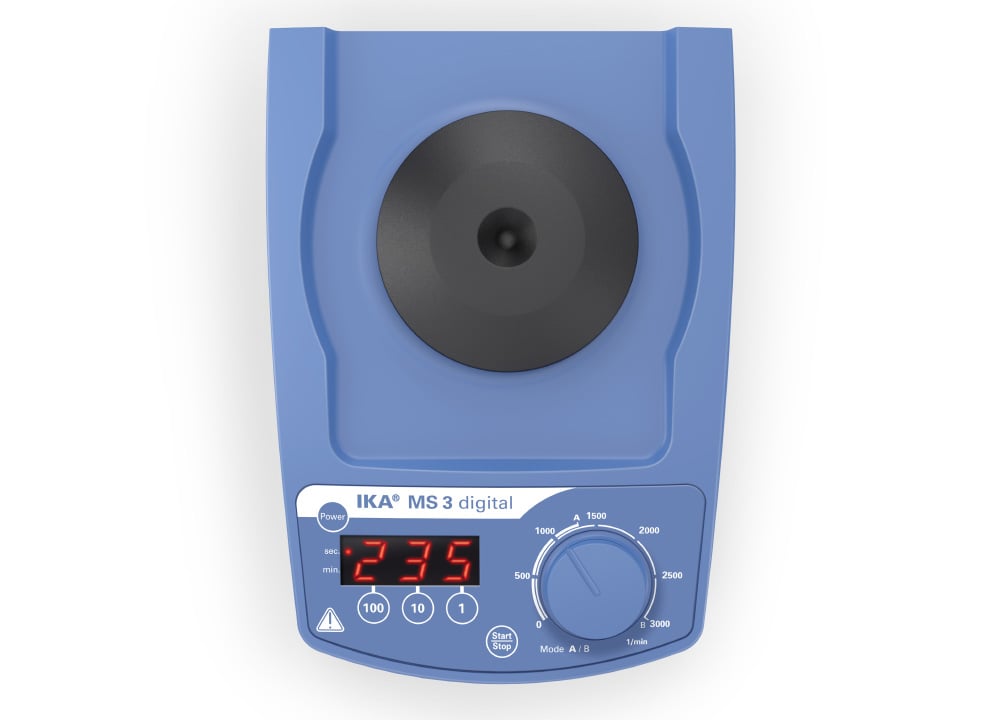

Ika MS 3 digital
Compact, universal small shaker suitable for shaking tasks with all small vessels and microtiter plates
Wide range of attachments
Attachment detection
Timer with countdown function
Continuous or touch operation (with standard attachment)
Two operating modes:
Mode A (safe mode with attachment detection)
the maximum speed of 3.000 rpm is only reached with the standard attachment in
touch mode
When using other attachments the speed is limited to 1.300 rpm
Mode B (without attachment detection)
A speed of 3, 000 rpm is possible with all attachments, depending on the application (see accessory list in the manual)
Stable in all speed ranges
Sturdy zinc die cast casing
| Max. lading | 0,5 kg | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Orbitale schudbeweging | 4,5 mm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Snelheidsbereik | 0 - 3.000 rpm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Soort beweging | Orbitaal | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Temperatuur (ja/nee) | Nee | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Timerfunctie (ja/nee) | Ja | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Technische data |
| Type of movement | orbital |
| Shaking stroke [mm] | 4.5 |
| Permissible shaking weight (incl. attachment) [kg] | 0.5 |
| Motor rating input [W] | 10 |
| Motor rating output [W] | 8 |
| Permissible ON time [%] | 100 |
| Speed min (adjustable) [rpm] | 200 |
| Speed range [rpm] | 0 - 3000 |
| Speed display | scale |
| Timer | Ja |
| Timer display | 7 segment LED |
| Time setting min. [s] | 1 |
| Time setting range [min] | 1 - 999 |
| Operating mode | timer and continuous operation |
| Touch function | Ja |
| Shaking table lock | Nee |
| Working with microtiter plates | Ja |
| Number of microtiter plates | 1 |
| Dimensions (W x H x D) [mm] | 148 x 63 x 205 |
| Weight [kg] | 2.9 |
| Permissible ambient temperature [°C] | 5 - 40 |
| Permissible relative humidity [%] | 80 |
| Protection class according to DIN EN 60529 | IP 21 |
| RS 232 interface | Nee |
| Analog output | Nee |
| Voltage [V] | 100 - 240 |
| Frequency [Hz] | 50/60 |
| Power input [W] | 20 |
| DC Voltage [V=] | 24 |
| Current consumption [mA] | 800 |
Compact, universal small shaker suitable for shaking tasks with all small vessels and microtiter plates
Wide range of attachments
Attachment detection
Timer with countdown function
Continuous or touch operation (with standard attachment)
Two operating modes:
Mode A (safe mode with attachment detection)
the maximum speed of 3.000 rpm is only reached with the standard attachment in
touch mode
When using other attachments the speed is limited to 1.300 rpm
Mode B (without attachment detection)
A speed of 3, 000 rpm is possible with all attachments, depending on the application (see accessory list in the manual)
Stable in all speed ranges
Sturdy zinc die cast casing
