Ika MultiDrive control BT Package
Crushing without cross-contamination - this is possible with the MultiDrive control package including autoclavable disposable tubes BT 250 and the required TC 1 protective housing for dry samples

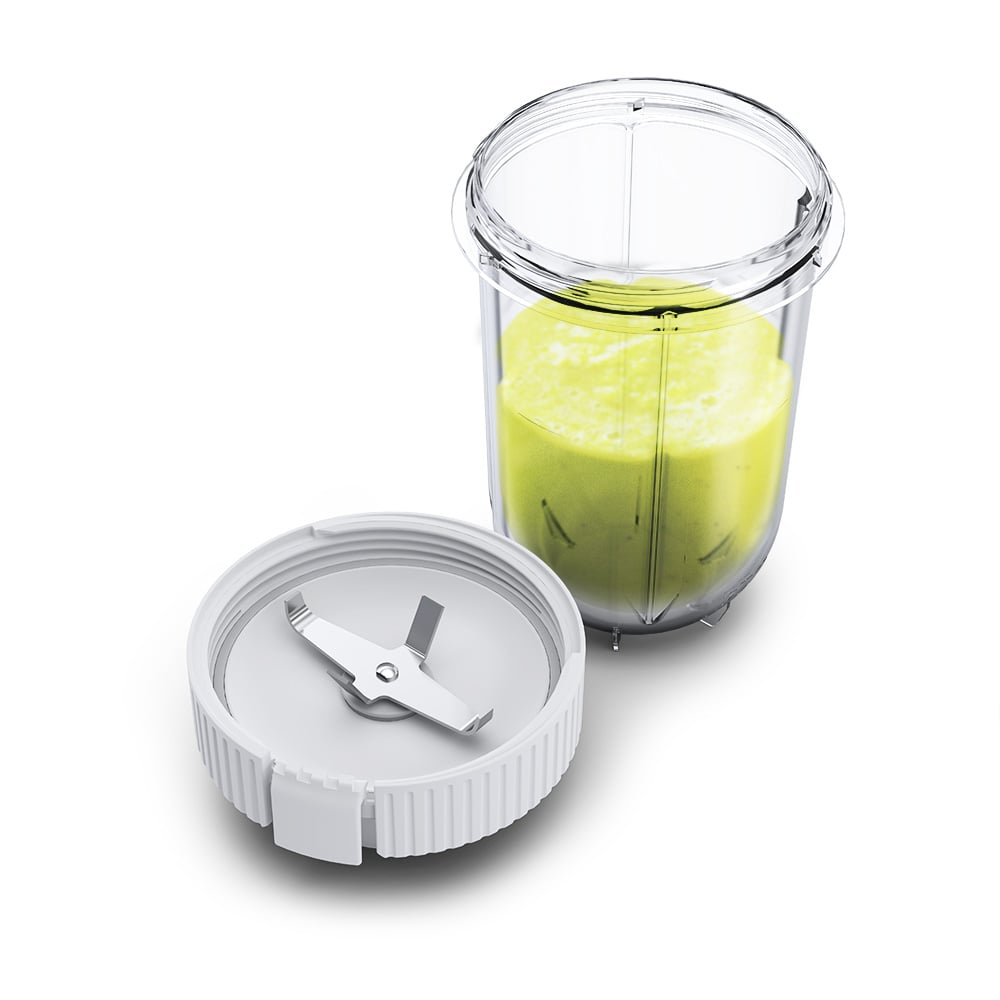

BT 250 is a disposable tube with a cross-shaped stainless steel beater and flow breakers
The plastic blending tube can be autoclaved
This effectively prevents cross-contamination even if it is used multiple times
An integrated RFID chip simultaneously stores and limits the lifespan of the blending tube
5 spare seals are included in the scope of delivery
By replacing the seal, the service life of the blending tube can be extended
The disposable tube can only be operated with the TC 1 protective housing which is also included in the scope of delivery
MultiDrive universal crusher can perform a wide range of crushing tasks involving coarse and fine crushing, thanks to the variety of vessels available
There is a USB interface available for easy actuation and documentation respectively
High performance
Excellent crushing performance is guaranteed by a combination of
variable rotational speeds, ranging from 3000 rpm to 20 000 rpm,
and a 1000 Watt output
Interval operation
The option of interval programming is simple to activate at the
press of a button
Interval operation is an asset during the coarse
crushing of hard samples or for extra thorough blending
Integrated cooling
A cooling system is integrated in the milling cup, which allows
indirect heat dissipation
Thus, coolant and sample remain separate
TFT-display
A clear TFT-display guarantees user-friendly operation
Temperature measurement
MultiDrive control offers temperature measurement and vessel
recognition using RFID
A temperature limit can be set for
temperature-sensitive materials, or for specific planned reactions to
protect against overheating
Weighing function
The weighing function is also integrated into the user-friendly
workflow of the IKA MultiDrive control
Weighing is performed
before crushing using the same mixing cup, so that no transfer
of contents is required
| Bruikbaar volume (ml) | Afhankelijk van maalbeker | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Maalmolen of toebehoren (Tube, kogels, schroeven) | Maalmolen | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. snelheid | 20.000 rpm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Soort maalmolen (snijden, schokken, kogels) | snijden/schokken/blenden/dispergeren | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Technische data |
| Process type | batch |
| Operating principle | cutting/impact/blending/dispersing |
| Motor rating input [W] | 1000 |
| Motor rating output [W] | 800 |
| Speed range [rpm] | 3000 - 20000 |
| Speed deviation [%] | ±5 |
| Power-ON time [min] | 5 |
| Power-OFF time [min] | 10 |
| Motor principle | Brushless DC |
| Display | TFT |
| RFID reader/writer unit | Ja |
| Temperature display | Ja |
| Temperature measurement resolution [K] | 0.1 |
| Accuracy of temperature measurement [K] | ±1 |
| Temperature limit min. [°C] | -50 |
| Temperature limit max. [°C] | 120 |
| Monitoring maintain time | Ja |
| Weighing function | Ja |
| Weighing range [g] | 5 - 4000 |
| Weighing resolution [g] | 1 |
| Load capacity weighing function max. [kg] | 4 |
| Weighing accuracy | ±(0.3%+2) g |
| Vessels detection | Ja |
| Ramp programming | Ja |
| Dimensions (W x H x D) [mm] | 300 x 350 x 250 |
| Weight [kg] | 8.5 |
| Permissible ambient temperature [°C] | 5 - 40 |
| Permissible relative humidity [%] | 80 |
| Protection class according to DIN EN 60529 | IP 31 |
| USB interface | Ja |
| Bluetooth interface | Ja |
| Voltage [V] | 220 - 240 |
| Frequency [Hz] | 50/60 |
| Power input [W] | 1000 |
Crushing without cross-contamination - this is possible with the MultiDrive control package including autoclavable disposable tubes BT 250 and the required TC 1 protective housing for dry samples
BT 250 is a disposable tube with a cross-shaped stainless steel beater and flow breakers
The plastic blending tube can be autoclaved
This effectively prevents cross-contamination even if it is used multiple times
An integrated RFID chip simultaneously stores and limits the lifespan of the blending tube
5 spare seals are included in the scope of delivery
By replacing the seal, the service life of the blending tube can be extended
The disposable tube can only be operated with the TC 1 protective housing which is also included in the scope of delivery
MultiDrive universal crusher can perform a wide range of crushing tasks involving coarse and fine crushing, thanks to the variety of vessels available
There is a USB interface available for easy actuation and documentation respectively
High performance
Excellent crushing performance is guaranteed by a combination of
variable rotational speeds, ranging from 3000 rpm to 20 000 rpm,
and a 1000 Watt output
Interval operation
The option of interval programming is simple to activate at the
press of a button
Interval operation is an asset during the coarse
crushing of hard samples or for extra thorough blending
Integrated cooling
A cooling system is integrated in the milling cup, which allows
indirect heat dissipation
Thus, coolant and sample remain separate
TFT-display
A clear TFT-display guarantees user-friendly operation
Temperature measurement
MultiDrive control offers temperature measurement and vessel
recognition using RFID
A temperature limit can be set for
temperature-sensitive materials, or for specific planned reactions to
protect against overheating
Weighing function
The weighing function is also integrated into the user-friendly
workflow of the IKA MultiDrive control
Weighing is performed
before crushing using the same mixing cup, so that no transfer
of contents is required
