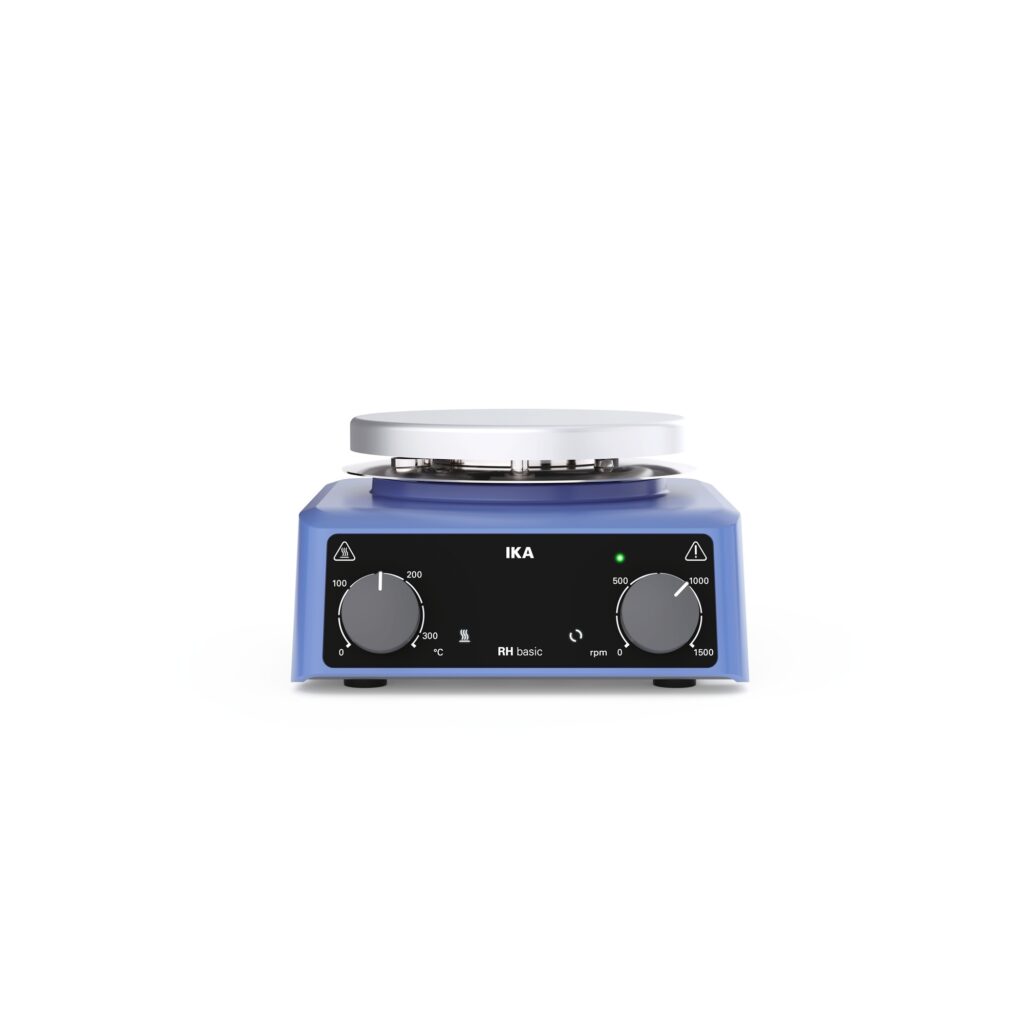

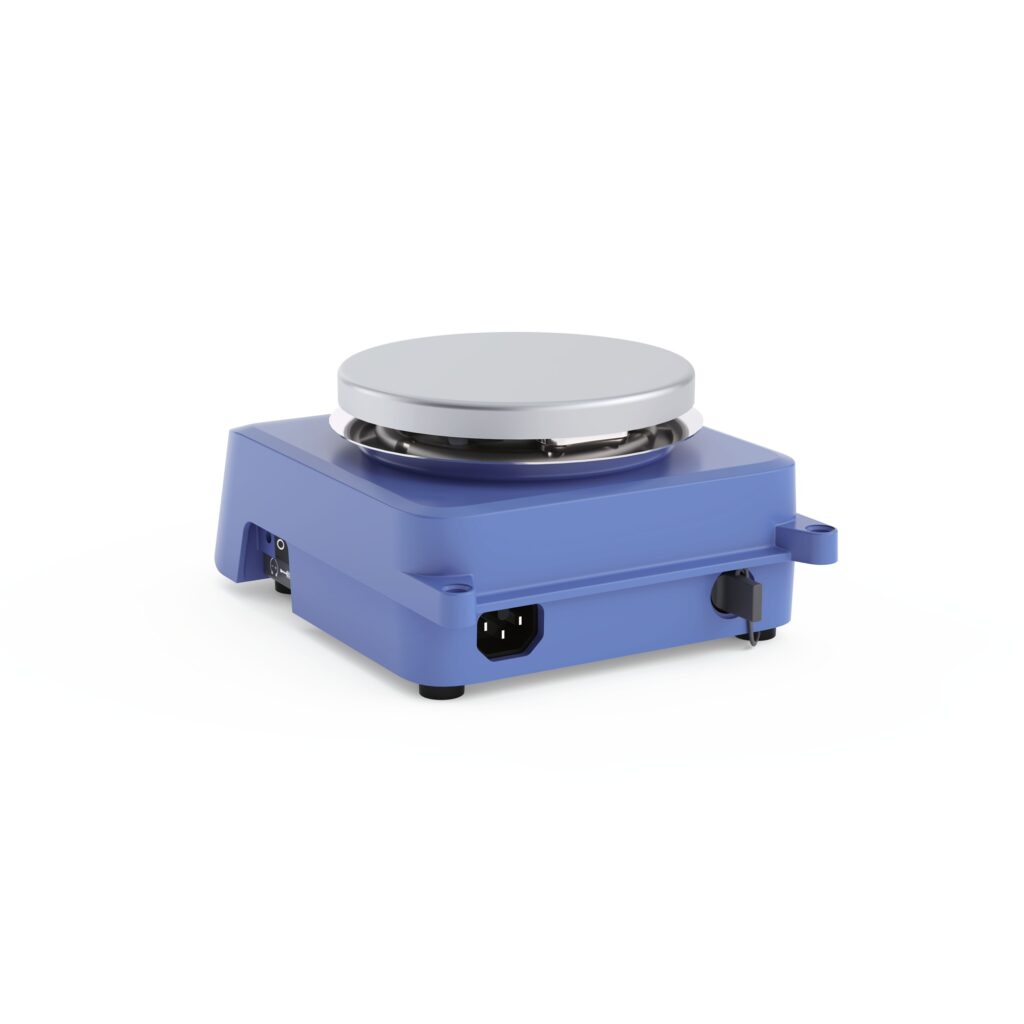

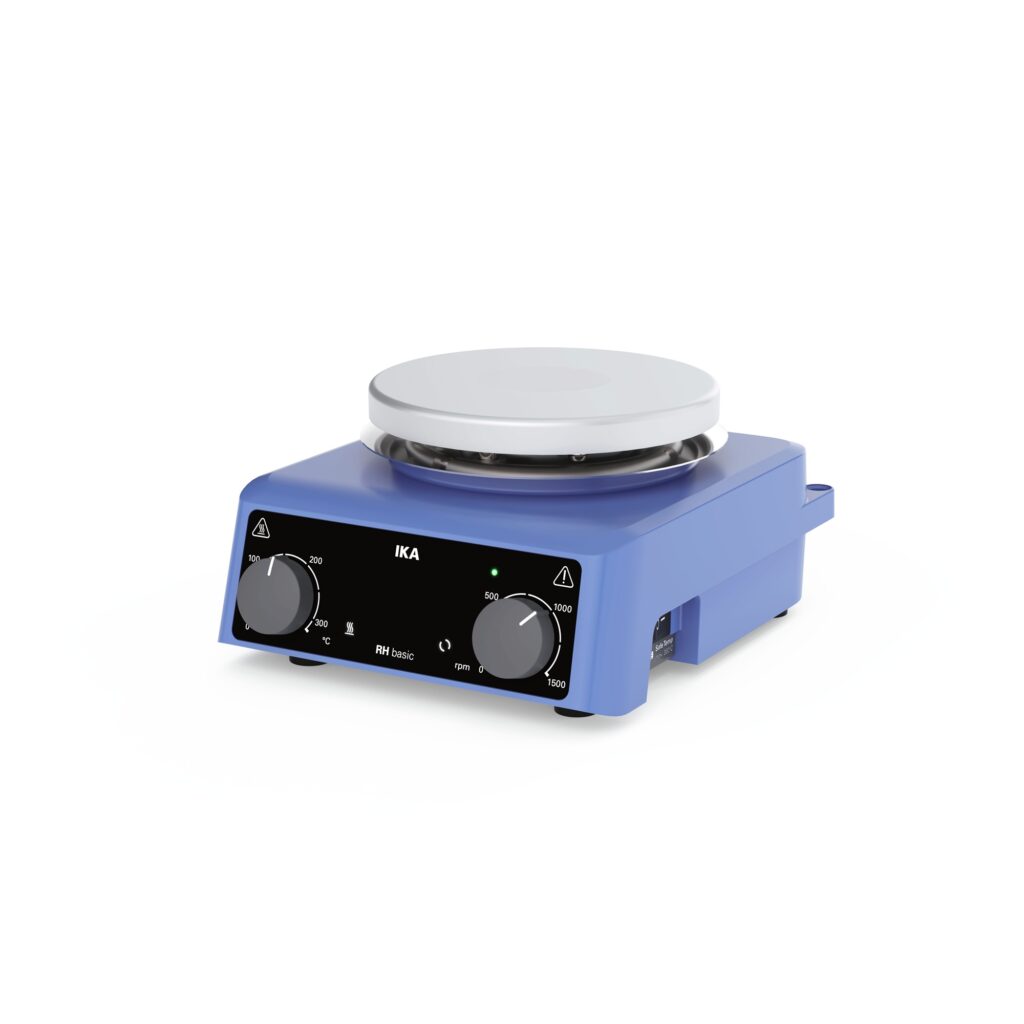

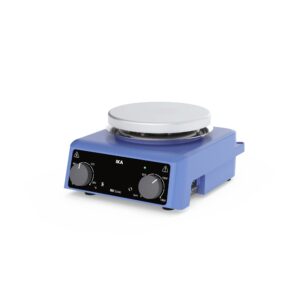

IKA Magnetische roerder RH basic
Compact. Powerful. Precisely controlled
The new RH basic is the ideal solution for anyone looking for a compact, powerful magnetic stirrer for entry-level or basic laboratory use—without compromising on professional temperature control
Based on the RH lite, the RH basic offers all the advantages of its sister model and goes one step further: Thanks to the integrated contact thermometer interface and the ETS-D5 included in the scope of delivery, it enables precise, external temperature control directly in the medium

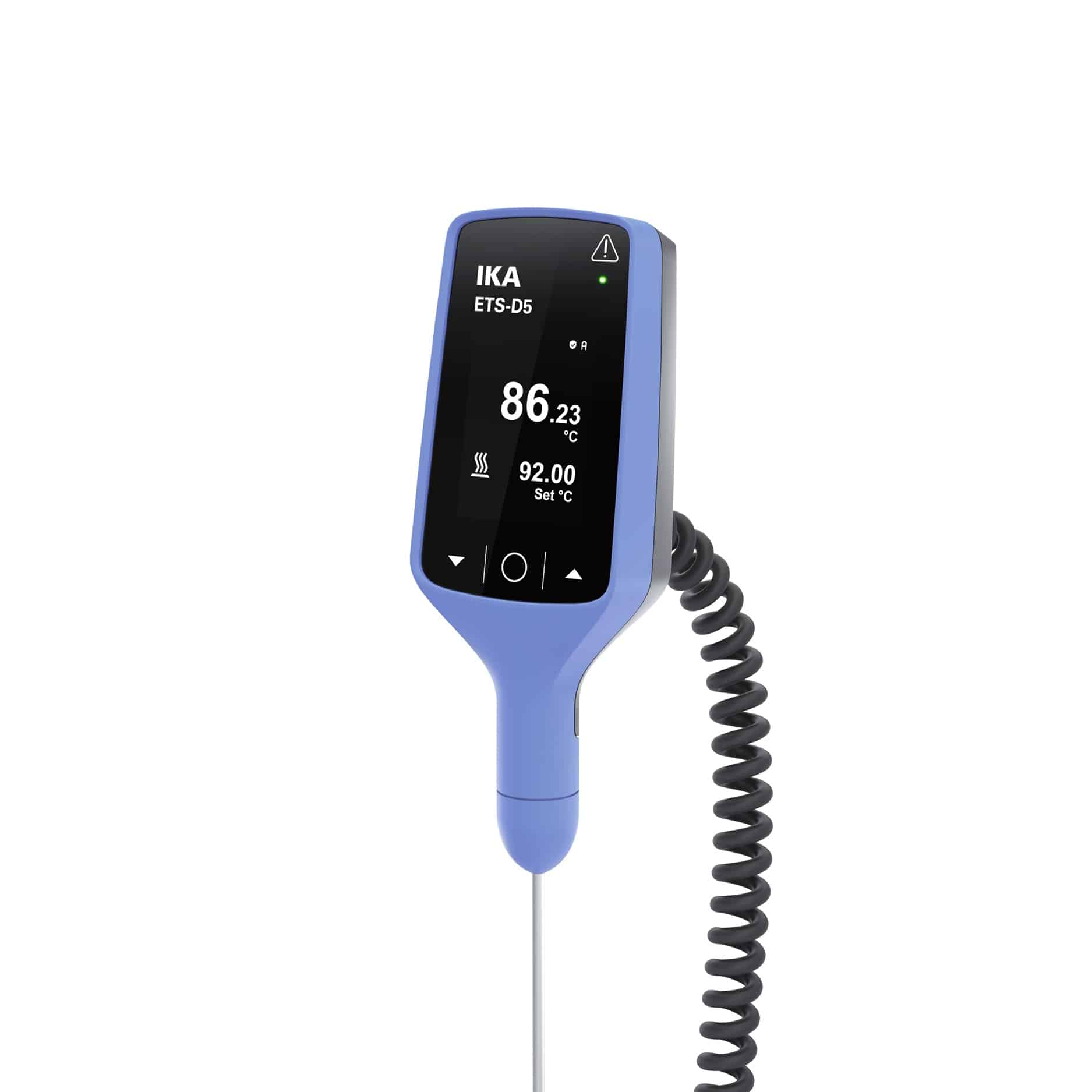

External temperature control with ETS-D5: The ETS-D5 interface and the included contact thermometer measure and control the temperature not only at the heating plate, but directly in the medium – for maximum precision and process reliability
Adjustable temperature safety circuit for the heating plate in accordance with laboratory equipment standard EN IEC 61010-2-010 for heated devices
Two rotary and push buttons for independent setpoint adjustment and start/stop of the heating and stirring function
600 W heating power and 135 mm aluminum heating plate with increased surface strength – for a wide range of applications and a long service life
Maximum temperature: 310°C and maximum speed: 1,500 rpm – powerful, homogeneous stirring and efficient heating
Energy-efficient EC motor for powerful stirring with minimal energy consumption
Extremely compact design: only 168 × 217 mm – ideal for small work Surfaces
Low self-heating of the heating plate – perfect for mixing temperature-sensitive samples
Two stand mounting points for flexible use and secure test setup

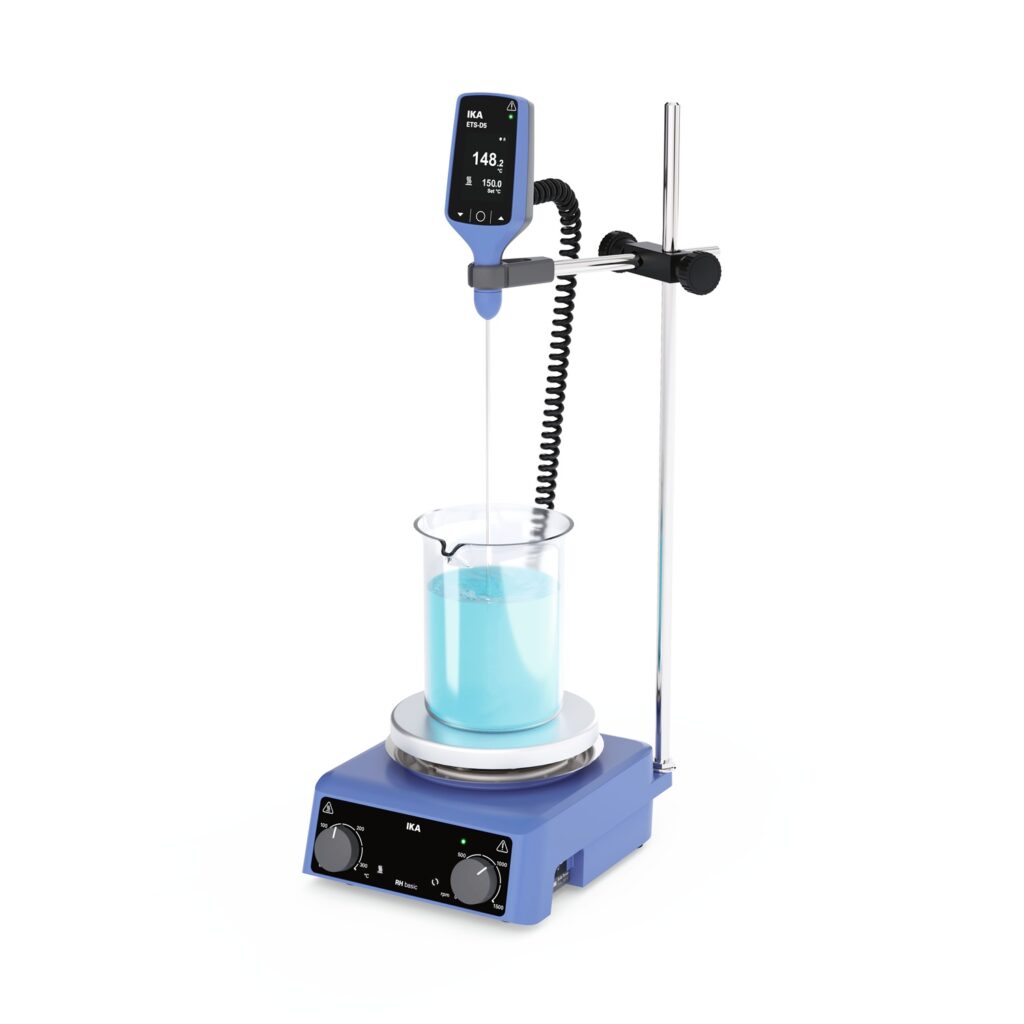

With the ETS-D5 included in the scope of delivery, the RH basic becomes a fully-fledged heating and stirring system for safe temperature control directly in the sample
Display of setpoint and actual temperature with a resolution of 0.1 K and high control accuracy of (±0.2 K + PT1000 sensor tolerance, class A)
Optimized PID control for stable temperature control without overshoot
Automatic shutdown of the magnetic stirrer in case of sensor error or exceeding the defined safety temperature
Replaceable temperature sensor (optionally with special coating or made of glass)
Sensor timeout (detects when the sensor is not in the medium, adjustable)
Temperature drop detection (reacts to unexpected temperature drops, adjustable)
Setpoint monitoring (Delta T) – switches off temperature control when the setpoint is exceeded
Setpoint limitation – limits the maximum adjustable temperature
Safe temp – switches off temperature control when the value is exceeded
In case of error, the stirrer remains off – for maximum safety
Three temperature control modes: Fast (rapid heating), Precise (highest accuracy), Synthesis block optimized (perfect for chemical syntheses)
Adjustable heating speed in percent for sensitive samples
Convenient touch display for intuitive operation
USB-C interface for fast and easy data transfer to a PC
Unlike the RH lite, which deliberately does without external temperature control and is therefore optimized for simple applications and price-conscious entry-level users, the RH basic offers professional temperature control directly in the medium with the ETS-D5 interface and the included contact thermometer
This allows you to benefit from all the advantages of precise external temperature control: higher process reliability, better reproducibility, and the ability to reliably control even more demanding applications
The RH basic combines compact design, high performance, and professional temperature control in one device—making it the perfect choice for anyone who wants more control and safety in their everyday laboratory work
RH basic — the entry point into professional magnetic stirring technology with external temperature control
| Number of stirring positions [-] | 1 |
| Stirring quantity max. per stirring position (H2O) [l] | 15 |
| Maximum load [kg] | 20 |
| Motor rating output [W] | 7 |
| Motor principle [-] | Brushless DC |
| Direction of rotation [-] | right |
| Speed display set-value [-] | scale |
| Speed display actual-value [-] | scale |
| Speed adjustment [-] | Turning knob |
| Speed min. [rpm] | 100 |
| Speed max. [rpm] | 1500 |
| Stirring bar length min. [mm] | 20 |
| Stirring bar length max. [mm] | 80 |
| Self-heating of the set-up plate by max. stirring (RT | 22°C/duration:1h) [K]: +6 |
| Heat output [W] | 600 |
| Temperature display set-value [-] | scale |
| Temperature display actual-value [-] | scale |
| Temperature unit [-] | °C |
| Heating temperature min. [°C] | Room temp. + device self heating |
| Heating temperature max. [°C] | 310 |
| Heat control [-] | Turning knob |
| Temperature setting range min. [°C] | 0 |
| Temperature setting range max. [°C] | 310 |
| Connection for ext. temperature sensor [-] | ETS-D5 |
| Adjustable safety circuit min. [°C] | 50 |
| Adjustable safety circuit max. [°C] | 360 |
| Set-up plate material [-] | Aluminium alloy |
| Set-up plate dimensions [mm] | Ø 135 |
| Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C) [%] | ±5 |
| Heating rate (1l H2O in H1500) [K/min] | 5.5 |
| Heat control accuracy of heating plate centre without vessel (at 100°C) [K] | ±5 |
| Heat control accuracy of heating plate centre without vessel (at 300°C) [K] | ±15 |
| Heat control accuracy with ETS-D5 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) [K] | ±0.5 |
| Width [mm] | 168 |
| Depth [mm] | 217 |
| Height [mm] | 100 |
| Weight [kg] | 2.1 |
| Permissible ambient temperature min. [°C] | 5 |
| Permissible ambient temperature max. [°C] | 40 |
| Permissible relative humidity [%] | 80 |
| Protection class according to DIN EN 60529 [-] | IP 22 |
| Voltage [V] | 220 - 230 |
| Frequency [Hz] | 50/60 |
| Power input [W] | 620 |
Compact. Powerful. Precisely controlled
The new RH basic is the ideal solution for anyone looking for a compact, powerful magnetic stirrer for entry-level or basic laboratory use—without compromising on professional temperature control
Based on the RH lite, the RH basic offers all the advantages of its sister model and goes one step further: Thanks to the integrated contact thermometer interface and the ETS-D5 included in the scope of delivery, it enables precise, external temperature control directly in the medium
External temperature control with ETS-D5: The ETS-D5 interface and the included contact thermometer measure and control the temperature not only at the heating plate, but directly in the medium – for maximum precision and process reliability
Adjustable temperature safety circuit for the heating plate in accordance with laboratory equipment standard EN IEC 61010-2-010 for heated devices
Two rotary and push buttons for independent setpoint adjustment and start/stop of the heating and stirring function
600 W heating power and 135 mm aluminum heating plate with increased surface strength – for a wide range of applications and a long service life
Maximum temperature: 310°C and maximum speed: 1,500 rpm – powerful, homogeneous stirring and efficient heating
Energy-efficient EC motor for powerful stirring with minimal energy consumption
Extremely compact design: only 168 × 217 mm – ideal for small work Surfaces
Low self-heating of the heating plate – perfect for mixing temperature-sensitive samples
Two stand mounting points for flexible use and secure test setup
With the ETS-D5 included in the scope of delivery, the RH basic becomes a fully-fledged heating and stirring system for safe temperature control directly in the sample
Display of setpoint and actual temperature with a resolution of 0.1 K and high control accuracy of (±0.2 K + PT1000 sensor tolerance, class A)
Optimized PID control for stable temperature control without overshoot
Automatic shutdown of the magnetic stirrer in case of sensor error or exceeding the defined safety temperature
Replaceable temperature sensor (optionally with special coating or made of glass)
Sensor timeout (detects when the sensor is not in the medium, adjustable)
Temperature drop detection (reacts to unexpected temperature drops, adjustable)
Setpoint monitoring (Delta T) – switches off temperature control when the setpoint is exceeded
Setpoint limitation – limits the maximum adjustable temperature
Safe temp – switches off temperature control when the value is exceeded
In case of error, the stirrer remains off – for maximum safety
Three temperature control modes: Fast (rapid heating), Precise (highest accuracy), Synthesis block optimized (perfect for chemical syntheses)
Adjustable heating speed in percent for sensitive samples
Convenient touch display for intuitive operation
USB-C interface for fast and easy data transfer to a PC
Unlike the RH lite, which deliberately does without external temperature control and is therefore optimized for simple applications and price-conscious entry-level users, the RH basic offers professional temperature control directly in the medium with the ETS-D5 interface and the included contact thermometer
This allows you to benefit from all the advantages of precise external temperature control: higher process reliability, better reproducibility, and the ability to reliably control even more demanding applications
The RH basic combines compact design, high performance, and professional temperature control in one device—making it the perfect choice for anyone who wants more control and safety in their everyday laboratory work
RH basic — the entry point into professional magnetic stirring technology with external temperature control
Toebehoren
Série
FAQ
Heb je vragen over dit product of over deze categorie? Op onze FAQ-sectie geven we je antwoord op veelgestelde vragen!
Bekijk de FAQJe kan onze experts altijd bereiken via info@imlab.eu
Of bel ons direct op +32 (0) 16 73 55 72
(Bereikbaar op werkdagen van 08:00 tot 17:00)
Stel direct je vraag
"*" geeft vereiste velden aan
Vergelijkbare producten
Onze diensten – méér dan een webshop
Bij Imlab koop je niet zomaar een product – je kiest voor een betrouwbare partner met een team dat voor je klaarstaat.
Geen robots, geen callcenter, maar ervaren specialisten die je helpen.
Onze service omvat:
- Kalibratie van je meetapparatuur
- Onsite installatie
- Herstellingen & onderhoud
Hulp nodig of een service aanvragen? We denken graag met je mee en bieden oplossingen op maat, zodat jij snel verder kan.
