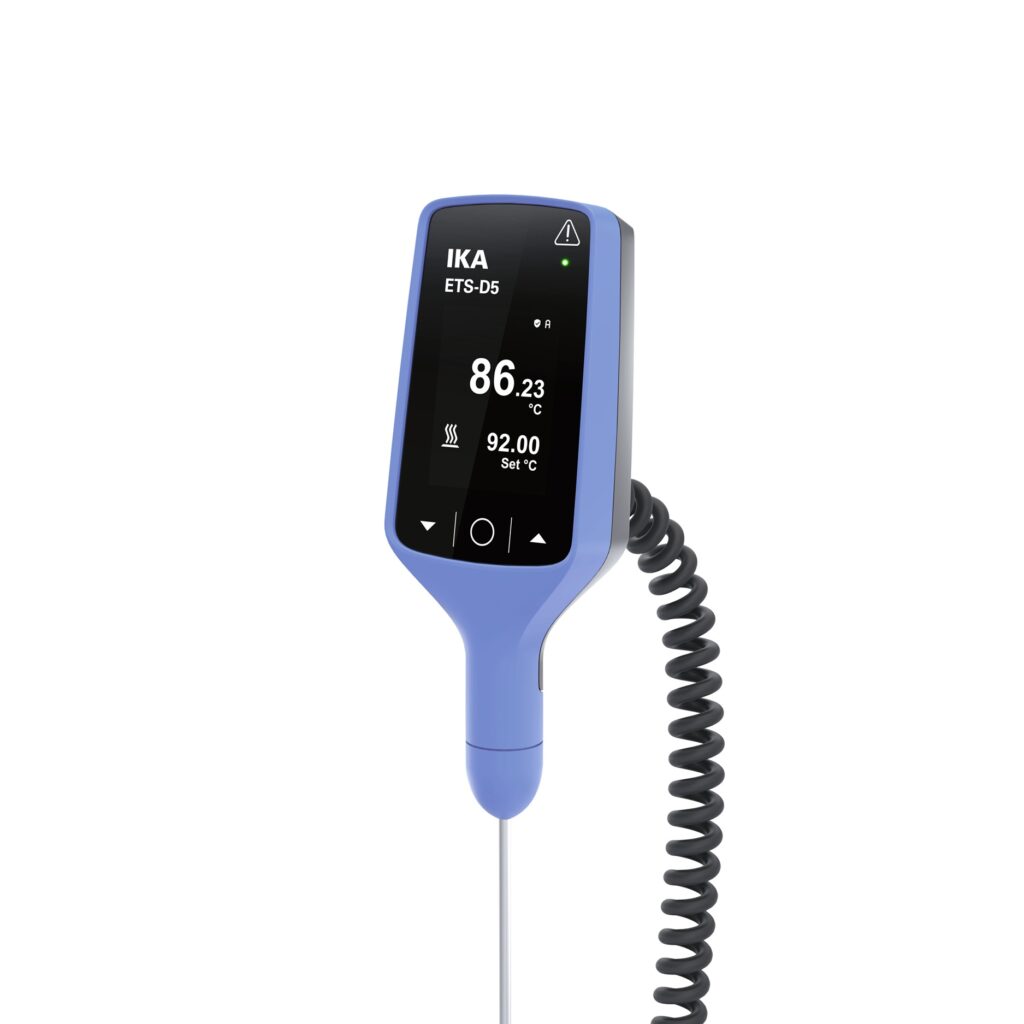

IKA Elektronische Contact Thermometer ETS-D5
ETS-D5 Electronic Contact Thermometer: The new dimension in temperature control in the laboratory
The new ETS-D5 electronic contact thermometer redefines precision, safety, and ease of use
Developed for demanding laboratory processes, it offers everything you need for reliable temperature control — and now with even more functions for maximum process reliability and flexibility
Temperature range from –20 °C to +400 °C with 0.1 K resolution
High accuracy: ±0.2 K + PT1000 sensor tolerance (class A)
Optimized PID control for stable temperature control without overshoot
Automatic shutdown of the magnetic stirrer in case of sensor error or exceeding the defined safety temperature – maximum process reliability
Replaceable temperature sensor (optionally with coating H66.53 or made of glass H66.51)
Can be extended with an intermediate cable
Sensor timeout – detects when the sensor is not in the medium (adjustable)
Temperature drop detection – reacts to unexpected temperature drops (adjustable)
Setpoint monitoring (Delta T) – switches off temperature control when the setpoint is exceeded by Delta T
Setpoint limitation – limits the maximum adjustable temperature
Safe temp – switches off the temperature control when the value is exceeded
In the event of a fault, the stirrer remains off – for maximum safety
Three temperature control modes for every application: Fast – fast heating, Precise – maximum accuracy, Synthesis block optimized – perfect for chemical syntheses
Adjustable heating speed in percent for sensitive samples

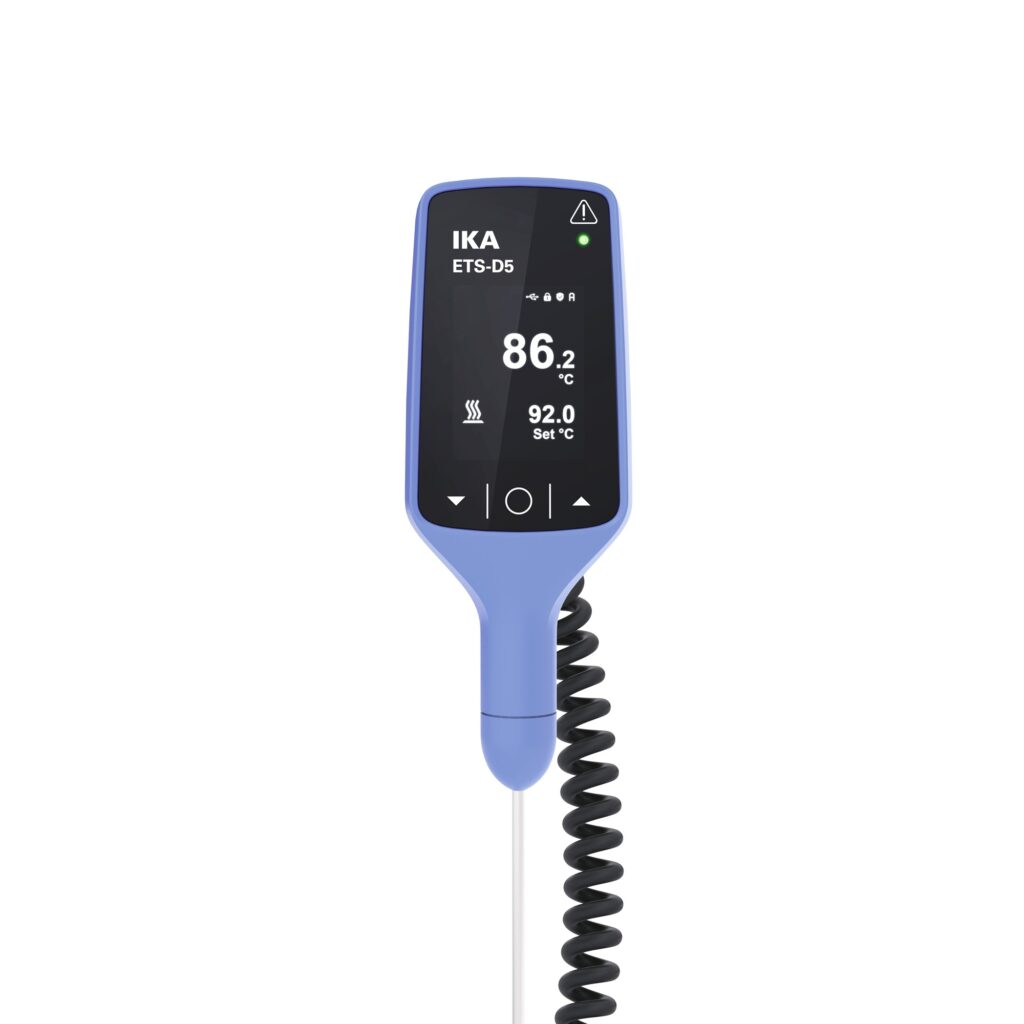

Convenient touch display for intuitive operation
USB-C interface for fast and easy data transfer to a PC
An electronic contact thermometer is a temperature controller with an integrated sensor that directly controls the heating power of a magnetic stirrer
When connected, the device takes over the active temperature control of the medium by switching the heating plate on and off accordingly
The magnetic stirrer itself continues to monitor the preset safety limits for the heating plate
Upgrade option for devices without integrated external temperature control
Additional safety circuit for the medium temperature – crucial for risk analyses
Better display resolution and data transfer to software
Clear assignment of the measuring point – minimizes mix-ups
Greater safety, greater precision – now also wireless
The new ETS-D5 is more than just a temperature sensor – it is an intelligent safety and control center for your laboratory
With state-of-the-art interface technology, advanced safety features, and optimized control, it offers maximum control and protection for your processes
Greater precision. Greater safety. Greater comfort
| Temperature measuring range min. (with H62 sensor) [°C] | -20 |
| Temperature measuring range max. (with H62 sensor) [°C] | 400 |
| Temperature measurement resolution [K] | 0.1 |
| Accuracy of temperature measurement [K] | ±0.2 + tolerance PT1000 (DIN IEC 751 Class A) |
| Set temperature resolution [K] | 0.1 |
| Display [-] | TFT |
| Immersion depth min. [mm] | 20 |
| Touch function [-] | yes |
| Warning function acoustic [-] | yes |
| Heat control accuracy (500ml H2O in 600ml beaker, 40mm stirring bar, 600rpm, 50°C) [K] | ±0.5 |
| Changeable temperature sensor [-] | H62.51 |
| Thermometer connector type (to main device) [-] | DIN 45322 (MAS6) |
| Status LED [-] | yes |
| Temperature operating mode [-] | A,B,C,D |
| Temperature control mode [-] | Price,Fast,Block |
| Sensor type [-] | PT1000 (DIN IEC 751 Class A) |
| Width [mm] | 52 |
| Depth [mm] | 385 |
| Height [mm] | 36 |
| Weight [kg] | 0.156 |
| Permissible ambient temperature min. [°C] | 5 |
| Permissible ambient temperature max. [°C] | 40 |
| Permissible relative humidity [%] | 80 |
| Protection class according to DIN EN 60529 [-] | IP 54 |
| USB interface [-] | USB-C |
| WPAN interface [-] | no |
| DC Voltage [V=] | 8 - 16 |
| Current consumption [mA] | 100 |
ETS-D5 Electronic Contact Thermometer: The new dimension in temperature control in the laboratory
The new ETS-D5 electronic contact thermometer redefines precision, safety, and ease of use
Developed for demanding laboratory processes, it offers everything you need for reliable temperature control — and now with even more functions for maximum process reliability and flexibility
Temperature range from –20 °C to +400 °C with 0.1 K resolution
High accuracy: ±0.2 K + PT1000 sensor tolerance (class A)
Optimized PID control for stable temperature control without overshoot
Automatic shutdown of the magnetic stirrer in case of sensor error or exceeding the defined safety temperature – maximum process reliability
Replaceable temperature sensor (optionally with coating H66.53 or made of glass H66.51)
Can be extended with an intermediate cable
Sensor timeout – detects when the sensor is not in the medium (adjustable)
Temperature drop detection – reacts to unexpected temperature drops (adjustable)
Setpoint monitoring (Delta T) – switches off temperature control when the setpoint is exceeded by Delta T
Setpoint limitation – limits the maximum adjustable temperature
Safe temp – switches off the temperature control when the value is exceeded
In the event of a fault, the stirrer remains off – for maximum safety
Three temperature control modes for every application: Fast – fast heating, Precise – maximum accuracy, Synthesis block optimized – perfect for chemical syntheses
Adjustable heating speed in percent for sensitive samples
Convenient touch display for intuitive operation
USB-C interface for fast and easy data transfer to a PC
An electronic contact thermometer is a temperature controller with an integrated sensor that directly controls the heating power of a magnetic stirrer
When connected, the device takes over the active temperature control of the medium by switching the heating plate on and off accordingly
The magnetic stirrer itself continues to monitor the preset safety limits for the heating plate
Upgrade option for devices without integrated external temperature control
Additional safety circuit for the medium temperature – crucial for risk analyses
Better display resolution and data transfer to software
Clear assignment of the measuring point – minimizes mix-ups
Greater safety, greater precision – now also wireless
The new ETS-D5 is more than just a temperature sensor – it is an intelligent safety and control center for your laboratory
With state-of-the-art interface technology, advanced safety features, and optimized control, it offers maximum control and protection for your processes
Greater precision. Greater safety. Greater comfort
