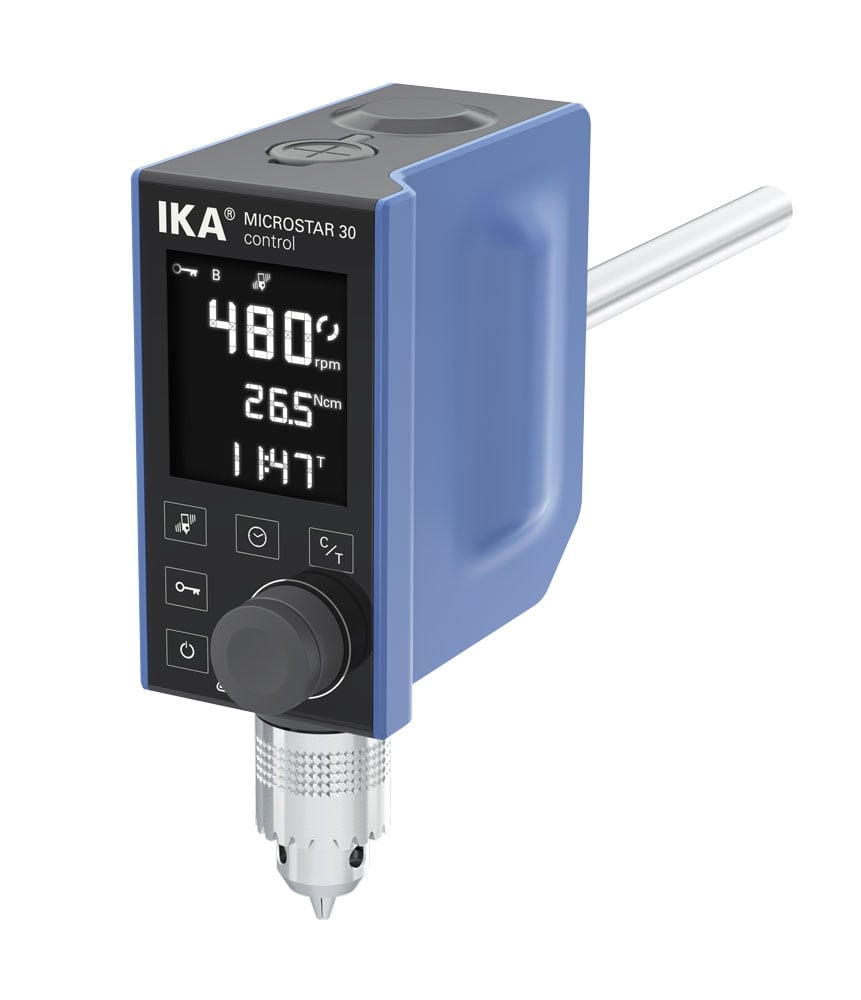

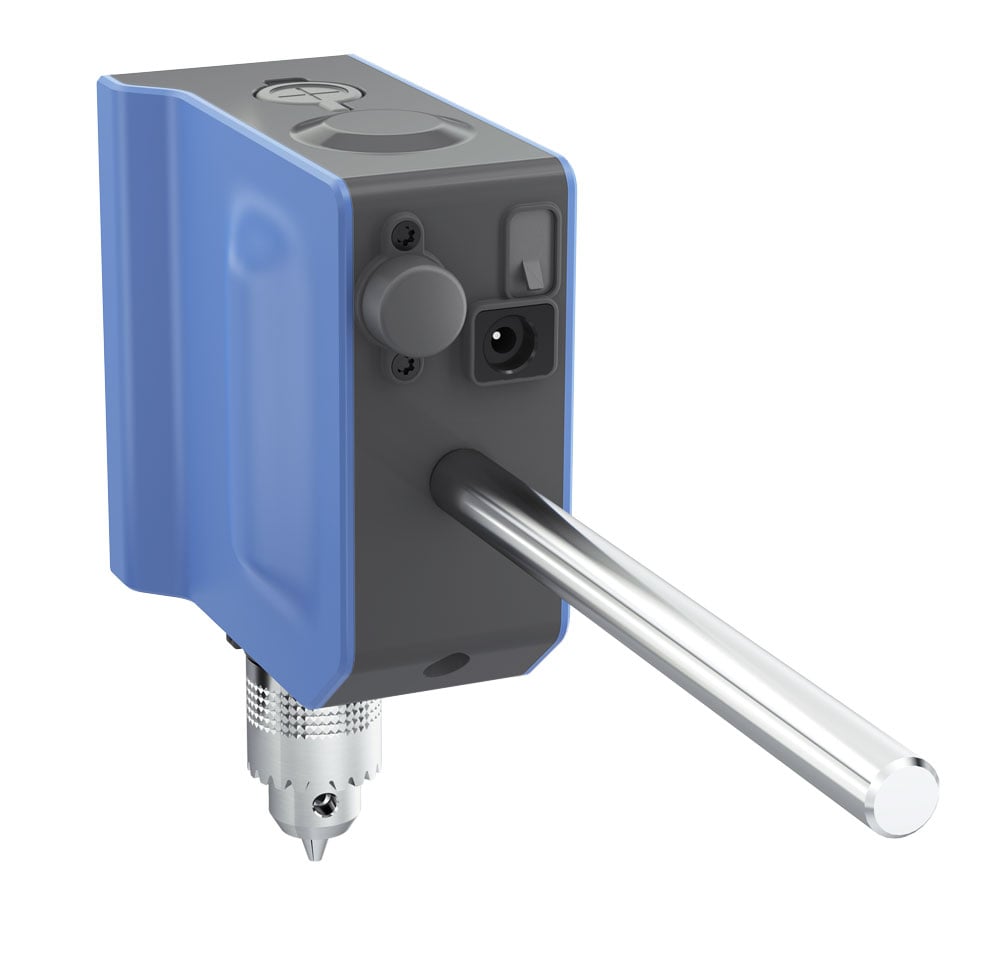

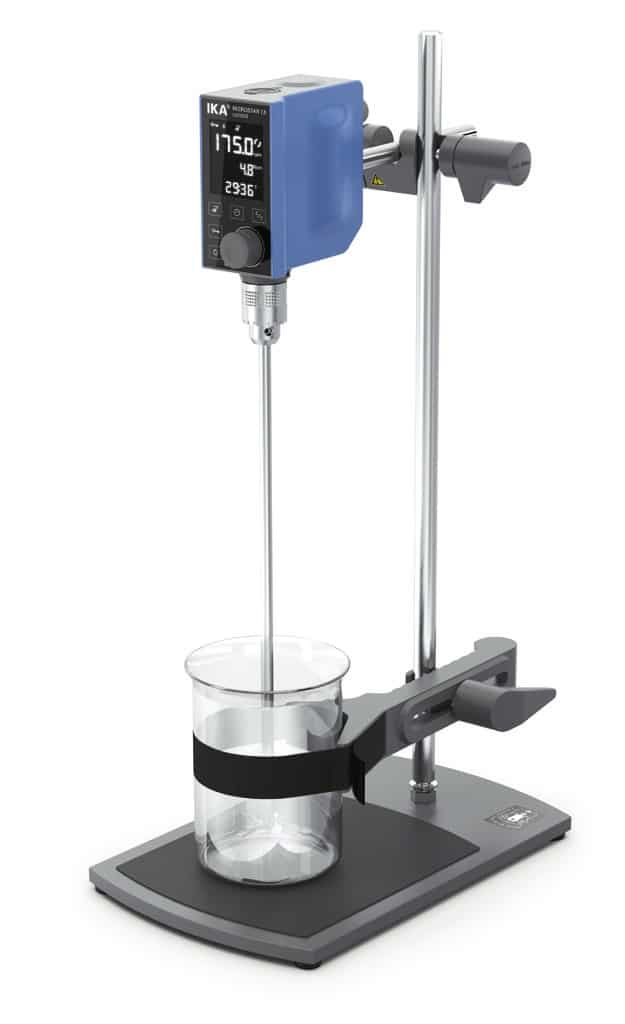

Ika MICROSTAR 30 control

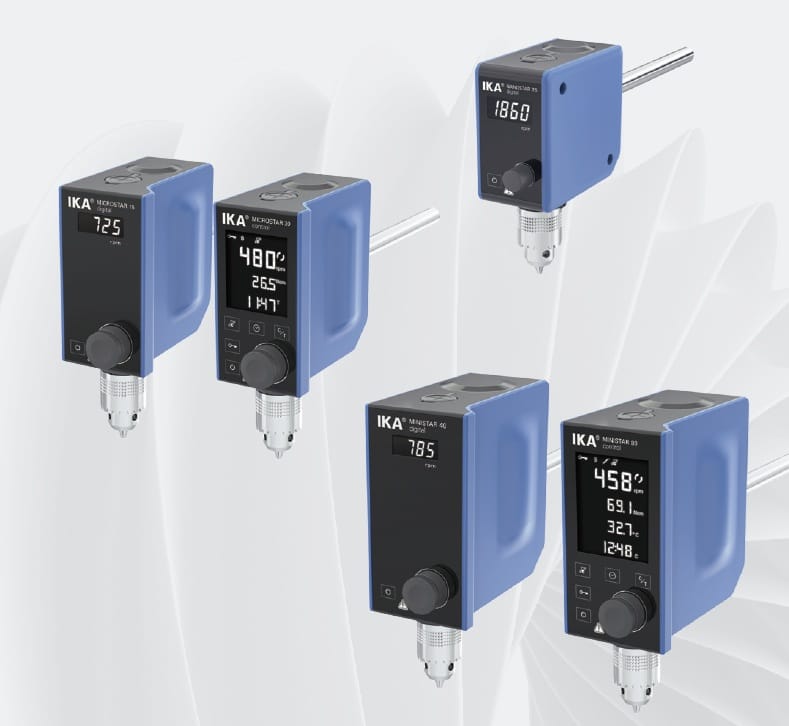

The new MICROSTARS series by IKA: Developed using the latest cutting-edge technology, this high-tech overhead stirrer with its compact design is ideal for special applications
Combining high performance with particular excellence, they require minimum space and come with a lifetime guarantee
See for yourself:
“The Strong One” in the smallest high-tech class, reaches up to 500 RPM!
Hardened glass enclosed, fast response display for maximum visibility and chemical resistance
State-of-art vibration sensors detect deviations from permissible thresholds and automatically stop the process
Clear display for all essential information at a glance
Integrated timer / counter for the control of kinetic sensitive reactions and reminders
Viscosities up to 20, 000 mPas and volumes of up to 20 l
Continuously adjustable speed between 0/30 – 500 rpm
USB interface, e.g
for documenting parameters using labworldsoft® or installing firmware updates
Intuitive and simple handling - touch-sensitive surface for long service life
Temperature reading on display
Chemical resistant housing
Key lock function
Microprocessor-controlled speed governor for constant rotational speed, even with changes in viscosity
| Max. koppel (Ncm) | 30 Ncm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. viscositeit (mPas) | 20.000 mPas | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. volume vloeistof | 20 L | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Rotatiesnelheid (tpm) | 0 - 500 rpm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Technische data |
| Stirring quantity max. per stirring position (H2O) [l] | 20 |
| Motor rating input [W] | 32 |
| Motor rating output [W] | 22 |
| Motor principle | Brushless DC |
| Speed display | LCD |
| Speed range [rpm] | 0/30 - 500 |
| Reversible direction of rotation | Nee |
| Intermittent operation | Nee |
| Viscosity max. [mPas] | 20000 |
| Output max. at stirring shaft [W] | 15.7 |
| Permissible ON time [%] | 100 |
| Torque max. at stirring shaft [Ncm] | 30 |
| Speed adjustment | Turning kNeeb |
| Setting accuracy speed [rpm] | ±1 |
| Deviation of speed measurement n > 300rpm [%] | ±1 |
| Deviation of speed measurement n < 300rpm [rpm] | ±3 |
| Stirring element fastening | chuck |
| Connection for ext. temperature sensor | PT1000 |
| Temperature display | Ja |
| Chuck range diameter [mm] | 0.5 - 8.2 |
| Hollow shaft, inner diameter [mm] | 8.5 |
| Hollow shaft (push-through - when stopped) | Ja |
| Fastening on stand | extension arm |
| Extension arm diameter [mm] | 13 |
| Extension arm length [mm] | 160 |
| Torque display | Ja |
| Speed control | electronic |
| Nominal torque [Nm] | 0.3 |
| Torque measurement | trend |
| Deviation of torque measurement I [Ncm] | ±3 |
| Timer | Ja |
| Timer display | LCD |
| Time setting range [min] | 0 - 6000 |
| Temperature measuring range [°C] | -10 - 350 |
| Temperature measurement resolution [K] | 0.1 |
| Accuracy of temperature measurement [K] | ±0.5 + tolerance PT1000 (DIN EN 60751 Class A) |
| Limit deviation temperature sensor [K] | ≤ ± (0.15 + 0.002xITI) |
| Housing material | alu-cast coating / thermoplastic polymer |
| Clean room qualified | Nee |
| Explosion proofed | Nee |
| Communication distance (depend onbuilding) max. [m] | 150 |
| Dimensions (W x H x D) [mm] | 60 x 173 x 136 |
| Weight [kg] | 1.26 |
| Permissible ambient temperature [°C] | 5 - 40 |
| Permissible relative humidity [%] | 80 |
| Protection class according to DIN EN 60529 | IP 54 |
| RS 232 interface | Nee |
| USB interface | Ja |
| Analog output | Nee |
| Voltage [V] | 100 - 240 |
| Frequency [Hz] | 50/60 |
| Power input [W] | 32 |
| DC Voltage [V=] | 24 |
| Current consumption [mA] | 1300 |
The new MICROSTARS series by IKA: Developed using the latest cutting-edge technology, this high-tech overhead stirrer with its compact design is ideal for special applications
Combining high performance with particular excellence, they require minimum space and come with a lifetime guarantee
See for yourself:
“The Strong One” in the smallest high-tech class, reaches up to 500 RPM!
Hardened glass enclosed, fast response display for maximum visibility and chemical resistance
State-of-art vibration sensors detect deviations from permissible thresholds and automatically stop the process
Clear display for all essential information at a glance
Integrated timer / counter for the control of kinetic sensitive reactions and reminders
Viscosities up to 20, 000 mPas and volumes of up to 20 l
Continuously adjustable speed between 0/30 – 500 rpm
USB interface, e.g
for documenting parameters using labworldsoft® or installing firmware updates
Intuitive and simple handling - touch-sensitive surface for long service life
Temperature reading on display
Chemical resistant housing
Key lock function
Microprocessor-controlled speed governor for constant rotational speed, even with changes in viscosity

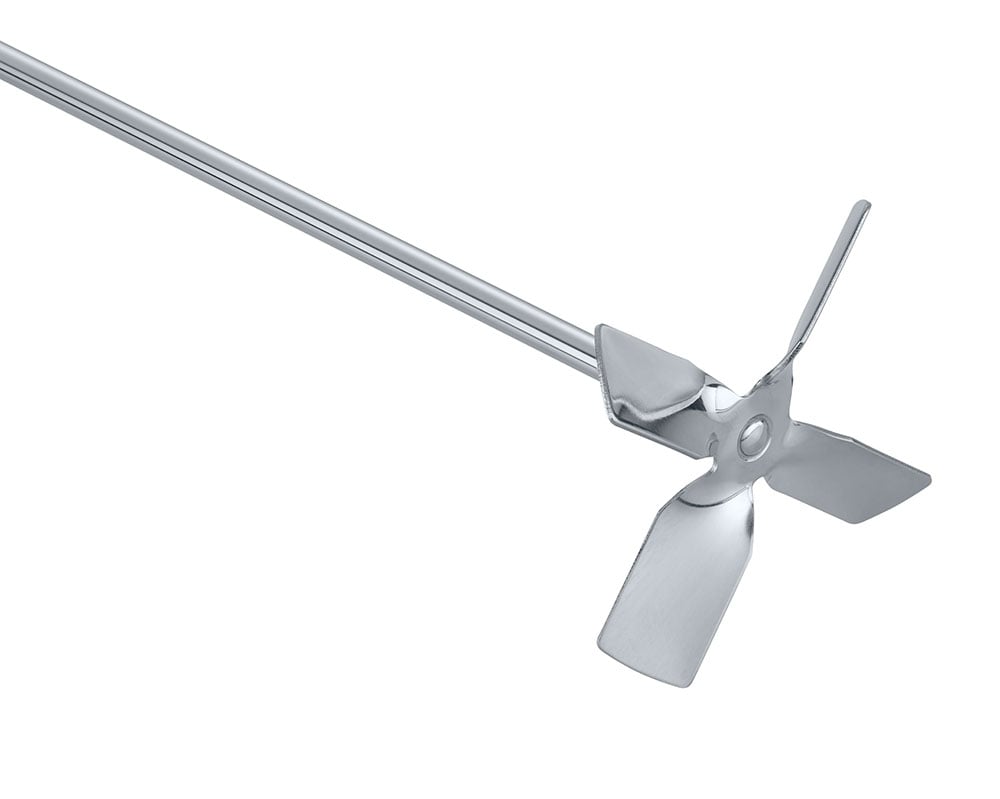

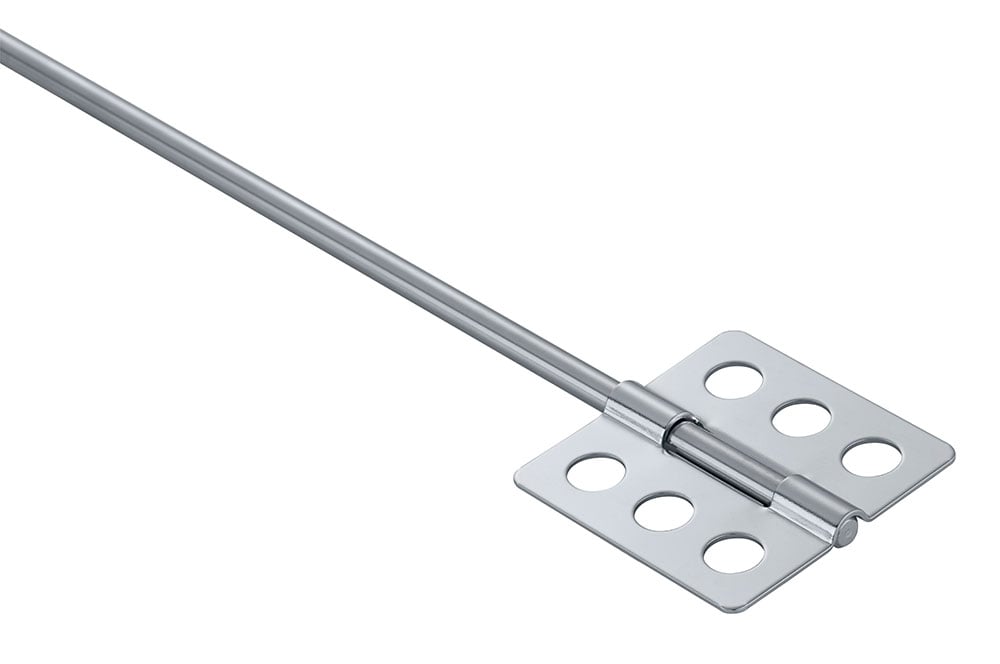

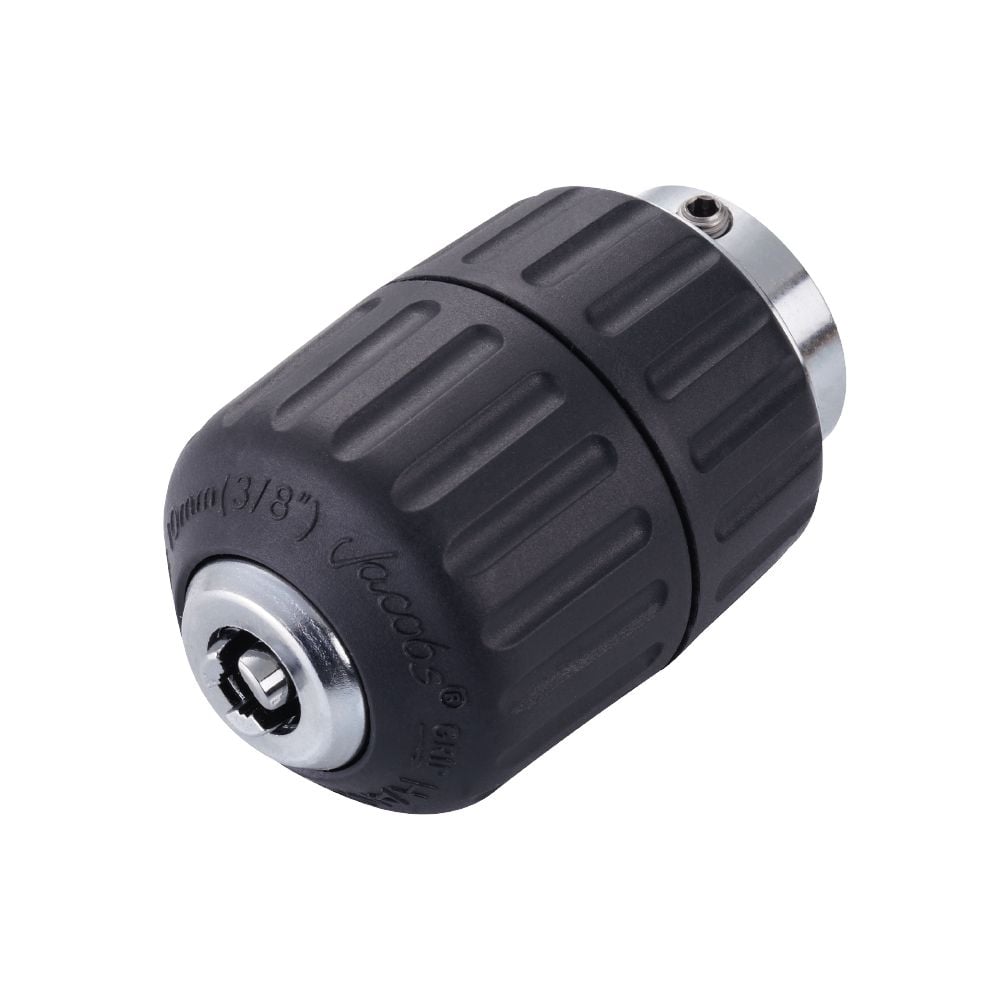

Toebehoren
Downloads
ika-overhead-stirrers-brochure-en.pdf
FAQ
Heb je vragen over dit product of over deze categorie? Op onze FAQ-sectie geven we je antwoord op veelgestelde vragen!
Bekijk de FAQJe kan onze experts altijd bereiken via info@imlab.eu
Of bel ons direct op +32 (0) 16 73 55 72
(Bereikbaar op werkdagen van 08:00 tot 17:00)
Stel direct je vraag
"*" geeft vereiste velden aan

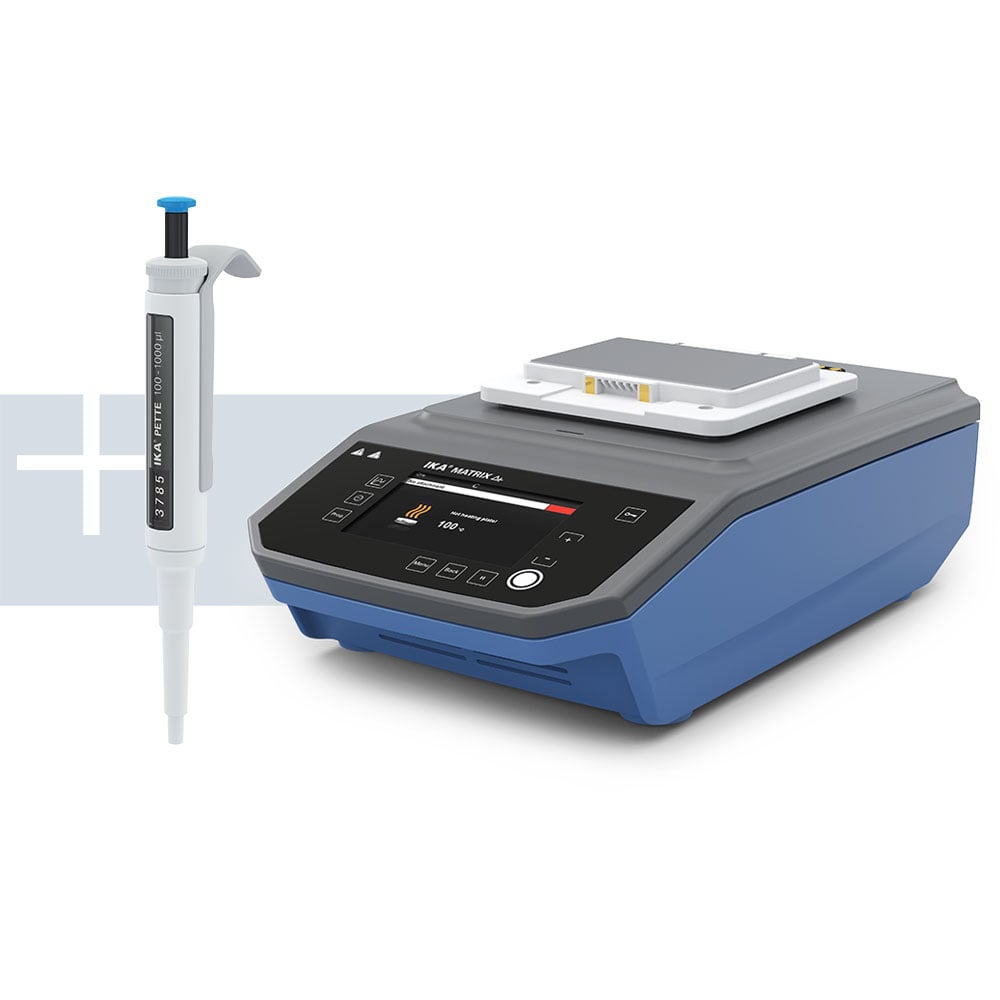

Vergelijkbare producten
