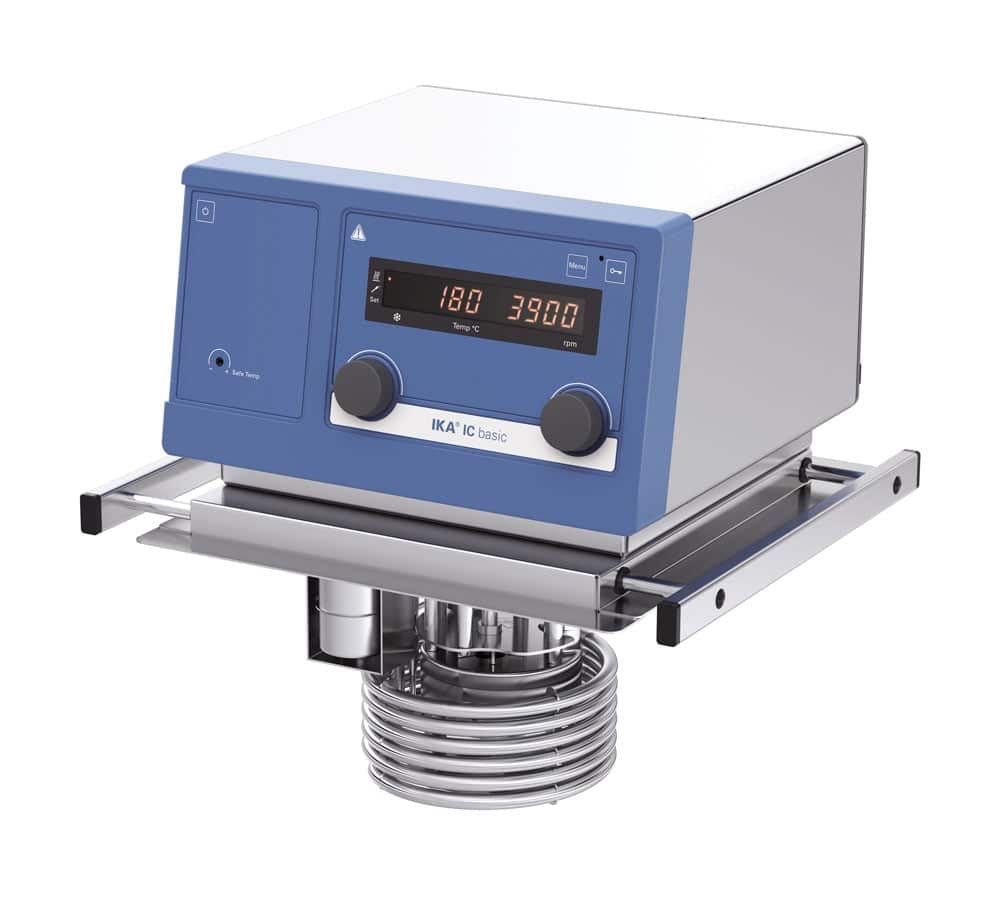

Ika IC basic
The IC basic immersion circulator is used for tempering liquids in open or covered water baths up to 250 °C
The circulator has an adjustable bridge that can be replaced by a fixed bridge
With the integrated powerful pressure/suction pump, the IC basic can be used for internal and external applications

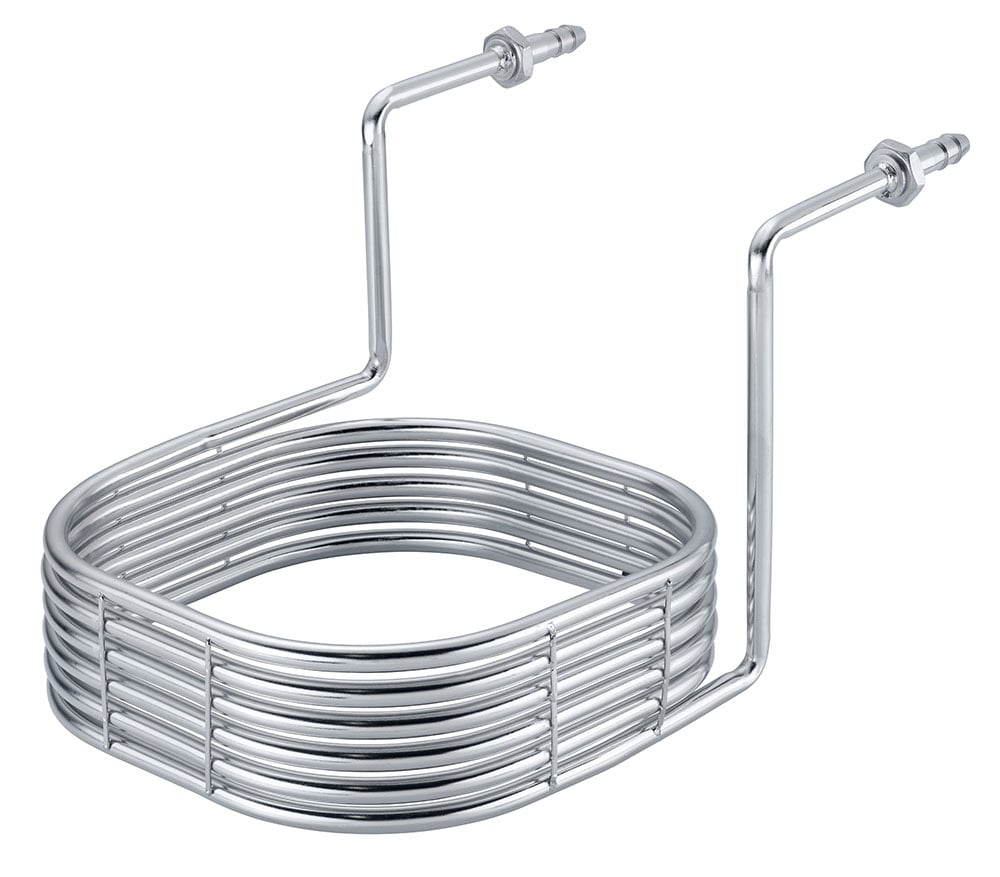

A cooling coil can be connected to the circulator to temper near-ambient temperatures
All IKA circulating baths conform to the highest safety classification III (FL) for use with flammable liquids according to DIN 12876
The IC basic immersion circulators allow for quick heat-up times and stable temperautre conditions
With integrated connections (M16x1) the device is suitable for external applications.
Temperature range: RT - 250 °C
Temperature stability is ± 0.02 K
Stainless steel bath bridge can be combined with water baths of different volumes
Adjustable safety circuit
Powerful pressure/suction pump
Large easy to read LED display for pump speed and temperature
Push and turn buttons for intuitive menu navigation
Connection for external PT 100 temperature probe
Visual and acoustic safety warnings
USB / RS 232 interface for PC control and documentation using labworldsoft®, as well as for online firmware updates
| Debiet (L/min) | 31 L/min | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Temperatuurbereik (°C) | 250 °C | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Verwarmingsvermogen (W) | 2.500 W | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Technische data |
| Appliance type | Immersion thermostat |
| Class designation acc. DIN 12876 | III |
| Identification according to DIN 12876 | FL |
| Heat output [W] | 2500 |
| Working temperature [°C] | room temp. +10K @1000rpm - 250 |
| Operating temperature min. (with external cooling) [°C] | -20 |
| Temperature display | Ja |
| Temperature control | PT 100 |
| Working temperature sensor | PT 100 |
| Safety temperature sensor | PT1000 |
| Working temperature display | LED |
| Safety temperature display | LED |
| Temperature stability DIN 12876 [K] | ±0.02 |
| Connection for ext. temperature sensor | PT 100 |
| Display resolution [K] | 0.1 |
| Display for operation with ext. sensor | Ja |
| Set temperature resolution [K] | ±0.1 |
| Warning function optical | Ja |
| Warning function acoustic | Ja |
| Warning function excess temperature | Ja |
| Warning function insufficient temperature | Nee |
| Adjustable safety circuit [°C] | 0 - 260 |
| Sub-level protection | Ja |
| Over-level protection | Ja |
| Pump type | Pressure- / suction pump |
| Pump capacity adjustable | Ja |
| Pump pressure max. (0 liters discharge flow) [bar] | 0.61 |
| Pressure pump (suction side) (0 liter flow) [bar] | 0.45 |
| Flow rate max. (0 bar back pressure) [l/min] | 31 |
| Pump connection | M16x1 |
| Bath depth min. [mm] | 150 |
| Calibration option | Ja |
| Appliance fastener | Bridge |
| Range of universal clamp [mm] | 280 - 375 |
| Technical data complies with the standard | DIN 12876 |
| Permissible ON time [%] | 100 |
| Dimensions (W x H x D) [mm] | 285 x 313 x 291 |
| Weight [kg] | 10 |
| Permissible ambient temperature [°C] | 5 - 40 |
| Permissible relative humidity [%] | 80 |
| Protection class according to DIN EN 60529 | IP 21 |
| RS 232 interface | Ja |
| USB interface | Ja |
| Voltage [V] | 230 |
| Frequency [Hz] | 50/60 |
| Power input [W] | 2650 |
The IC basic immersion circulator is used for tempering liquids in open or covered water baths up to 250 °C
The circulator has an adjustable bridge that can be replaced by a fixed bridge
With the integrated powerful pressure/suction pump, the IC basic can be used for internal and external applications
A cooling coil can be connected to the circulator to temper near-ambient temperatures
All IKA circulating baths conform to the highest safety classification III (FL) for use with flammable liquids according to DIN 12876
The IC basic immersion circulators allow for quick heat-up times and stable temperautre conditions
With integrated connections (M16x1) the device is suitable for external applications.
Temperature range: RT - 250 °C
Temperature stability is ± 0.02 K
Stainless steel bath bridge can be combined with water baths of different volumes
Adjustable safety circuit
Powerful pressure/suction pump
Large easy to read LED display for pump speed and temperature
Push and turn buttons for intuitive menu navigation
Connection for external PT 100 temperature probe
Visual and acoustic safety warnings
USB / RS 232 interface for PC control and documentation using labworldsoft®, as well as for online firmware updates
