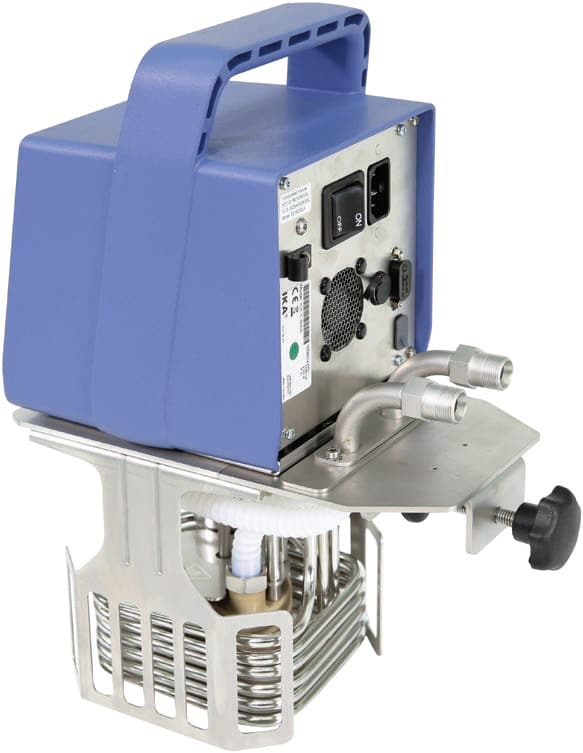

Compact immersion circulator ICC basic for tempering of liquids up to 150 °C

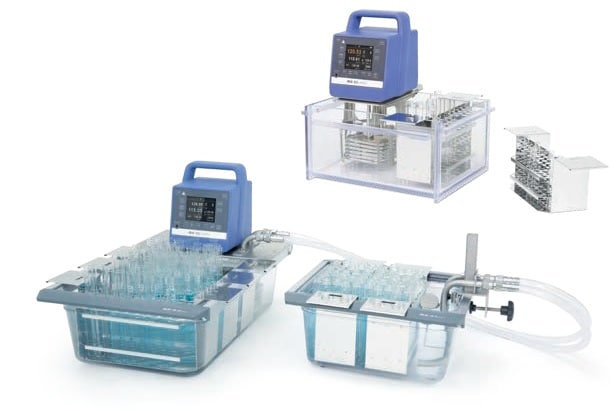

Suitable to use in open or covered bath vessels.
The integrated pressure/ suction pump allows ICC basic to be used for internal and external applications
Just connect the optional pump set
ICC basic also has an optional cooling coil that allows to work close to ambient temperatures
The ICC basic circulator is first in its class with an integrated carrying handle that allows for comfortable transport and safe storage thanks to its clever stand.
Temperature range: RT - 150 °C
Temperature stability: ± 0.02 K
Powerful, speed-controlled pressure/suction pump
Holding clamp for attaching the circulator to a bath is included
Convenient carrying handle und integrated brackets
Large easy to read LED display for pump speed and temperature
Push and turn buttons for intuitive menu navigation
Adjustable safety circuit
Visual and acoustic safety warnings
USB / RS 232 interface for PC control and documentation using labworldsoft®, as well as for online firmware updates
Debiet (L/min) | 18 L/min | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Temperatuurbereik (°C) | 150 °C | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Verwarmingsvermogen (W) | 2.000 W | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Technische data |
Appliance type | Compact immersion circulators |
Class designation acc. DIN 12876 | III |
Identification according to DIN 12876 | FL |
Heat output [W] | 2000 |
Working temperature [°C] | room temp. +10K @1000rpm - 150 |
Operating temperature min. (with external cooling) [°C] | -20 |
Temperature display | Ja |
Temperature control | PT 100 |
Working temperature sensor | PT 100 |
Safety temperature sensor | PT1000 |
Working temperature display | LED |
Safety temperature display | LED |
Temperature stability DIN 12876 [K] | ±0.02 |
Display resolution [K] | 0.1 |
Display for operation with ext. sensor | Ja |
Set temperature resolution [K] | ±0.1 |
Warning function optical | Ja |
Warning function acoustic | Ja |
Warning function excess temperature | Ja |
Warning function insufficient temperature | Nee |
Adjustable safety circuit [°C] | 0 - 160 |
Sub-level protection | Ja |
Over-level protection | Ja |
Pump type | Pressure- / suction pump |
Pump capacity adjustable | Ja |
Pump pressure max. (0 liters discharge flow) [bar] | 0.3 |
Pressure pump (suction side) (0 liter flow) [bar] | 0.2 |
Flow rate max. (0 bar back pressure) [l/min] | 18 |
Bath depth min. [mm] | 150 |
Calibration option | Ja |
Appliance fastener | clamp |
Technical data complies with the standard | DIN 12876 |
Permissible ON time [%] | 100 |
Dimensions (W x H x D) [mm] | 145 x 340 x 200 |
Weight [kg] | 3.75 |
Permissible ambient temperature [°C] | 5 - 40 |
Permissible relative humidity [%] | 80 |
Protection class according to DIN EN 60529 | IP 21 |
RS 232 interface | Ja |
USB interface | Ja |
Voltage [V] | 230 |
Frequency [Hz] | 50/60 |
Power input [W] | 2100 |
Compact immersion circulator ICC basic for tempering of liquids up to 150 °C
Suitable to use in open or covered bath vessels.
The integrated pressure/ suction pump allows ICC basic to be used for internal and external applications
Just connect the optional pump set
ICC basic also has an optional cooling coil that allows to work close to ambient temperatures
The ICC basic circulator is first in its class with an integrated carrying handle that allows for comfortable transport and safe storage thanks to its clever stand.
Temperature range: RT - 150 °C
Temperature stability: ± 0.02 K
Powerful, speed-controlled pressure/suction pump
Holding clamp for attaching the circulator to a bath is included
Convenient carrying handle und integrated brackets
Large easy to read LED display for pump speed and temperature
Push and turn buttons for intuitive menu navigation
Adjustable safety circuit
Visual and acoustic safety warnings
USB / RS 232 interface for PC control and documentation using labworldsoft®, as well as for online firmware updates
