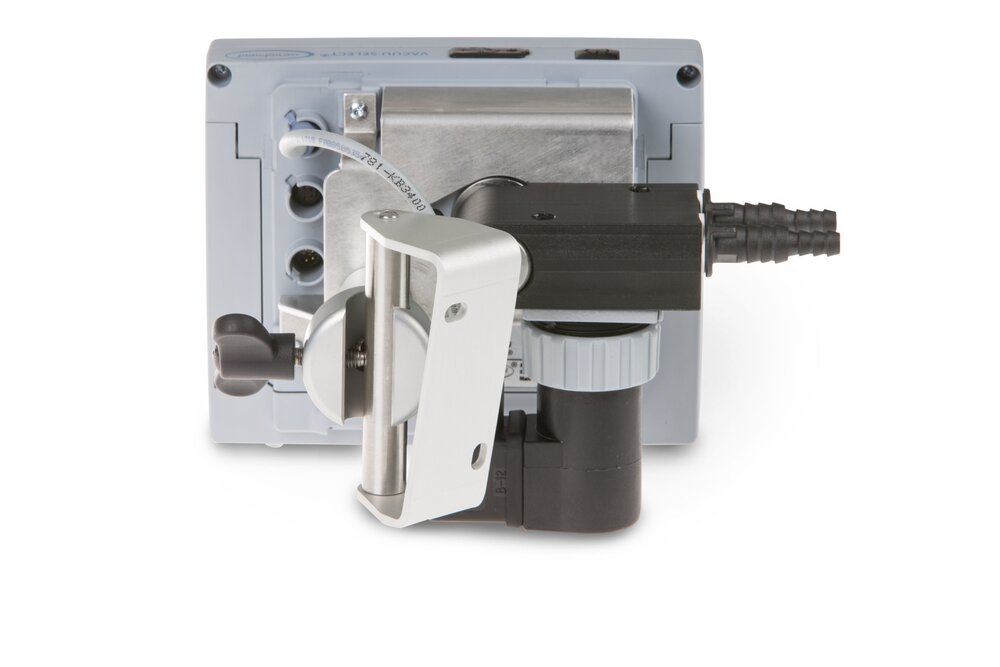

VACUUBRAND Complete controller for scaffold mounting

Merk: VACUUBRAND
Referentie: 20700080
The VACUU·SELECT complete controller provides enhanced process efficiency to applications supported by a vacuum source such as a basic pump or a powerful vacuum network
The VACUU·SELECT controller has you covered
Use manual set-point-control for simple processes, run pre-defined applications at the touch of a button, or create your own application with simple drag-and-drop editing
The controller is available as a benchtop unit, ready for mounting on lab scaffolding, or as a built-in version for lab casework
The integrated controller includes the VACUU·SELECT vacuum controller, a check valve, and a chemical-resistant solenoid isolation valve
The ceramic vacuum sensor and venting valve are built right into the body of the VACUU·SELECT controller
The compact unit is easy to install and setup
With its intuitive, application-based interface, the controller offers predefined vacuum processes for all common laboratory applications
In the case of solvent evaporation, it detects the boiling pressure and then holds the pressure level stable using two-point control
Nauwkeurigheid: 1 mbar
Gamma: Vacuümmeters
2.420,00 Excl. BTW
2.928,20 Incl. BTW
Levertijd op aanvraag
Gratis levering v.a. € 400 in webshop
Voordelige prijzen
Vijfsterrenservice voor & na verkoop
Levering 1 à 3 dagen voor stockartikelen
GammaVacuümmeters
Nauwkeurigheid1 mbar

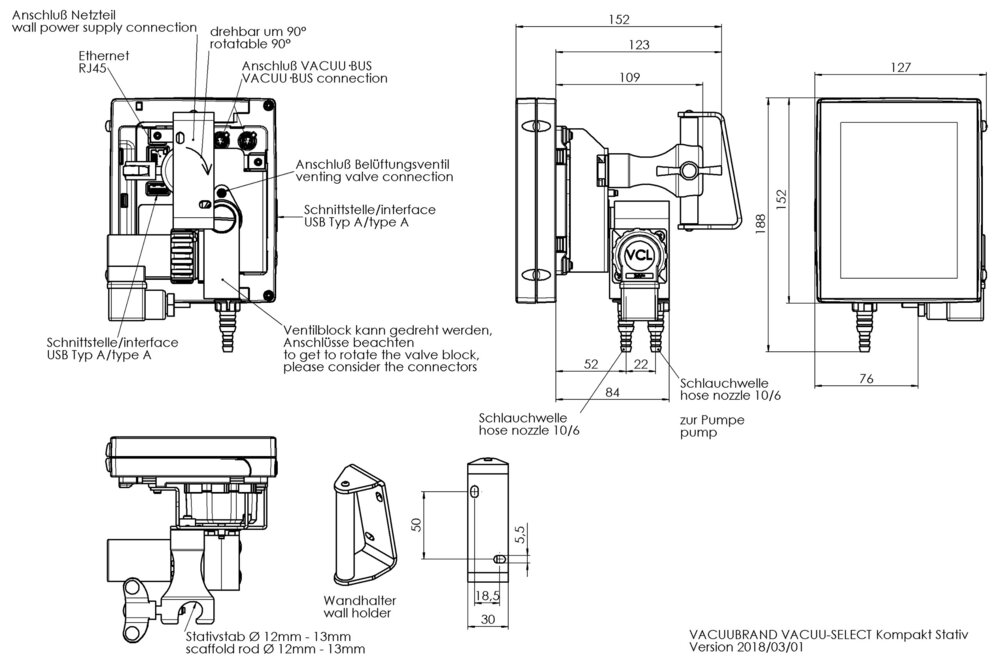

Afmetingen in mm (L x B x H)152 x 127 x 188 mm
PrincipeCeramic diaphragm (alumina), capacitive, gas indep., absolute pressure
Omgevingstemperatuur (opslag)-10 - 60 °C
ATEX-conformiteitII 3/- G Ex h IIC T4 Gc X Internal Atm. only
NRTL-certificatieJa
Netspanningsbereik 1100 - 230 V
Netfrequentie 150 - 60 Hz
Materialen in contact met mediumAlumina ceramics, PPS, fluoroelastomer
Bovengrens meetlimiet1.080 mbar/hPa
Ondergrens meetlimiet0,1 mbar/hPa
VacuümsensorVACUU·SELECT Sensor
VacuümverbindingHose nozzle DN 6/10 mm
Temperatuurcoëfficiënt< 0,15 mbar/hPa/0,11 torr /K
BeluchtingsventielGeïntegreerd, slanguitgang DN 4-5 mm
Max. temp. medium bij continue werking40 °C
Max. temp. medium bij korte duur80 °C
Materiaal behuizingRobust plastic housing with good chemical resistance
Beschermingsklasse voorzijdeIP 41
Max. stroom voor VACUU·BUS (24V DC)4 A
Lengte netkabel2 m
InterfaceEthernet (RJ45): Modbus TCP / USB (Type A): Data transfer, software update, RS-232 (additional adapter required)
Materiaal componenten (excl. afdichting)VACUU·SELECT complete controller for lab scaffold mounting, with solenoid valve, PVDF/fluoroplastics, 100-230V / 50-60Hz, plug CEE/CH/UK/US/AUS/CN
Gewicht2 kg
The VACUU·SELECT complete controller provides enhanced process efficiency to applications supported by a vacuum source such as a basic pump or a powerful vacuum network
The VACUU·SELECT controller has you covered
Use manual set-point-control for simple processes, run pre-defined applications at the touch of a button, or create your own application with simple drag-and-drop editing
The controller is available as a benchtop unit, ready for mounting on lab scaffolding, or as a built-in version for lab casework
The integrated controller includes the VACUU·SELECT vacuum controller, a check valve, and a chemical-resistant solenoid isolation valve
The ceramic vacuum sensor and venting valve are built right into the body of the VACUU·SELECT controller
The compact unit is easy to install and setup
With its intuitive, application-based interface, the controller offers predefined vacuum processes for all common laboratory applications
In the case of solvent evaporation, it detects the boiling pressure and then holds the pressure level stable using two-point control
