VACUUBRAND Chemische membraanpomp MD 12C NT VARIO select
The MD 12C NT VARIO select pump is an excellent solution for those who need high pumping speed and are working with high boiling point solvents
Combined with the reliability born of its chemical resistant fluoropolymer and perfluoroelastomer wetted materials, this pump delivers reliable performance for floor-standing rotary evaporators, vacuum drying ovens, vacuum distillation columns, and other similar applications. The integrated VACUU·SELECT controller provides an easy-to-use, application based interface that covers all common lab applications
The VACUU·SELECT controller has you covered
Use manual set-point-control for simple processes, run fully automated distillations, or create your own application with simple drag-and-drop editing
For solvent evaporation, the VACUU·SELECT controller continuously detects the boiling point and automatically adjusts the vacuum process to maintain process control. With VARIO control, the pump runs only as fast is necessary
This extends the maintenance intervals and makes the pumping unit whisper quiet
| Ultiem vacuüm | 1,5 mbar |

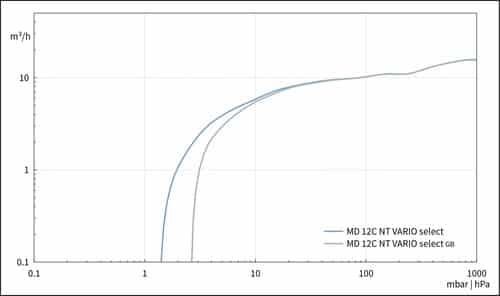

| Pompsnelheid | 14,3 m3/u |
| Vacuümregelaar | Ja |
| Aantal pompkoppen | 8 |
| Aantal trappen | 3 |
| Inlaatverbinding | Kleinflens KF DN 25 |
| Uitlaatverbinding | Slanguitgang DN 15 mm |
| IP-bescherming | IP 40 |

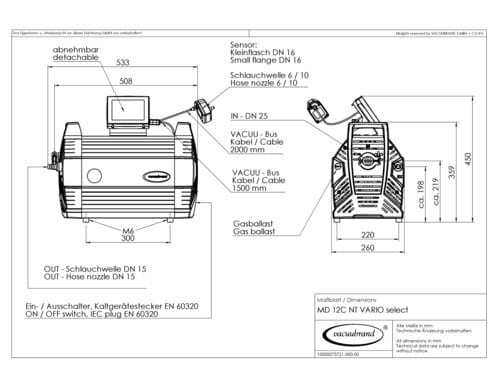

| Afmetingen in mm (L x B x H) | 533 x 260 x 450 mm |
| Omgevingstemperatuur (in werking) | 10 - 40 °C |
| Omgevingstemperatuur (opslag) | -10 - 60 °C |
| Max. absolute tegendruk | 1,1 mbar |
| Vermogen motor | 0,53 kW |
| Motorsnelheid VARIO | 30 - 2.400 min-1 |
| Geluidsniveau op 50 Hz | 28,9 dBA |
| ATEX-conformiteit | II 3/- G Ex h IIC T3 Gc X Enkel Interne Atm. |
| NRTL-certificatie | Nee |
| Netspanningsbereik 1 | 200 - 230 V |
| Netfrequentie 1 | 50 - 60 Hz |
| Materialen in contact met medium | PTFE (gedeeltelijk versterkt met koolstof), ETFE/ECTFE (gedeeltelijk versterkt met koolstofvezel), FFKM |
| Max. temp. medium bij continue werking | 40 °C |
| Max. temp. medium bij korte duur | 80 °C |
| Lengte netkabel | 2 m |
| Gewicht | 28,9 kg |
The MD 12C NT VARIO select pump is an excellent solution for those who need high pumping speed and are working with high boiling point solvents
Combined with the reliability born of its chemical resistant fluoropolymer and perfluoroelastomer wetted materials, this pump delivers reliable performance for floor-standing rotary evaporators, vacuum drying ovens, vacuum distillation columns, and other similar applications. The integrated VACUU·SELECT controller provides an easy-to-use, application based interface that covers all common lab applications
The VACUU·SELECT controller has you covered
Use manual set-point-control for simple processes, run fully automated distillations, or create your own application with simple drag-and-drop editing
For solvent evaporation, the VACUU·SELECT controller continuously detects the boiling point and automatically adjusts the vacuum process to maintain process control. With VARIO control, the pump runs only as fast is necessary
This extends the maintenance intervals and makes the pumping unit whisper quiet
