OHAUS DFP 5000 Series Vloerweegschaal DFP52P600J1-M
Let op: Dit is een geijkte versie met metrologische markering (M) voor handelsverkeer en medische toepassingen
Prime German quality Pallet Scales Full-fill Even the Most demanding Industry Applications

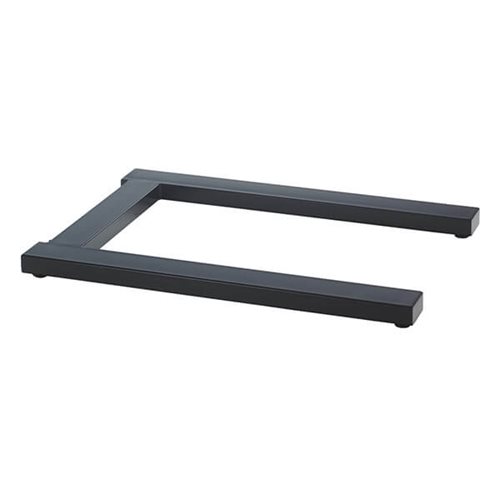

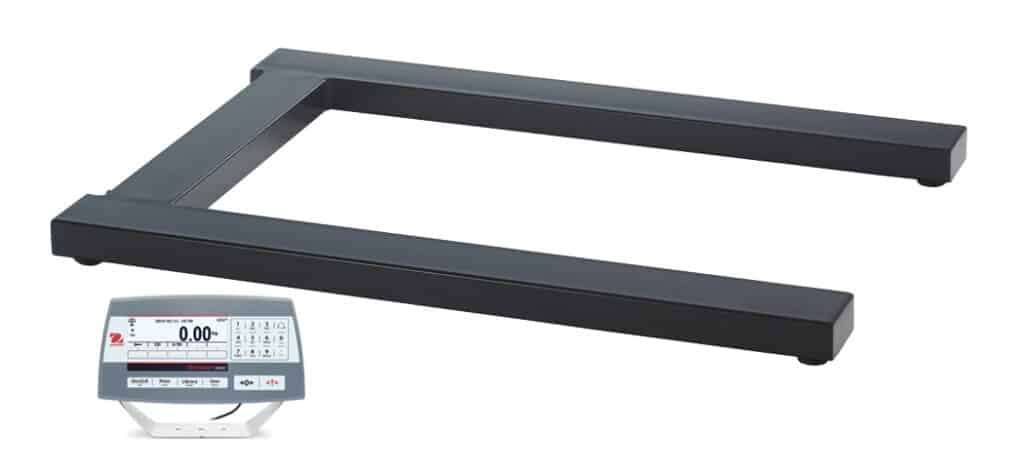

The OHAUS next generation Defender 5000 Series Pallet Scale is a solid lineup of painted steel and stainless steel platforms and scales
Its high-quality German engineered construction, with stainless steel IP68 hermetically sealed load cells ensure durability and reliability that will withstand years of daily usage in industrial environments
Applications
Weighing, Parts Counting, Percent Weighing, Checkweighing, Dynamic Weighing (Display Hold)
Display
Backlit Liquid Crystal Display (LCD), 256 x 80 pixels
Operation
Internal power supply with power cord (included) or rechargeable battery (sold separately as an accessory)
Communication
Easy access communication ports including RS232 and Micro SD slot (included), second RS232/RS485/USD device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog Output (sold separately as accessories)
GLP/GMP data output with real-time clock
Construction

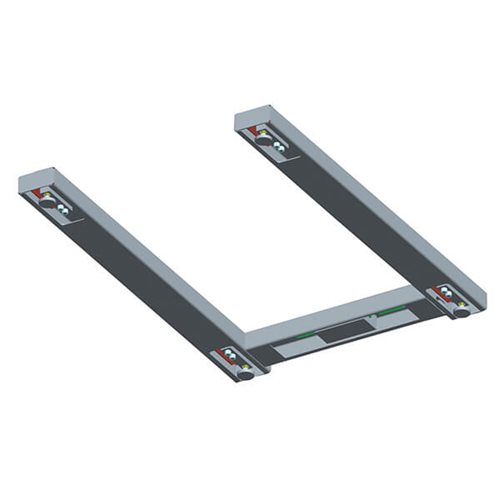

ABS plastic indicator, black painted steel U-frame, IP67 stainless steel junction box, IP68 OIML R60 electro-polished stainless steel load cells
Design Features
Structural channel bracing and pendulum design feet with removable rubber cap, 150% overload protection
Checkweighing symbols with selectable operation and audible signal settings, menu lock switch, multiple selectable operating languages, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, selectable adjust contrast settings, auto-dim display, auto-off, auto tare.
| Weegbereik | 600 kg |
| Precisie | 100 g |
| Afmetingen plateau in mm (B x L) | 1.256 x 840 mm |
| Metrologische ijking (M) | Ja |
| Additional transport costs | Yes |
| Battery Life | 20 Hours with Rechargeable Battery |
| Communication | 2nd RS232/RS485/USB (Available as an Accessory), Ethernet (Available as an Accessory), RS232 (Included), USB Host (Available as an Accessory), WiFi/Bluetooth (Available as an Accessory) |
| Dimensions (Height) | 78 mm |
| Dimensions (Length) | 1256 mm |
| Dimensions (Width) | 840 mm |
| Display | Dot matrix LCD with white LED backlight |
| Key Features | Battery, GLPGMP, IndicatorPlatformSeperated, LFT, Printer |
| Legal for Trade | EC Type Approved |
| Main Purpose | Check Weighing, Counting, Data Communication, Percent Weighing |
| Market Worlds | Industrial |
| Maximum Capacity | 600 kg |
| Net Weight | 50.5 kg |
| Outputs | 2 In/4 Out digital I/O, 4～20mA |
| Platform Construction | Stainless Steel |
| Platform Size (Length) | 1256 mm |
| Platform Size (Width) | 840 mm |
| Power | AC Power (Included), Rechargeable Battery (Not Included) |
| Use | MobileUsage, OntheFloor, Outdoor, WorkinIndustrial |
| Protection Rating | Not Applicable |
| Readability (Certified) | 0.2 kg |
| Readability | 0.2 kg |
| Test Weight | 600kg, OIML M1 or ASTM CL F |
| Typical Areas | In shipping, logistics and general high capacity weighing |
| Units of Measurement | Gram, Kilogram, Metric Tonnes |
| Working Environment | -10°C – 40°C, 85%RH, non-condensing |
Let op: Dit is een geijkte versie met metrologische markering (M) voor handelsverkeer en medische toepassingen
Prime German quality Pallet Scales Full-fill Even the Most demanding Industry Applications
The OHAUS next generation Defender 5000 Series Pallet Scale is a solid lineup of painted steel and stainless steel platforms and scales
Its high-quality German engineered construction, with stainless steel IP68 hermetically sealed load cells ensure durability and reliability that will withstand years of daily usage in industrial environments
Applications
Weighing, Parts Counting, Percent Weighing, Checkweighing, Dynamic Weighing (Display Hold)
Display
Backlit Liquid Crystal Display (LCD), 256 x 80 pixels
Operation
Internal power supply with power cord (included) or rechargeable battery (sold separately as an accessory)
Communication
Easy access communication ports including RS232 and Micro SD slot (included), second RS232/RS485/USD device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog Output (sold separately as accessories)
GLP/GMP data output with real-time clock
Construction
ABS plastic indicator, black painted steel U-frame, IP67 stainless steel junction box, IP68 OIML R60 electro-polished stainless steel load cells
Design Features
Structural channel bracing and pendulum design feet with removable rubber cap, 150% overload protection
Checkweighing symbols with selectable operation and audible signal settings, menu lock switch, multiple selectable operating languages, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, selectable adjust contrast settings, auto-dim display, auto-off, auto tare.
